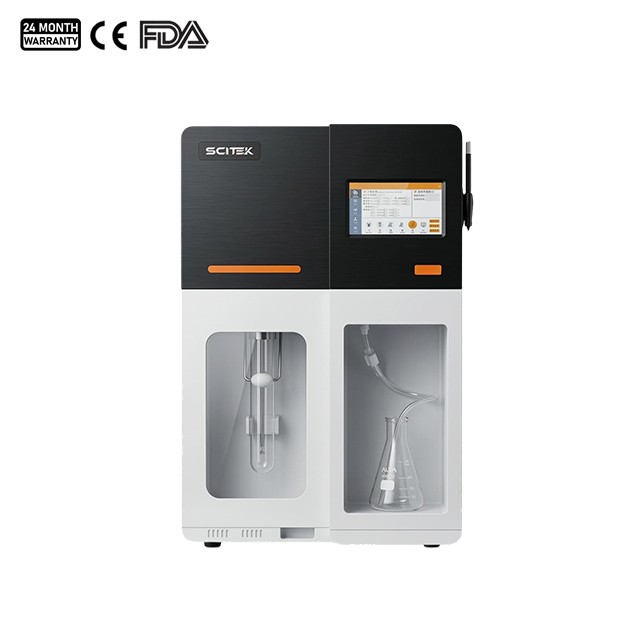

This kjeldahl apparatus is highly reliable and features a unique alkaline pump anti-crystallisation technology that eliminates alkaline pump crystallisation problems.
KA-520 automatic kjeldahl apparatus adopts an advanced 16-bit triple-base chromaticity color sensor. KA-520 also introduces self-developed alkali pump anti-crystallization technology, which successfully solves the problem of crystallization of the alkali pump and significantly improves the reliability and stability of the instrument.
The modular structure design of the kjeldahl apparatus ensures stability and reliability during use, as well as the accuracy of test results. This makes the KA-520 automatic kjeldahl apparatus a state-of-the-art instrument with excellent performance and reliable operation in nitrogen determination.
Automatic Kjeldahl Apparatus Feature:
Automated Operation
Automatically completes acid addition, base addition, water addition, and distillation.
Sample explosion-proof boiling
The methods of sample dilution and alkali addition can be set arbitrarily according to the different samples of users, so as to prevent the sample from bursting and boiling and improve the measurement accuracy.
Alkali pump anti crystallization.
The self-developed alkali pump anti crystallization technology solves the problem of alkali pump crystallization and improves the reliability of the instrument.
Steam adjustable
Steam pre adding mode, steam flow rate (1-100%) can be adjusted automatically, so as to achieve better distillation effect and ensure the accuracy of the experiment.
Security protection
Multiple intelligent protections, such as digestive tube in place detection, safety valve, condensate detection, steam generator overheating, overpressure protection, liquid level detection, etc., ensure the instrument and operator Staff safety.
Automatic Kjeldahl Apparatus Specification:
Model
KA-520
Determination Range
0.1-220 mgN (mg nitrogen)
Measuring Speed
3-5min/sample
Sample Weight
Solid ≤ 5 g; Liquid ≤ 20 mL
Reproducibility
0.3% relative error
Rate of Recovery
Over 99.5% 1-250mgn
Nitrogen Pipe Emptying
/
Storage Capacity
Data storage > 2000set
Power
AC100~240V, 50/60Hz, 1300W
Sizes(WxDxH)
500x410x850 mm
Shipping Size (WxDxH)
590x550x970 mm
N.W./G.W. (kg)
35/50
Supporting Products
Kjeldahl Digestion Furnace KDF-120G
FAQ
Principle of the Automatic Kjeldahl Apparatus
After heating, the sample is digested with concentrated sulfuric acid in the presence of a catalyst. The organic nitrogen in the sample is converted into ammonium sulfate. The Kjeldahl apparatus then calculates the nitrogen content in the sample based on the amount of base or acid consumed during the titration process.
Do you offer installation and training?
Yes, we provide comprehensive installation and training support to ensure smooth setup and efficient operation of the equipment.
For installation, we offer detailed step-by-step video guides and technical documentation to assist your team during initial setup. In addition, our engineers are available for real-time remote support, guiding users through installation, commissioning, and initial operation.
If required, on-site installation and training services can also be arranged. Our technical specialists will visit your facility to perform installation, calibration, and hands-on training tailored to your specific application needs.
What are the limitations of the Kjeldahl method?
The Kjeldahl method can only be used to determine the nitrogen content in samples such as food, soil, water, chemicals, amino acids, proteins, and ethanol.
What is the warranty period?
24 months; extended warranty service is available.
