Independent ventilation cage system (IVC) is suitable for the cultivation, reproduction, seed preservation and various short-term animal experiments of SPF-level experimental animals, especially for the breeding of immunodeficient animals and transgenic animals.
IVC independently supplies and exhausts air to each cage, which can achieve strict microbial control of the living space of experimental animals and prevent cross-infection between different cages. It also has the advantages of simple operation, energy saving and low equipment maintenance cost.

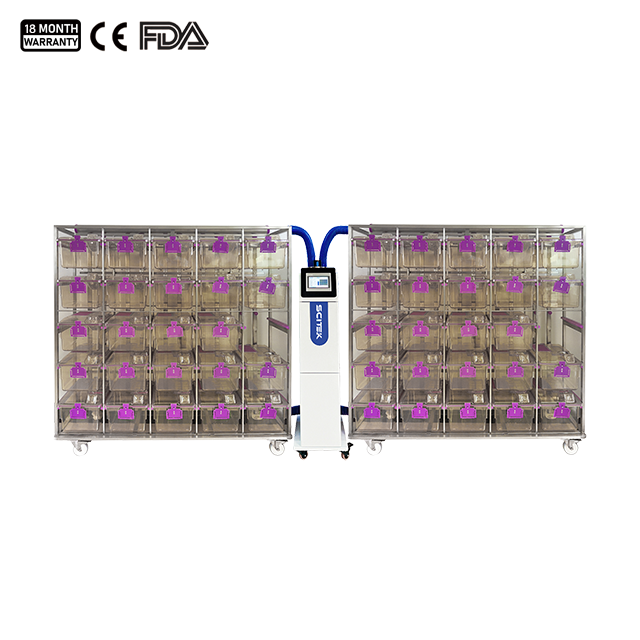

IVC consists of three parts: host, cage frame and cage box, and has components such as human-machine operating system, temperature and humidity monitoring system, pressure monitoring system, multi-stage filtration system, supply and exhaust system, etc.
Rat IVC Host Specifications:
| Model | IVC-2H |
| Size (WxDxH)(mm) | 440×600×1500 |
| Material | SUS304 stainless steel, outer shield spraying process |
| Display | 7-inch intelligent true color touch screen |
| Air Velocity | 0.03-0.2m/s (adjustable) |
| Ventilation Frequency | 10-60 times/h (adjustable) |
| Noise | ≤55dB |
| Cage Pressure Difference | 10-50Pa (adjustable) |
| Cage Cleanliness | ISO5 (100 grade) |
| Supply and Exhaust Air | Constant pressure connection is adopted to ensure the balance of air volume of each cage box. The air duct is connected to the host with a one-time molded polymer material equal diameter tee and a flat plug connector |
| Casters | 4 pcs 3-inch stainless steel polyurethane universal casters, 2 of which are with brakes |
| Optional | UPS power supply |
| Power Supply | 220V/50Hz |

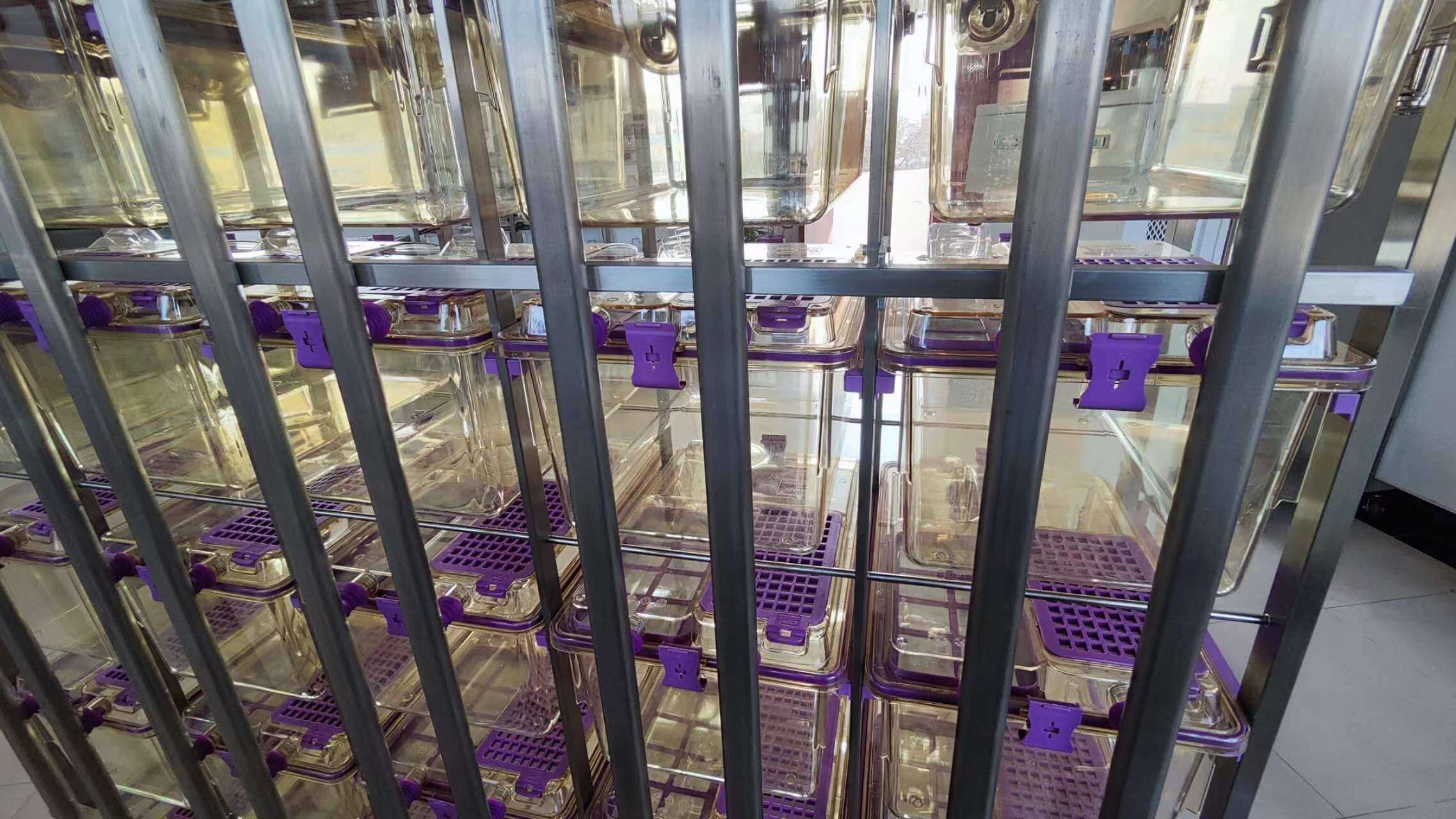

Rat Cage Frame Specifications:
| Model | IVC-2CF |
| Size (WxDxH)(mm) | 1665x580x1680 (5 layers x 5 rows = 25 cages) |
| Material | SUS304 stainless steel, autoclavable, easy to clean, tube wall thickness not less than 1.2mm |
| Supply and Exhaust Ducts | SUS304 stainless steel pipe |
| Cage Guide Rails | It is made of polymer material and is equipped with a cage in place indicator to remind you whether the cage is in place. |
| Casters | 4 pcs 3-inch stainless steel polyurethane universal casters, 2 of which are with brakes |
| Coordinate Numbers | The longitudinal positions on both sides of the cage are marked with coordinate numbers 1, 2, 3, 4..., and the horizontal positions on the top of the cage are marked with coordinate numbers A, B, C, D... |
Rat Cage Box Specifications:
| Model | IVC-2CB |
| Size(WxDxH)(mm) | 465x305x225 |
| Plastic Cage Box Material | Polycarbonate (PC), polysulfone (PSU), polyphenylsulfone (PPSU) |
| LID Cover | Built-in exhaust filter, life air window, inlet and outlet valves and buckles, etc;
Square life air window, covered with 0.2mm high-efficiency filter membrane, prevents microbial infection;
Self-closing inlet and outlet valve, double O-ring seal, keep the cage clean |
| Stainless Steel Mesh | SUS304 stainless steel, acid and alkali resistant;
Steel wire Ф1.6-4mm. |
| Drinking Bottle | Capacity: 500ml;
Material: Polycarbonate (PC), polysulfone (PSU), polyphenylsulfone (PPSU);
The bottle mouth is equipped with a sealing silicone ring, which can be sterilized at high pressure;
SUS304 stainless steel bottle cap, 8mm drinking water tube. |

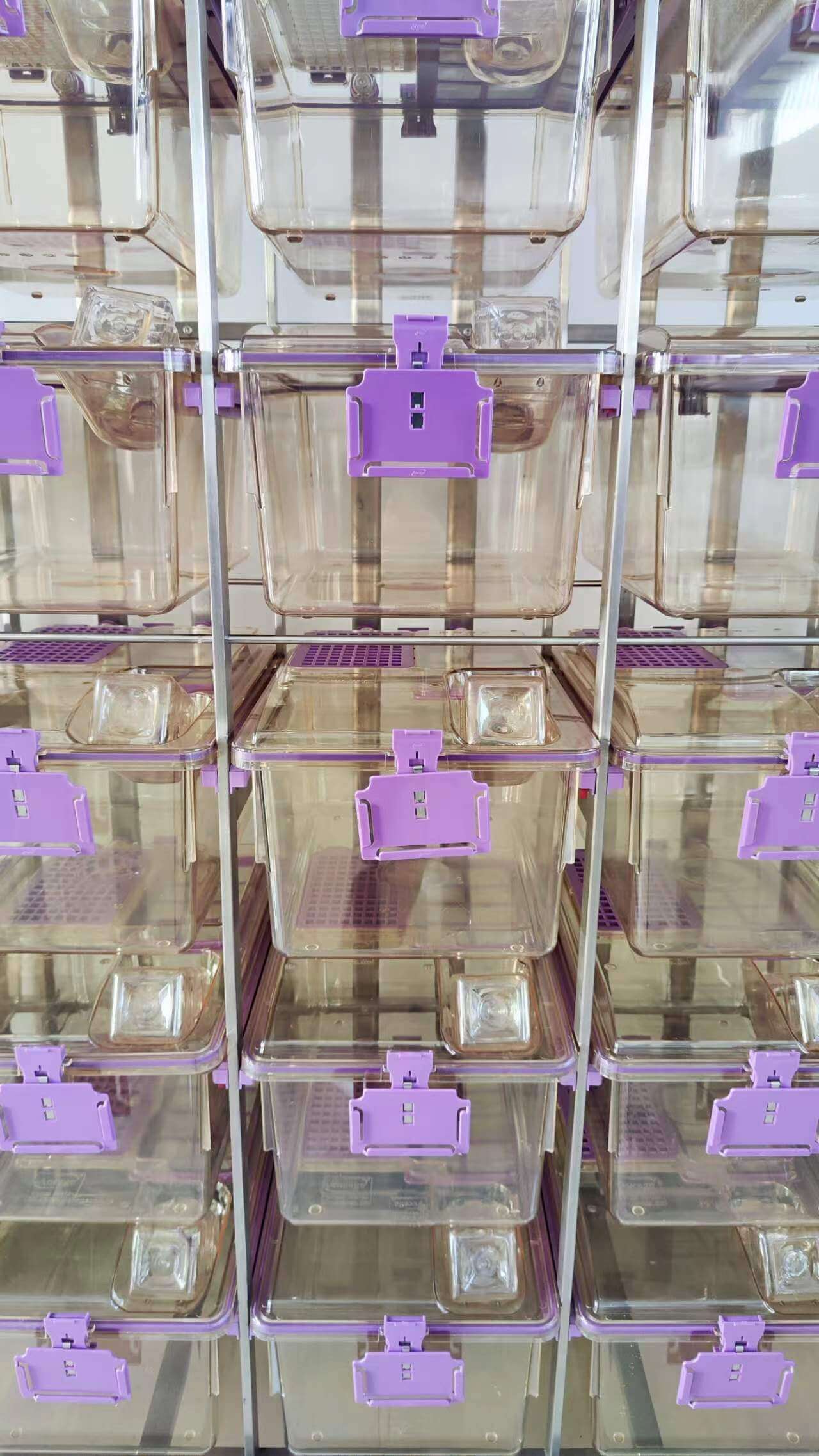

Rat IVC Cage Box Feature:
The entire IVC cage box includes the cage box, LID cover, stainless steel mesh cover, drinking bottle etc. The huge mouse cage and the LID cover are sealed with silicone seal strips, which have good air tightness.
The silicone ventilation airbag is designed to be self-sealed. After the large cage box is separated from the cage frame, the air inlet and exhaust valves of the huge mouse cage can be automatically closed immediately.
There is a life window on the top of the cage cover, and there are silicone sealing grooves around the life window, covered with high-efficiency filter membranes to ensure the safety of experimental animals.
The water bottle insertion port of the huge mouse cage must be equipped with a stainless steel self-closing valve, and the valve can be closed immediately after the water bottle is pulled out.
