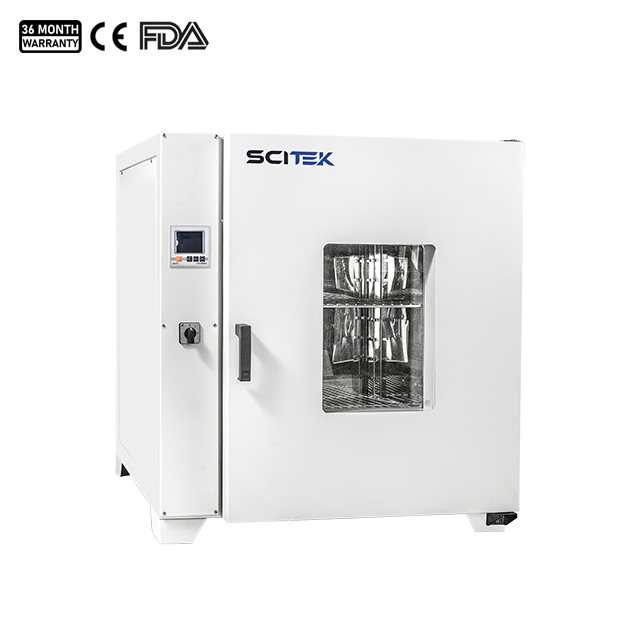

Infrared Fast Heating Drying Oven

Model : IDO-45; IDO-80; IDO-140; IDO-250

Capacity : 43L / 81L / 138L / 252L
Circulation Mode : Natural convection
Temperature Range: RT+10~250℃
Timer : 0~9999min

Availability:
Quantity:

Infrared Drying Oven Specifications:

ModelIDO-45IDO-80IDO-140IDO-250
Capacity(L)4381138252
Circulation ModeNatural convection
Size(WxDxH)Internal (mm)350x350x350450x400x450500x500x550600x600x700
External (mm)640x500x600730x530x690780x690x800880x730x950
TemperatureRange (℃)RT+10~250
Fluctuation (℃)±1
Resolution (℃)0.1
Uniformity (℃)≤Max. Temp. ±3.5
SensorPT100
ControllerMicrocomputer
DisplayHigh efinition LCD
Timer1~9999min
MaterialInternalMirror stainless steel
ExternalHigh-quality thin steel
Shelves(Standard)2
Safety DeviceOver temperaure visible& audible alarm ,leakage protector, spare temperature control
ElectricityVoltage/FrequencyAC 220/110V, 50/60Hz
Consumption (W)1400200028004000
N.W./G.W. (kg)36/5651/8176/111111/151
Shipping Size (WxDxH) (mm)750x570x840850x600x900900x760x10001060x800x1100
OptionalMulti-segment programable control, built-in printer, RS485 port, spare shelf

Infrared Drying Oven Features:

  1. Spare temperature control ensures normal operation even if the main control fails.

  2. Multiple sets of heaters, far-infrared heating radiator, and temperature control are provided.

  3. Convenient air inlet operation, reasonable air duct structure, and good temperature uniformity.


Optional:

Multi-segment programmable control / Built-in Printer / RS485 interface
