Offers a wide range of magnetic stirrers that are robust and reliable for routine stirring.Reliability with plug and play simplicity - ideal for routine stirring. Provides excellent safety and temperature performance for general purpose stirring.
Hotplate Magnetic Stirrer Specifications:
| Model | HA-2A | MS-2B | HMS-2 | HA-3A | MS-3B | HMS-3 | HMS-4 | HMS-4C |
| Type | Hotplate | Stirrer | Hotplate stirrer | Hotplate | Stirrer | Hotplate stirrer |
| Tray Size | 12x12cm | 17x17cm | 18x18cm |
| Tray Material | Aluminum alloy | Anti-corrosion ceramic coating |
| Max Temperature | 300℃ | / | 300℃ | 380℃ | / | 380℃ | 380℃ |
| Speed | / | 100-2000rpm | / | 100-2000rpm |
| Motor | / | Brushed | Brushed | / | Brushless | Brushless | Brushless | Brushless |
| Max. Stirrer | / | 2L | / | 5L | 5L |
| Loading Weight (Kg) | 3KG | 3KG | 3KG | 10KG | 10KG | 10KG | 10KG | 10KG |
| Control | Single knob | Double knob | Single knob | Double knob | Double knob+button |
| Display | / | / | / | / | / | / | / | LED |
| Timing | / | Yes |
| Temperature Sensor | / | Built-in K type or external PT100 |
| Heat Power | 180W | / | 180W | 600W | / | 600W |
| Motor Power | / | 10w | 10w | / | 30w | 30W |
| Voltage | 220V/110V 50/60hz |
| Device Size (mm) | 200×120×90 | 200×120×90 | 200×120×90 | 300×170×130 | 300×170×130 | 300×170×130 | 330×190×130 | 330×190×130 |
| Package Size (mm) | 250×180×120 | 250×180×120 | 250×180×120 | 390×240×210 | 390×240×210 | 390×240×210 | 390×250×230 | 390×250×230 |
| N.W | 1.9kg | 1.9kg | 1.9kg | 2.2kg | 2.2kg | 2.2kg | 5kg | 5kg |
| G.W | 2.5kg | 2.5kg | 2.5kg | 3.4kg | 3.4kg | 3.4kg | 5.5kg | 5.5kg |
Details of Hotplate Magnetic Stirrer:

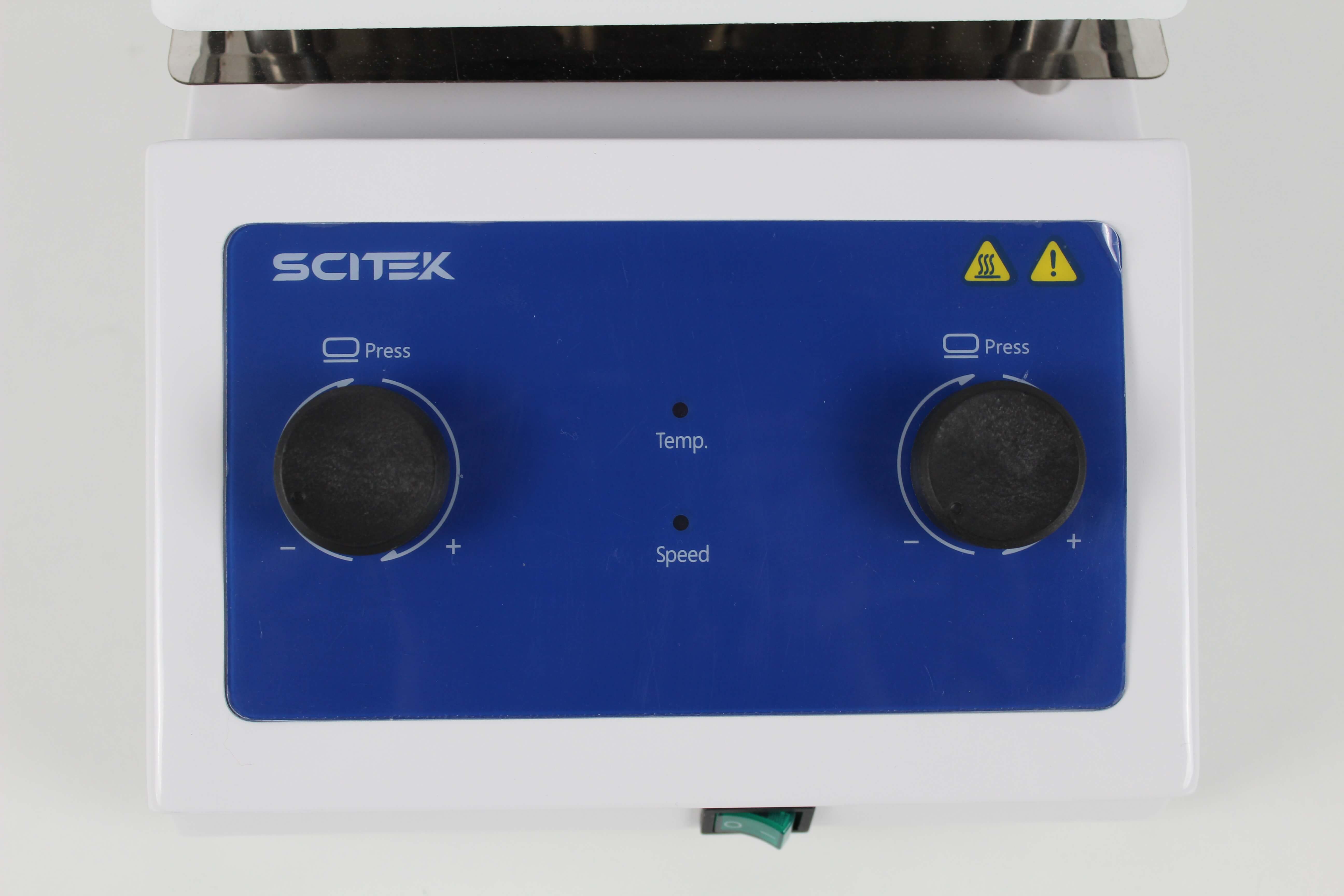

The buttons are clearly labelled for precise control and adjustment of temperature and stirring speed to ensure accurate experiments.

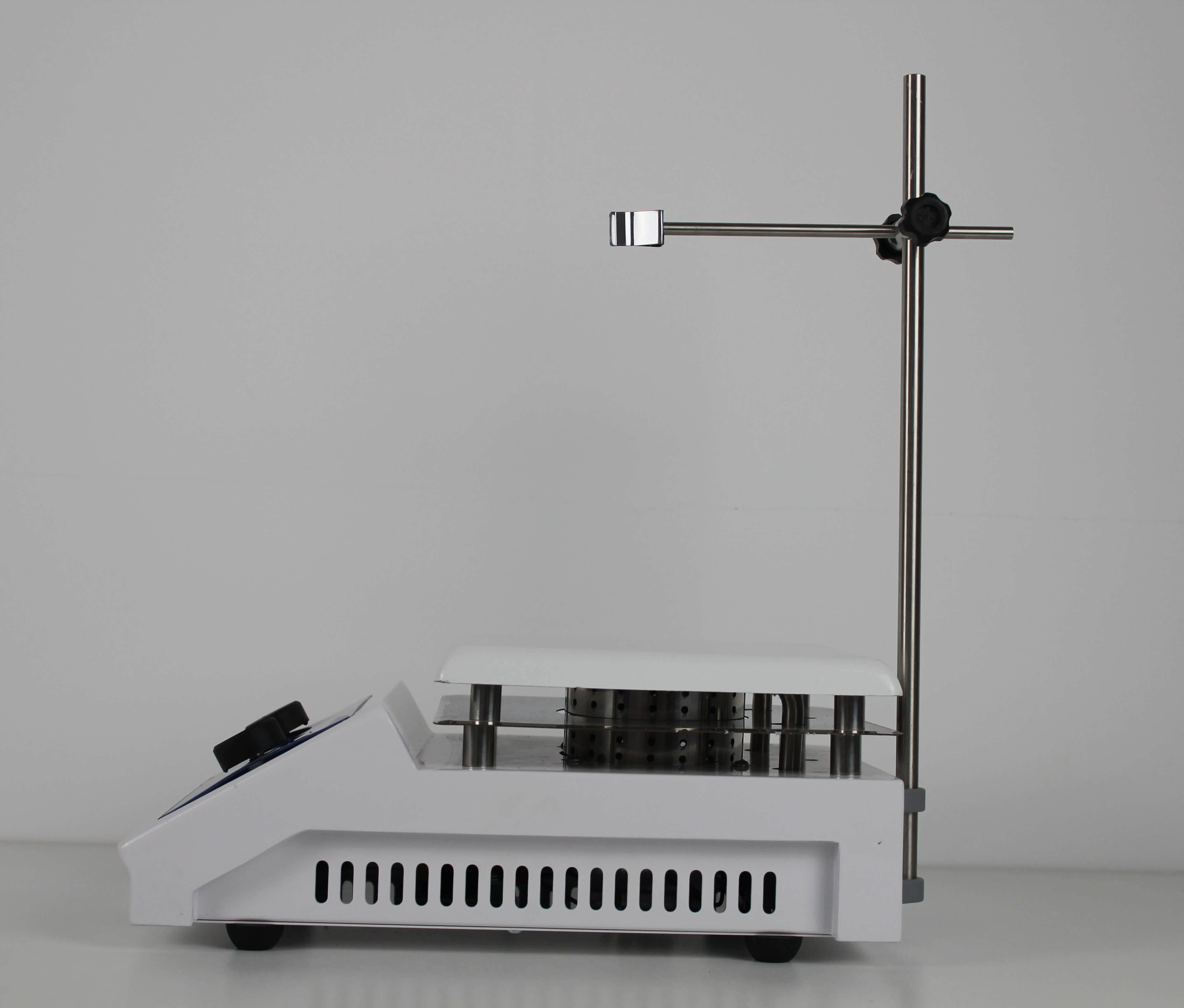

The overall simple shape ensures that the magnetic hotplate stirrer maintains good ventilation and heat dissipation during use.

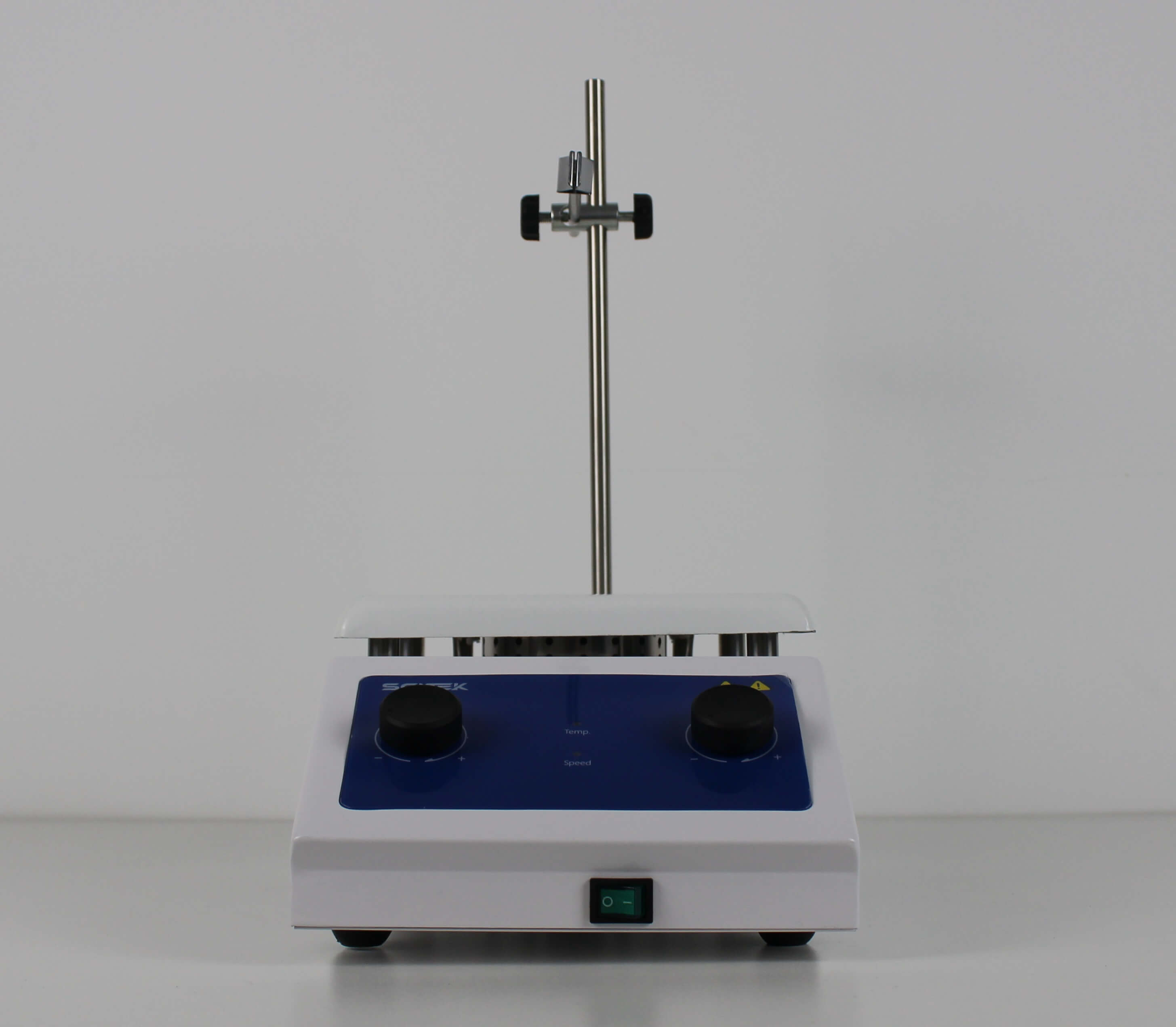

Above is HMS-4 magnetic hotplate stirrer;

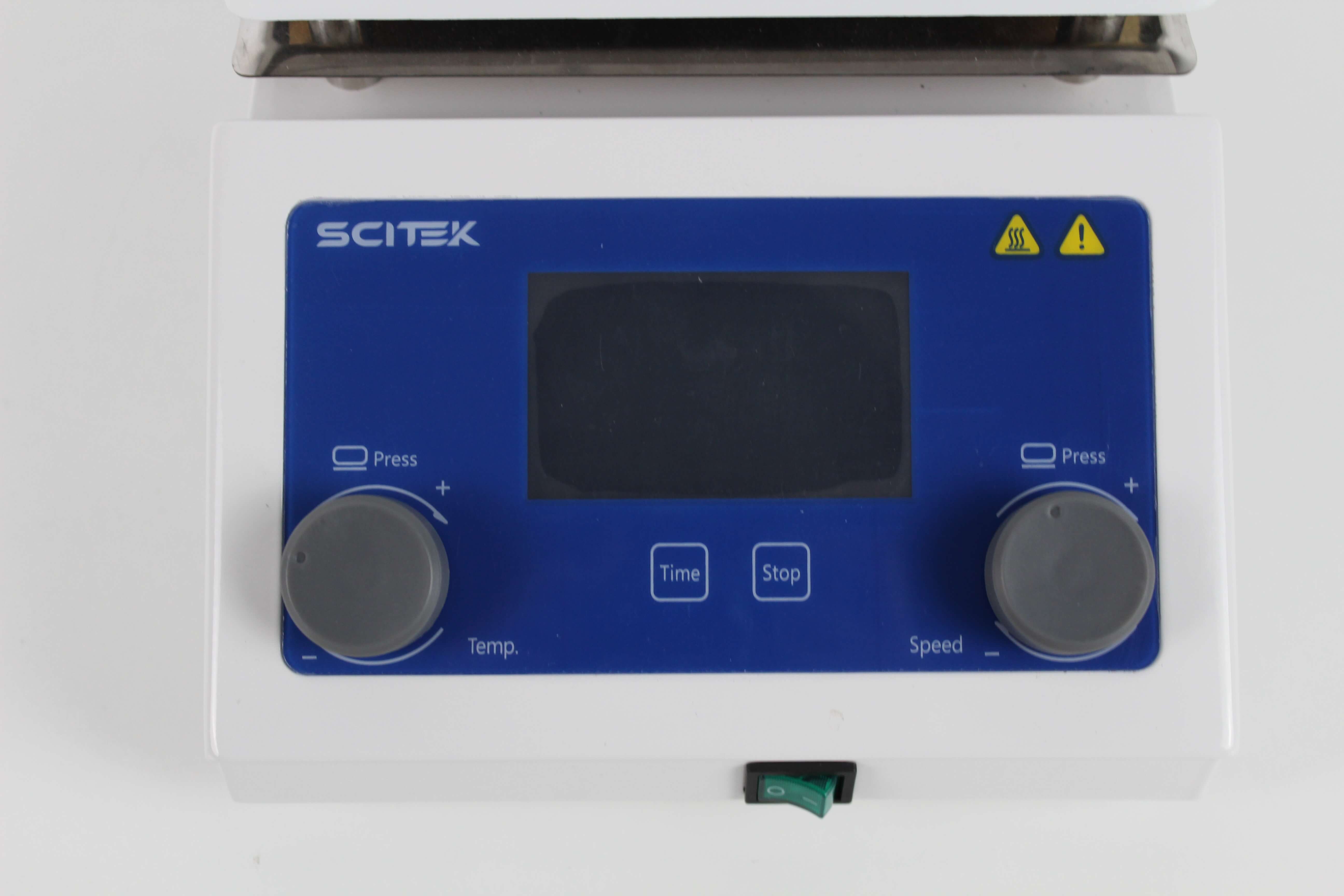

The clear, easy-to-read screen provides real-time feedback, ensuring accurate adjustments during experiments.

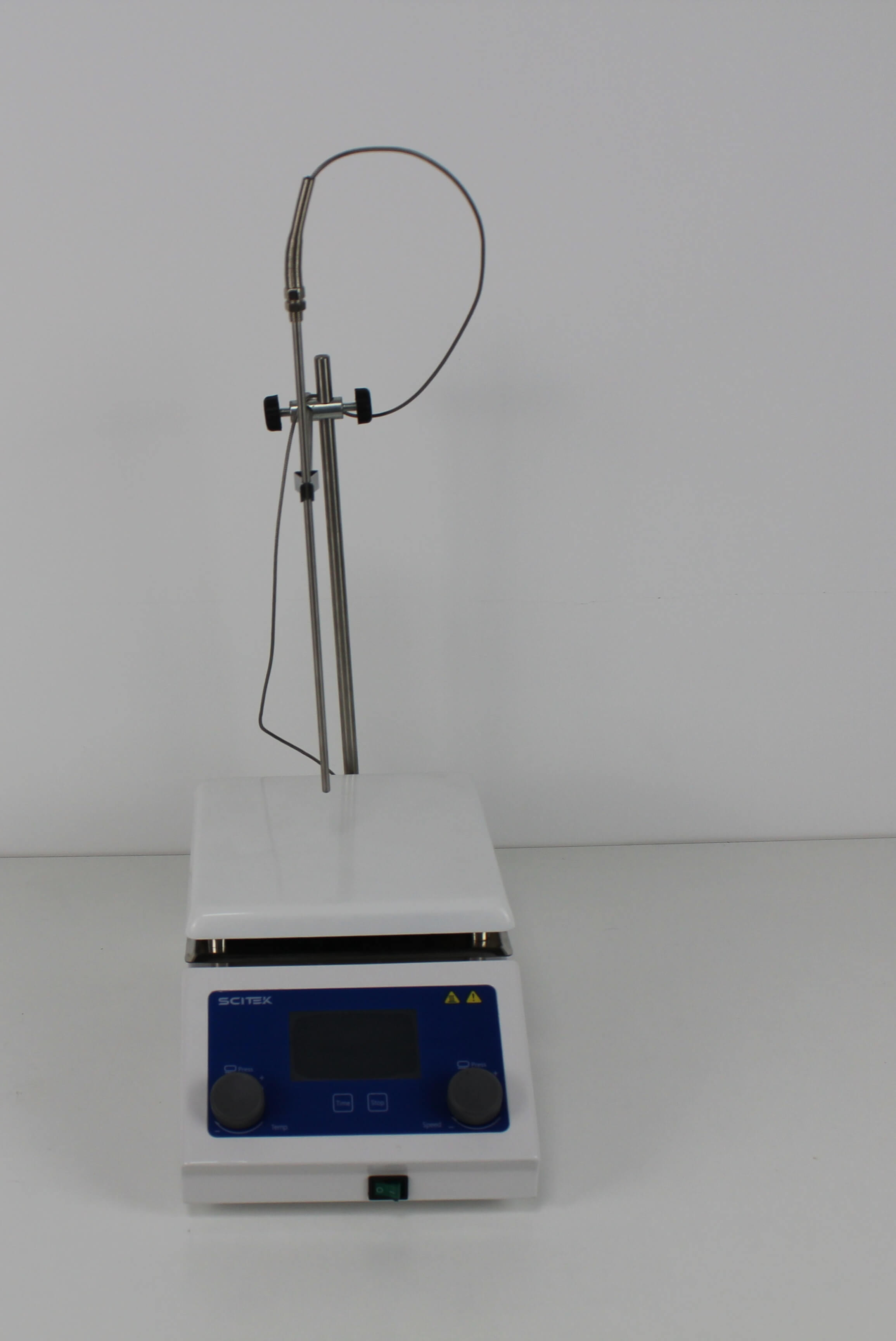

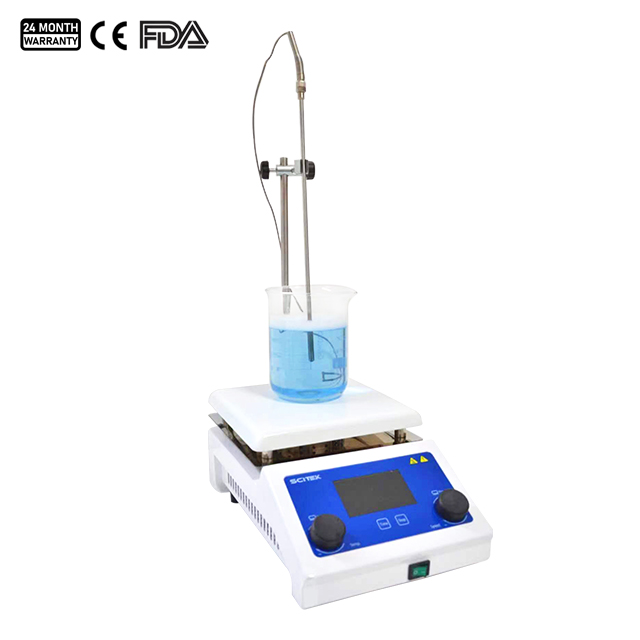

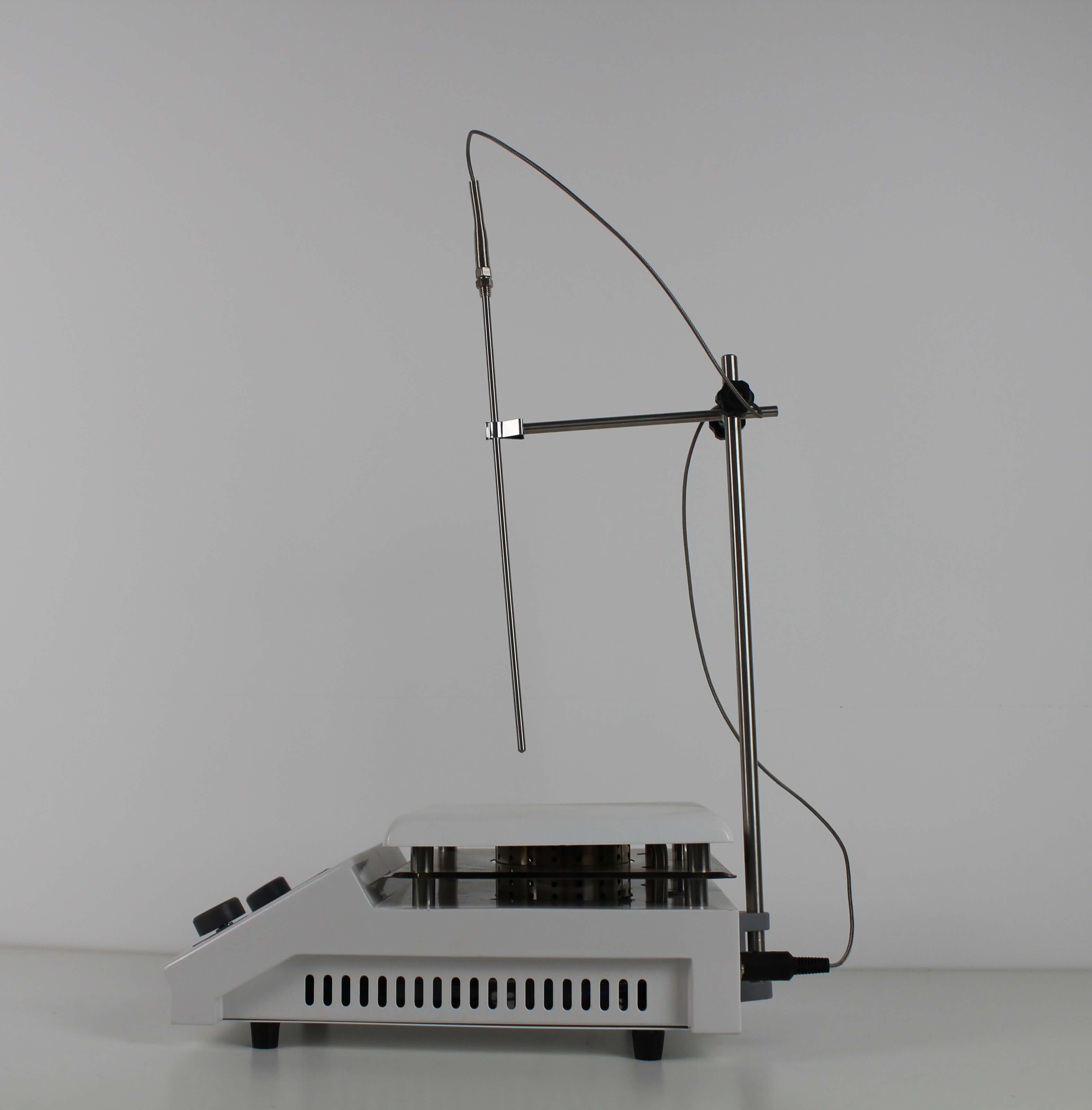

Above is HMS-4C magnetic hotplate stirrer;

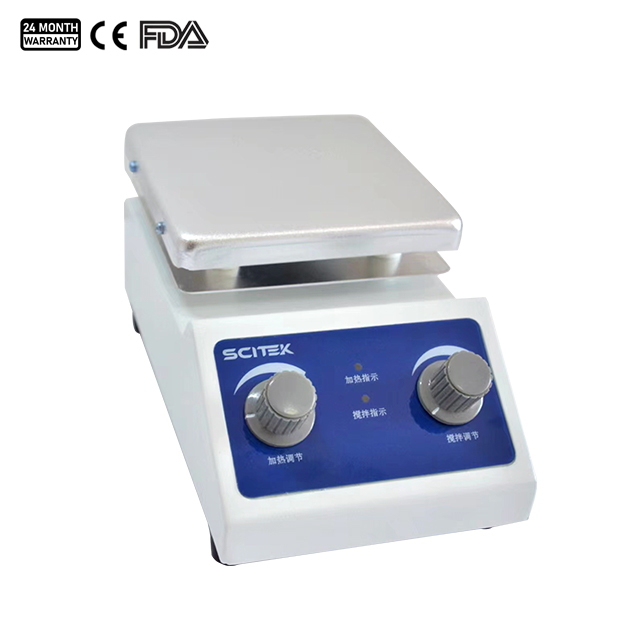

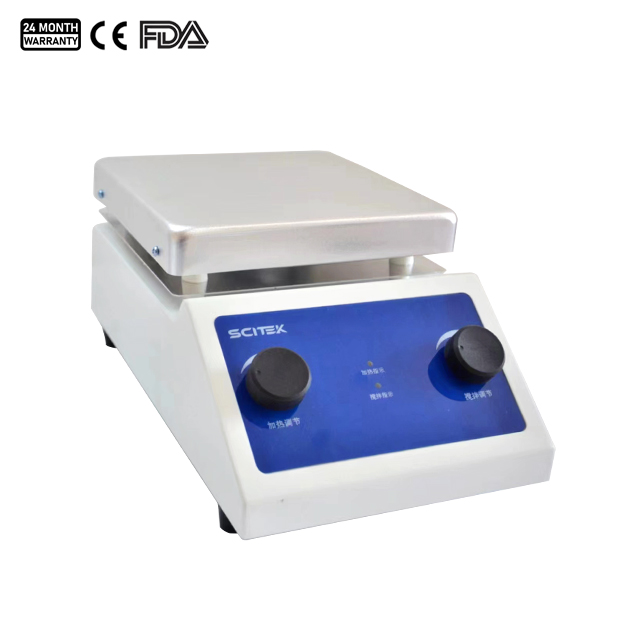

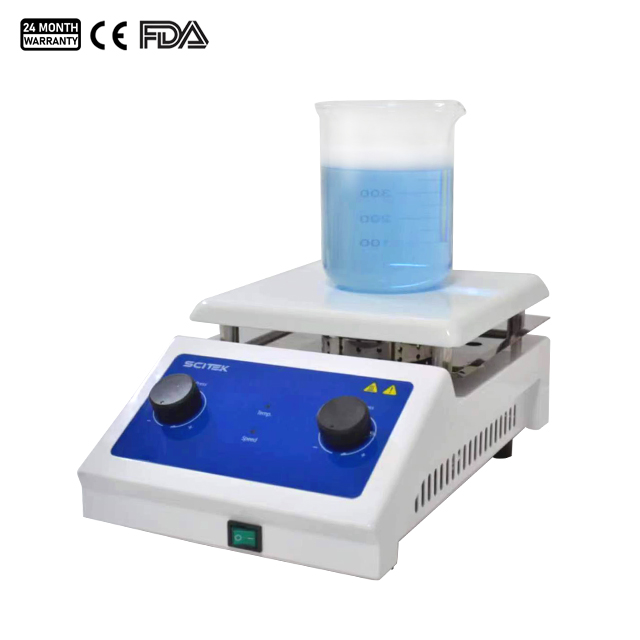

Above is HMS-2;

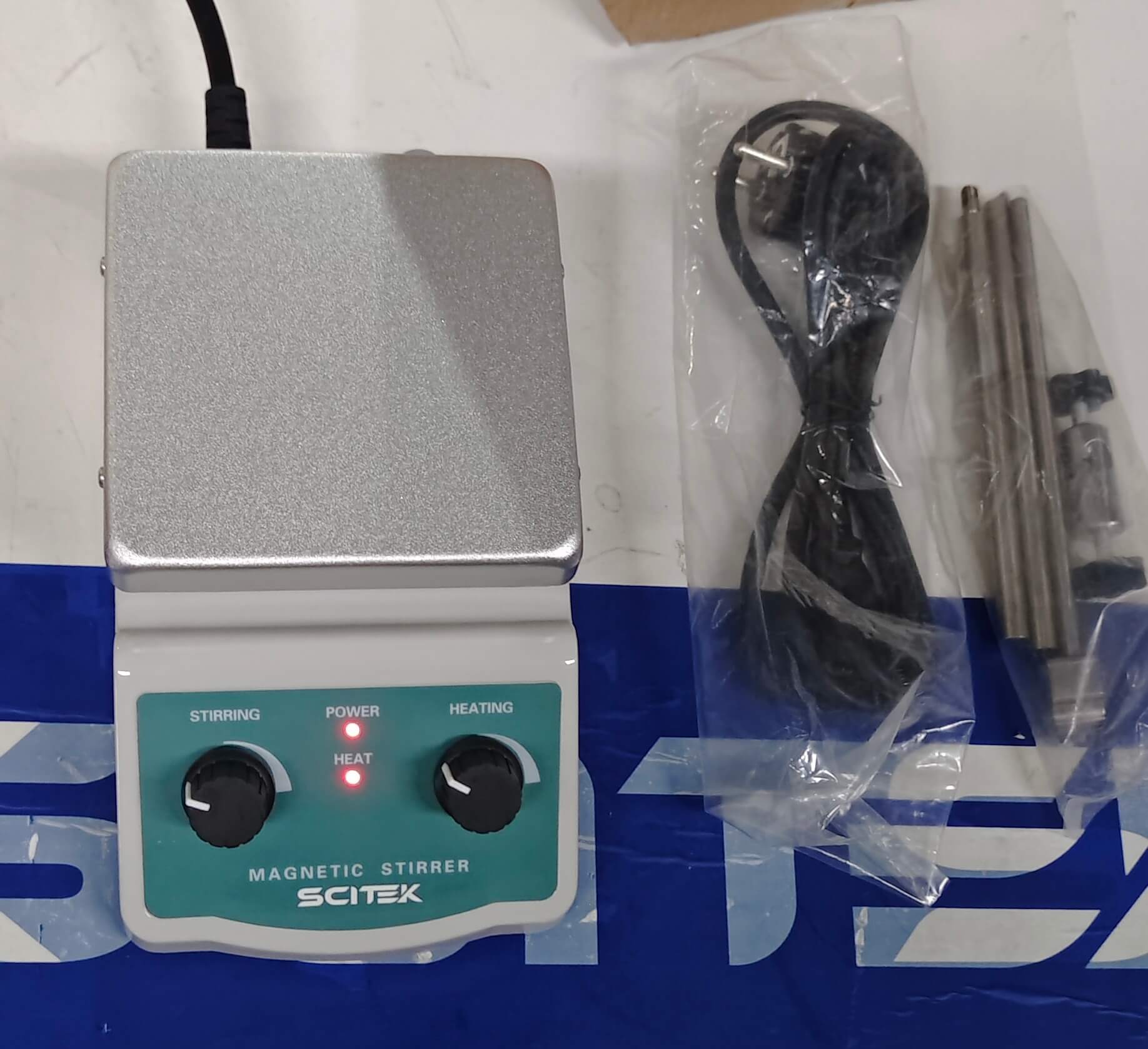

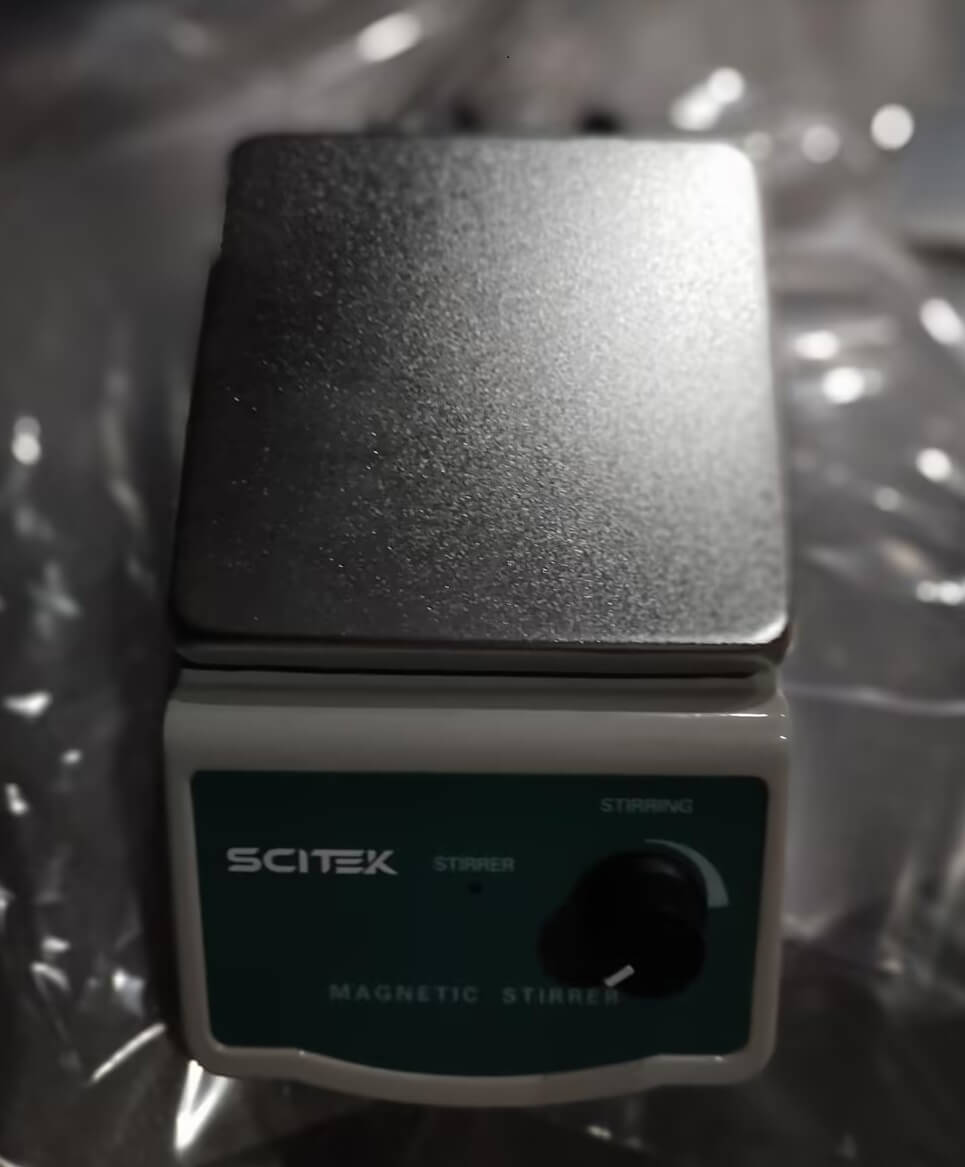

Above is HMS-2B;
