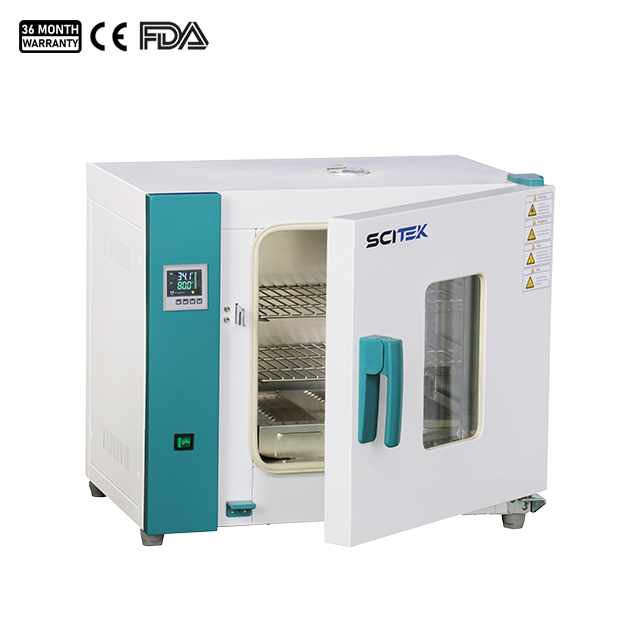

Horizontal Drying Oven with Natural Convection

Model : HDO-45N/HDO-45; HDO-70N/HDO-70; HDO-140N/HDO-140; HDO-230N/HDO-230

Capacity : 43L / 71L / 136L / 225
Circulation Mode : Natural convection
Temperature Range (℃) : RT+10~250
Timer : 0~9999min (with timing wait function)
For basic drying and heating applications
Availability:
Quantity:
Inquiry Add to Inquiry List

Horizontal Drying Oven Specifications:

Model HDO-45N
HDO-45		 HDO-70N
HDO-70		 HDO-140N
HDO-140		 HDO-230N
HDO-230
Capacity(L) 43 71 136 225
Circulation Mode Natural convection
Size (WxDxH) Internal (mm) 350x350x350 450x350x450 550x450x550 600x500x750
External (mm) 652x472x587 752x472x687 852x572x786 902x622x986
Temperature Range (℃) RT+10~250
Fluctuation (℃) ±1
Resolution (℃) 0.1
Uniformity (℃) ±3.5%
Sensor PT100
Controller PID
Display Digital LED
Timer 0~9999min (with timing wait function)
Material Internal

N model: High strength galvanized sheet;

Without N model: High quality stainless steel;
External Cold rolled steel electrostatic spraying exterior
Shelves (Standard / Max) 2 / 9 2 / 13 2 / 17 2/25
Exhaust Hole Φ35mm top with function of test hole
Safety Device Over temperaure isible & udible alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz AC 220V, 50/60Hz
Consumption (W) 1200 1600 2300 3000
N.W./G.W. (kg) 33/37 45/50 62/68 77/96
Shipping Size (WxDxH)(mm) 755x615x745 855x615x850 955x715x950 1005x765x1150
Optional Spare shelf

Drying Oven Features:

Save valuable countertop space with the compact drying oven. Ideal for drying and baking applications, this compact drying oven features a double-walled interior made of high-strength galvanised sheet metal (N type); high-quality stainless steel (without N type) and an exterior made of powder-coated cold-rolled steel. Indicator lights visually indicate the operating status of the oven. Support preset high temperature safety bimetal thermostat ensures over-temperature protection.

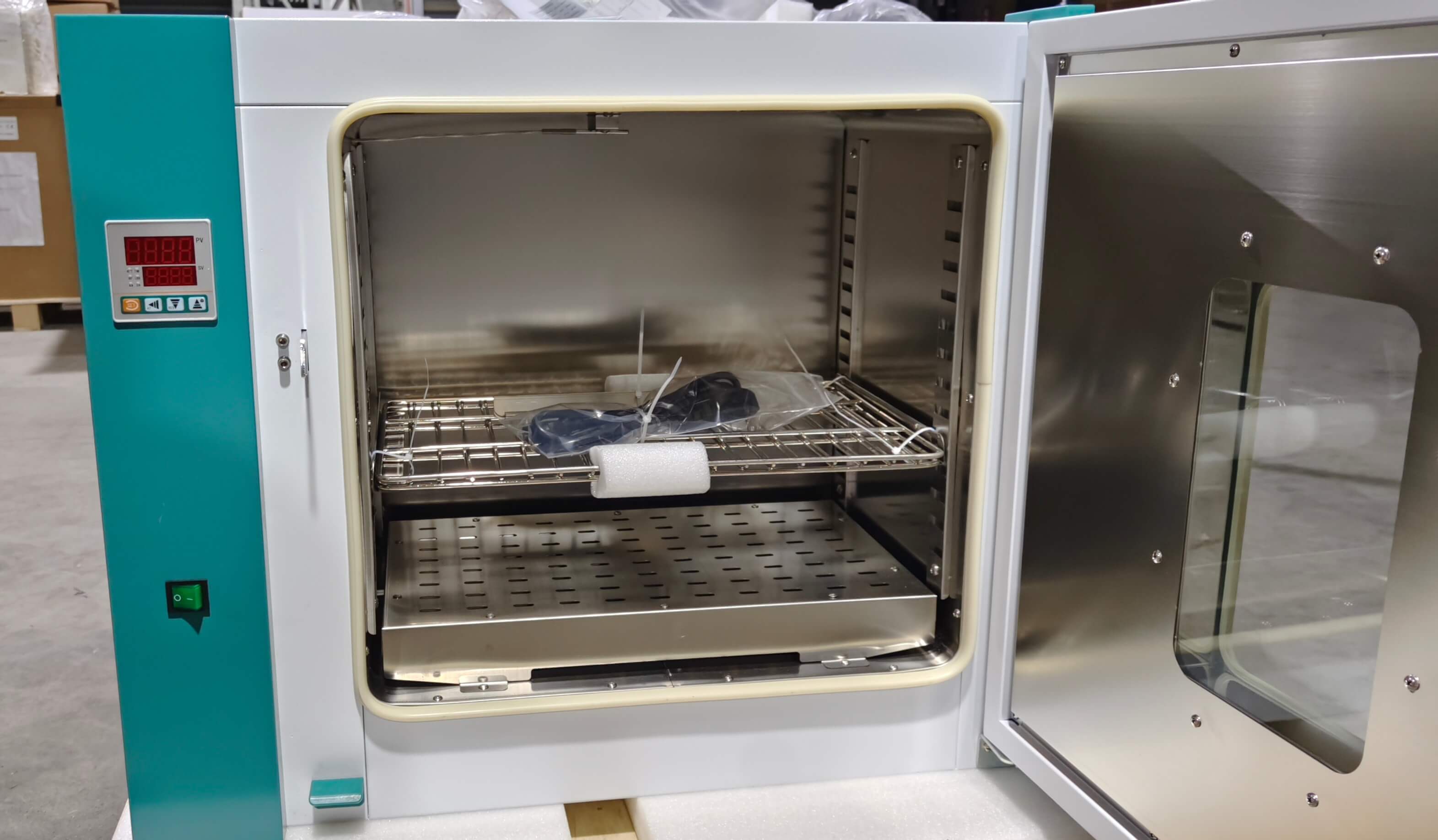

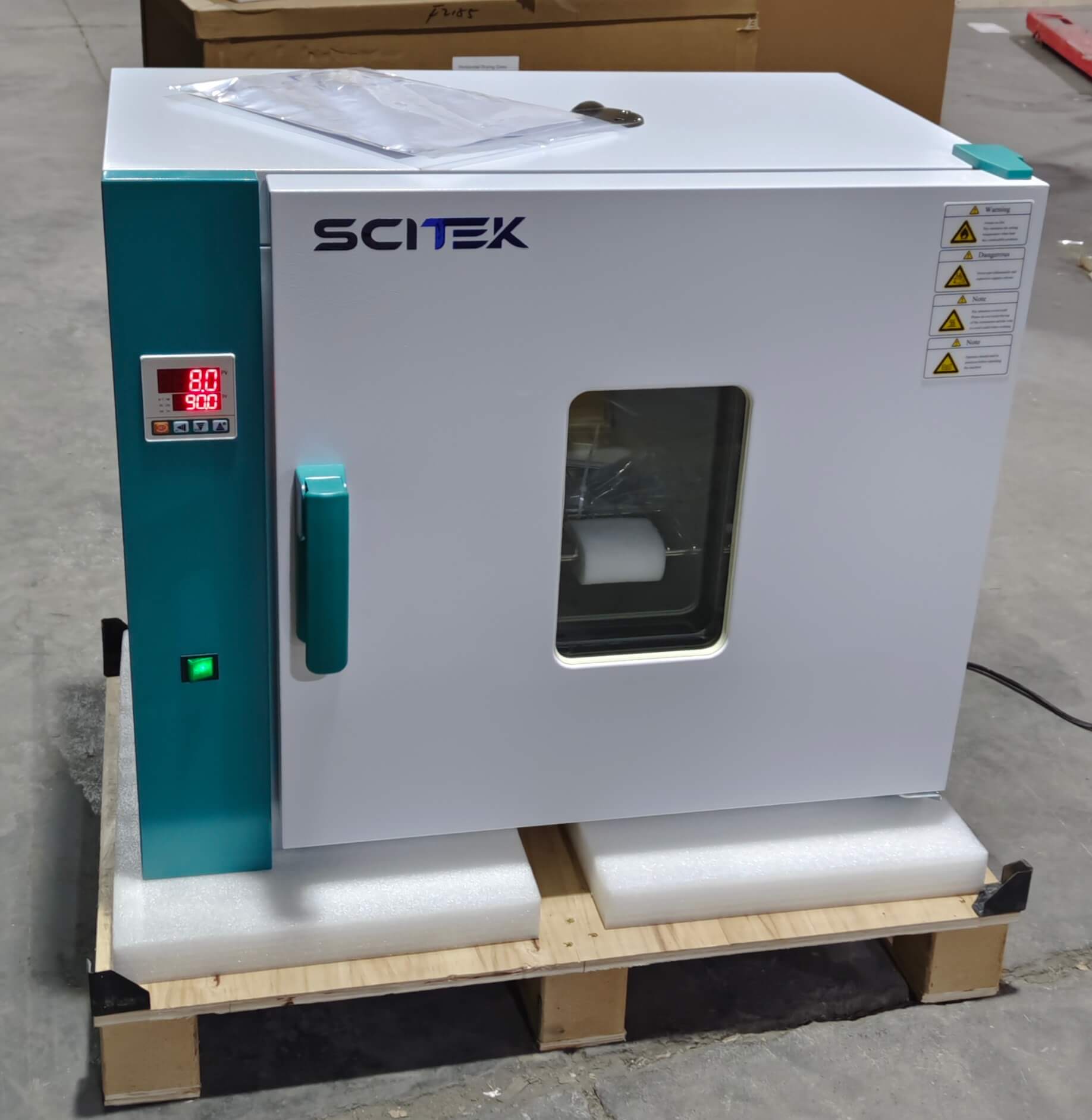

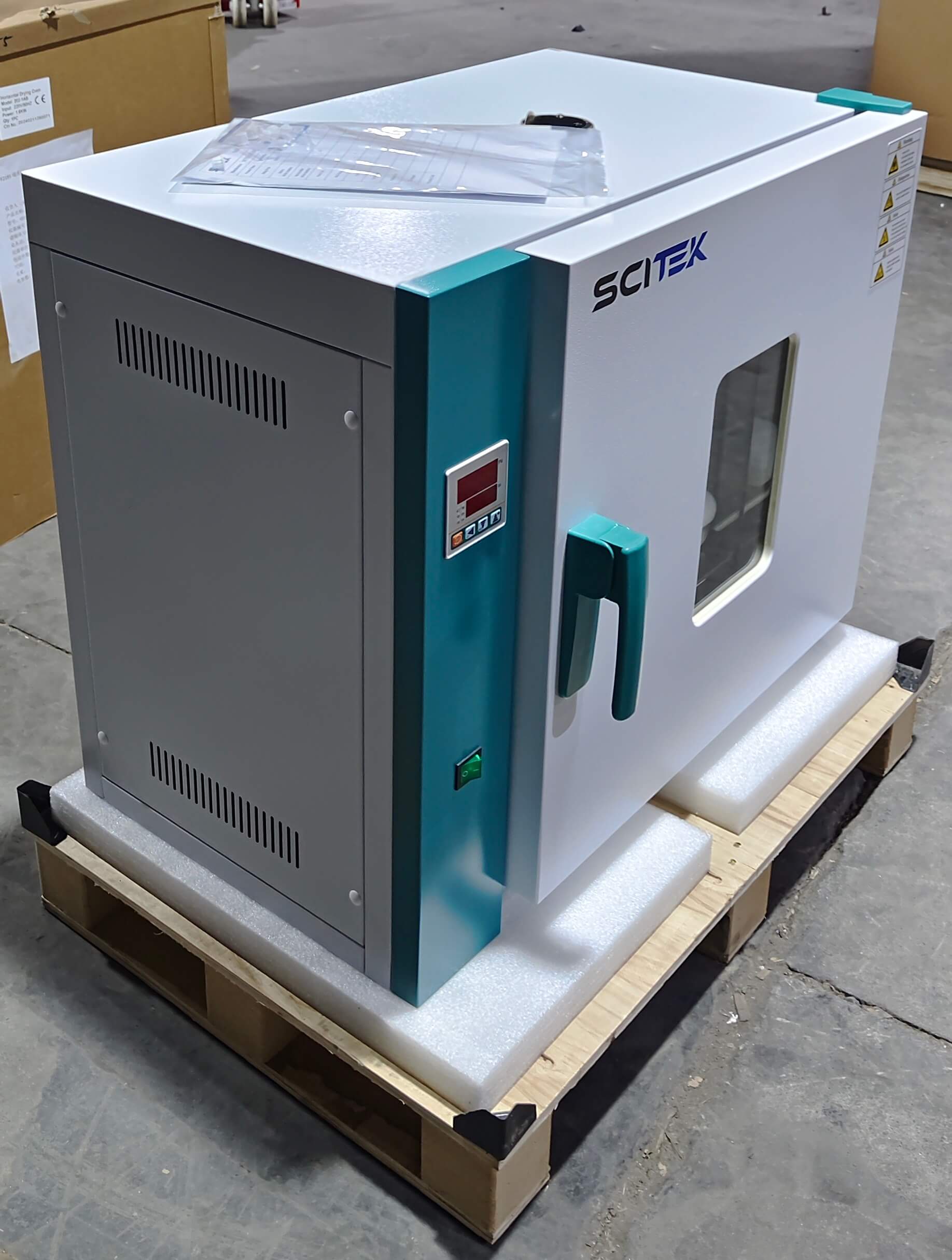

Details of Drying Oven(HDO-70):

Horizontal Drying Oven

Horizontal Drying Oven

Horizontal Drying Oven

HDO-70 (1)

HDO-70 (16)

Previous:
Next:
Get Quotation/Become Distributor

Related Products

Automatic Vertical Vacuum Oven (Precision Model)
Automatic Vertical Vacuum Oven (Precision Model)
Benchtop Constant Temperature Drying Oven
Benchtop Constant Temperature Drying Oven
Benchtop Constant-Temperature Drying Oven
Benchtop Constant-Temperature Drying Oven
Drying Oven/Incubator(Double Use)
Drying Oven/Incubator(Double Use)

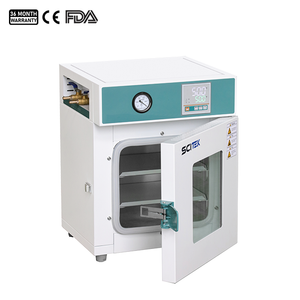

Vertical Vacuum Oven (With Digital Display)
