Grain Moisture Meter Application:
Grain moisture mete widely used for measuring the moisture content of fibrous materials, such as in buildings, construction materials, various non-metallic materials, paper, bamboo products, tobacco, cotton, textiles, soil, and other applications where moisture measurement is required.
Grain Moisture Meter Feature:
1. Supports two measurement modes: Pin-type and inductive, suitable for different testing scenarios.
2. Two display modes: LCD digital display, LED status indicators, ensuring data readability.
3. Capable of storing up to 99 data records with built-in data analysis functions for efficient on-site diagnostics.
4. Equipped with dual USB and RS-232 interfaces for communication with a PC; optional Bluetooth™ data output is available.
5. Features automatic and manual shutdown functions, as well as a low-battery alert.
Grain Moisture Meter Specification:

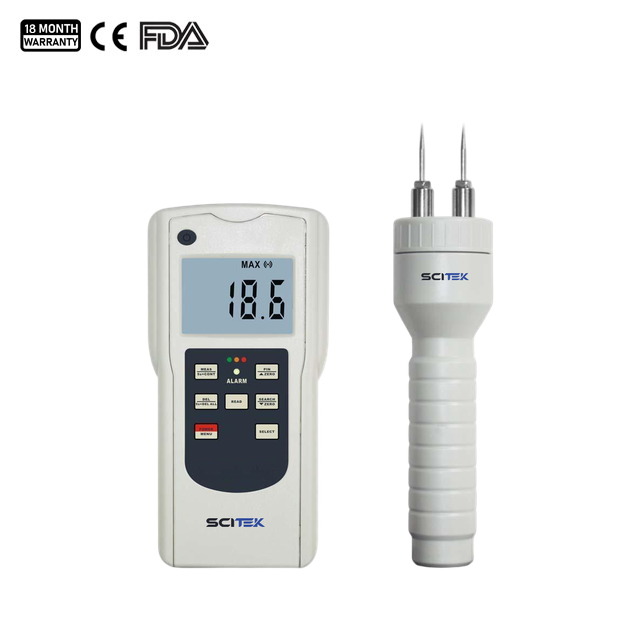

Model | MM-128 |
Display | LCD with backlight |
LED Indicator | LED indicator light (displays numerical values and moisture status) |
A green light indicates a safe moisture level. |
A lit yellow light indicates a critical moisture state. |
A red light indicates a state of high moisture or wetness. |
Measurement Range | 0–80% (pin-type, standard setting Cd00) |
0–70% (induction-type, standard setting Cd10) |
The measurement range varies depending on the code. |
Resolution | 0.10% |
Accuracy | ± 0.5% (n+1) |
Power Supply | 4×1.5V AAA batteries |
External Size (W×D×H) | 140×70×30 mm |
Shipping Size (W×D×H) | 230×170×70 mm |
N.W/G.W. | 0.175 (excluding batteries)/1 kg |
Standard | Main Instrument; |
Heavy-Duty Carrying Case; |
User Manual; |
Built-In Sensor; |
Detachable Pin Probe / External Pin Sensor; |
Optional | USB Data Cable with Software; |
RS-232C Serial Cable; |
Bluetooth™ Wireless Data Module; |
