Speed range: 200-14000rpm; Maximum RCF: 18620×g.
Separate control of speed and time for precise operation.
User-friendly interface with intuitive menu and clear display.
Brush-less DC motors for maintenance-free performance.
Pulse operation feature for quick spins.
Hematocrit rotor with a capacity of 24 capillaries; Maximum speed: 12000rpm.

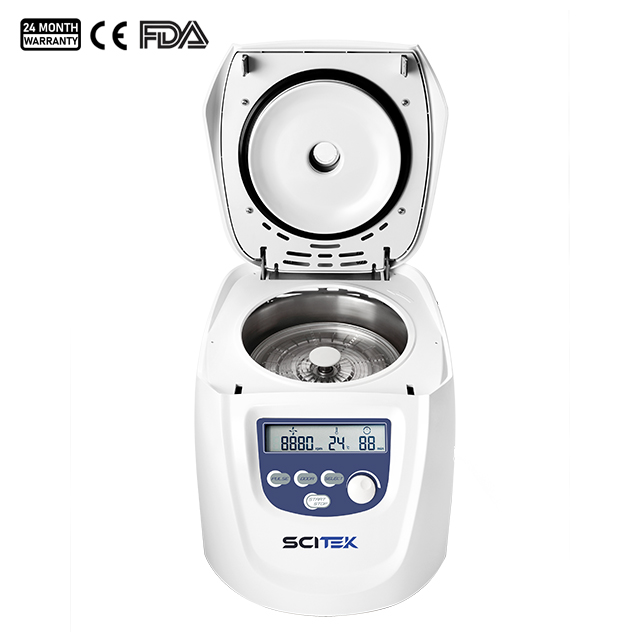

Tube rotor for 1.5/2mL tubes with a capacity of 24; Maximum speed: 14000rpm
Model | CFG-H14 |
---|---|
Speed Range | 200-14000rpm, increment: 10rpm |
Max. RCF | 18620×g |
Speed Accuracy | ±20 |
Rotor Capacity | 2 type |
Run Time | 30sec-99min/Continuous |
Motor | Brush-less DC motor |
Display | LCD |
Safety Devices | Door interlock, Over speed detector; Automatic internal diagnosis; Automatic rotor identification |
Acceleration/Braking time | 30s↑30s↓ |
Power | Single-phase, |
200V-240V,50Hz/60Hz, A | |
100V-120V,50Hz/60Hz, 5A | |
160W | |
Size(W×D×H) (mm) | 364x280x274 |
Packaging Size(WxDxH)(mm) | 520x500x470 |
N.W./G.W. (kg) | 10/25 |
Certification | CE |
Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
