Clinical Centrifuge

Model : CFG-5C

Speed Range (rpm) : 300-4500
Max RCF (xg) : 2490
Timer : 30sec-99min
Rotor Capacity : 8x15ml, 12x10ml/7ml/5ml
Used to separate components of biological samples such as cells, proteins, plasma and nucleic acids for laboratory research and analysis.
Availability:
Quantity:

Clinical Centrifuge Features:

  1. Max speed: 4500rpm: Capable of reaching a maximum speed of 4500 revolutions per minute for efficient sample separation.

  2. RPM/RCF setting: Allows the user to select the rotor speed either in revolutions per minute (RPM) or relative centrifugal force (RCF).

  3. Pre-loaded programs: Three pre-set programs are available for quick and easy operation.

  4. Customizable programs: Nine programs can be customized and stored in the memory for personalized centrifugation protocols.

  5. Powerful CPU: Equipped with a powerful central processing unit (CPU) for easy adjustment of speed, time, and other parameters.

  6. Easy-to-read display: Features a clear and easy-to-read processing display, providing information on the centrifuge's status. Sound alerts are also available.

  7. Automatic lid-lock release: The lid-lock is automatically released after the centrifuge run, allowing for convenient sample retrieval.

  8. Maintenance-free motor: Utilizes a brush-less DC motor that requires no maintenance, providing long-lasting and reliable operation.

Operation of Clinical Centrifuge CFG-5C:

Clinical Centrifuge Specifications:

Model CFG-5C
Speed Range 300-4500rpm, increment: 10rpm
Max. RCF 2490xg, increment: 10g
Speed accuracy ±10rpm
Rotor capacity 8x15ml,12x10mL/7mL/5mL
Run Time 30sec-99min
Motor Brushless DC motor
Display LCD
Preloaded Program PRP:3480rpm, 5mins
PRF:2690rpm, 7mins
CGF: Step1 2700rpm 2mins
Step2 2400rpm 4mins
Step3 2700rpm 4mins,
Step4 3000rpm 3mins,
Custom Programs Memory 9 programs (6 steps for each program)
Safety Devices Door interlock, Overspeed detector, Automatic internal diagnosis
Noise ≤56dB
Power Single-phase, 100V-240V,50Hz/60Hz, 3A,70W
Size(W×D×H) (mm) 354x301x217
Packaging Size(WxDxH)(mm) 460x420x320
N.W./G.W. (kg) 6/9
Advanced features Speed/RCF switch; sound-alert function

Details of Clinical Centrifuge:

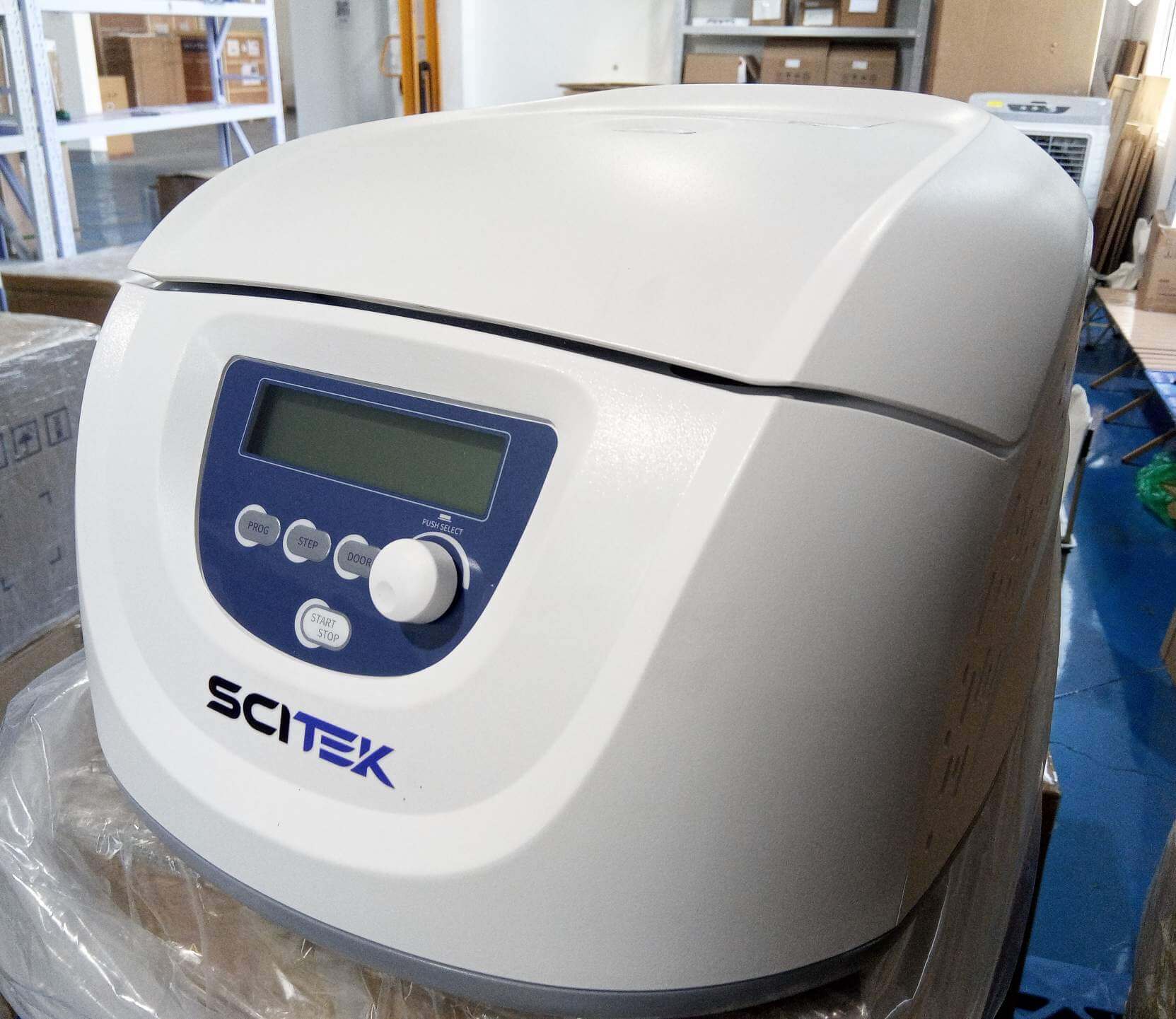

Clinical Centrifuge (4)

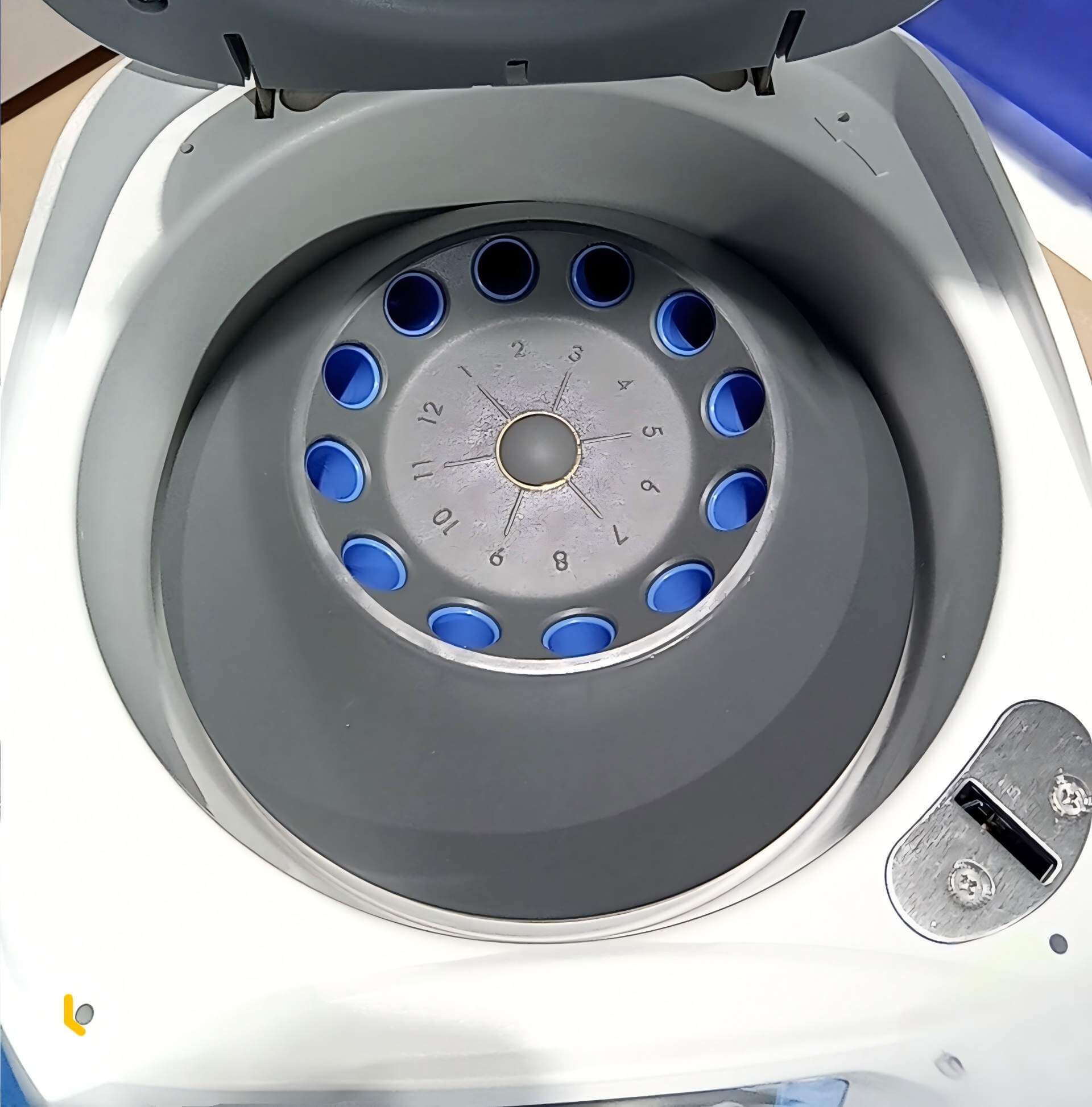

Clinical Centrifuge (5)

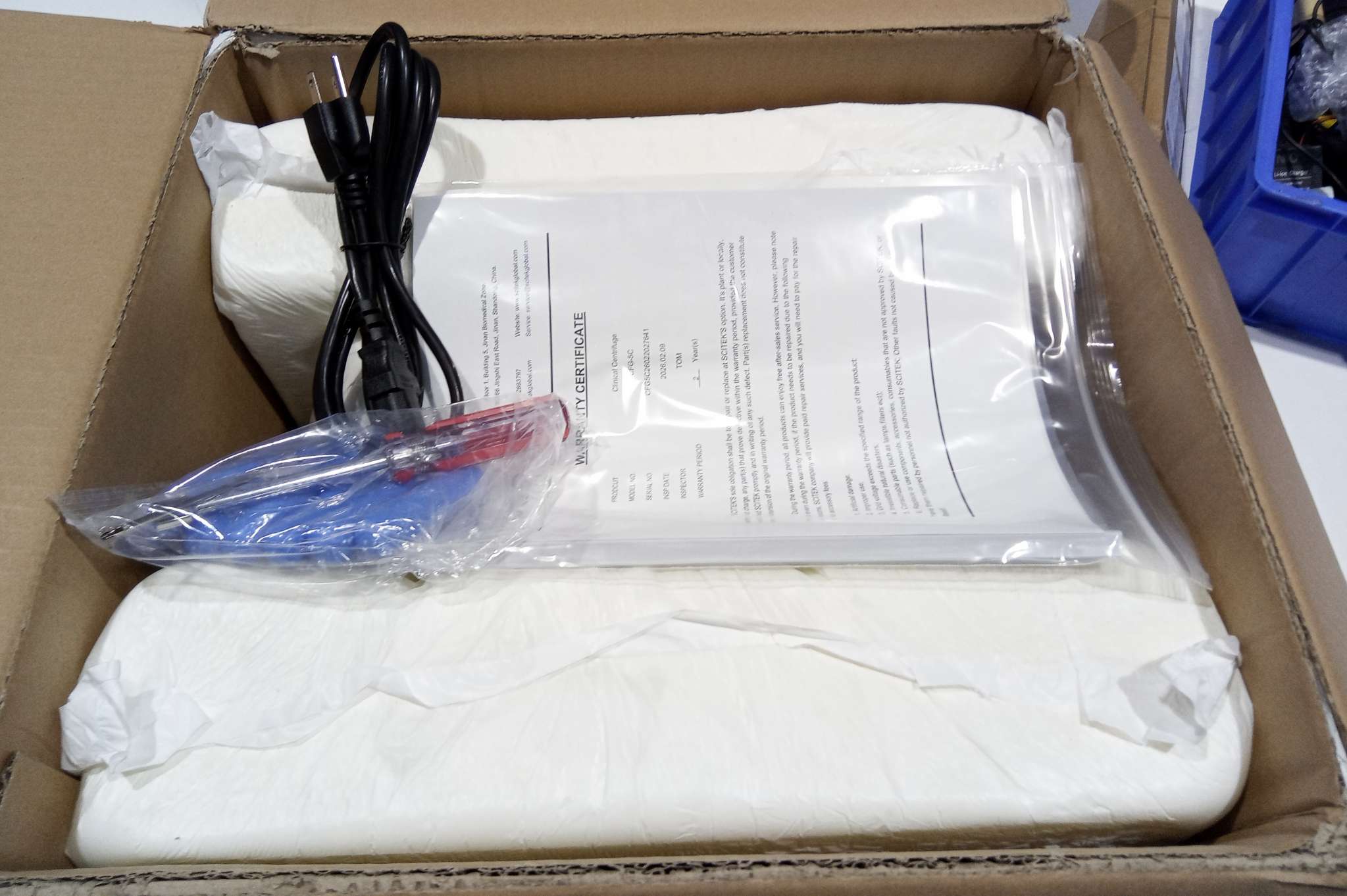

Clinical Centrifuge (2)

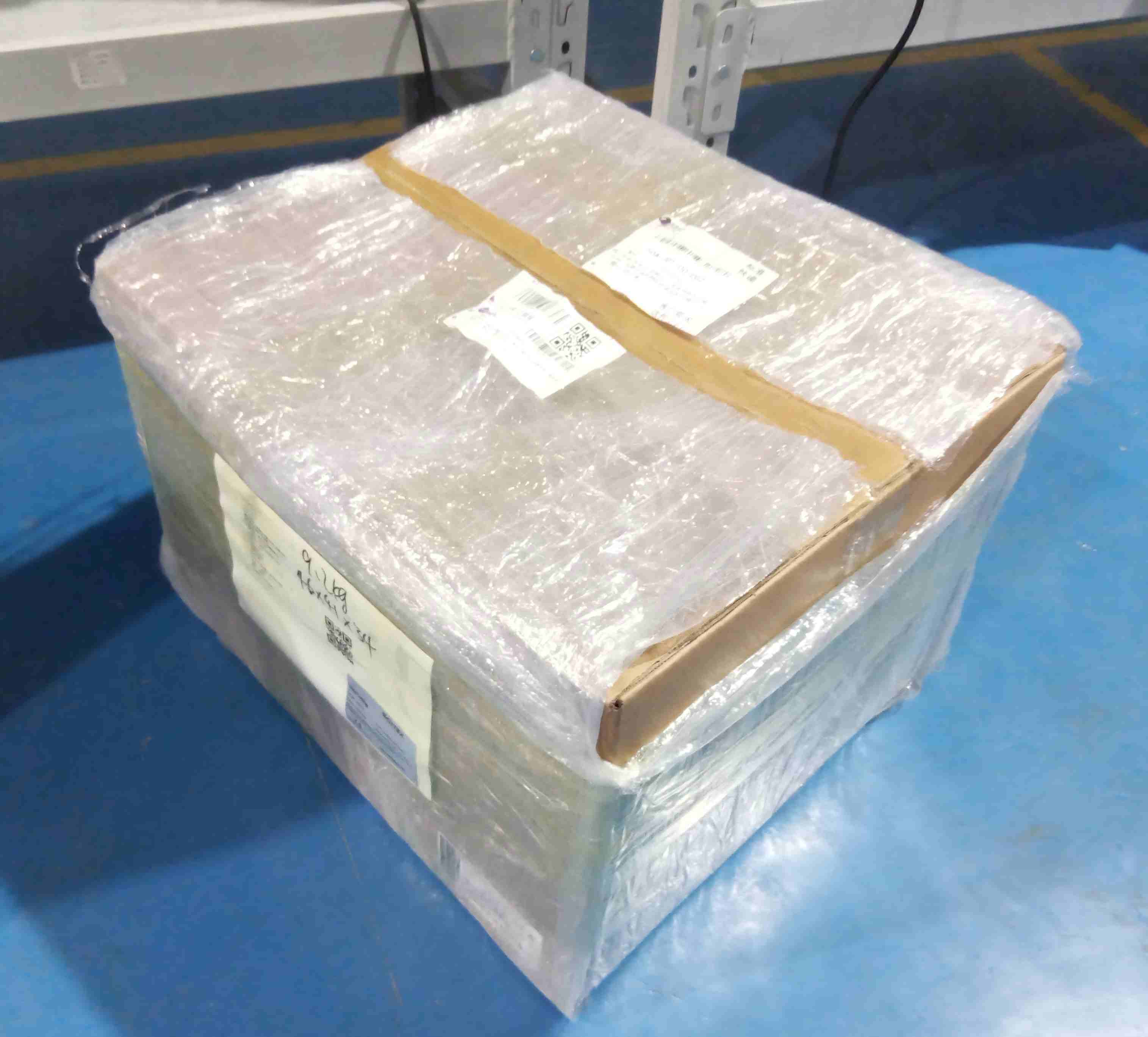

Clinical Centrifuge (3)
