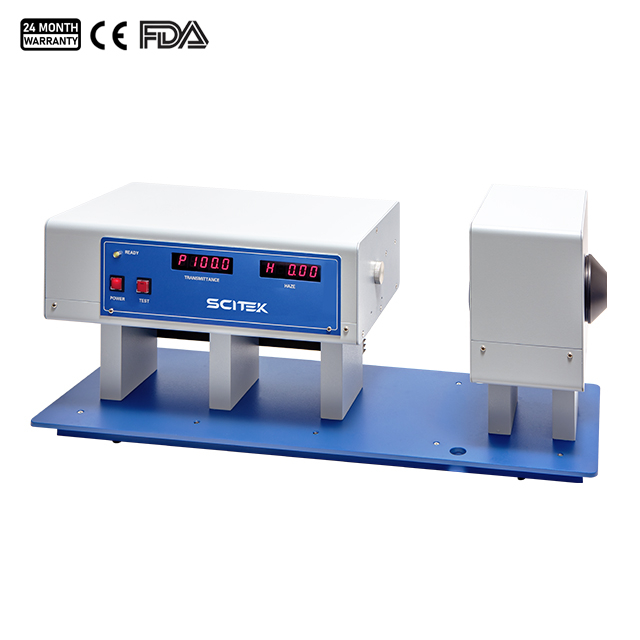

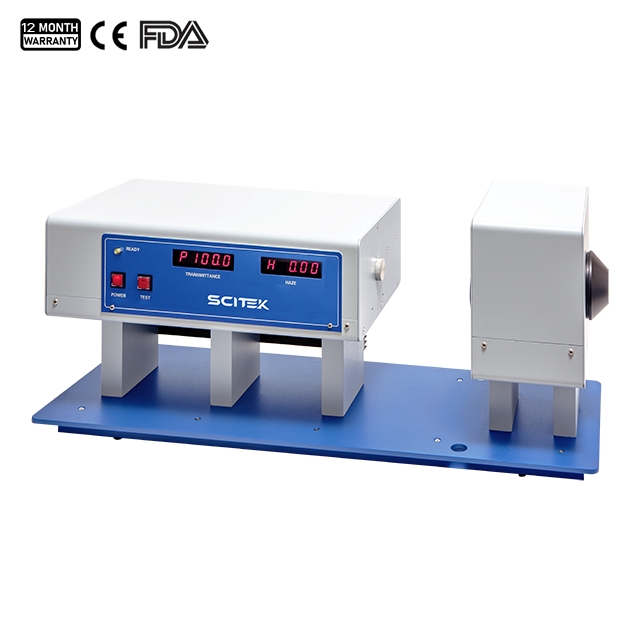

Hazemeter HAZ-S

Model : HAZ-S

Illuminant : C light (6774k)
Light source : Tungsten halogen lamp
Measuring range : Transmittance: 0-100%; Haze: 0-30% (absolute), 30.1-99% (relative)
Resolution : 0.1%(transmittance); 0.01%(haze)
Availability:
Quantity:
Inquiry Add to Inquiry List

Hazemeter Feature:

  1. Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).

  2. Suitable for turbidity of liquid sample measurement (water and beverage).

  3. In conformity with the standard of GB/T 2410-80, ASTM D 1033-61(1977), JISK7105-81.

  4. Microcomputer control and easy to operate.

  5. Display of transmittance and haze at the same time.

Hazemeter Specifications:

ModelHAZ-S
IlluminantC light (6774k)
Light sourceTungsten halogen lamp
Measuring rangeTransmittance: 0-100 %
Haze: 0-30% (absolute), 30.1-99% (relative)
Resolution0.1%(transmittance); 0.01%(haze)
AccuracyTransmittance: ≤±1 %(Standard neutral density filter); ≤±2 %(Standard Haze slice)
Haze:  ≤±5 %
RepeatabilityTransmittance: ≤0.5% Haze: ≤0.2
Sample window size25mm(incident window) 21mm(exit window)
DisplayNixie tube
InterfaceUSB
Power supply220V±22V, 50Hz±1Hz, 100w
Overall Dimensions910mm×410mm×480mm
Weight(Gross)23kg
