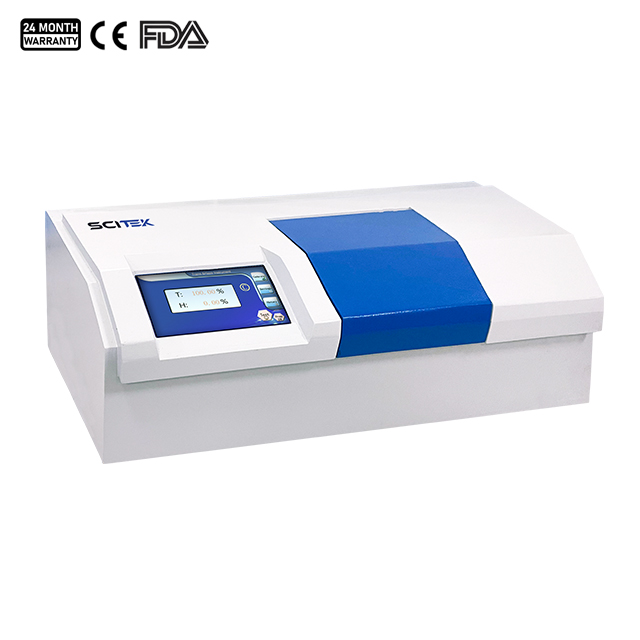

Hazemeter 800 Series

Model : HAZ-800; HAZ-800L

Illuminant C light : (6774k)
Light source : Tungsten halogen lamp; LED
Measuring range : Transmittance: 0-100%; Haze: 0-30%
Resolution : Transmittance: 0.01%; Haze: 0.01%
Ideal for quality control in industries such as beverages, pharmaceuticals, and chemicals.
Availability:
Quantity:
Inquiry Add to Inquiry List

Hazemeter Feature:

  1. Meet GB/T2410-2008, ASTM D1003-2007, JIS K7105-81.

  2. Measurement of optical characteristics of the transparent and translucent planes materials and plastic membranes.

  3. Closed measurement compartment is suitable for small samples, reducing the impact of light.

  4. Standardized operating procedures guides the measurement.

  5. Color touch screen simplifies operation and improves detection speed.

Hazemeter Specifications:

ModelHAZ-800HAZ-800L
IlluminantC light (6774k)
Light sourceTungsten halogen lampLED
Measuring rangeTransmittance: 0-100% Haze: 0-30%
ResolutionTransmittance: 0.01% Haze: 0.01%
AccuracyTransmittance: ±1.5%(Standard neutral density filter) Haze: ±0.5%
RepeatabilityTransmittance: ≤0.5% Haze: ≤0.2
Sample size50mm×50mm
Display5 inch color touch screen
InterfaceUSB, U disk, RS232
Data storage1000 sets
Power supply220V±22V, 50Hz±1Hz, 30w
Overall Dimensions530mm×380mm×300mm
Weight(Gross)9kg
