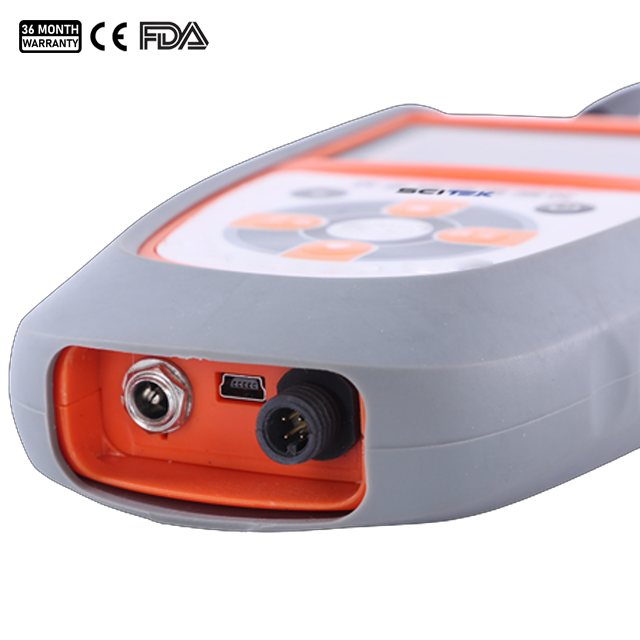

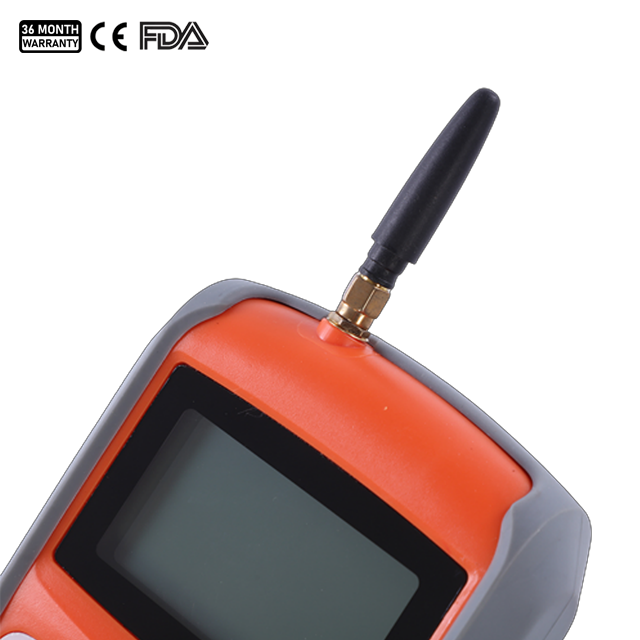

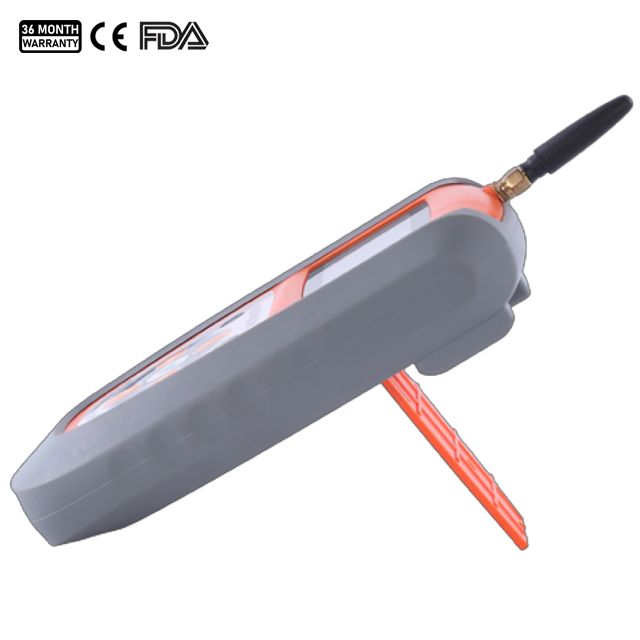

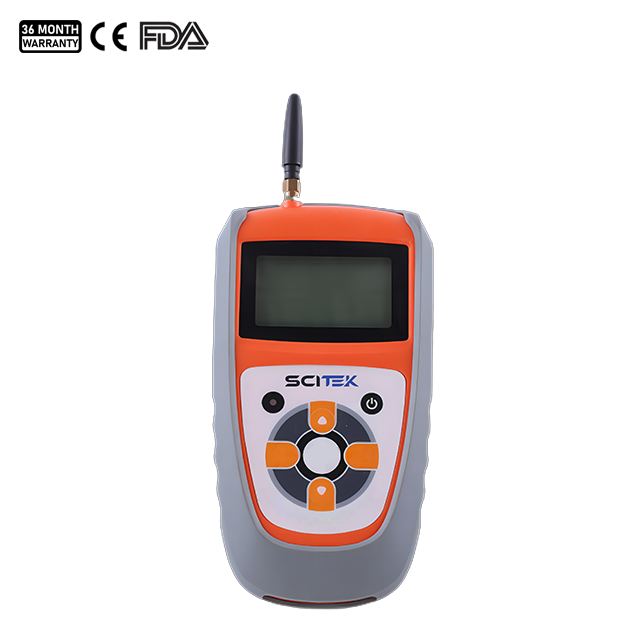

Handheld Weather Monitoring System

Model : WMS-H Series

Soil CompactIon Range : 0-100kg
Soil CompactIon Accuracy : ±0.5% F.S
PAR Range : 1 -2,700μmol·m-²•s-¹
PAR Accuracy : ±1 umolm-²s-¹
Availability:
Quantity:

Handheld Weather Monitor System Specifications:

ModelWMS-H4WMS-H5WMS-H6WMS-H7WMS-H8WMS-H9WMS-H10WMS-H11WMS-H12WMS-H13
Basic Characteristics

1.Temperatur

2.Humidity Illuminance

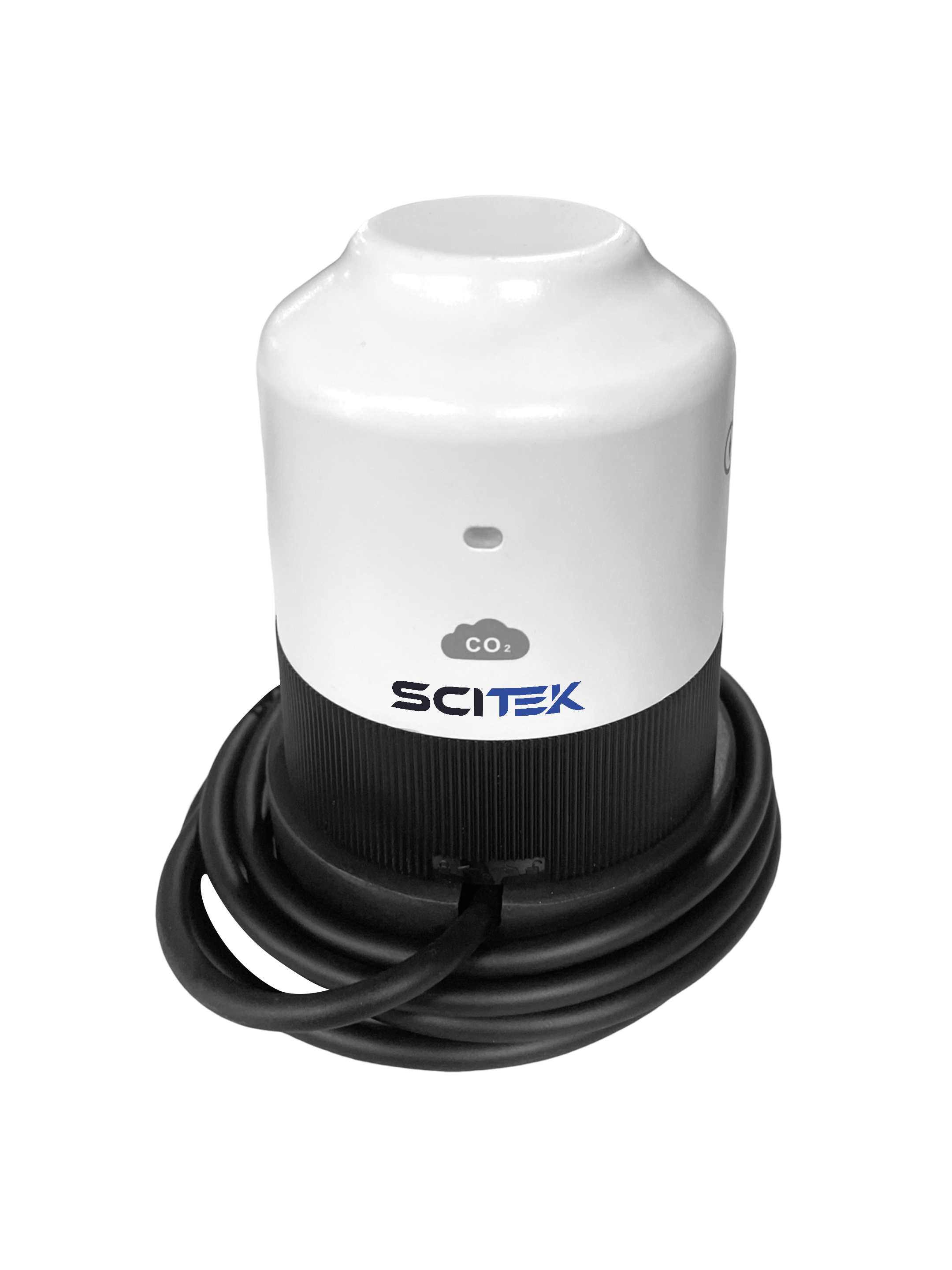

3.CO2 concentration

1.Temperature

2.Humidity 3.Illuminance

4.CO2 concentration

5.PAR

1.Soil temperature
2. Soil moisture
3.Temperature
4.Humidity, light intensity
5.CO2 concentration

1.Soil temperature
2.Soil moisture
3.Temperature
4.Humidity, light intensity
5.CO2 concentration
6.PAR

1.Soil temperature
2.Soil moisture
3.Soil salinity
4.Temperature
5.Humidity
6.light intensity
7.CO2 concentration8.PAR

1.Soil temperature
2.Soil moisture
3.Soil salinity temperature
4.Humidity, light intensity
5.CO2 concentration
6.PAR
7.Soil pH

1.Soil temperature
2.Soil moisture
3.Temperature, humidity
4.Light intensity
4.CO2 concentration5.PAR
6.Wind speed and wind direction
7.Rain gauge

1.Soil temperature
2.Soil moisture
3.Soil salinity
4.Temperature
5.Humidity, light intensity
6.CO2 concentration
7.PAR
8.Wind speed and wind direction
9.Rain gauge
10.Soil pH

1.Soil temperature
2.Soil moisture
3.Soil salinity temperature
4.Humidity
5.Light intensity
6.CO2 concentration7.PAR
8.Wind speed and wind direction
9.Rain gauge
10.Soil pH
11.Soil compaction

1.Soil temperature

2.Soil moisture

3.Soil salinity temperature

4.Humidity

5.Light intensity

6.CO2 concentration7.PAR

8.Wind speed and wind direction

9.Rain gauge

10.Soil pH

11. Soil compaction

12.Global solar radiation
TemperatureRange: -40°C-80°C
Accuracy: ±0.4°C
Resolution: 0.1°C
HumidityRange: 0-100%RH
Accuracy: ±3%RH
Resolution: 0.1%RH
Dew PointRange: -40°C-120°C
Accuracy: ±0.4°C
Resolution: 0.1°C
Soil SalinityRange: 0-19.99ms/cm
Accuracy: ±2%
Soil CompactIonRange: 0-100kg
Accuracy: ±0.5%o F.S
PAR

Range: 1 -2,700μmol·m-²•s-¹

Accuracy: ±1umolm-²s-¹

Resolution: 1umolm-²s-¹
Wind DirectionRange: 0-359°
Accuracy: ±3°
Air PressureRange: 300.0hPa-1100.0hPa
Accuracy: ±1hPa
Water VaporizationRange: 0~100mm
Accuracy: 0.1mm
RainfallRange: 0-4mm/min
Accuracy: ±0.1mm
Resolution: 0.1mm
Co2Range: 0-2000PPM
Volatility: ± (50PPM+Measurementsx3%)
Resolution: 1PPM
Light IntensityRange: 0-200000LUX
Resolution: 1LUX
Accuracy: ±2% (0-20000lux)
Soil TemperatureRange: -40°C-100°C
Accuracy: ±0.3°C
Resolution: 0.1°C
Soil MoistureRange: 0-100%
Accuracy: ±3%
Resolution: 0.1%
Soil pHpH Range: 1-14pH
pH Accuracy: ±0.5
Wind SpeedRange: 0-45m/s
Accuracy: ±(0.3+0.03v)m/s
Total RadiationRange: 0-2000W/m2
Accuracy: 7-14uv/Wxm2
UV RadiationRange: 0-6mW/cm2
Accuracy: ±5% (0x3mW/cm2)
Power Supply7.4V 2.8Ah lithium battery
Shipping Size(W×D×H)(mm)570x450x220660x610x410660x610x410660x610x410660x610x410660x610x410660x610x410660x610x410660x610x410720x700x480
G.W. (kg)7121212121212121418

Handheld Weather Monitor System Feature:

  1. Large touch screen LCD, intelligent operation, easy to carry.

  2. Manual and automatic recording are two modes that can be switched quickly.

  3. 8.4v 1500mAh lithium battery with AC/DC compatibility, charging protection, and low voltage to protect the battery from over-discharge and extend battery life.

  4. 32 channels, can freely combine different sensors. You can monitor a variety of environmental parameters at the same time, such as light, temperature, CO2 concentration, humidity, etc., which apply to different agricultural environmental monitoring needs.

  5. RS485 cable is up to 10 meters long, has good communication stability and anti-interference ability, and can be stable in a complex agricultural environment.

  6. The sampling interval time of each sensor can be set individually, which can be flexibly configured and adjusted according to the actual needs.

  7. GPS is an optional function, which is convenient for users to record and track monitoring point information.

  8. Users can choose blue or orange color housing according to their preferences.
