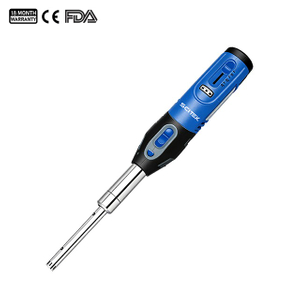

Handheld Homogenizer

Model : HMG-H160

Speed Range : 8000-32000rpm
Max Linear Velocity : 6.3m/sec or 14m/sec
Speed Level : 10 stage
Working Volume [H2O] : 0.1-50mL; 1-250mL
Lab handheld homogenizer is designed for personal and small business use.
Availability:
Quantity:
Inquiry Add to Inquiry List

Handheld homogenizer is designed for rapidly homogenize, emulsify,suspend and disrupt biological samples like tissue of animal, bacteria, yeast, plant samples,etc. in liquids. Ideal for samples from 0.1mL to 250mL depending on shaft chosen.

Handheld Homogenizer Specifications:

ModelHMG-H160
Speed Range
8000-32000rpm
Max Linear Velocity
6.3m/sec or 14m/sec
Speed Level
10 stage
Working Volume (H2O)
0.1-50mL (Dispersing shaft DS-160/5)
1-250mL (Dispersing shaft DS-160/10)
Max. viscosity
5,000mPas
Dispersion HeadOptional
Material of Dispersing Shaft
SS 316L stainless steel, PTFE
Noise
72 dB(A)
Protection Class
IP20
Power
160W
Motor Type Permissible Ambient Temperature and Humidity
AC carbon brush motor 0-40℃, 85%RH
Size (W×D×H)(mm)
45x55x190
N.W/G.W（KG）2.66/3.16
Shipping Size (W×D×H)(mm)470×250×240

Handheld Homogenizer Features:

  1. Portable, lightweight with ergonomic design ideal for manual operations.

  2. Processing volumes from 0.1-50mL or 1-250mL.

  3. Variable speed from 8,000 to 32,000 rpm.

  4. 316L stainless steel shafts are fully autoclavable.

  5. Interchangeable shafts for easy dismantling and cleaning.
