The interferometer uses DSP-controlled electromagnetically driven Michelson interferometer, which has continuous dynamic adjustment function and automatically optimizes system energy without manual adjustment;
Electronic system of SuperTect digital technology. Fully digital, output digital signal. 24-bit, 500KHz A/D conversion, high-speed USB interface, to achieve real-time acquisition of spectral data, ensuring the authenticity and reliability of the data;
The instrument has built-in industrial-grade temperature and humidity module, the display screen directly displays temperature and humidity digitally, and has a humidity alarm device, and the cavity is sealed as a whole to ensure that the entire cavity is sealed and dry, improve the moisture-proof effect, and greatly increase the service life of each component;
High-energy infrared light source, built-in unique design of reflector, the energy utilization rate of the light source is much higher than the traditional design, which can provide sufficient energy for ATR and microscopic infrared applications of Fourier transform infrared spectrometer.
Reusable 304 stainless steel boxed desiccant, the desiccant can be replaced without opening the lid.
High frequency stability He-Ne laser and low power consumption long life diode laser are optional designs;
24W silicon carbide rod infrared light source with electronic voltage stabilization adopts digital power supply technology to provide stable and reliable power supply support for the light source and ensure that the light source has an ultra-long service life.
Dynamic collimation technology: The laser adopts four-quadrant detection collimation technology, which can eliminate the mechanical deviation generated during the movement of the interferometer moving mirror and the optical error caused by environmental changes (gravity, temperature changes, etc.);
The Michelson improved interferometer with non-orthogonal design greatly improves the energy utilization rate;
The core components such as beam splitters, detectors, windows, etc. are all imported and coated with special anti-fogging coatings, with ultra-high transmittance, and can also reduce the corrosion of potassium bromide by moisture. Reliable moisture-proof materials such as KRS-5 and ZnSe can also be selected;
Optical mirror design: The optical reflector adopts the overall SPDT cutting process to ensure the high reflection efficiency of the mirror and the consistency of the optical system.
Powerful expansion function, can connect transmission accessories, attenuated total reflection accessories (ATR accessories), diffuse reflection accessories, plane reflection accessories, external reflection accessories, infrared microscopes, etc.;

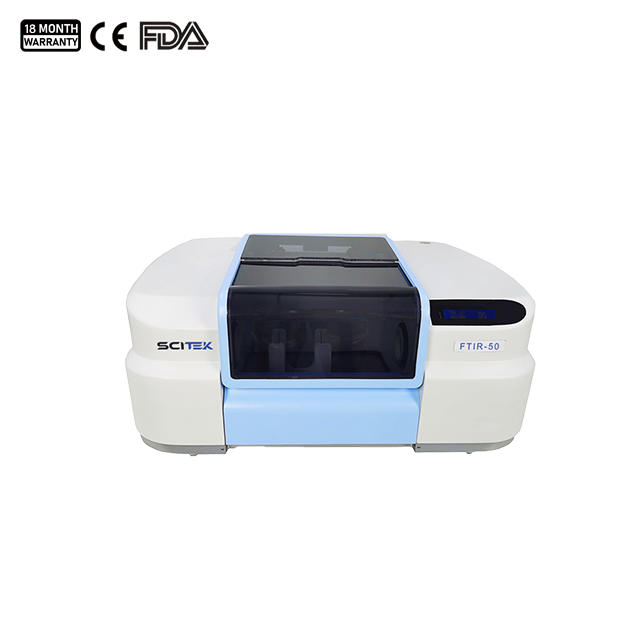

Only the main machine is shown. The Hydraulic Press and IR Dies are optional. The specific configuration needs to be determined after consultation.
