The interferometer uses DSP-controlled electromagnetically driven Michelson interferometer, which has continuous dynamic adjust- ment function and automatically optimizes system energy without manual adjustment;
It uses three-dimensional stereo right-angle gold-plated reflector optical compensation technology, the fixed mirror is constant and does not require mechanical dynamic adjustment, and the optical path is permanently aligned;
SuperTect digital technology electronic system. Fully digital, output digital signal. 24-bit, 500KHz A/D conversion and high-speed USB interface enable real-time spectral data acquisition, ensuring the authenticity and reliability of the data;
The instrument has a built-in industrial-grade temperature and humidity module, the display screen directly displays the temperature and humidity digitally, and has a humidity alarm device to effectively prevent the core components of the instrument from being damaged due to deliquescence;
The cavity is sealed as a whole to ensure that the entire cavity is sealed and dry, improve the moisture-proof effect, and greatly increase the service life of each component;
Reusable 304 stainless steel box desiccant, the desiccant can be replaced without opening the lid;
The Michelson modified interferometer with non-orthogonal design greatly improves energy utilization;
The 24W silicon carbide rod infrared light source with electronic voltage stabilization uses digital power supply technology to provide stable and reliable power supply support for the light source and ensure that the light source has an ultra-long service life;
Long-life diode laser;
The window, detector, and beam splitter are coated with a special coating, which has an ultra-high transmittance and can also reduce the corrosion of moisture to potassium bromide;
A variety of beam splitters are available: KBr, ZnSe, CaF2 and other reliable moisture-proof materials;
Excellent optical mirror design: The optical reflector adopts the overall SPDT cutting process to ensure the high reflection efficiency of the mirror and the consistency of the optical system.
The expansion function is powerful and can be connected to the transmission accessories, attenuated total reflection accessories (ATR accessories), diffuse reflection accessories, plane reflection accessories, external reflection accessories, etc.

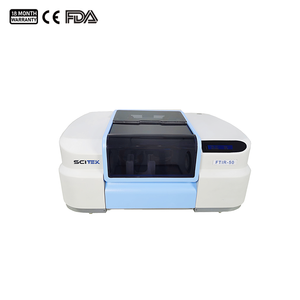

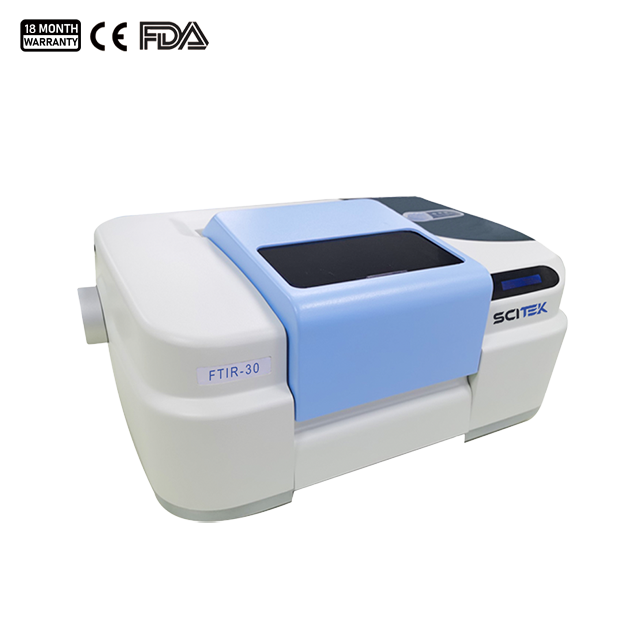

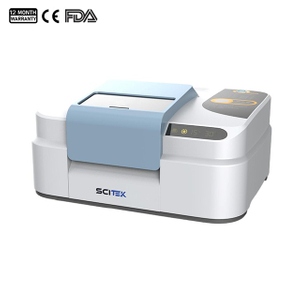

Only the main machine is shown. The Hydraulic Press and IR Dies are optional. The specific configuration needs to be determined after consultation.
