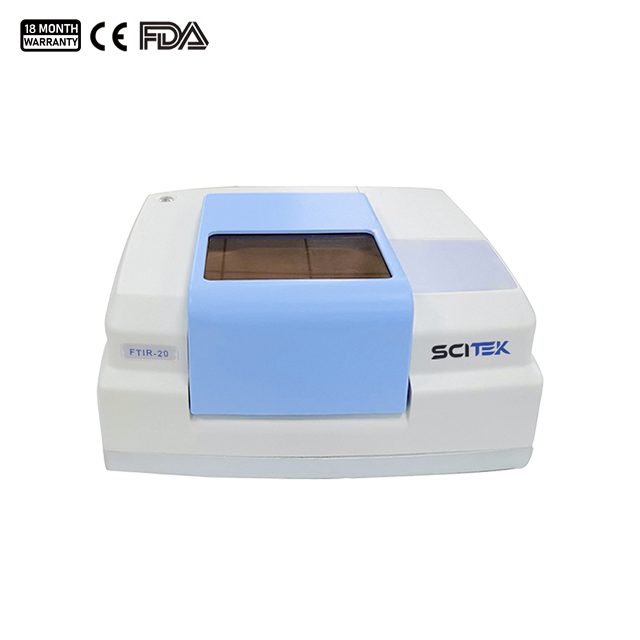

The fourier transform infrared spectrometer has the characteristics of easy installation, simple use and convenient maintenance. It is an indispensable spectral analysis instrument in the Jewelry identification, biomedicine, petrochemical, food safety and other industries. At the same time, it is also a necessary laboratory analysis instrument for related majors in universities, research institutes and other institutions.
Fourier Transform Infrared Spectrometer Features:
The gold-plated reflector with large aperture is used as the moving mirror and fixed mirror of the interferometer, which has excellent energy efficiency;
The off-axis mirror adopts SPDT cutting technology, which has excellent optical efficiency and system consistency;
The main components are installed by needle positioning, without adjustment, which greatly enhances the stability of the instrument and reduces maintenance costs;
Intelligent human-computer interaction design, simple operation;
Unique spectral data acquisition preview full-process monitoring mode, the acquisition process is clear at a glance;
The push-pull sample compartment door design greatly reduces the interference of water and carbon dioxide in the outside air on the experimental test results.
The super-large sample compartment design is convenient for connecting various accessories.
The FTIR spectrometer is compact, small and light in design. It has the characteristics of easy installation, simple use and convenient maintenance. The overall weight is only 14Kg, saving laboratory bench space;
24-bit, 500KHz A/D conversion, high-speed USB2.0 interface, compatible with USB3.0, to achieve real-time collection of spectral data, ensuring the authenticity and reliability of the data.
Main components are imported
a. The interferometer uses a plane mirror (non-swinging double-moving mirror) electromagnetically driven Michelson interferometer, which has continuous dynamic adjustment function and does not require optical compensation.
b. Automatically optimize system energy without manual adjustment;
c. High-sensitivity imported DLATGS receiver with moisture-proof film;
d. High-energy, high-efficiency, long-life imported ceramic light source;
e. High-performance imported VCSEL laser;
f. Imported special steel guide rails, heavy load, ultra-low friction, to ensure data stability and repeatability.
Fourier Transform Infrared Spectrometer Specifications:
| Model | FTIR-20 |
|---|
| Spectral range | 7800 ~ 350 cm-1 |
| Resolution | Better than 0.5 cm-1 |
| Wave number accuracy | ≤0.01cm-1 |
| Signal-to-Noise Ratio | Better than 15000:1/better than 30000:1 (P-P value, 4cm-1, one minute scanning) optional |
| Beam splitter | KBr substrate coated with germanium |
| Light source | High energy, high efficiency, long life ceramic light source (imported) |
| Interferometer | Michelson interferometer with 30 degree incident angle |
| Receiver | High sensitivity DLATGS receiver with moisture-proof film (imported) |
| Data transmission interface | USB2.0 (compatible with 3.0) |
| Supported systems | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 |
| Consumption | 39W |
| Size(W×D×H)(mm) | 440×360×190 |
| Shipping Size (W×D×H)(mm) | 820x705x590 |
| N.W./G.W. (kg) | 14 / 61.7 |
