Number of test samples : 10 items simultaneously Max test speed : 20 samples/hour Suited ESR tube : 1.6ml ESR tube(vacuum or normal) Accuracy range of sample : 50mm~64mm

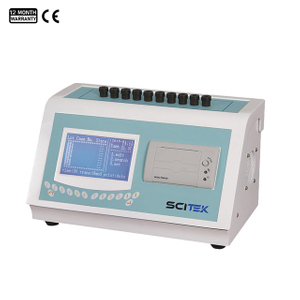

Erythrocyte sedimentation rate (ESR) analyzer improves laboratory efficiency by providing virtually instant results through a fully automated workflow.
The ESR analyzer uses the infrared obstacle detection method, scan the tested blood regularly, and automatically detect the sub-interface of red cells and plasma from time to time. The tested data will be converted into results of Wechsler by computer processing. This can be displayed on the LCD screen or printer and can also be transmitted through the serial interface to a computer.
The instrument makes up detection of the host (include infrared detection devices, computer control systems, thermal printer) and the adaptive power supply (SELV) .
The ESR analyzer has the large display apparatus; the interface is simple appearance and has the film keyboard operation. The operation is simple and convenient. The ESR analyzer has highly automatic functions which can work at any time and continuously detect.
ESR Analyzer Specifications:
Model
ESR-10A
Number of test samples
10 items simultaneously
Max test speed
20 samples/hour
Suited ESR tube
1.6ml ESR tube(vacuum or normal)
Samples volume
1.6 ml anticoagulant blood (blood1.28ml + anticoagulant 0.32ml), the height of the inputting tube 60 mm
Accuracy range of sample
50mm~64mm
Read resolution
±0.2mm(westergren method result±1mm)
Interval of reading
1 minute
Test time
The test time is 30 minutes, equivalents to 1 hour
Westergren method
The test time is 60 minutes, equivalents to 2 hour westergren method
Power
12V(SELV) by external power supply
Display
128×240 LCD screen
Packing Details
505x445x365mm, 0.09CBM
NW/GW(KG)
9/12
Automated ESR Analyzer Features:
Insert & detect the sample at any time
Display and print samples' No.(serial number)
Stored not less than 150 samples of the test results
Power-off protection function
Built-in thermal printer preparation equipment with automatic, manual printing options
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
