Electrocardiograph ECG-601M

Model : ECG-601M

Lead : 12 leads
Measurement Range : ±5mVpp
Input Impedance : ≥50MΩ
Input Circuit Current : <0.05μA
External Size (WxDxH)(mm) : 250x200x50
This electrocardiograph is ideal for medical institutions and clinics. Now the best electrocardiograph for sale at cost price.
Availability:
Quantity:
Inquiry Add to Inquiry List

Our electrocardiograph is not only affordable, but also functional and practical for a variety of medical facilities and clinics. Whether you are a doctor, nurse or medical technician, this electrocardiograph will be your most reliable partner. The electrocardiograph is a reliable companion that helps you to quickly and accurately obtain ECG information from your patients, providing important support for diagnosis and treatment.

Electrocardiograph Features:

  1. 7-inch-high resolution color touch screen

  2. 12-lead simultaneous acquisition and display

  3. ECG Automatic measurement and interpretation function

  4. Complete digital filters, resisting baseline drift, AC and EMG interference

  5. Compact and lightweight design

  6. Support USB flash disk and micro-SD card to extend memory

  7. Software update via USB/SD card

  8. Built-in rechargeable Li-ion battery

Electrocardiograph Specifications:

Model ECG-601M
Lead 12 leads
Acquisition Mode Simultaneous 12 leads acquisition
Measurement Range ±5mVpp
Input Circuit Floating; Protection circuit against defibrillator effect
Input Impedance ≥50MΩ
Input Circuit Current <0.05μA
Record Mode Automatic: 3CH×4+1R,3CH×4,3CH×2+2CH×3, 3CH×2+2CH×3+1R, 6CH×2
Manual:3CH,2CH,3CH+1R,2CH+1R
Rhythm: any lead selectable
1inch 1min Mode:1 minute 1-lead
Filter EMG Filter: 25Hz/30Hz/40Hz/75Hz/100Hz/150Hz
DFT Filter: 0.05 Hz/0.15 Hz
AC Filter: 50 Hz/60 Hz
CMRR >100dB
Patient Leak Current <10μA (220V-240V)
Frequency Response 0.05Hz~150Hz (-3dB)
Sensitivity 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%)
Anti-baseline Drift Automatic
Time Constant ≥3.2s
Noise Level <15μVp-p
Paper Speed 12.5mm/s, 25mm/s, 50mm/s
Recording Mode Thermal printing system
Paper Specification Roll 110mmx20M
Safety Standard IEC I/CF
Sample Rate Normal: 1000sps/channel
Power Supply AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, build-in lithium battery

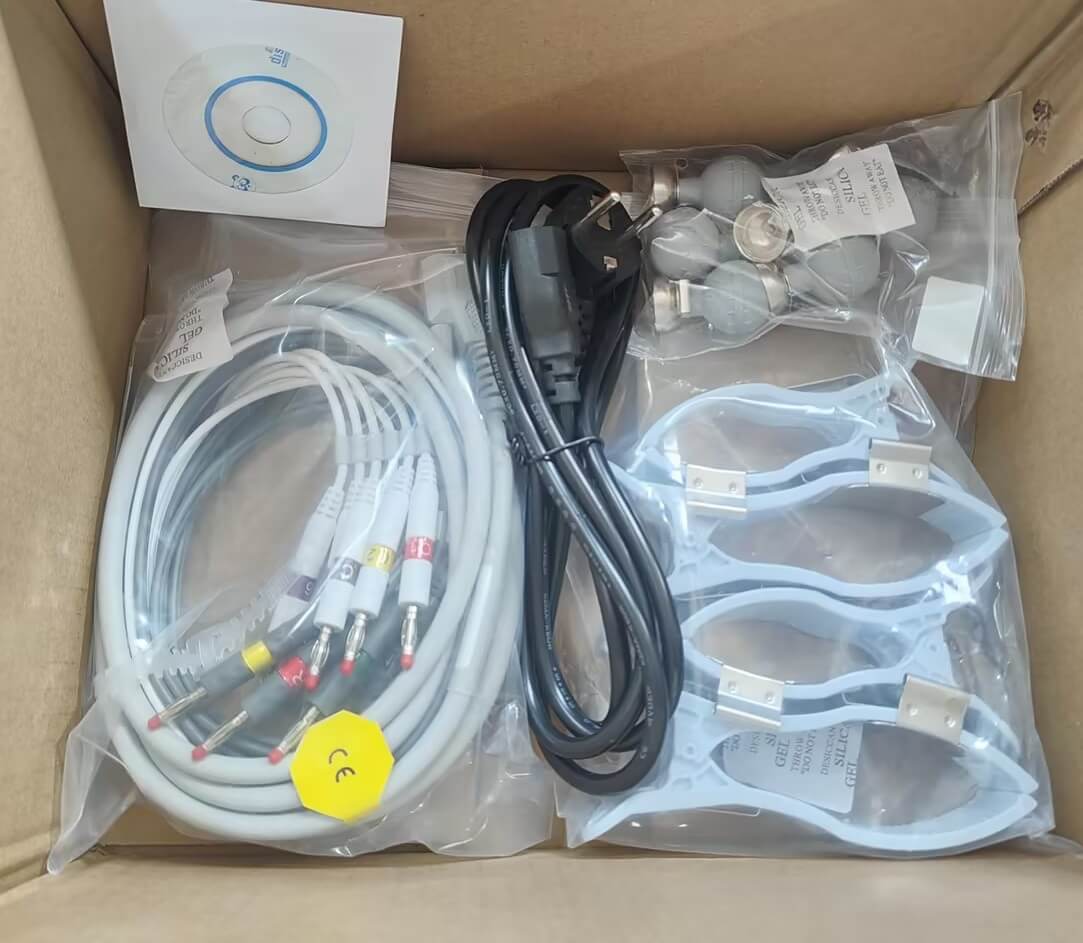

Standard Configuration

Main machine: 1 pc

Patient cable: 1pc

Limb electrode: 1 set(4pcs);

Chest electrode: 1set(6pcs)

Power cable: 1pc;

110mmx20M recording paper: 1pc

Paper axis: 1pc;

Power cord: 1pc
External Size (WxDxH)(mm) 250x200x50
Shipping Size (WxDxH)(mm) 320x250x170
Net Weight (kg) 1.2
Gross Weight (kg) 2.8
Packing Information 8 units/carton,
Carton Package Size: 540x330x750mm,
Carton Gross Weight: 22kg

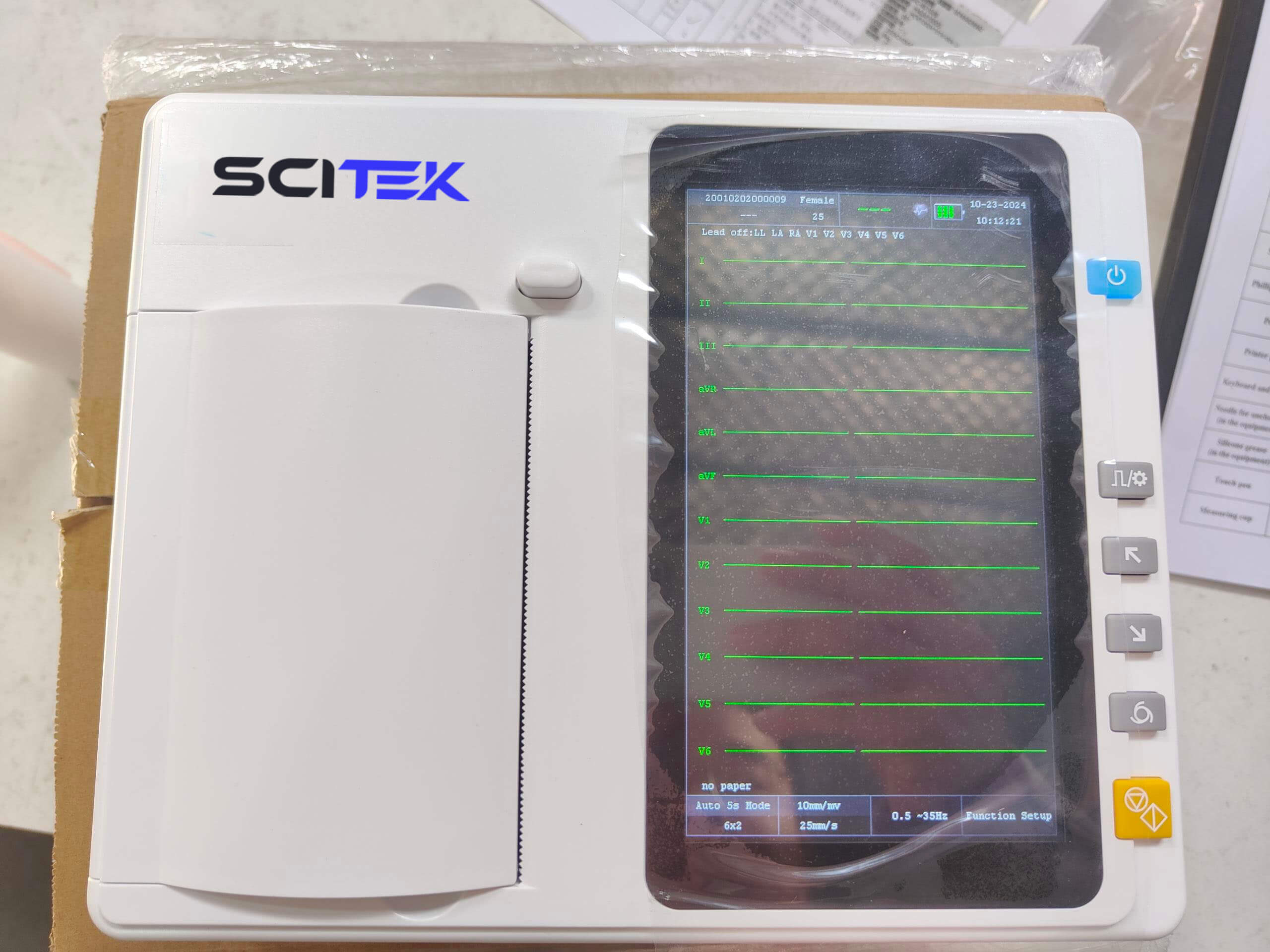

Details of Electrocardiograph:

Electrocardiograph

Electrocardiograph

What is an Electrocardiograph?

The electrocardiograph (ECG or EKG) is one of the simplest and quickest tests used to evaluate the heart. The electrocardiograph records these impulses to show the heart rate, the rhythm of the heartbeat (steady or irregular), and the amount of time it takes for the electrical impulses to pass through different parts of the heart.

Why might I need an electrocardiogram?

  1. An electrocardiogram may be used to screen for or rule out the following conditions

  2. Finding the cause of chest pain, or evaluating heart-related problems

  3. Recognizing irregular heart rhythms

  4. Help doctors assess the overall health of a patient's heart before surgery

  5. Find out how well certain heart medications are working
