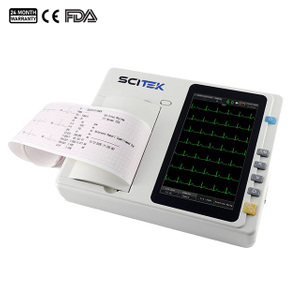

This electrocardiograph uses advanced technology and design to provide you with the most reliable and accurate ECG monitoring available. With advanced features such as simultaneous 12 leads acquisition mode, 24-bit A/D converter, wide frequency range and large dynamic range, you are guaranteed the highest quality ECG data. It is the first choice for clinical diagnosis and heart disease monitoring.
Model | ECG-1201M |
---|---|
Lead | 12 leads |
Acquisition Mode | Simultaneous 12 leads acquisition |
Sampling Rate | 1000Hz |
A/D Converter | 24 bits |
Frequency Response | 0.05Hz~160Hz (-3dB) |
Input Dynamic Range | ±10mVp-p |
Input Mode | Floating and defibrillation protection |
Input Impedance | ≥50MΩ (10Hz) |
Input Circuit Current | <0.05μA |
Operation Mode | Manual, Auto, Rhythm, 1 channel 1 minute |
Filter | EMG Filter: 25Hz/35 Hz/45Hz/75Hz/100Hz/150Hz |
DFT Filter: 0.05 Hz / 0.5 Hz | |
AC Filter: 50 Hz /60 Hz | |
CMRR | >100dB(add AC filter) |
Patient Leak Current | <10μA |
Calibration Voltage | 1mV±2% |
Polarizing Voltage | ≥±300mV |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (standard sensitivity: 10mm/mV) |
Time Constant | ≥3.2s |
Noise Level | <15μ Vp-p |
Memory | 1000 cases |
Threshold | ≤20μV |
Wave/Paper Speed | 12.5mm/s, 25mm/s, 50mm/s (±3%) |
Recording Mode | Thermal printing system |
Paper Specification | Roll 210mmx30M |
Power Supply | AC: 100~240V, 50/60Hz |
DC: 14.4V/2500mAh, 36.00Wh,build-in lithium battery | |
Standard Configuration | Main machine: 1 pc Patient cable: 1pc Limb electrode: 1 set(4pcs); Chest electrode: 1set(6pcs) Power cable: 1pc; 210mmx30M recording paper: 1pc Paper axis: 1pc; Power cord: 1pc |
External Size (WxDxH)(mm) | 366x323x71 |
Shipping Size (WxDxH)(mm) | 430x200x420 |
Net Weight (kg) | 2.6 |
Gross Weight (kg) | 5.5 |
Packing Information | 4 units/carton, Carton Package Size: 825x445x450mm, Carton Gross Weight: 24kg |
7-inch-high resolution color touch screen
Full alphanumeric keyboard with shortcut keys, efficient in operation
Simultaneous 12-lead ECG acquisition and display
Automatic ECG measurements and interpretation
Internal storage up to 1000 cases, convenient for case review and statistic
Built-in rechargeable high-capacity lithium battery
ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software
