Pathology Workstation Application:
Workstations, accessories, and replacement parts for use during dissections, autopsies, necropsies, and other pathological procedures. Products include grossing/trimming stations and dissection tables, built-in sink and ventilation system.
Pathology Workstation Feature:
Odor suction system design and air filtration system, which can efficiently exhaust harmful gases, low-noise, with powerful exhaust.
Easy filter replacement design, convenient for maintenance.
UV sterilization function and timing function can be set by appointment.

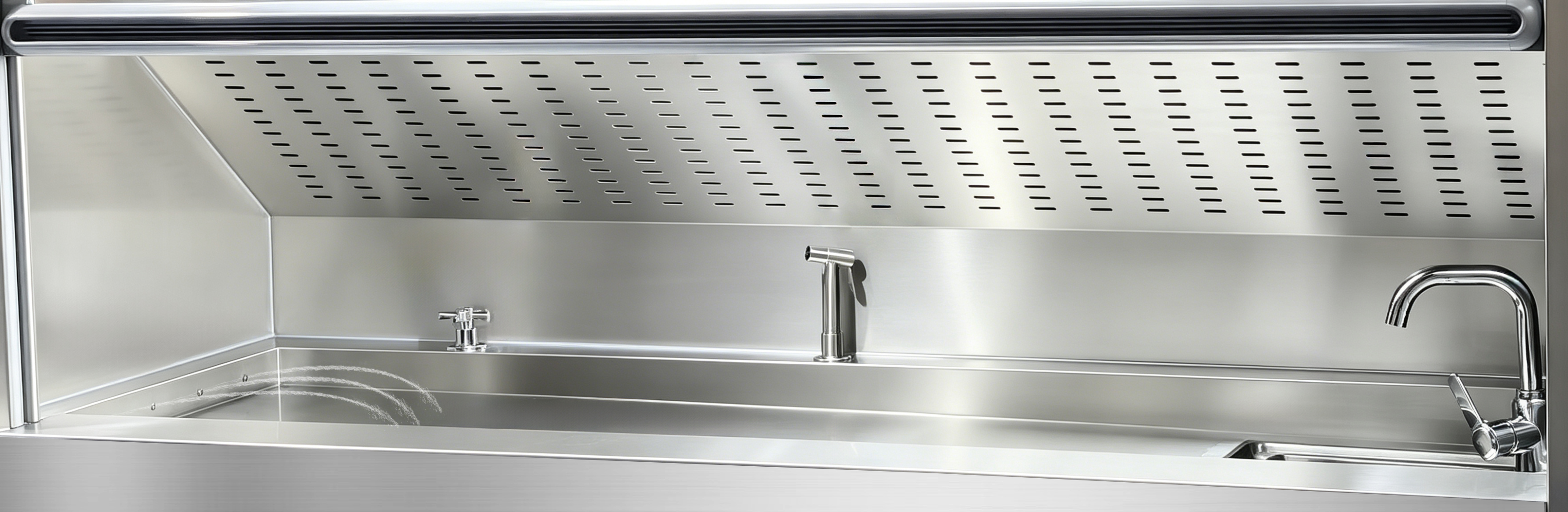

Workbench flushing system, convenient for cleaning and easy waste discharge.
Whole 304 stainless steel material design, rust resistant and corrosion resistant.
Pathology Workstation Specification:
Model | PW-1000 | PW-1500 | PW-1800 | PW-1000F | PW-1500F | PW-1800F |

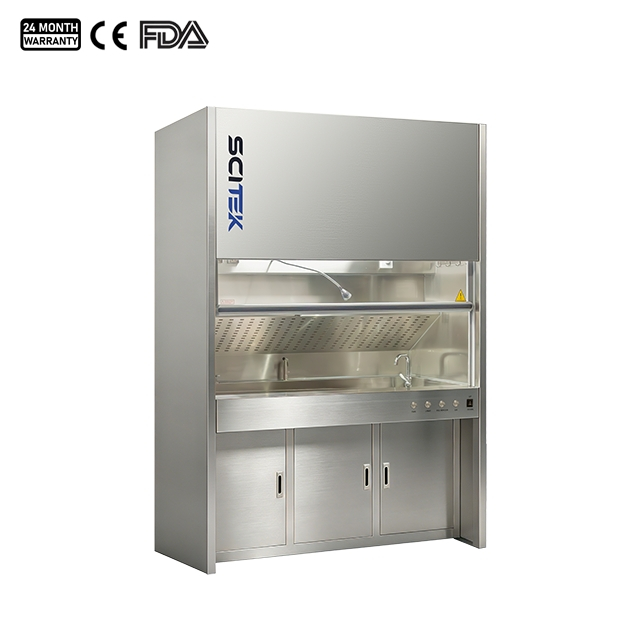

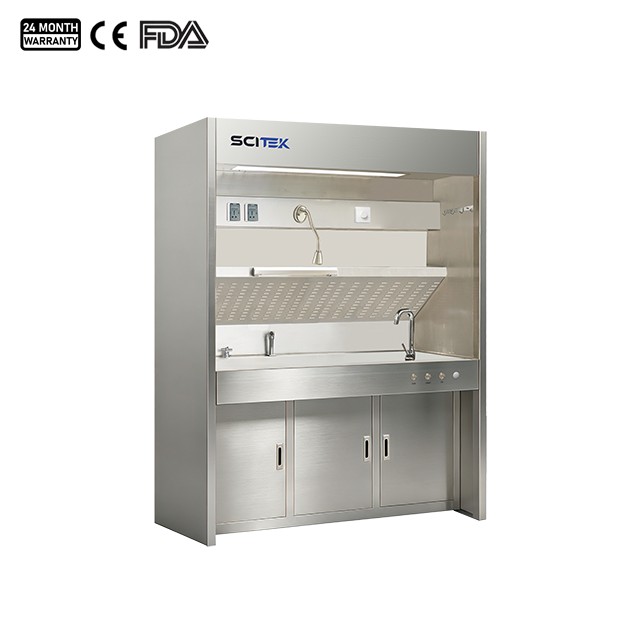

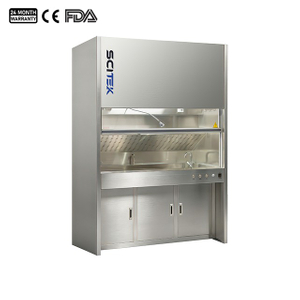

Type | Open type, no front glass door | Closed type, with motorized glass door |
External Size (W×D×H)(mm) | 1000×760×1950 | 1500×760×1950 | 1800×760×1950 | 1000×800×2350 | 1500×800×2350 | 1800×800×2350 |
|
Working Area Size (W×D×H)(mm) | 895×430×50 | 1395×430×50 | 1695×430×50 | 895×430×50m | 1395×430×50 | 1695×430×50 |
Work Surface Height | 900 mm |
Exhaust Airflow Volume | 1000–1200 m³/h |
Construction | Main Body | 304 stainless steel |
Work Surface | 304 stainless steel |
Electrical System | LED Lamp | 24W×1 | 36W×1 | 36W×1 | 24W×1 | 36W×1 | 36W×1 |
UV Lamp | 15W×1 | 15W×1 | 20W×1 | 15W×1 | 15W×1 | 20W×1 |

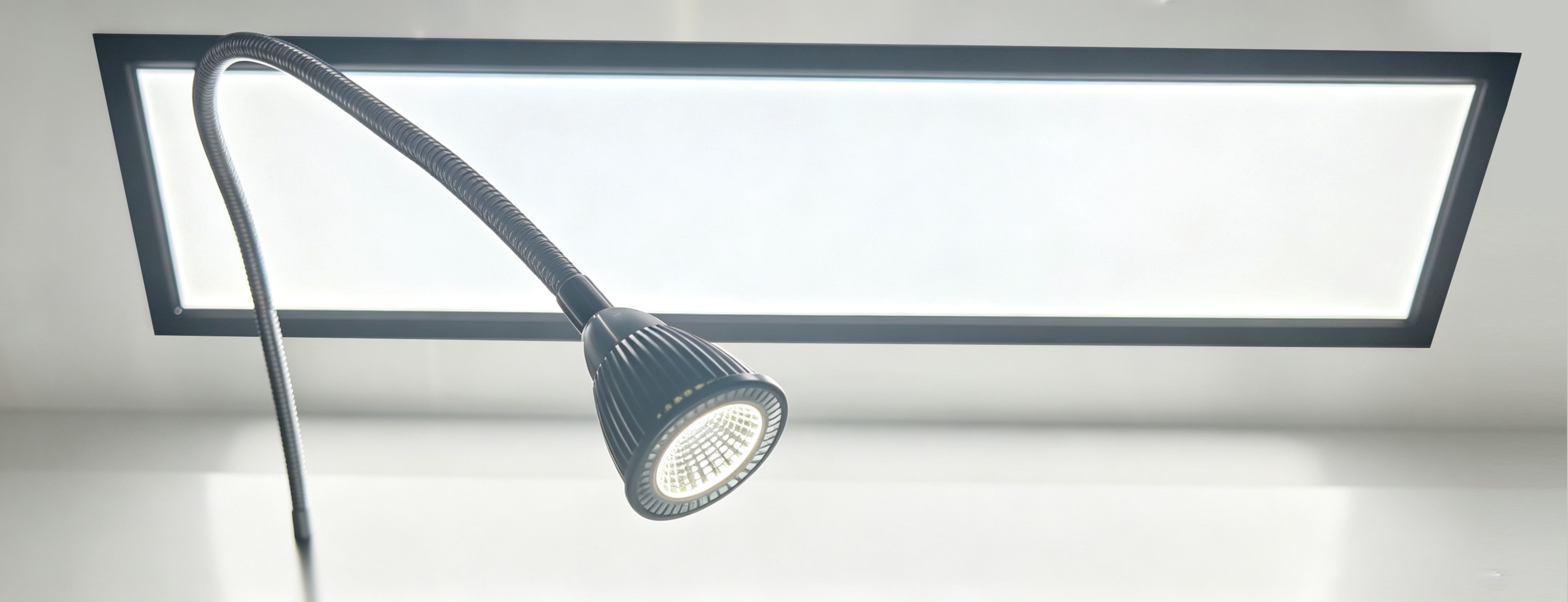

Standard Accessory | LED lamp×1 |
UV lamp×1 |
Spotlight×1 |
Water-proof socket×2 |
Adjustable hot and cold water tap |

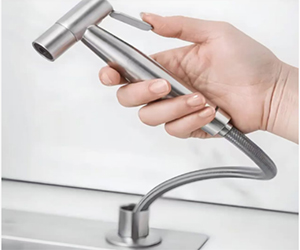

Telescopic faucet |

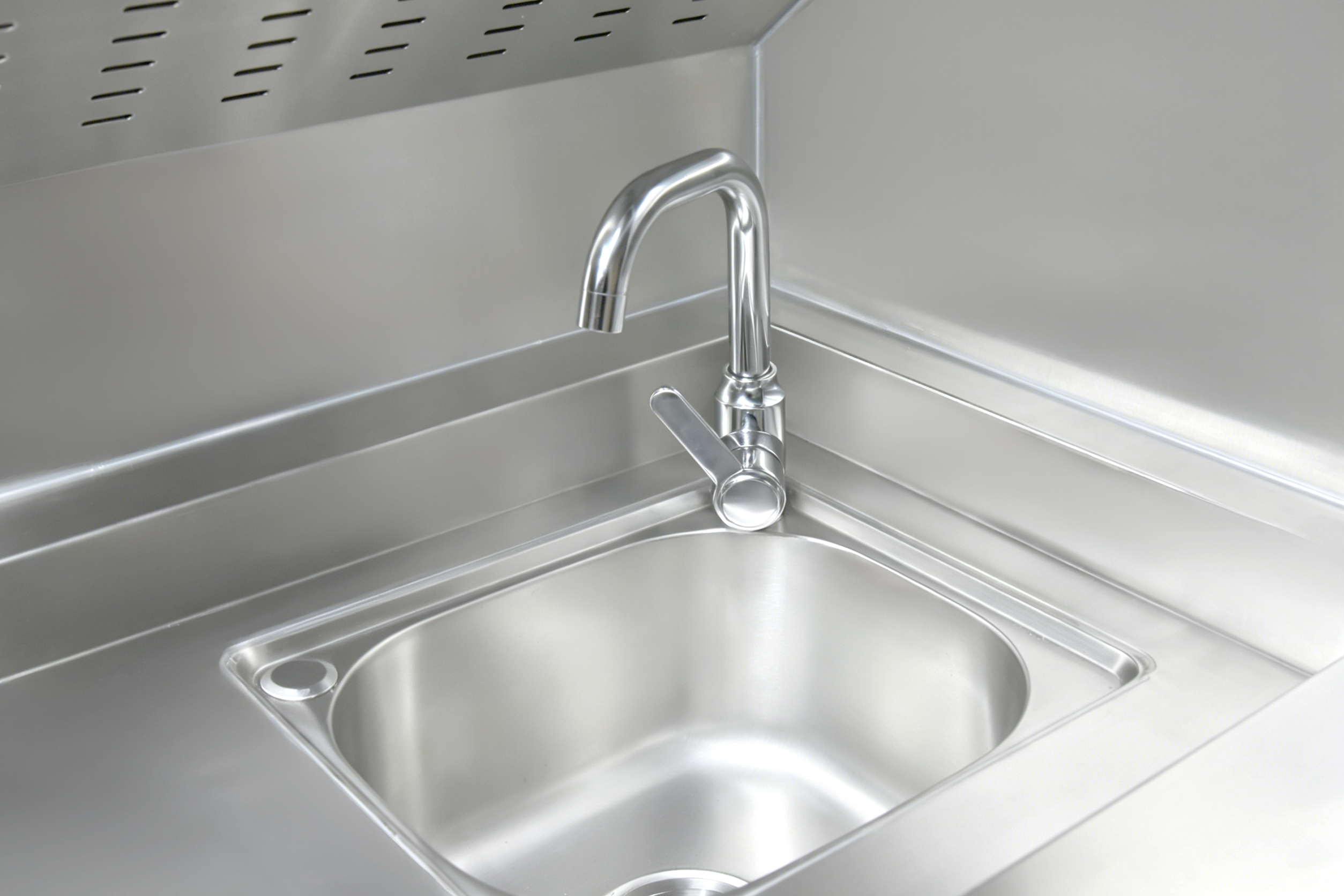

Stainless steel water sink |
Magnetic tool holder |
Activated carbon filter |
4 m exhaust PVC duct (Diameter: 300 mm) |
Optional Accessory | 316 SS work surface, thickness: 2 mm |
Pulverizer |

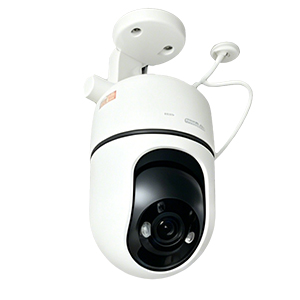

Camera |
25x magnifier |
Electrical water heater |
External exhaust blower |
Power Supply | AC 220±10%V, 50/60 Hz; 110±10% V, 60 Hz |
Consumption | 700 W |
Shipping Size (W×D×H)(mm) | 1180×910×2150 | 1680×910×2150 | 1980×910×2150 | 1180×910×2560 | 1680×910×2560 | 1980×910×2560 |
G.W. (kg) | 270 | 335 | 380 | 290 | 360 | 415 |
