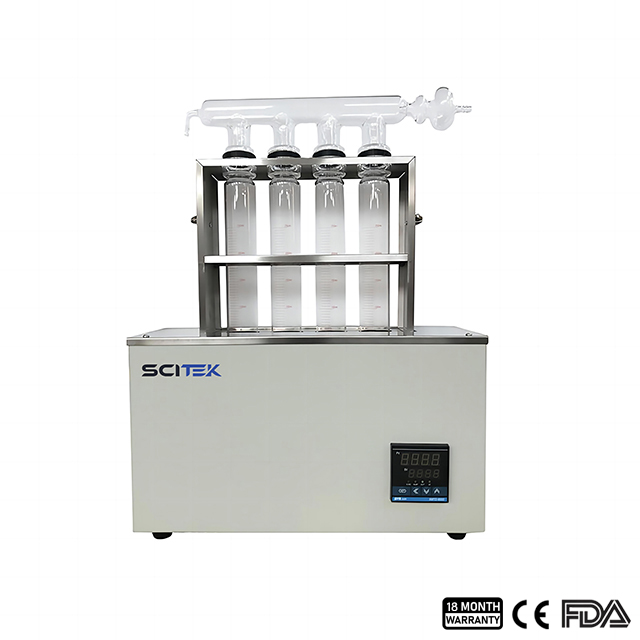

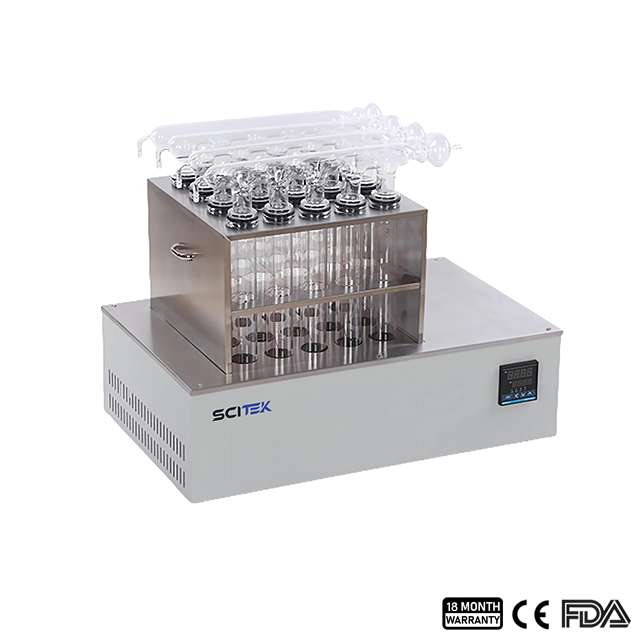

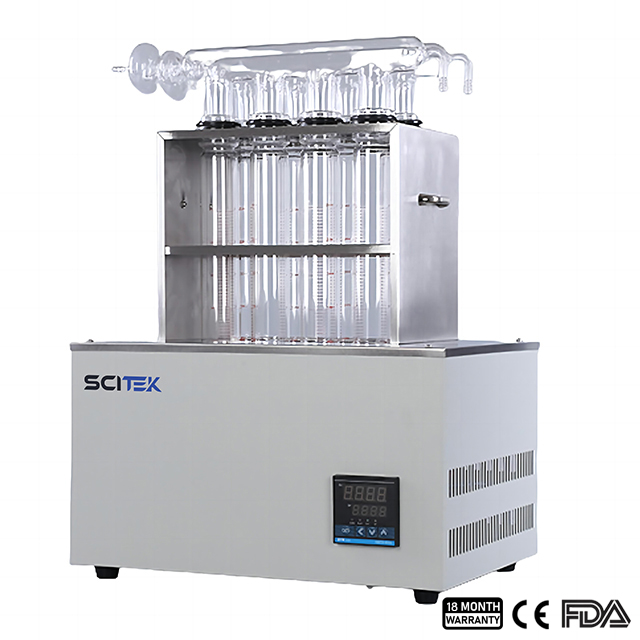

Model | DF-04C | DF-08C | DF-20C |
---|---|---|---|
Sample Holes | 4 | 8 | 20 |
Measurement Range | 0.1mgN-200mgN (mg nitrogen) | ||
Digestive Pipe Capacity | 300ml | ||
Heating Module Material | Infrared | ||
Temp.Control Mode | Digital | ||
Temp.Control Range | RT-600℃ | ||
Temp.Control Accuracy | ±1℃ | ||
Digestion Time | 60-90 min/batch (according to sample quantity) | ||
Power | 1KW | 1.5kW | 2.5kW |
Power Supply | AC220V, 50Hz | ||
Shipping Size(W×D×H)(mm) | 730x430x400 | 650x420x690 | 800x550x700 |
G.W. (kg) | 15 | 19 | 43 |
Infrared heating is fast and efficient.

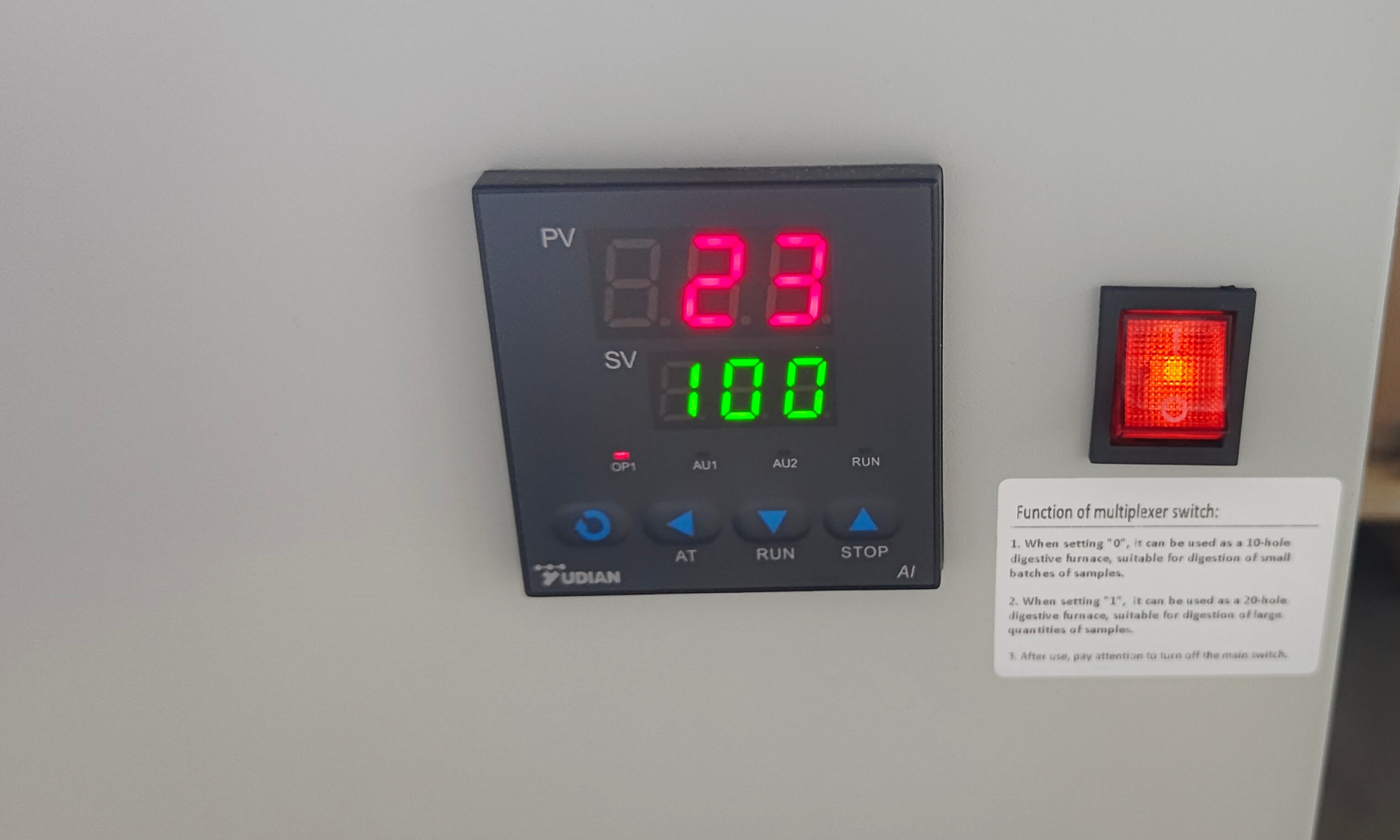

The temperature controller directly displays the set temperature and the actual temperature. When the actual temperature reaches the hard temperature, the instrument will stop heating automatically.
The whole cabinet is made of special plastic spraying steel plate, and the working table is made of stainless steel with good corrosion resistance.
Waste seals are made of PTFE, effectively preventing waste residue on the seals, reducing the difficulty of cleaning and maintenance, and being safe and reliable!
Double shell design reduces heat dissipation and thermal radiation hazards to the operator, improves heating efficiency and provides a stable heating environment.
The machine has over-current, over-heating and over-voltage protection to ensure more safety and reliability during operation.

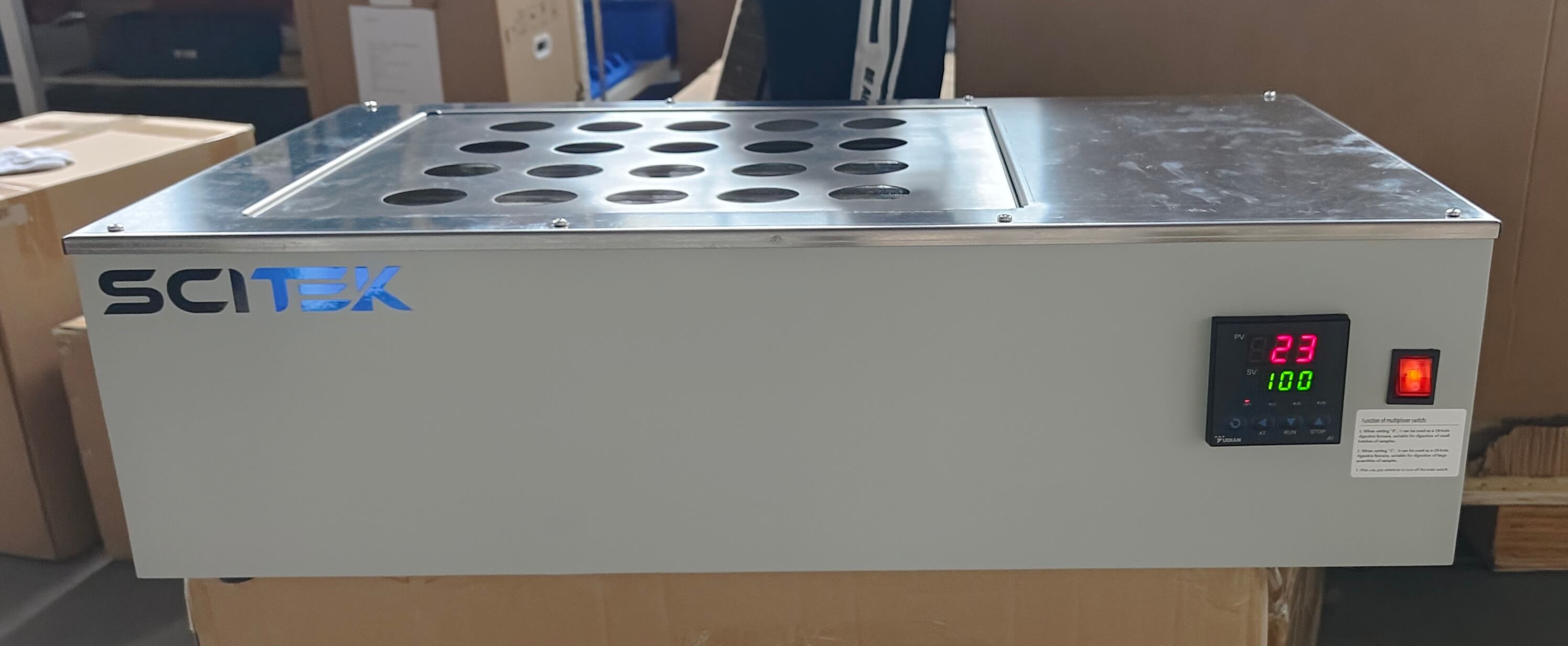

The digestion furnace has a Compact structure and beautiful appearance.
