Benchtop Constant-Temperature Drying Oven Specifications:
| Model | TDO-18D | TDO-18 |
| Capacity(L) | 18 |
| Circulation Mode | Natural convection |
| Size(WxDxH) | Internal (mm) | 260x260x260 |
| External (mm) | 380x455x568 |
| Temperature | Range (℃) | RT+10~300 |
| Fluctuation (℃) | ±1 |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±3.5% |
| Sensor | PT100 |
| Controller | PID |
| Display | Digital LED |
| Timer | 0~9999min (with timing wait function) |
| Material | Internal | Without D model: Mirror stainless stee
With D model: High strengthgalvanized sheet |
| External | Cold rolled steel electrostatic spraying exterior |
| Shelves(Standard/Max ) | 2 / 6 |
| Exhaust Hole | Standard Φ35mm top with function of test hole |
| Safety Device | Over temperaure visible & audible alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz |
| Consumption (W) | 600 |
| N.W./G.W. (kg) | 27/35 |
| Shipping Size (WxDxH) (mm) | 515x480x640 |
| Optional | Spare shelf |
Benchtop Constant-Temperature Drying Oven Features:
Hot air is convected naturally and cyclically in the work room
Intelligent Microcomputer PID temperature controller with digital display
Anti-hot handle
Optional
Shelf & Programmable controller
Details of Benchtop Constant-Temperature Drying Oven:

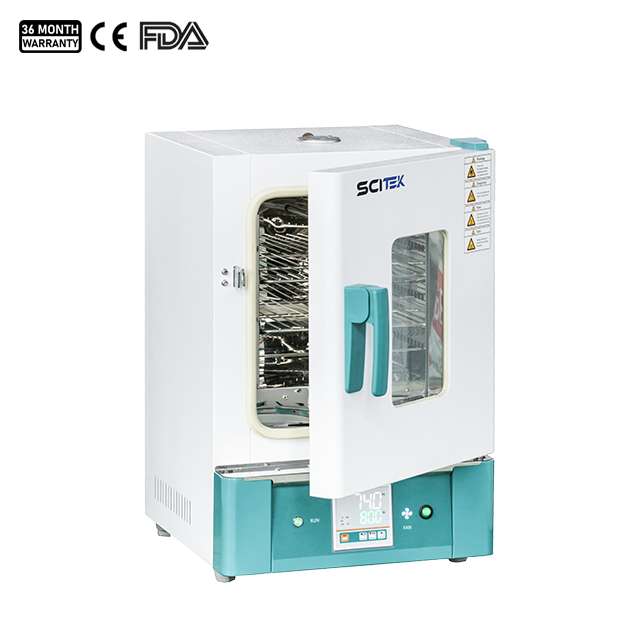

The front of the benchtop constant-temperature drying oven has a simple design with a clear control panel and easy-to-use buttons.
The interior of the drying oven is made of high-quality stainless steel, with spacious interior space, equipped with adjustable brackets, easy to place samples of different sizes and shapes.
Simple back design with power socket
Above picture is TDO-18
Above picture is TDO-18D
Benchtop Constant-Temperature Drying Oven Application:
For removing moisture from samples to make them suitable for subsequent analyses or experimental operations.
Drying of laboratory equipment, glassware, etc., as well as drying of samples during biological experiments such as culture media, cell culture, protein preparation, etc.
Drying of samples during materials research and preparation, e.g. pre-preparation of ceramics, polymers, etc.
For testing temperature stability and verifying the temperature control performance of other equipment in the laboratory.
