Crude Oil Centrifuge Specifications:
| Model | CFG-5CO |
| Max Speed | 5000r/min |
| Max RCF | 4730×g |
| Standard Rotor | 4x100ml Swing Rotor |
| Speed Accuracy | ±10r/min |
| Temperature Range | Room temperature +10 ℃~80 ℃ |
| Temperature Accuracy | ±2℃ |
| Timer | 1s~99h59min59s |
| Noise | ≤60dBA |
| Power Supply | AC110/220V, 50/60Hz |
| External Size (W×D×H)(mm) | 680×500×385 |
| Shipping Size (W×D×H)(mm) | 880×590×560 |
| N.W/G.W | 67kg/93kg |
4×100ml Swing Rotor(2000rpm, 957×g):
Crude Oil Centrifuge Feature:
High-definition touch screen "intelligent system", the display interface simultaneously displays the speed, running time, temperature.
Screen brightness, heating efficiency, prompt volume, and other data can be personalized by users.
Can store and call 100 sets of programs, with 9 acceleration rates and 10 deceleration rate options.
The crude oil centrifuge is adopt large torque brushless frequency conversion motor, easy to operate; maintenance-free, no dust, fast lifting speed, greatly improving work efficiency.
Adopt ring heater, heating quickly, temperature uniform, with temperature control and constant temperature function, to meet the oil industry's requirements for centrifuge temperature.
Automatic electric induction door lock, emergency door opening function; automatic protection for overspeed and unbalance; the body adopts high-quality steel structure, built-in stainless steel explosion-proof protection inner sleeve, stainless steel centrifugal cavity, three-layer protection, safe and reliable.
The crude oil centrifuge is equipped with a fault self-diagnosis system, which can automatically detect various faults such as overspeed, overtemperature, unbalance, door cover self-locking, etc., and display the fault information in the display window to improve the safety performance of the instrument.
Details of Crude Oil Centrifuge:

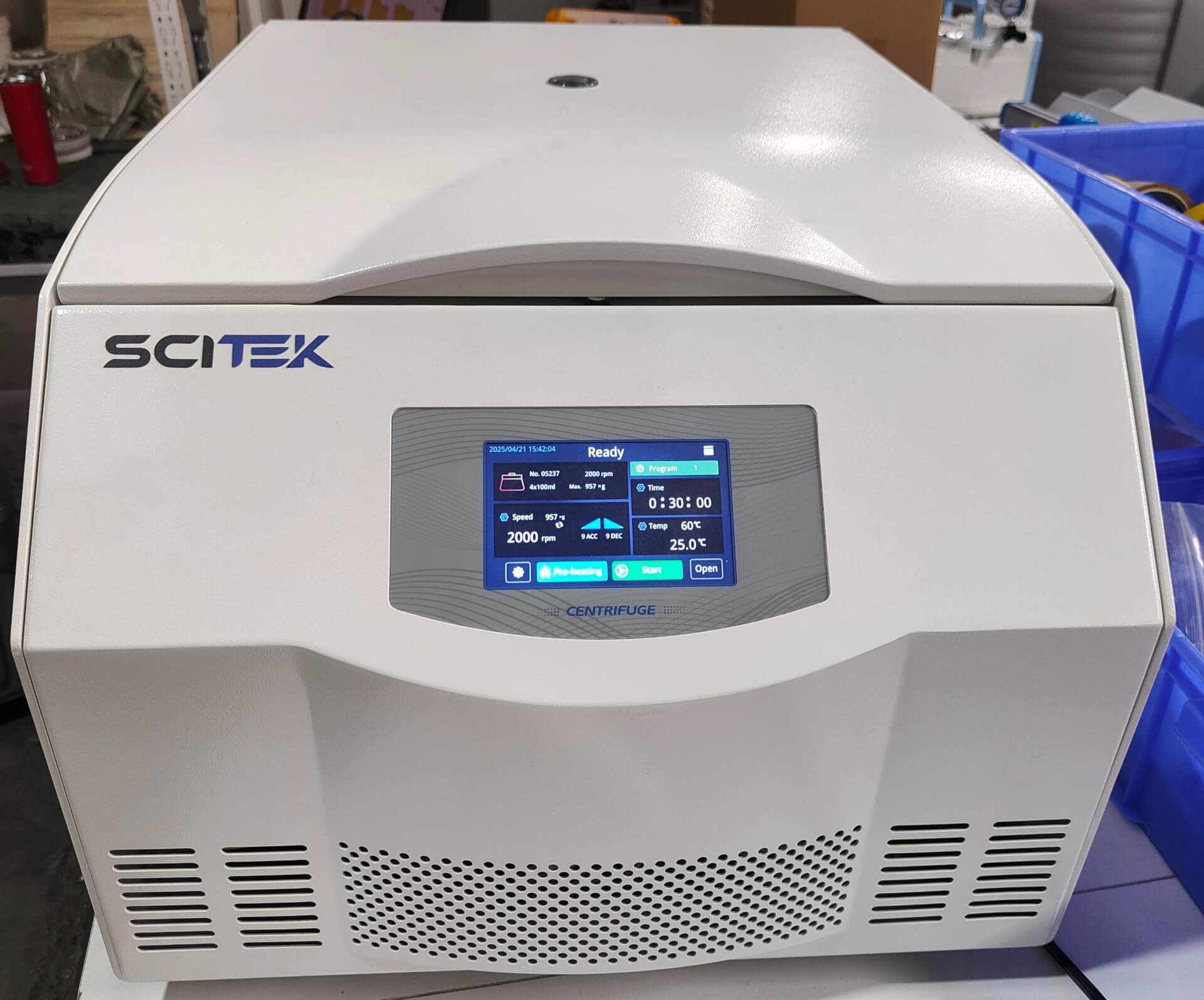

The LCD control screen and button panel are clearly visible, with the SCITEK brand logo prominently displayed. The user interface is intuitive, and the entire unit is fully assembled and ready for immediate use.

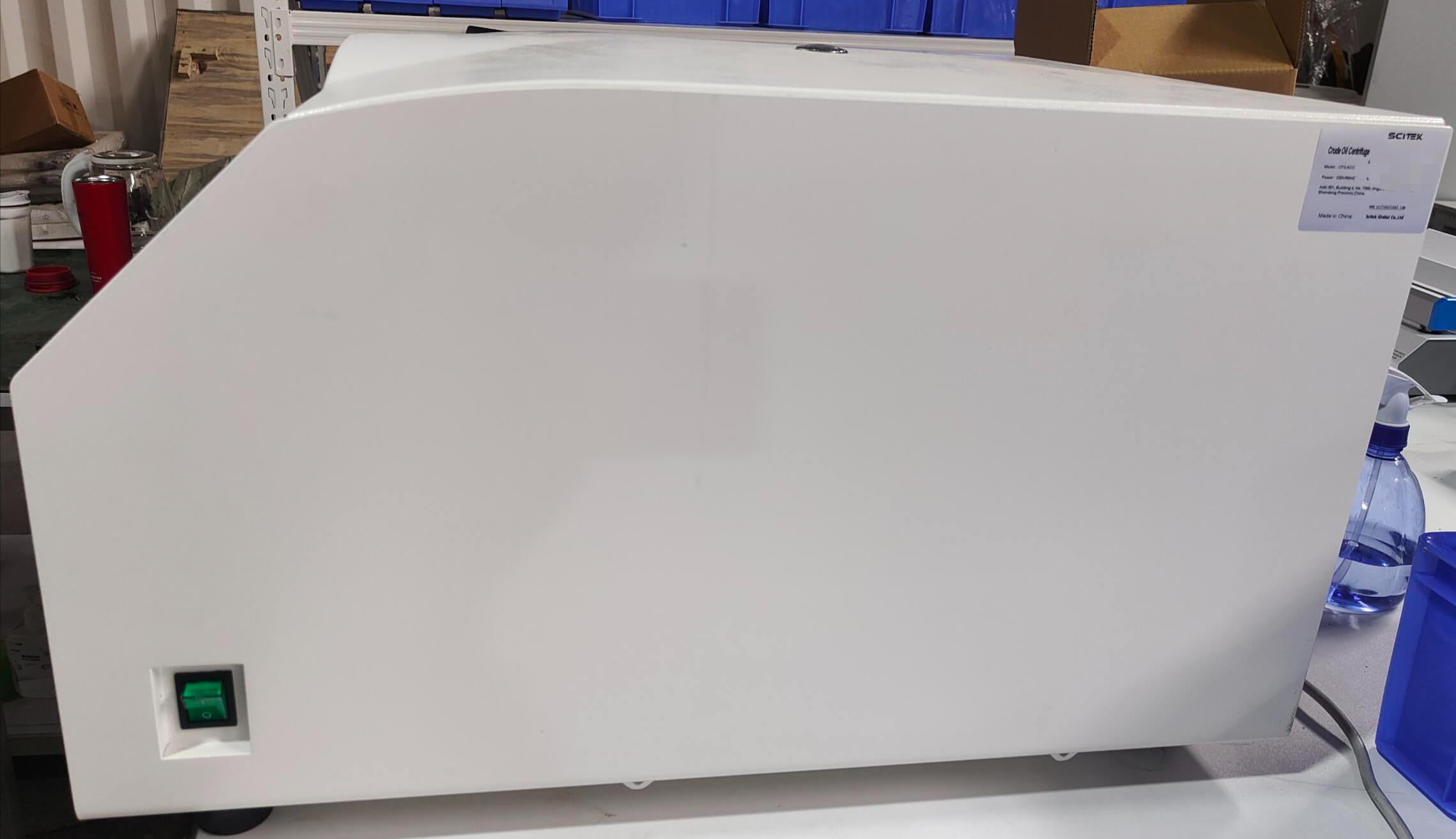

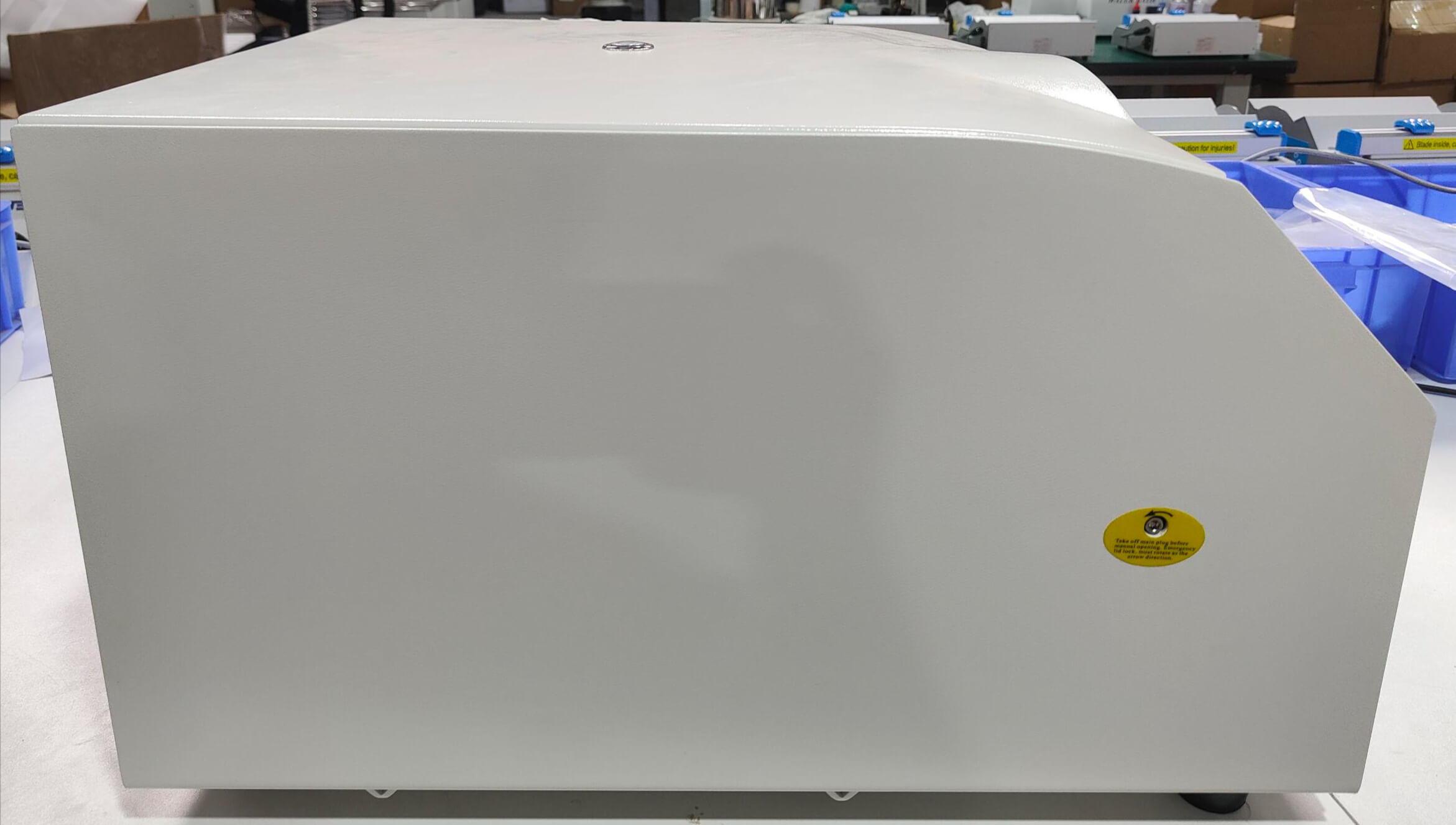

The body is smooth and clean, with rounded edges and corners, and the shell is intact and undamaged. This shows that the product was in good condition before shipment.

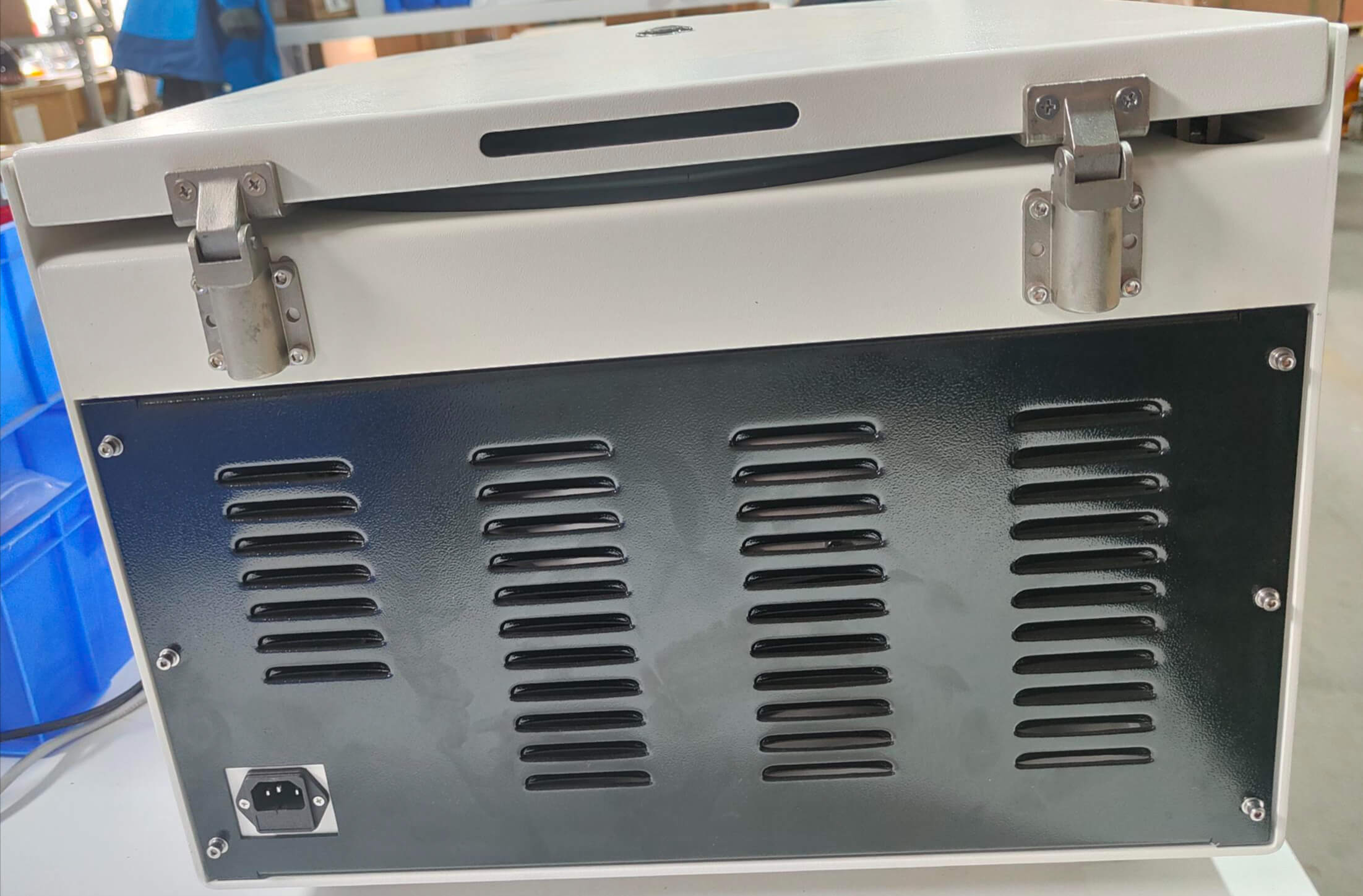

Features a stainless steel ventilation panel design that is sturdy and durable, suitable for heavy oil sample operations. The equipment is in good condition and has undergone preliminary inspection.

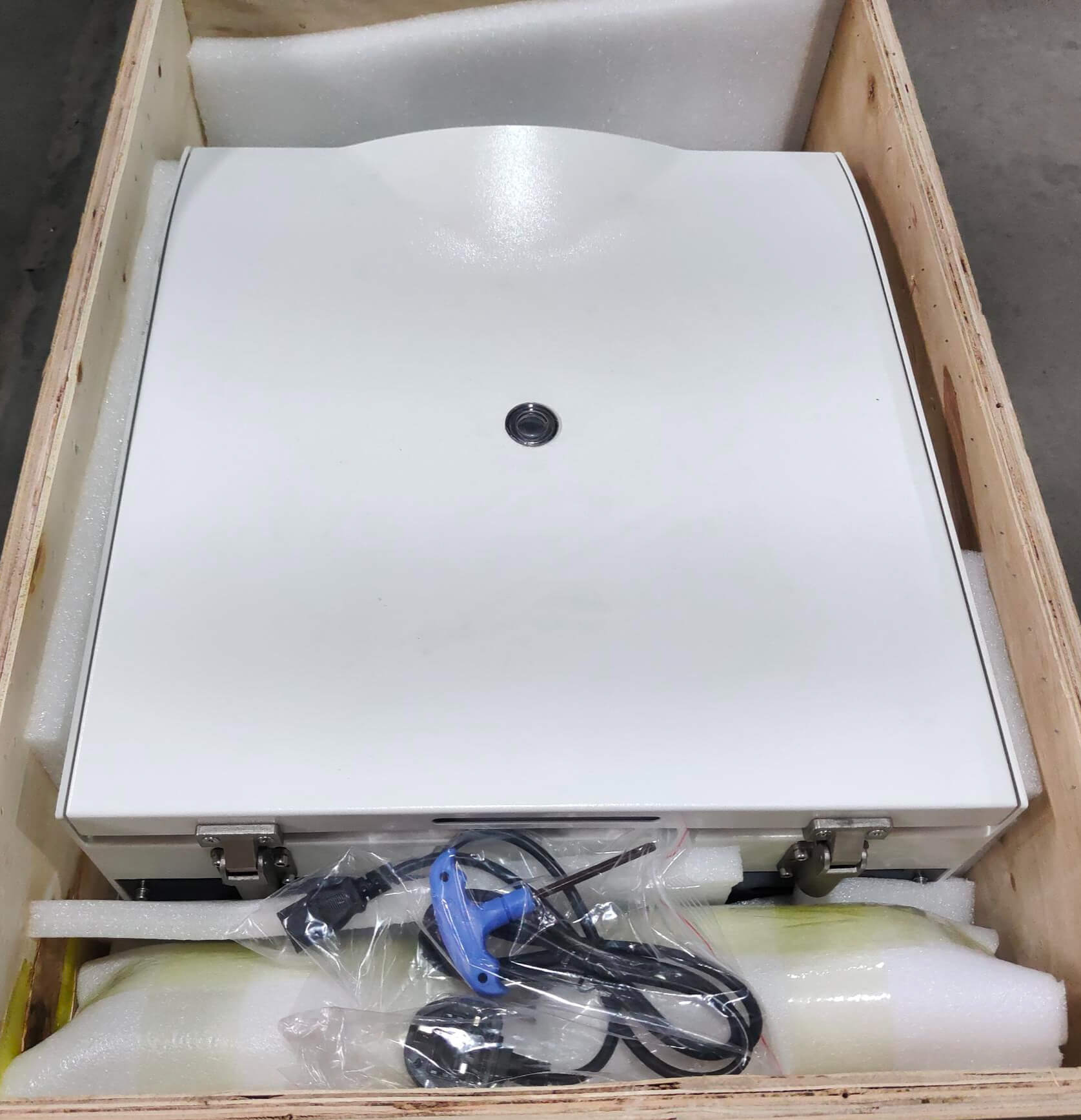

The crude oil centrifuge is securely placed in a wooden box, accompanied by a power cord and accessories, with sufficient shock-absorbing foam filling to ensure safe transportation.
