Model | CFG-4LE |
---|---|
Max. Speed | 4000r/min |
Max. RCF | 2200×g |
Max.Capacity | 6×50ml |
Angle Rotor | 24×10ml(4000r/min) RFC: 2200×g |
Angle Rotor | 6×50ml(4000r/min) RFC: 2200×g |
Angle Rotor | 12×10/15ml(4000r/min) RFC: 2200×g |
Angle Rotor | 18×10ml(4000r/min) RFC: 2200×g |
Time Setting | 0~99min |
Motor | Brushless DC motor, microcomputer control |
Power Supply | AC 220V 50Hz 3A |
Sizes (W×D×H)(mm) | 430x340x250 |
Shipping Size (W×D×H)(mm) | 510x420x330 |
N.W./G.W. (kg) | 20/23 |
Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination of vibration-damping devices to make the motor run smoothly, low vibration, low noise, to meet the requirements of environmental protection.
Display: Intelligent control, touch panel, intuitive digital display.
Body: The body adopts high-quality steel structure, stainless steel centrifugal chamber.
Security: With silent motor, integrated electronic lock.
Security: With multiple protection functions such as door cover, overspeed, unbalance, etc., equipped with electronic door lock to ensure the safety and reliability of the operation process.
Applicable: Suitable for biochemistry laboratory, hospital clinical testing, etc.
24×10ml(4000r/min)
RFC:2200×g
26×50ml(4000r/min) RFC:2200×g
12×10/15ml(4000r/min)
RFC:2200×g
18×10ml(4000r/min)
RFC:2200×g

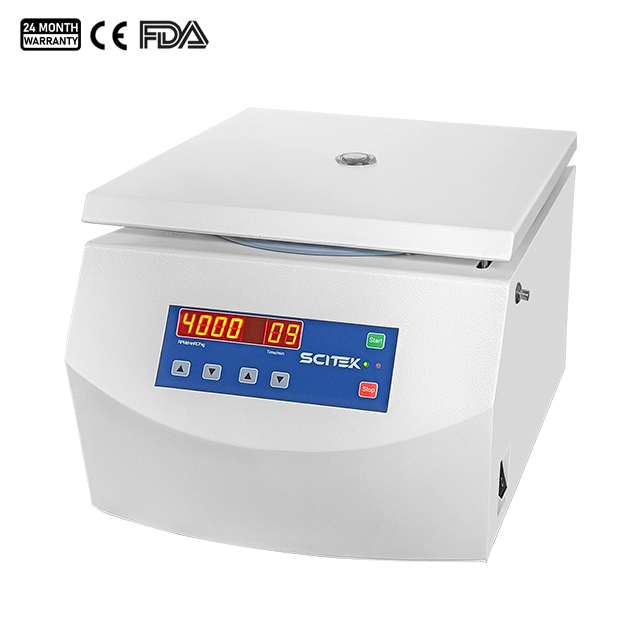

Reasonable button layout, easy for users to quickly adjust the parameters. Compact and designed to meet the needs of laboratory operations, with reliable performance and a simple user interface, it is ideal for routine low-speed centrifugation experiments.
The operating panel of the centrifuge is equipped with a red LED display showing the current operating parameters (e.g. speed and time).
The back is equipped with multiple cooling vents to ensure good heat dissipation from the centrifuge.
The rotor is a round design with several orange colored test tube slots, evenly arranged for placing test tubes or centrifuge tubes.
