Constant Temperature Humidity Incubator Specifications:
| Model | ICB-70TH | ICB-150TH | ICB-250TH |
| Capacity(L) | 70 | 150 | 250 |
| Circulation Mode | Forced convection |
| Size(WxDxH) | Internal (mm) | 415x350x500 | 490x400x750 | 500x515x950 |
| External (mm) | 571x591x1051 | 646x641x1301 | 656x741x1501 |
| Temperature | Range (℃) | No humidification: 0 ~ 65
With humidification: 10 ~ 60 |
| Fluctuation (℃) | High Temp.: ±0.5
Low Temp.: ±1 |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±1 |
| Sensor | PT100 |
| Humidity | Range | 45%~95%RH |
| Stability | ±5%RH |
| Method | Internal |
| Sensor | High precision anti-condensation |
| Controller | PID |
| Display | Large high efinition LCD |
| Timer | 0~99.99h x 30 Segments (with timing wait function) |
| Material | Internal | Mirror stainless steel |
| External | Cold rolled steel electrostatic spraying exterior |
| Shelves(Standard / Max ) | 2/5 | 2/9 | 2/12 |
| Test Hole | Φ43mm |
| External Socket | Universal socket(one) |
| Refrigerant | R134a (CFC free) |
| Defrosting Mode | Automatic |
| Safety Device | Over temperaure, over humidity, water shortage alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz |
| Consumption (W) | 1800 | 2000 | 2200 |
| N.W./G.W. (kg) | 69/92 | 86/114 | 100/139 |
| Shipping Size (WxDxH)(mm) | 686x690x1235 | 761x740x1490 | 771x840x1690 |
| Standard | LED Lamp |
| Optional | Printer, U-disk storage, spare shelf |
Constant Temperature Incubator Features:
Advanced internal wind circulation system ensures uniform temperature distribution throughout the chamber.
Utilizes a high-quality humidity sensor, specifically the SHT11 chip manufactured by SENSIRION Switzerland.
Equipped with an efficient humidifying system that provides excellent humidity uniformity, low water consumption, and alerts for low water levels.
Large LCD display that can simultaneously show multiple data. The system offers 30-stage program control, round move, and ladder operating features. It also includes self-diagnostic capabilities and sensor fault alarm.
Intelligent PID temperature control system with a high-precision PT100 sensor for accurate temperature control. The humidity is automatically controlled by a highly precise and stable imported humidity sensor component.
Details of Constant Temperature Incubator:

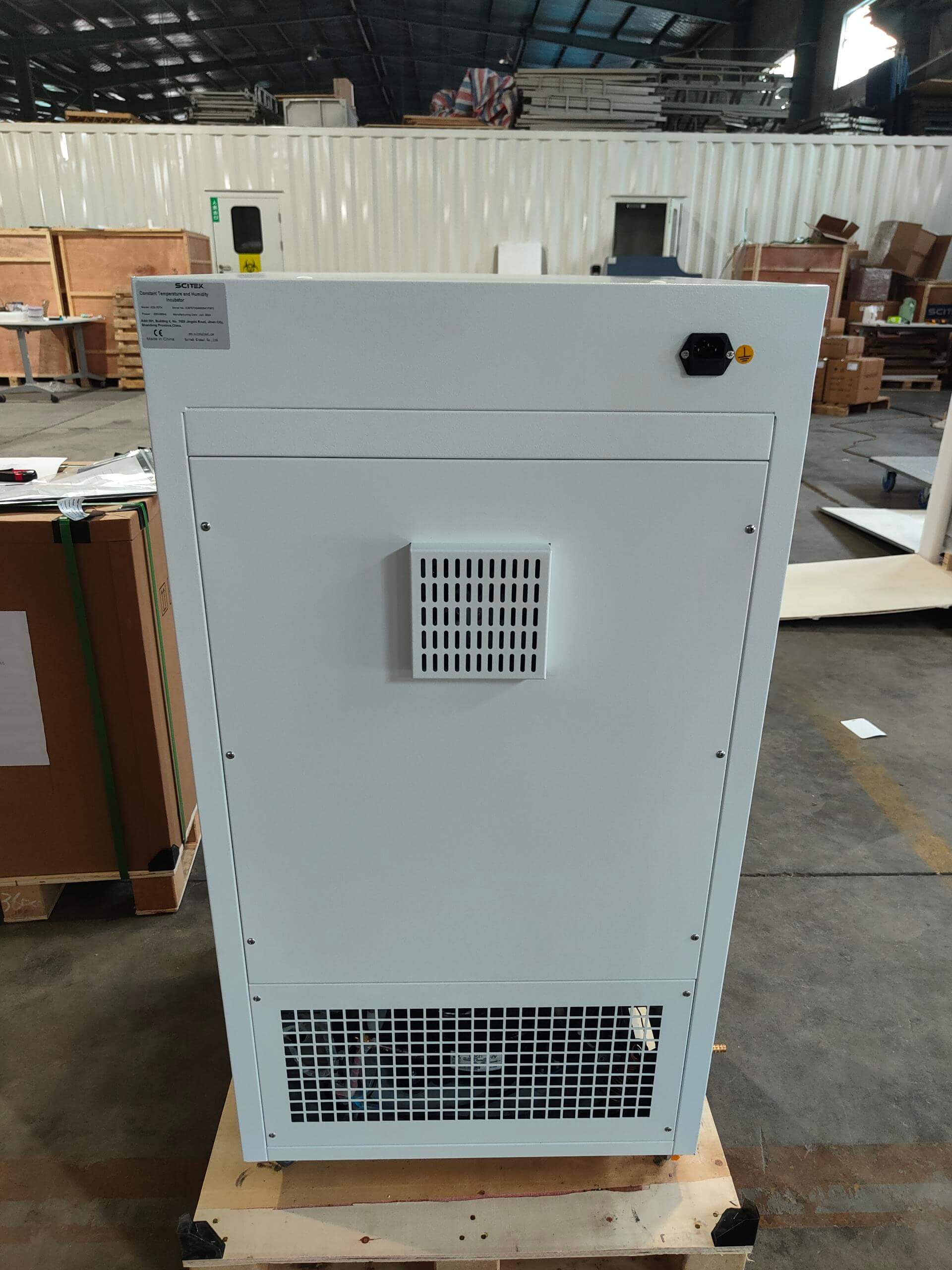

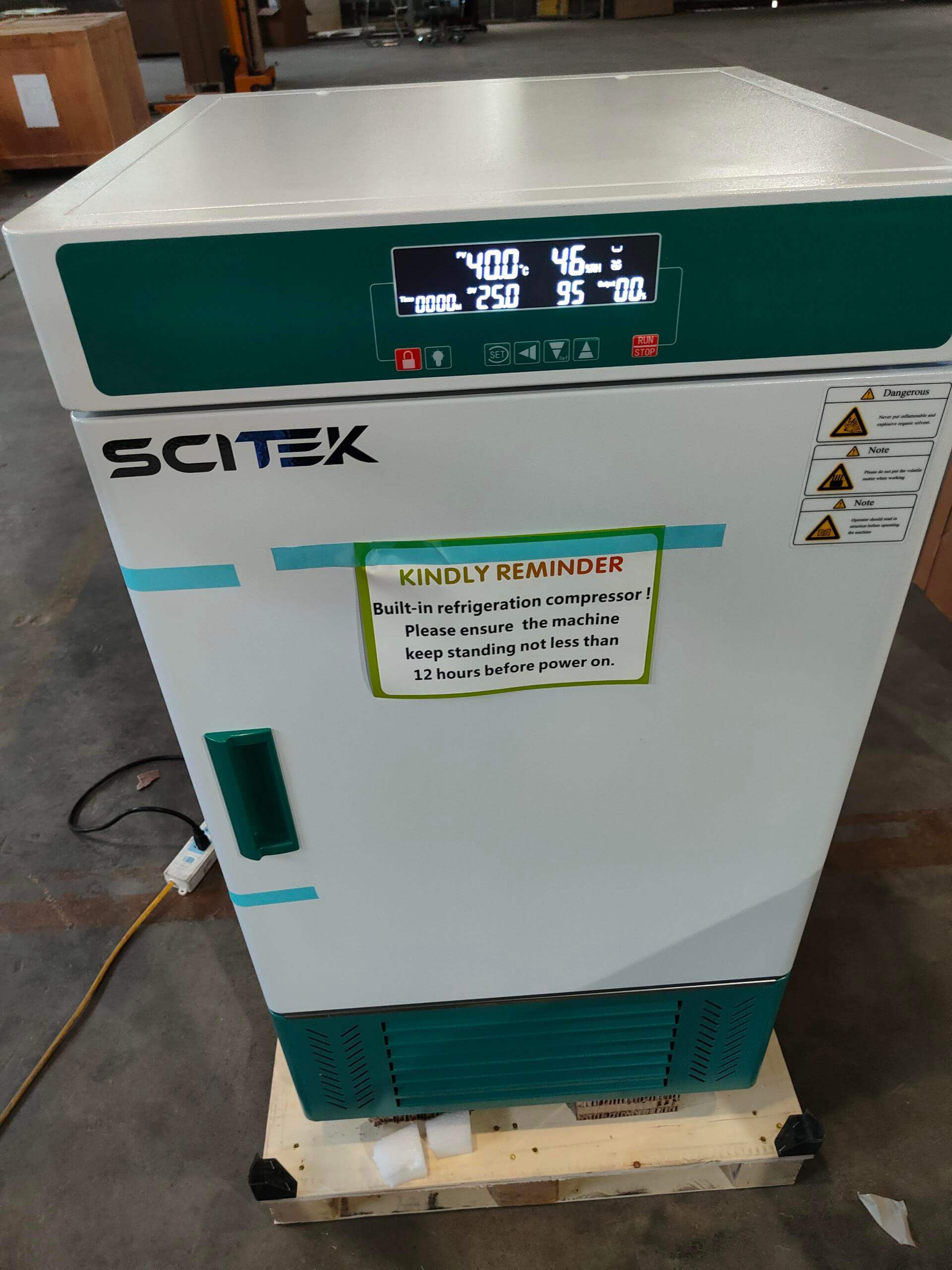

ICB-70TH:
The constant temperature incubator is designed for precise temperature control, providing a stable environment for a wide range of applications, including microbiological cultures, cell growth, and sample preservation.

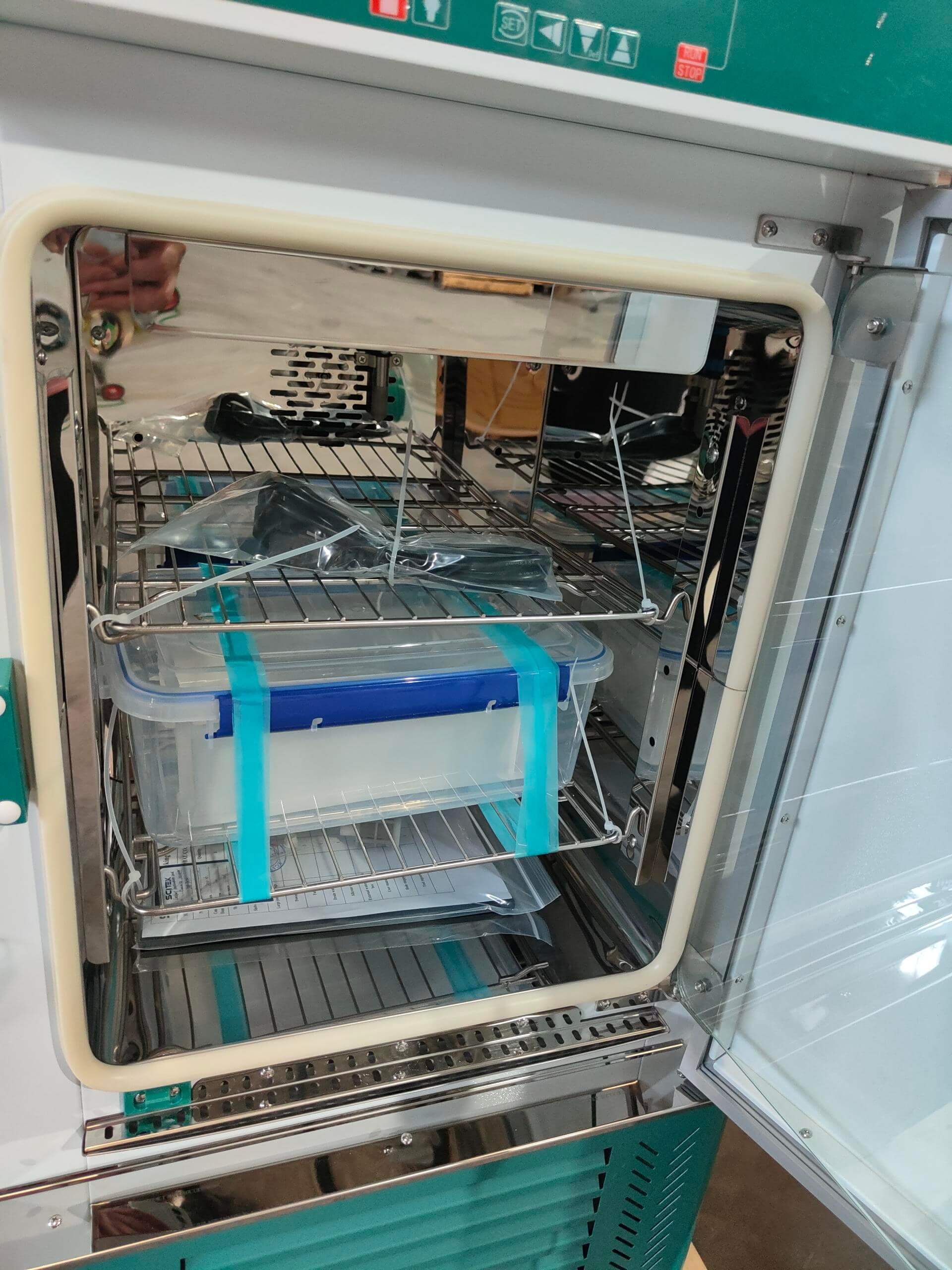

The internal view of the constant temperature incubator showcases a well-organized chamber with evenly distributed shelves, designed to accommodate various sample types. The high-quality, corrosion-resistant interior is equipped with advanced temperature control elements, ensuring uniform heat distribution throughout the chamber. The precise thermostat system and efficient air circulation ensure a consistent temperature environment, critical for experiments requiring stability. Additionally, the interior is easy to clean and maintain, with smooth surfaces that prevent contamination and facilitate long-term use. The internal design maximizes storage capacity while maintaining optimal performance for a wide range of laboratory applications.

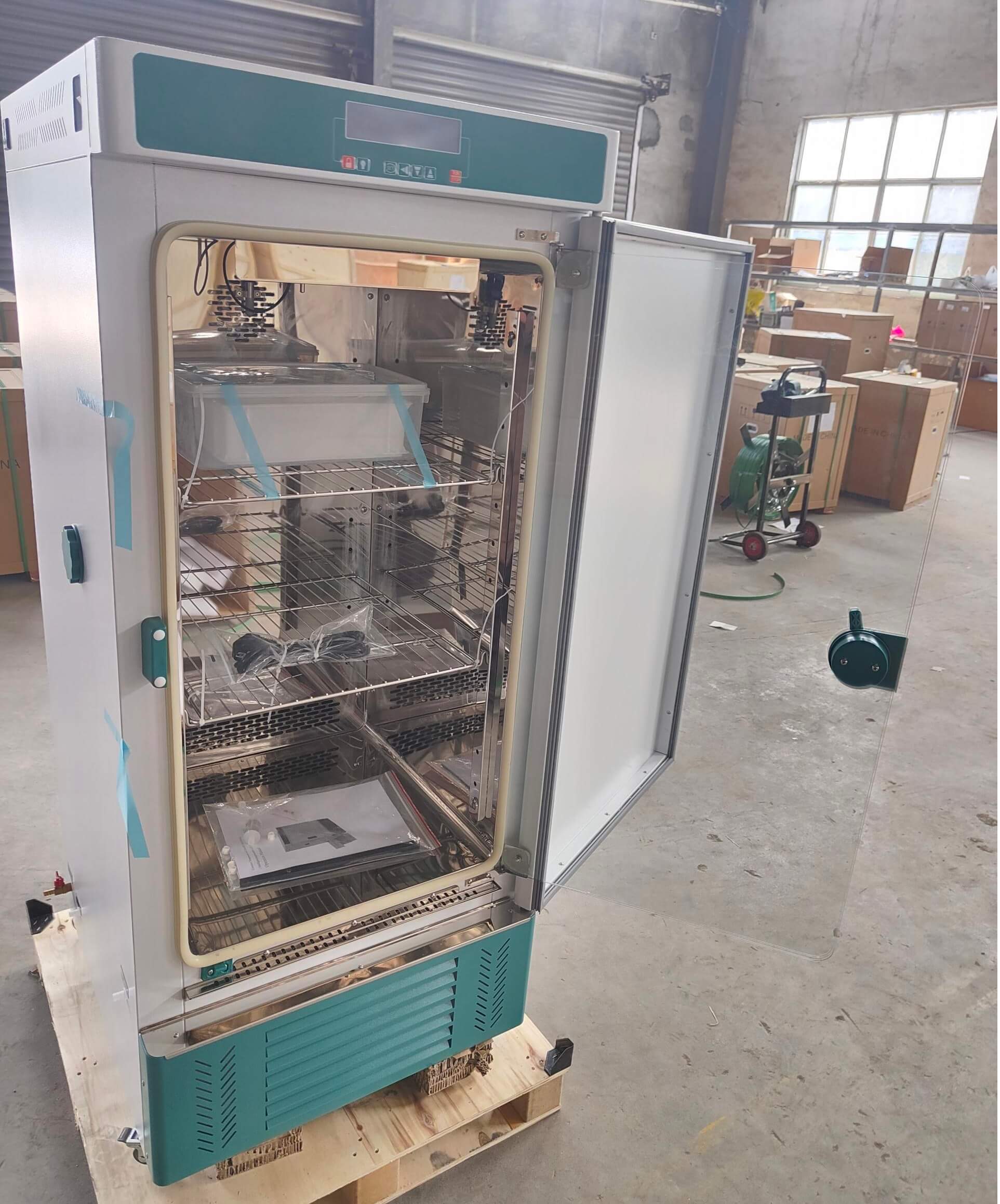

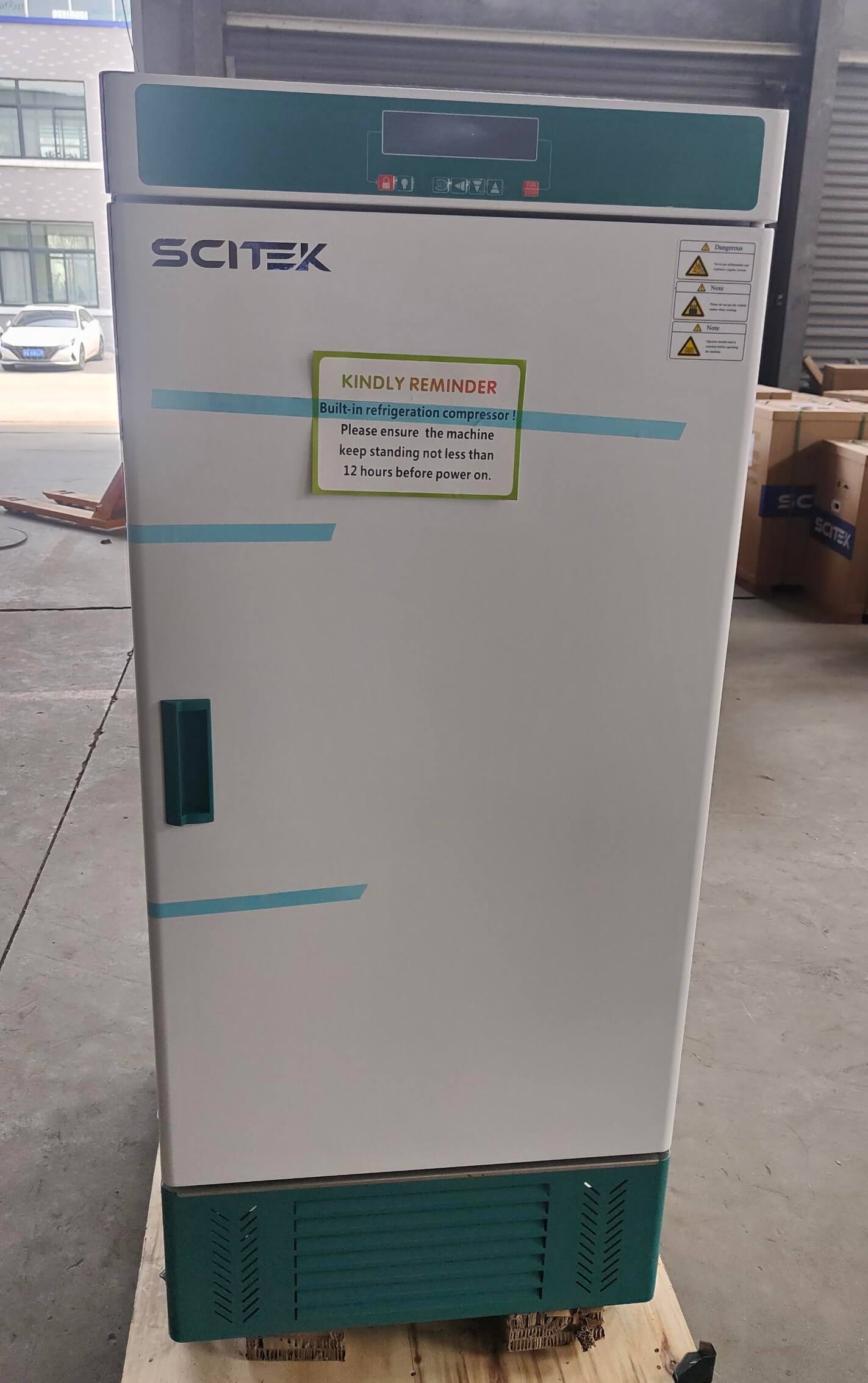

ICB-250TH:
Adopting double-layer door design, the outer layer is a sturdy cold-rolled steel plate door, and the inner layer is a tempered glass door, which has excellent sealing effect and ensures good heat preservation and humidity control performance.
