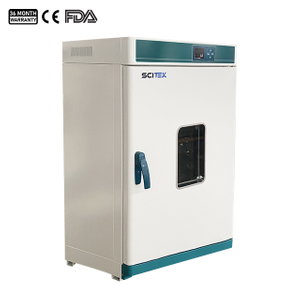

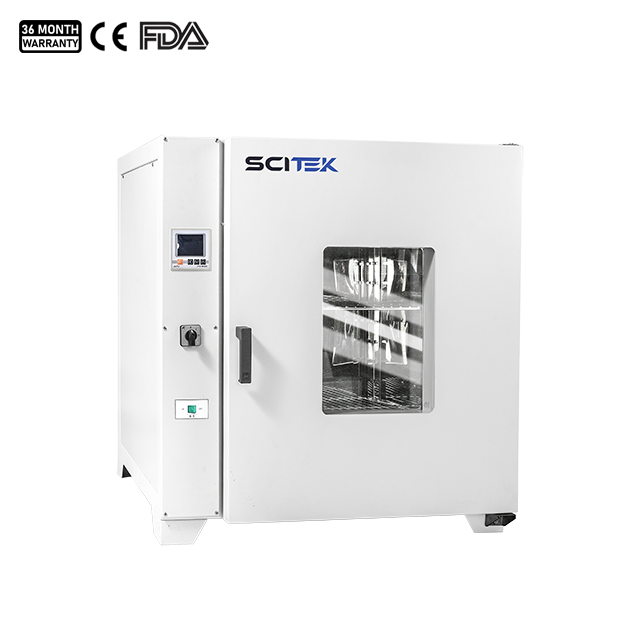

Benchtop Constant Temperature Drying Oven

Model : TDO-45I; TDO-80; TDO-140; TDO-250

Capacity : 43L / 81L / 138L / 252L
Circulation Mode : Natural convection
Temperature Range: RT+10~300℃
Timer : 0~9999min
Benchtop constant-temperature drying oven is equipment excellent temperature uniformity and stability to keep the sample at the desired conditions.
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop Constant-Temperature Drying Oven Specifications:

ModelTDO-45ITDO-80TDO-140TDO-250
Capacity(L)4381138252
Circulation ModeNatural convection
Size
(WxDxH)		Internal (mm)350x350x350450x400x450500x500x550600x600x700
External (mm)640x500x600730x530x690780x690x800880x730x950
TemperatureRange (℃)RT+10~300℃
Fluctuation (℃)±1℃
Resolution (℃)0.1℃
Uniformity (℃)≤Max. Temp. ±3.5℃
SensorPT100
ControllerMicrocomputer
DisplayHigh efinition LCD
Timer1~9999min
MaterialInternalMirror stainless steel
ExternalHigh-quality thin steel plate
Shelves (Standard)2/42/6
3/7

3/10

Safety DeviceOver temperaure visible & audible alarm, leakage protector, spare temperature control
ElectricityVoltage
/Frequency		AC 220/110V, 50/60Hz
Consumption (W)1300200025003000
N.W./G.W. (kg)35/5550/8075/110110/150
Shipping Size (WxDxH) (mm)750x630x770850x660x860900x760x9801000x860x1100
OptionalSpare shelf, RS485 port, built-in printer, multi-segment programable control

Benchtop Constant-Temperature Drying Oven Features:

  1. Auxiliary temperature control, when the main controller cannot control the temperature, the auxiliary temperature control will limit the temperature.

  2. Convenient operation for air inlet,reasonable air duct structure, good temperature uniformity.

  3. High quality stainless steel chamber, removable shelf, easy-to-clean.

  4. Microprocessor controller with LCD display, accurate and reliable.

  5. Equipped with leakage protection.

  6. With spare temperature control which ensures the product work normally even the main temp.control failed.
