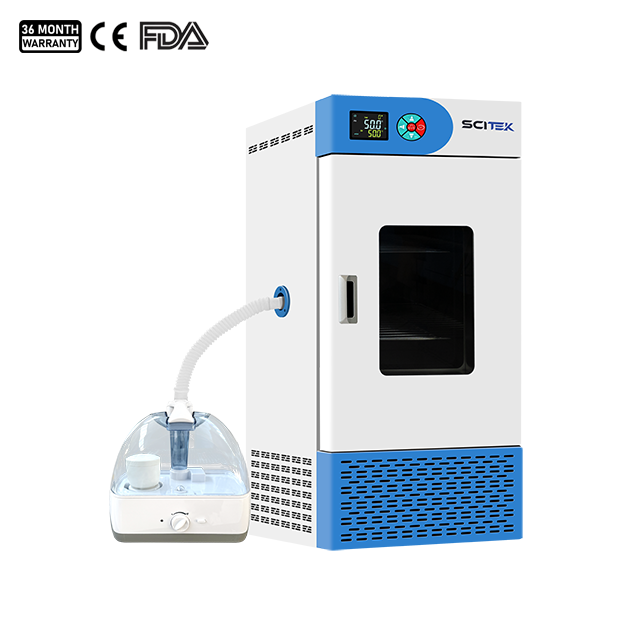

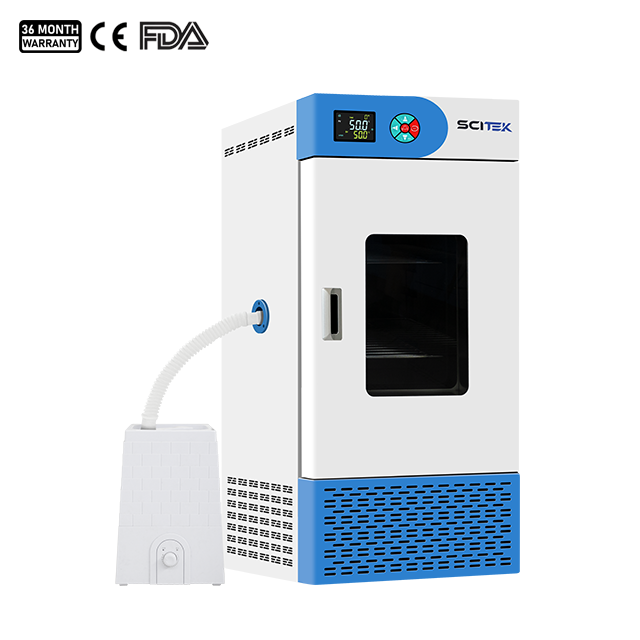

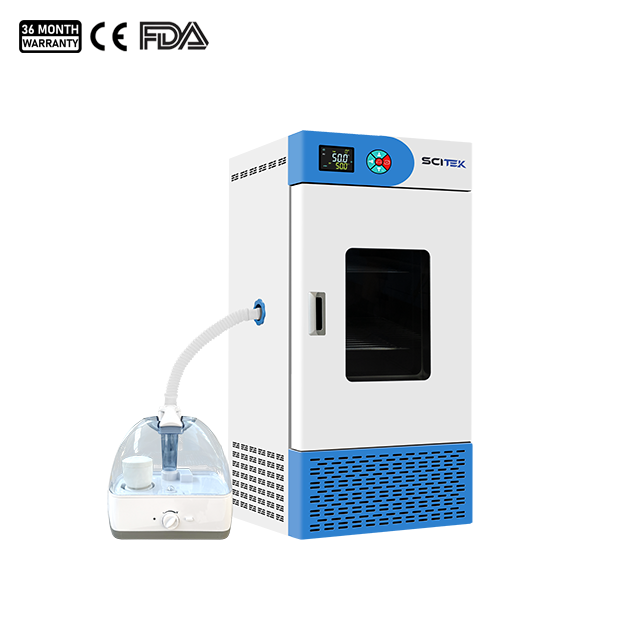

Constant Temperature & Humidity Incubator, THI Series

Model : ICB-50THI; ICB-80THI; ICB-150THI; ICB-250THI; ICB-350THI; ICB-460THI;

Capacity(L) : 50/80/150/250/350/460

Power Supply : 220V 50Hz
Temperature range : 0-65℃
Humidity range : 50%-90%RH
Humidity Fluctuation : ±5%RH

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Constant Temperature & Humidity Incubator Features:

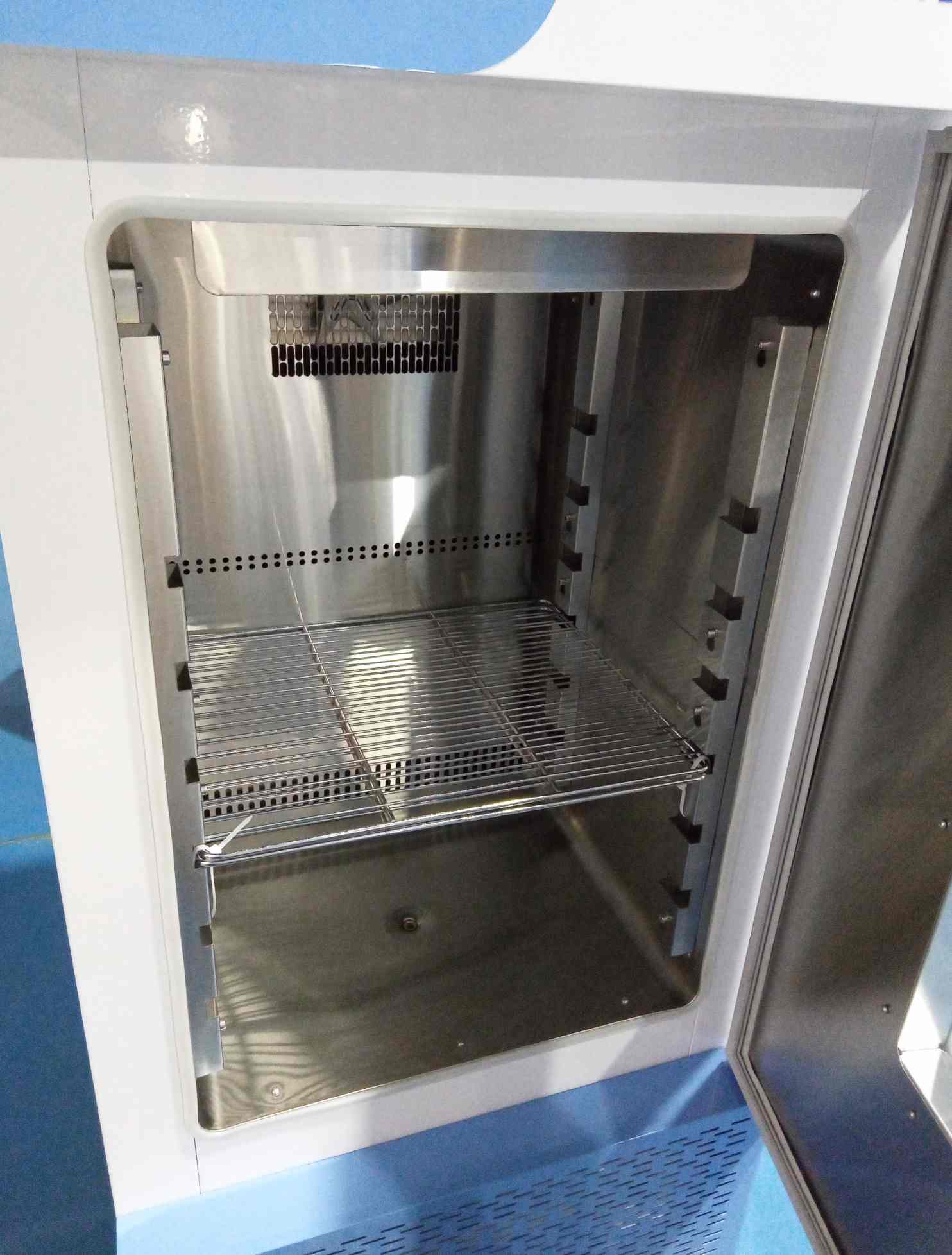

Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
Microcomputer control system, accurate and reliable temperature control.
High-efficiency compressor, balanced control of cooling and heating, small temperature fluctuation, precise temperature control.
Double-layer glass observation window. The outer door is sealed with magnetic strips, has good sealing and thermal insulation performance.

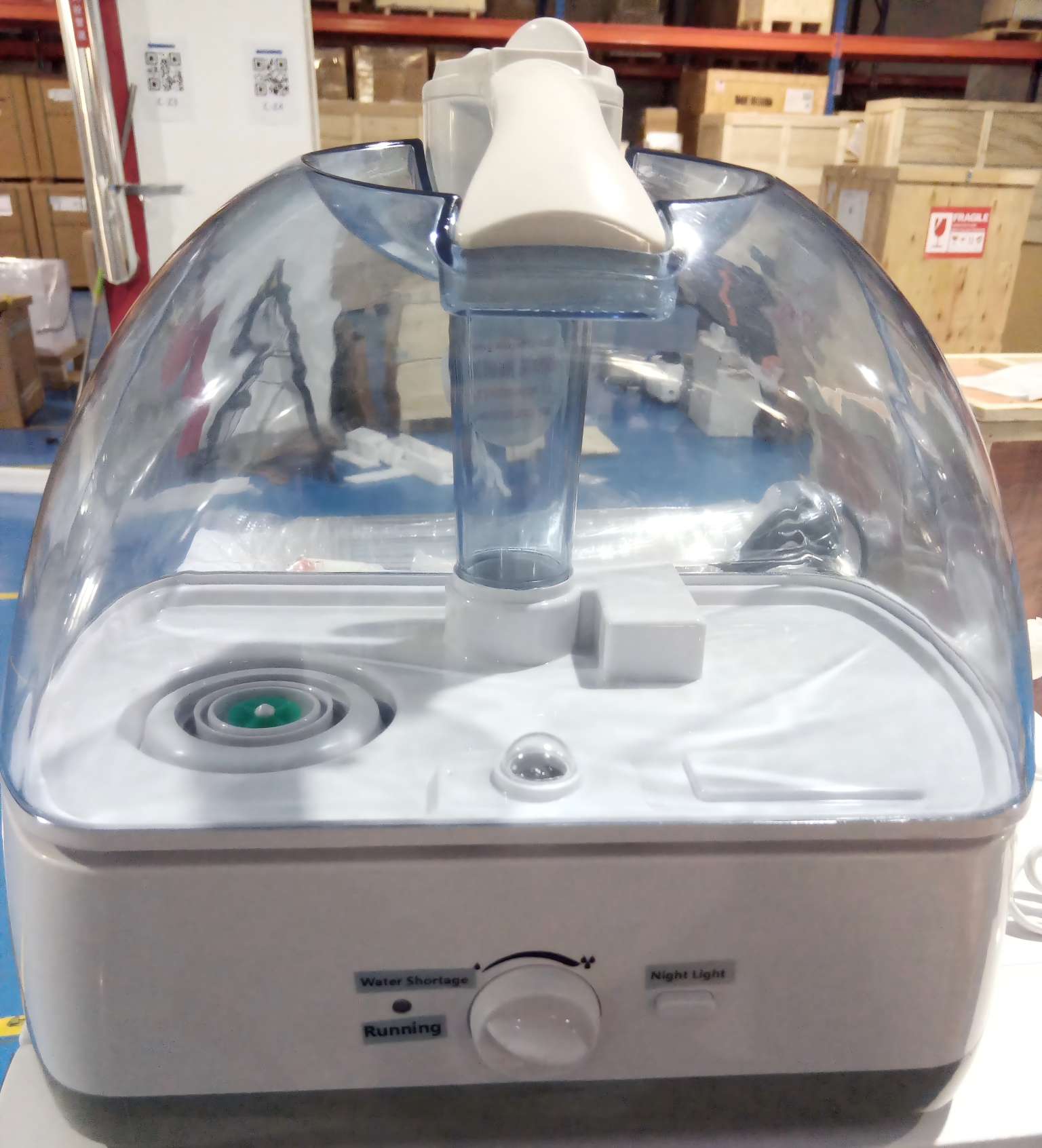

Using ultrasonic humidification, the humidification and temperature control are stable, and the humidity fluctuation range is: ±5%RH.
With the function of power off when there is no water.

How to Installation of Constant Temperature and Humidity Incubator:

Constant Temperature & Humidity Incubator Specifications:

Model		ICB-50THI	ICB-80THI	ICB-250THI	ICB-350THI	ICB-460THI
Capacity(L)		50	80	250	350	460
Circulation Mode		Forced convection
Internal Size (WxDxH)(mm)		350x350x400	400x400x500	500x550x910	600x600x1000	650x650x1100
External Size (WxDxH)(mm)		545x460x905	605x555x1060	700x705x1550	780x750x1605	845x805x1710
Temperature	Range	0~65°C
	Fluctuation	High Temp.: ±0.5°C; Low Temp.:±1°C
	Resolution	0.1°C
	Uniformity	±1°C
Humidity	Range	40%~95%RH
	Fluctuation	±5%RH
	Method	External humidifier
Controller		PID controller
Display		Digital LCD dispaly
Timer(min)		0-9999
Material	Internal	Stainless steel
Material	External	Cold rolled steel electrostatic spraying exterior
Test Hole		Standard Φ43mm test hole on the left side
Refrigerant		R134a (CFC free)
Defrost Mode		Automatic
Safety Device		Over temperature, over humidity, water shortage alarm
Power Supply		AC 220/110V, 50/60Hz
Consumption(W)		500	600	1000	1200	1400
Shelves		2
Shipping Size (W×D×H)(mm)		615x510x980	690x620x1150	820x800x1660	870x860x1800	990x1040x1970
G.W.(kg)		51	61	112	139	168
Optional		USB Port; RS485 interface; printer and spare shelf
