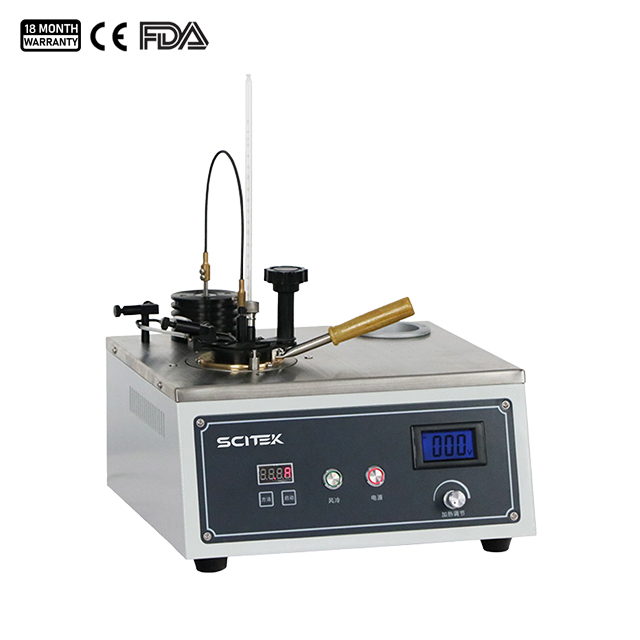

Close Cup Flash Point Tester

Model : FPT-261

Heating Mode : Adjust by manual
Stir Mode : Mechanical drive stirring
Relative Humidity : ≤ 85％
Size(W×D×H)(mm) : 370×320×300
Availability:
Quantity:
Inquiry Add to Inquiry List

Close Cup Flash Point Tester Features:

  1. This close cup flash point tester is designed as per GB/T261 and ASTM D93.

  2. The heating power is continuously adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

  3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

  4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

Close Cup Flash Point Tester Specifications:

ModelFPT-261
Heating Device(1)The furnace body is made of silicon carbide
(2)Heating power is adjustable from (0-600) w
Heating ModeAdjust by manual
Stir ModeMechanical drive stirring
Stirring RateProcedure A: (90～120)RPM
Procedure B: (250±10)RPM
Procedure C: (90～120)RPM
Oil CupInner diameter: 50.7mm～50.8mm
Depth: 55.7mm～56.0mm
The scribed line depth of capacity of testing oil: 33.9mm～34.3mm
Capacity of testing oil:about 70ml
Igniting SourceGas（or other civilian fuels，the same below）
Thermometers (Mercury-in-glass Thermometer. Specifications are as Below)Scale -5℃～110℃, division 0.5℃
Scale 20℃～150℃, division 1℃
Scale 90℃～370℃, division 2℃
Ambient Temperature15～35℃
Relative Humidity≤ 85％
Power SupplyAC (220±10%)V, 50Hz
Total Power Consumption≤650W
Size(W×D×H)(mm)370x320x300
Net Weight7kg
Package Size(W×D×H)(mm)650x455x360
Gross Weight17.6kg
