CSC series yellow safety cabinets are used to store various flammable items with a flash point below 45°C. For example: gasoline, alcohol, kerosene, methanol, ethanol, etc.
Red safety cabinets store flammable items with a flash point above 45°, such as diesel, engine oil, lubricating oil, tung oil, etc.
Blue safety cabinets are used to store various weakly corrosive items or weak acids and bases, such as acetic acid, carbonic acid, phosphoric acid, silicic acid, etc.
According to the convenience of storage and use of items, choose safety cabinets of different specifications for storage, separate various types of dangerous items in an organized manner, and store them nearby to improve your work efficiency. Products are widely used in various fields such as medical and health care, scientific research, industry, foreign trade, and commerce.
Chemical Storage Cabinet Specification:
| Model | CSC-04 | CSC-12 | CSC-22 | CSC-30 | CSC-45 | CSC-60 | CSC-90 | CSC-180 |
| External Size (W×D×H)(mm) | 430×430 ×560 | 590×460 ×890 | 600×460 ×1650 | 1090×460 ×1120 | 1090×460 ×1650 | 860×860 ×1650 | 1090×860 ×1650 | 900×460 ×1800 |
| Internal Size (H×W×D)(mm) | 350×330 ×460 | 510×360 ×790 | 520×360 ×1550 | 1010×360 ×1020 | 1010×360 ×1550 | 780×760 ×1550 | 1010×760 ×1550 | 820×360 ×1700 |
| Capacity (gallon/L) | 4/15 | 12/45 | 22/83 | 30/114 | 45/170 | 60/227 | 90/340 | 40/150 |
| Storage Capacity (500mL) | 32 | 48 | 96 | 96 | 144 | 270 | 324 | 120 |
| Shelf | 1 | 1 | 3 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 35 | 50 | 85 | 90 | 118 | 140 | 160 | 70 |
| Door | Single | Double |
| Shipping Size (W×D×H)(mm) | 460×46 0×710 | 620×490 ×1050 | 630×49 0×1800 | 1120×49 0×1270 | 1120×49 0×1800 | 890×89 0×1800 | 1140×91 0×1800 | 950×51 0×1950 |
| Gross Weight (kg) | 39 | 55 | 91 | 98 | 128 | 153 | 180 | 80 |
Chemical Storage Cabinet Feature:
Double-layer fireproof steel plate structure, with an insulation layer of 38mm between the two layers of steel plates;
High-quality steel plate with a thickness of 1.0 mm, longer service life and better fire resistance;
Three-point linkage door lock, which can open the cabinet door 180 degrees and is equipped with dual keys; an optional padlock can realize double-lock security management for two people.
The 5cm high leak-proof liquid tank prevents liquid from spilling;
Professional and standardized warning labels are obvious;
Chemical storage cabinet is equipped with double ventilation holes equipped with anti-fire protection devices, placed at the bottom and the opposite top;
Unique anti-spill laminate, which can be adjusted freely;
The storage cabinet shelves are stable and reliable;
Both the inside and outside of the cabinet are sprayed with epoxy resin paint, and the surface is bright and resistant to corrosion and moisture;
The chemical storage cabinet is equipped with an electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires.
Details of Chemical Storage Cabinet (CSC-60):

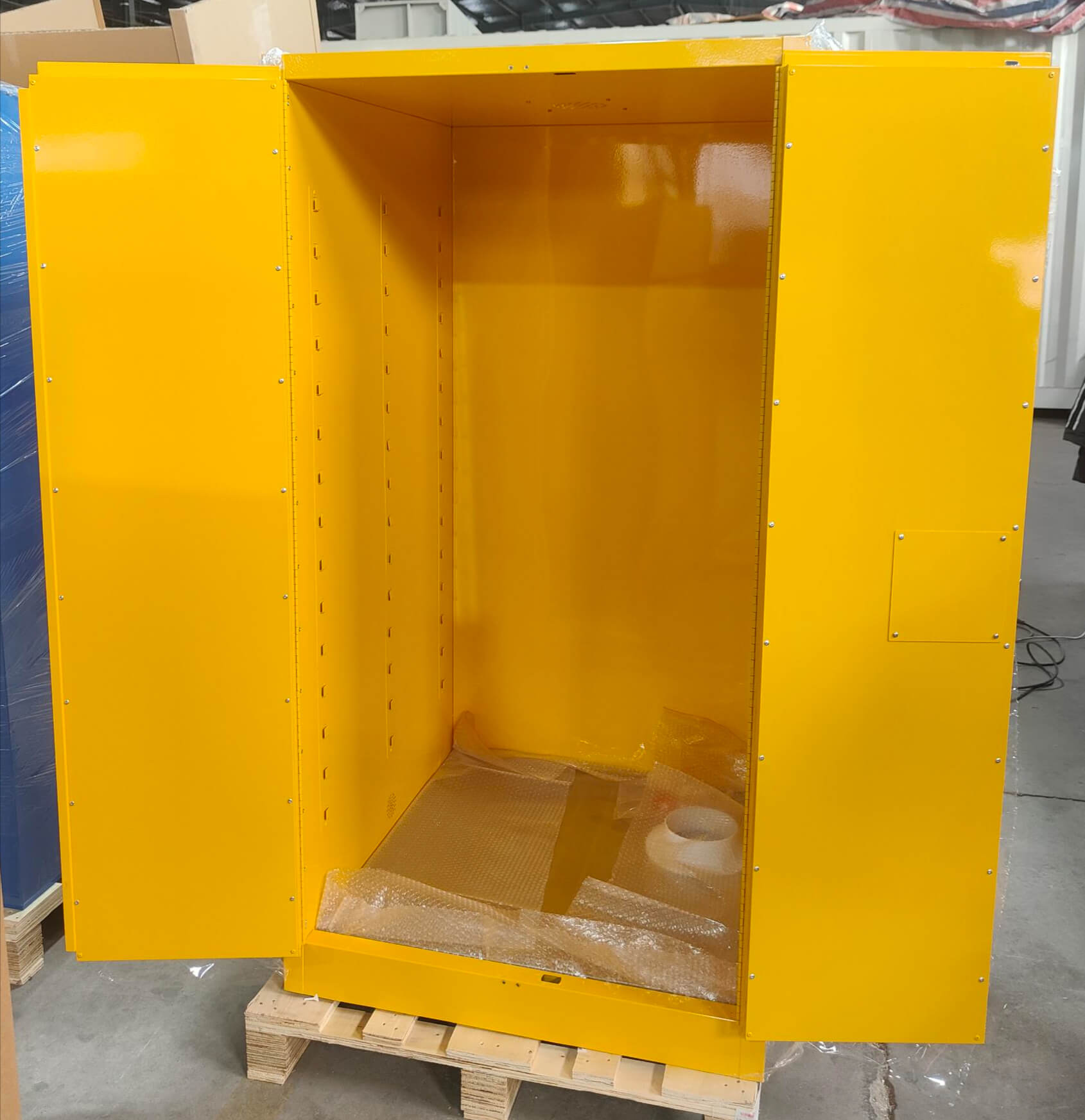

The chemical storage cabinet features a secure locking mechanism, adjustable internal shelving, and ventilation openings for safe chemical storage.

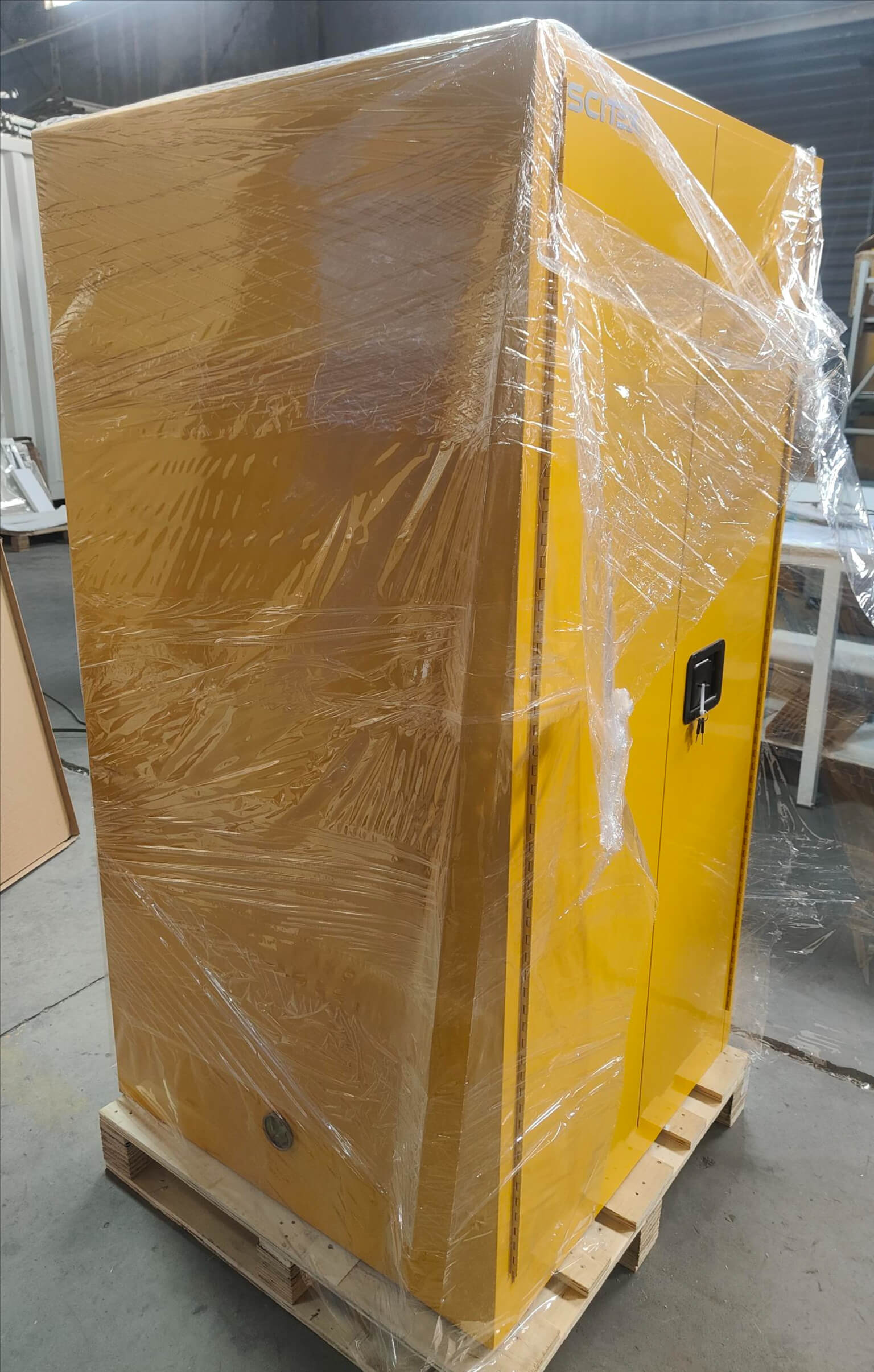

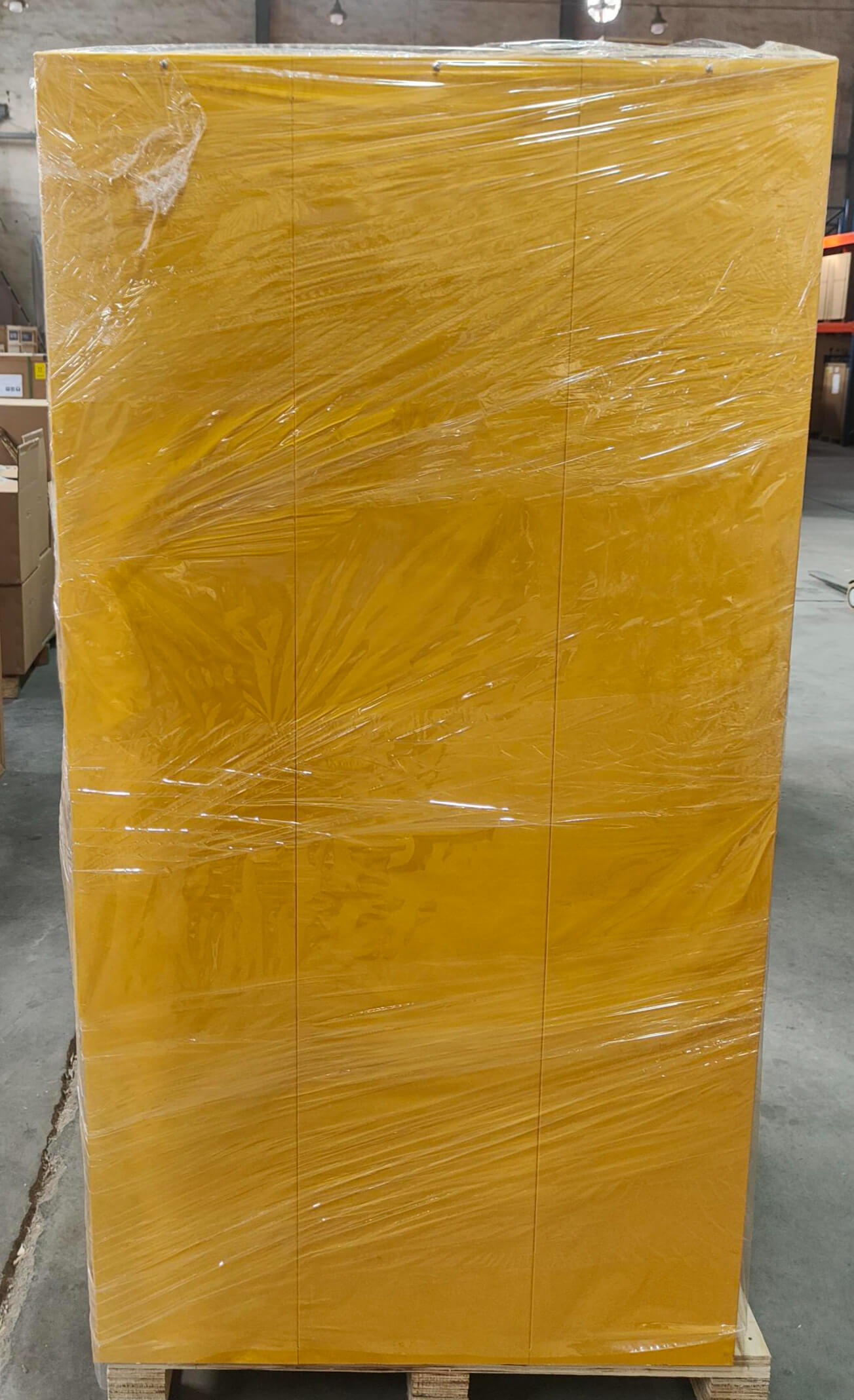

The chemical storage cabinet is wrapped in protective plastic and placed on a wooden pallet for secure transportation.
