304 Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
Large touch screen, 99×5-segment program control, with temperature curve, data storage function.
High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
Double-layer door structure, the inner door uses tempered glass for easy observation of samples, and the outer door uses magnetic strips for good sealing and heat preservation performance.
A UV sterilizer lamp is installed in the chamber.
Model | ICB-80MP | ICB-150MP | ICB-250MP | ICB-350MP | ICB-460MP | |
---|---|---|---|---|---|---|
Capacity(L) | 80 | 150 | 250 | 350 | 460 | |
Circulation Mode | Forced convection | |||||
Size(WxDxH)(mm) | Internal | 400x400x500 | 400x500x750 | 500x550x910 | 600x600x1000 | 650x650x1100 |
External | 625x550x1065 | 600x660x1360 | 720x710x157 | 800x760x1610 | 850x810x1715 | |
Temperature | Range (℃) | 0 ~ 65 | ||||
Fluctuation (℃) | High Temp.: ±0.5°C; Low Temp.:±1°C | |||||
Resolution (℃) | 0.1 | |||||
Uniformity (℃) | ±1 | |||||
Sensor | PT100 | |||||
Controller | PID controller | |||||
Display | Large high definition LCD | |||||
Timer | 0-99h59min/99*5Segments (with timing waiting function) | |||||
Material | Internal | 304 stainless steel | ||||
External | Cold rolled steel electrostaticspraying exterior | |||||
Lighting System | UV germicidal lamp | |||||
Test Hole | Standard Φ43mm test hole on the left side | |||||
External Socket | Universal socket(one) | |||||
Refrigerant | R134a (CFC free) | |||||
Defrost Mode | Automatic | |||||
Safety Device | Over temperature | |||||
Voltage/Frequency | AC 220/110V, 50/60Hz | |||||
Consumption(W) | 600 | 800 | 1000 | 1200 | 1400 | |
Shelves | 2 | |||||
G.W. (kg) | 61 | 88 | 112 | 139 | 168 | |
Shipping Size (WxDxH)(mm) | 690x620x1150 | 770x735x1520 | 820x800x1660 | 870x860x1800 | 990x1040x1970 | |
Standard | USB port for storing and exporting data | |||||
Optional | RS485 interface, printer and spare shelf |

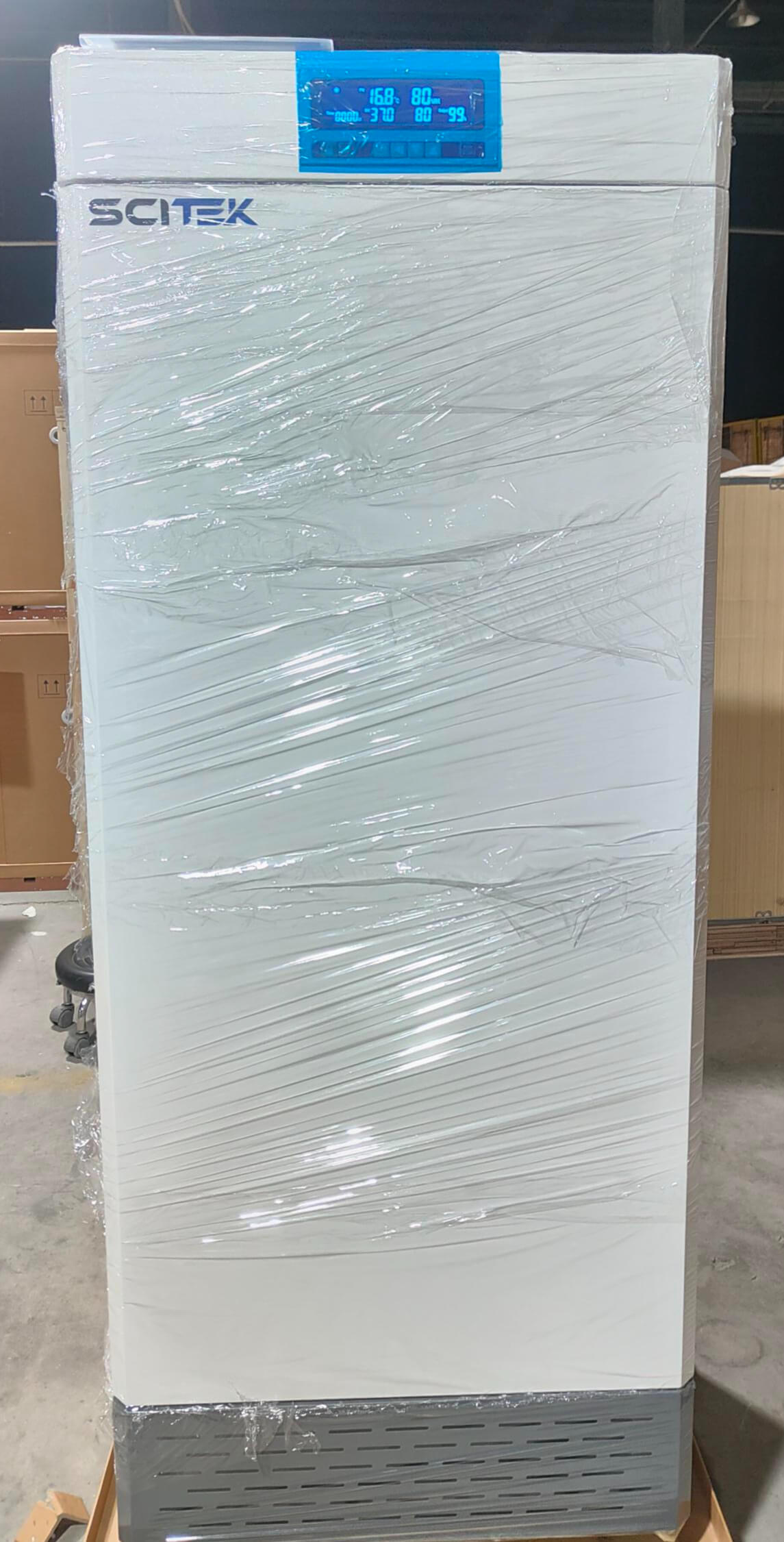

The mould incubator is securely wrapped and mounted on a sturdy wooden pallet, ensuring safe transportation. Its sleek vertical design saves lab space while offering ample internal volume for biological and chemical sample storage.

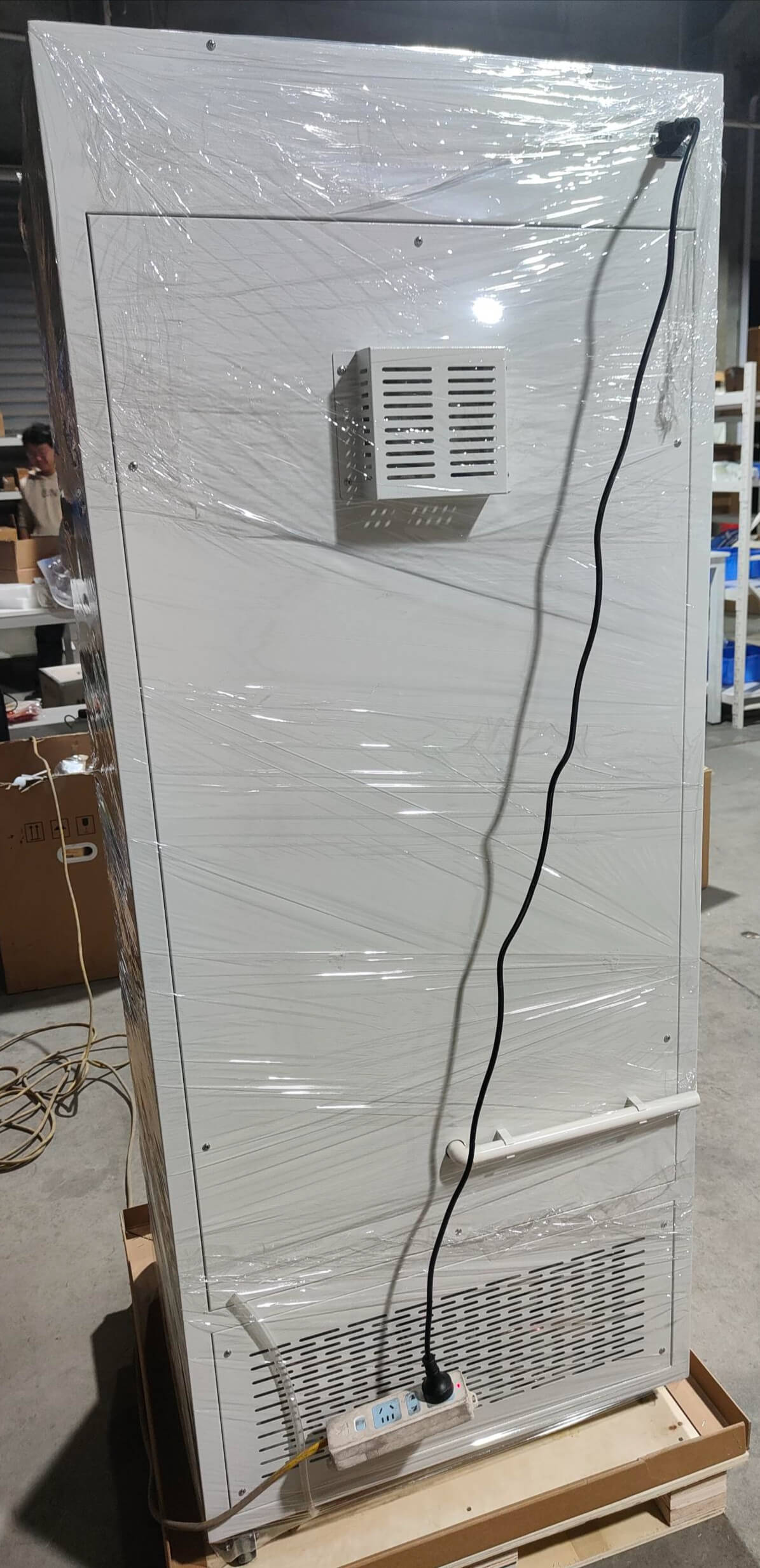

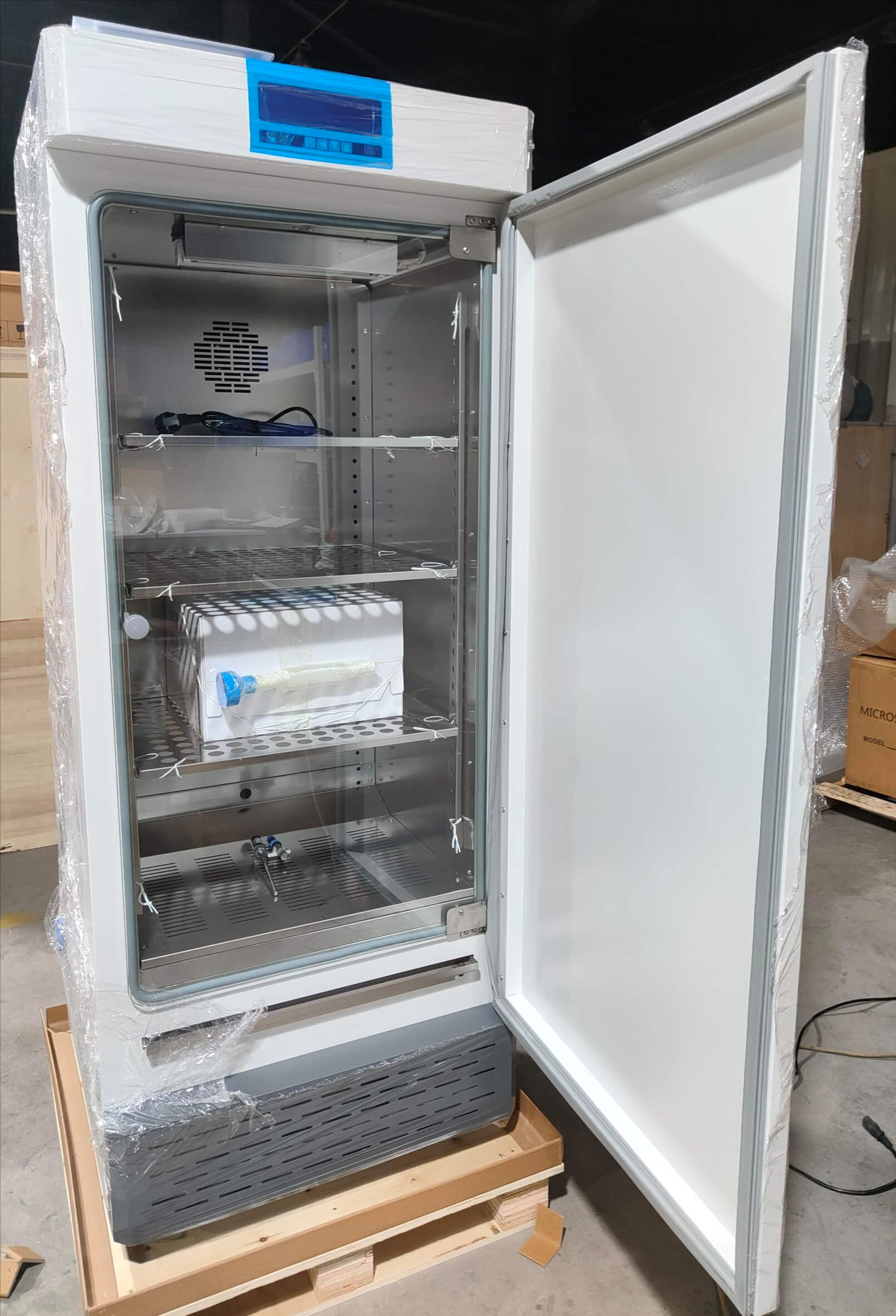

The mould incubator is equipped with a durable sealing system and smooth-opening door for convenient access and excellent temperature retention. The efficient back-ventilated condenser enhances thermal stability, while all electrical components are safely enclosed.

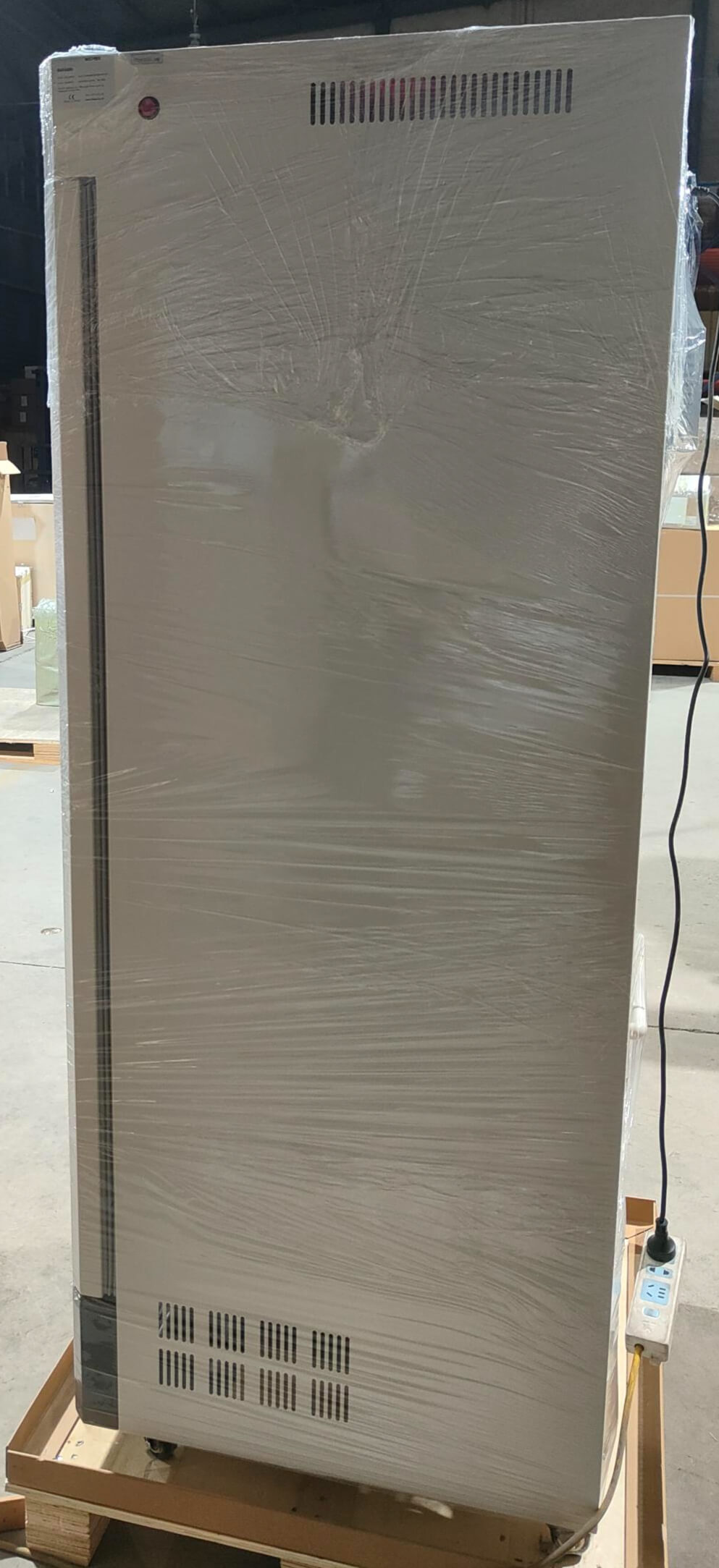

Multiple ventilation slots ensure proper airflow and prolong the unit’s lifespan, even under continuous operation.
