Lift Head : 8 m Number of Exhaust Heads : 2 Storage Tank Capacity : 15 L Body Material : 304 Stainless Steel Maximum Vacuum Degree : -0.098 MPa Storage Tank Capacity : 15 L Designed based on the small experimental area, compatible with rotary evaporators, and suitable for other routine vacuum filtration needs in laboratories.
Application of Benchtop Water Circulating Vacuum Pump:
The benchtop water circulating multi-purpose vacuum pump is a new type of desktop circulating water vacuum pump
designed based on the small experimental area. It can be used in conjunction with a rotary evaporator, provide a vacuum
environment for vacuum distillation, and meet other conventional vacuum filtration requirements in the laboratory.
Benchtop Water Circulating Vacuum Pump Feature:
1. User-friendly: Easy to operate and require no special skills or training
2. Affordable: Generally more affordable than oil-sealed pumps, providing an economical solution for a variety of applications.
3. Quiet operation: Produce minimal noise, making them ideal for environments where noise reduction is important.
4. Dependable: Known for their consistent performance and can maintain stable vacuum pressure for long periods.
Benchtop Water Circulating Vacuum Pump Specification:
Model
VP-DIIIS
VP-IIIS
Power
180 W
Working Voltage
220 V, 50 HZ
Lift Head
8 m
Body Material
304 Stainless Steel
Maximum Vacuum Degree
-0.098 MPa
Single Head Suction Volume
10 L/min
Number of Exhaust Heads
2
2
Exhaust Head Material
ABS
ABS;
Stainless steel exhaust head (optional);
Storage Tank Capacity
15 L
Overall Dimensions
380×280×420 mm
Weight
15 kg

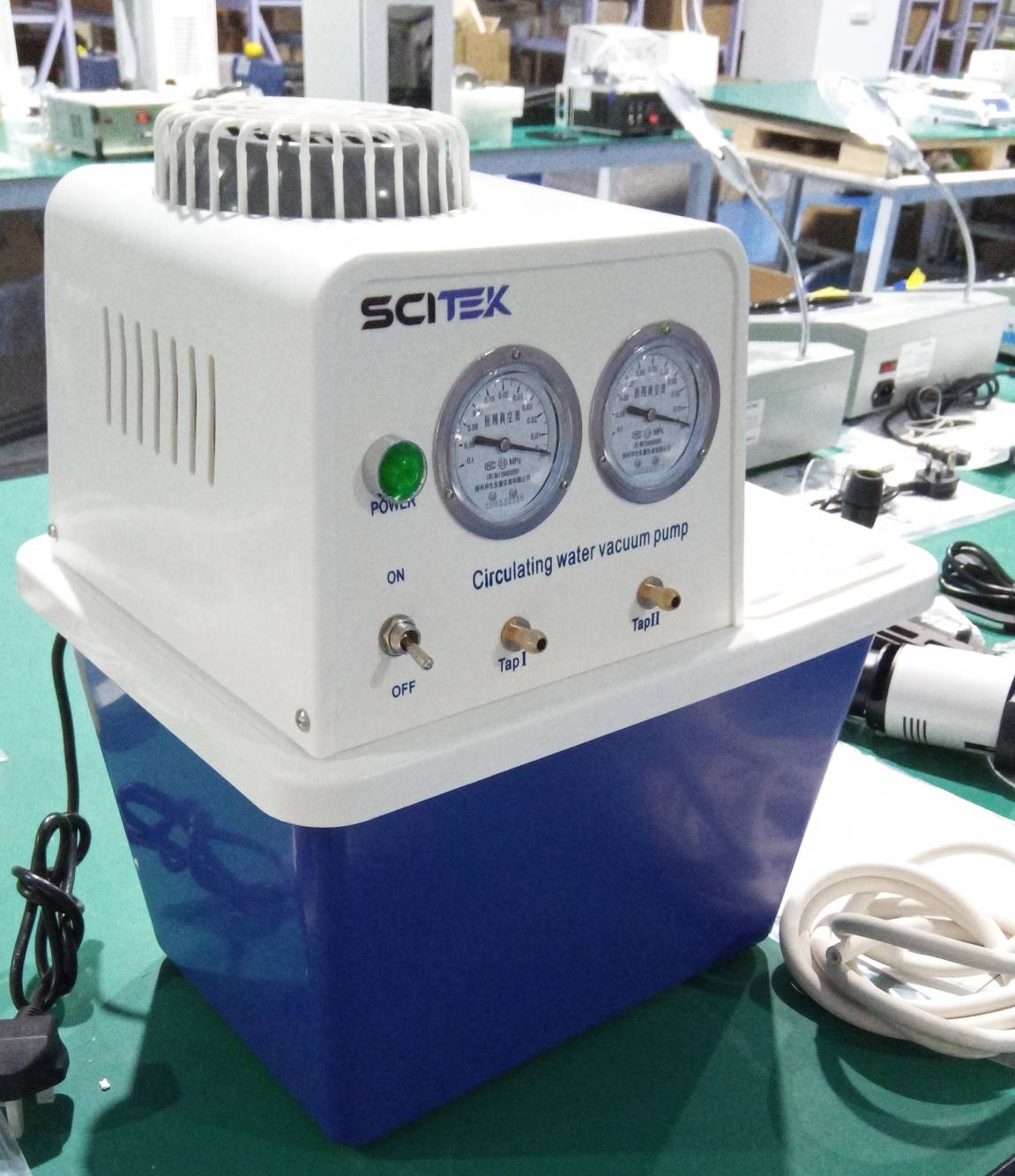

Details of Water Circulating Vacuum Pump (VP-DIIIS):

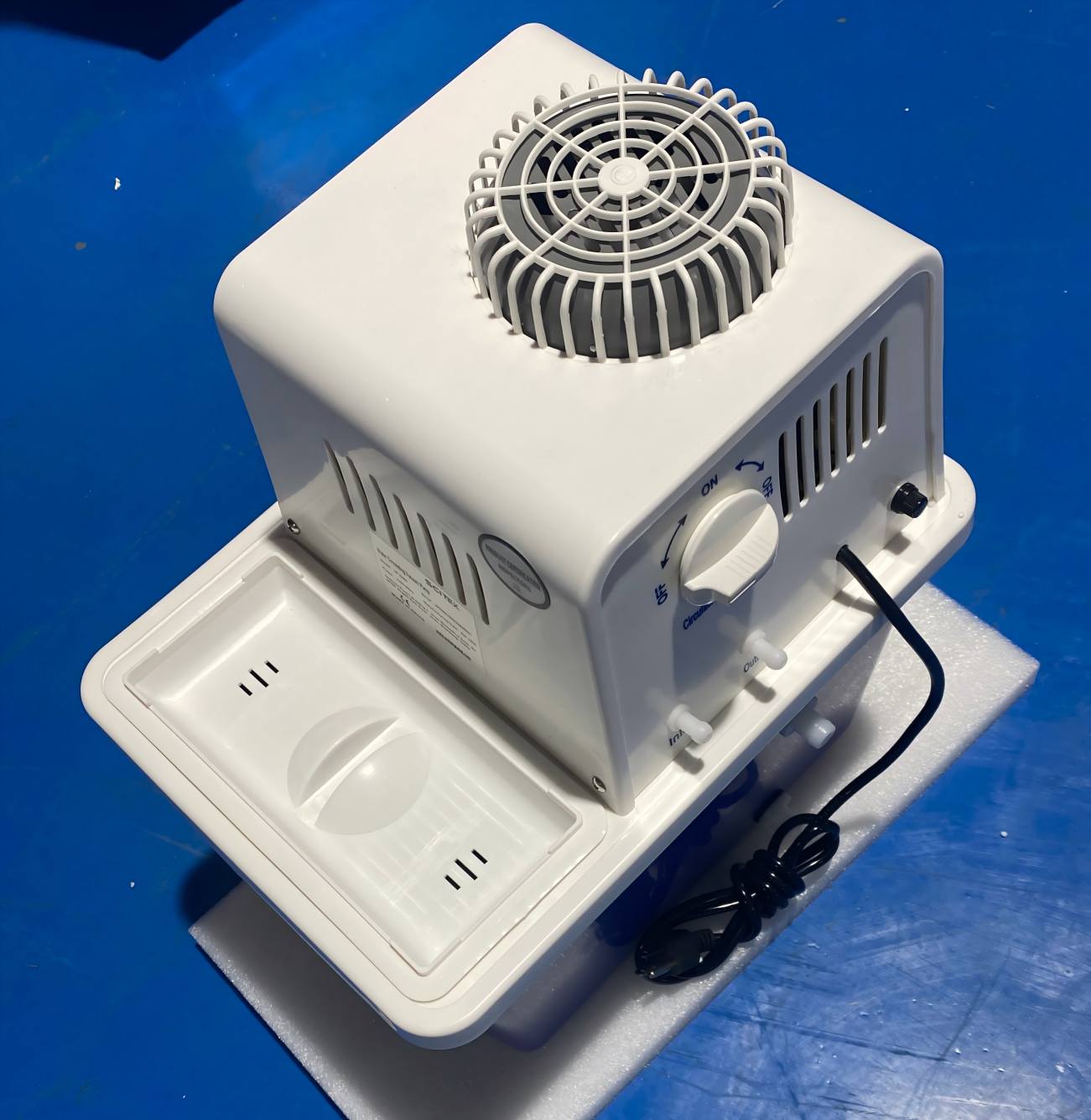

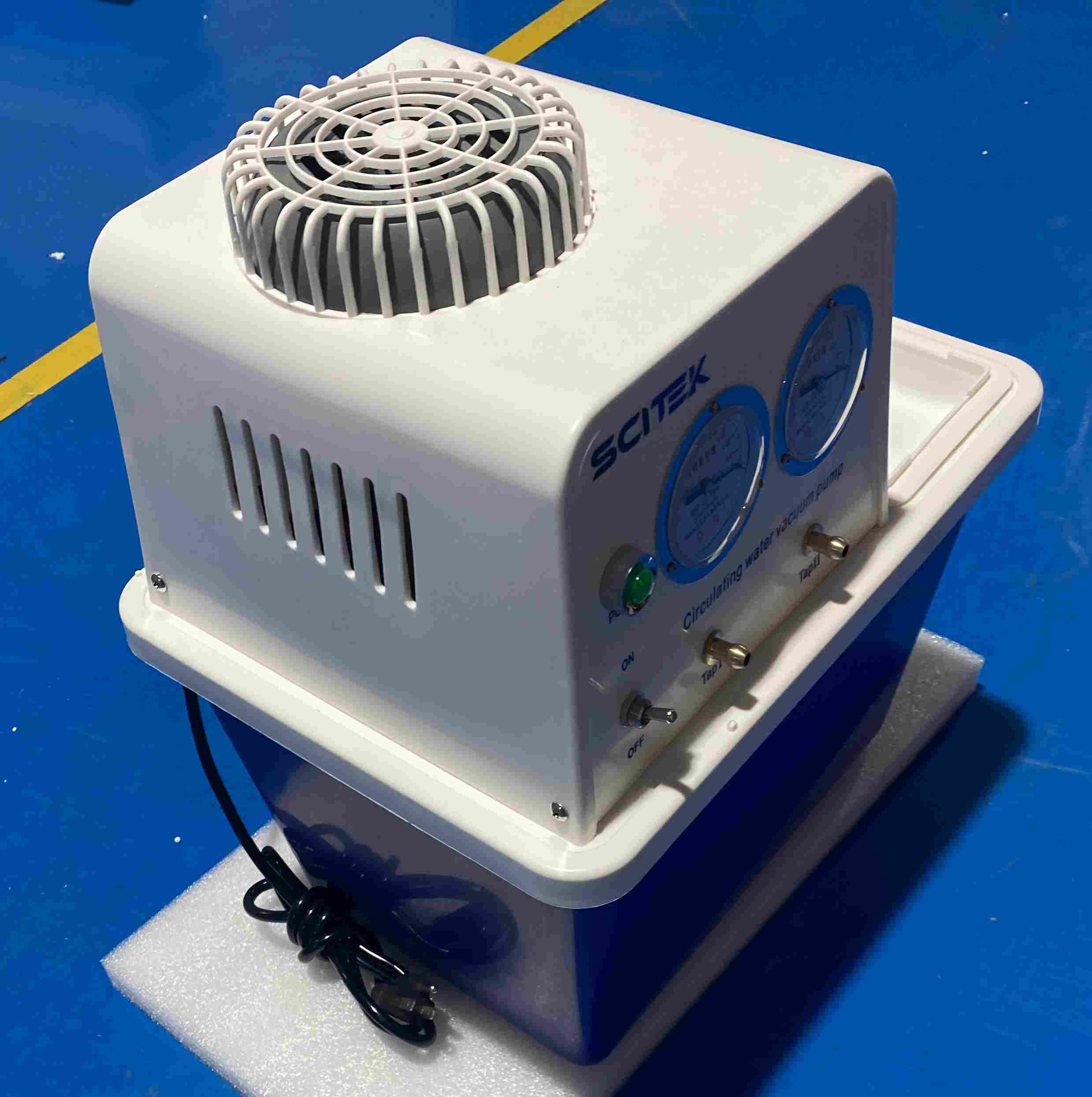

Before shipment, each VP-DIIIS water circulating vacuum pump undergoes a careful appearance and functional inspection to ensure reliable performance and consistent quality.
The finished unit is checked for housing integrity, control components, connections, and overall assembly condition, helping identify potential issues before delivery.

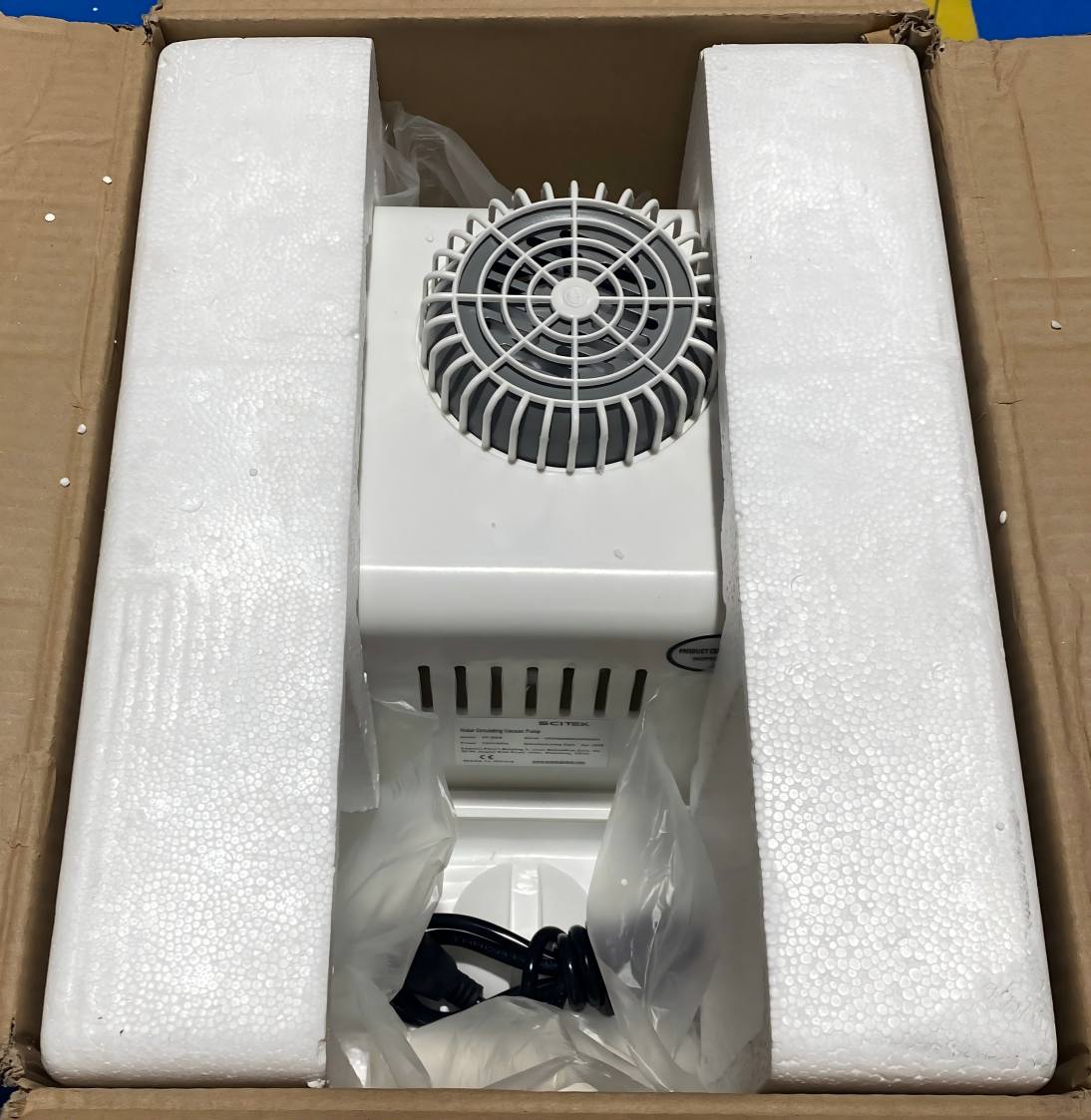

The VP-DIIIS is securely positioned inside protective packaging with cushioning materials surrounding the key components. This packaging structure helps reduce the risk of impact, vibration, friction, and movement during transportation, while protecting the pump housing, fittings, and control components. The carefully arranged internal packaging also facilitates safer handling during loading, unloading, and delivery, helping ensure the equipment arrives at the customer’s facility in good condition.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
