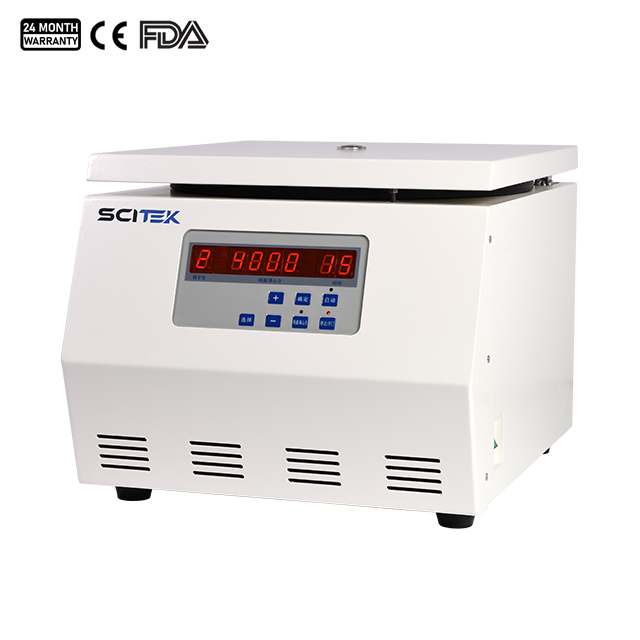

Benchtop Low Speed Centrifuge, CFG-D5L

Model : CFG-D5L

Max speed : 5000r/min
Max RCF : 4390×g
Max capacity : 8×100ml
External Size (W×D×H)(mm) : 500×455×370
Applicable to biological science, medical diagnosis, pharmaceutical industry and so on.
Availability:
Quantity:

The series of benchtop low speed centrifuges has new separation technology based on the state of different particles in a centrifugal atmosphere. They are applied for testing and research in the fields of biochemistry, clinical, hospitals and so on.

Benchtop Low Speed Centrifuge Specifications:

ModelCFG-D5L
Max speed5000r/min
Max RCF4390×g
Max capacity8×100ml
Speed accuracy±30r/min
Time setting0~99min
Noise≤65dBA
Power supplyAC 220V 50Hz 10A
Sizes(W×D×H)(mm)500×455×370
Packing Size (W×D×H)(mm)720×550×570
N.W./G.W. (kg)45/65

Matched Rotors:

Rotor TypeMax SpeedMax VolumeMax RCF
Swing Rotor4000r/min2×2×96 Wells2380×g
Swing Rotor5000r/min4×100mL4390×g
Swing Rotor5000r/min4×50mL4390×g
Swing Rotor4000r/min4×2×100mL2810×g
Swing Rotor4000r/min4×2×50mL2810×g
Swing Rotor4000r/min4×4×10mL2810×g
Swing Rotor4000r/min4×6×10mL2810×g
Swing Rotor4000r/min4×8×10mL2810×g
Swing Rotor4000r/min4×4×15mL2810×g
Swing Rotor4000r/min4×6×15mL2810×g
Swing Rotor4000r/min4×8×15mL2810×g
Swing Rotor4000r/min4×12×7/5ml2800×g

Benchtop Low Speed Centrifuge Feature:

  1. Driving:
    Dived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady.

  2. Display:
    Controlled by microcomputer with touching pad and visual digital display. The last program is stored automatically and RCF can be directly set.

  3. Body Structure:
    Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.

  4. Safety Protection:
    It contains various safety protections including lid locking and holding during rotor on, over speed, unbalance. The electrical lid lock ensures its safety and reliability during running.

  5. Control:
    Control of speed and time. Direct set for speed and time is user-friendly.
