The series of centrifuges has new separation technology based on the state of different particles in a centrifugal atmosphere. They are applied for testing and research in the fields of biochemistry, clinical, hospitals and so on.

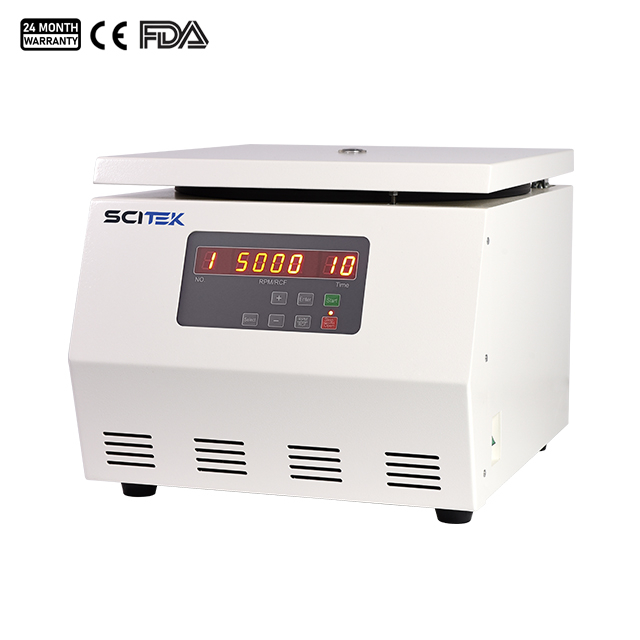

Benchtop Low Speed Centrifuge Feature:
Driving: Drived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady.
Display: Controlled by microcomputer with touching pad and visual digital display. The last program is stored automatically and RCF can be directly set.
Body Structure: Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.
Safety Protection: It contains various safety protections including lid locking and holding during rotor on, over speed, unbalance. The electrical lid lock ensures its safety and reliability during running.
Control: Control of speed and time. Direct set for speed and time is user-friendly.
Benchtop Low Speed Centrifuge Specifications:
| Model | CFG-5k |
|---|
| Max Speed | 5500rpm |
| Max RCF | 5310×g |
| Max capacity | 4×500ml |
| Speed Accuracy | ±30r/min |
| Time setting | 0~99 min |
| Noise | ≤58dB |
| Power Supply | AC 110/220V 50/60Hz 15A |
| External Size (W×D×H)(mm) | 550×455×370 |
| Shipping Size (W×D×H)(mm) | 800×550×580 |
| N.W/G.W | 45/75 |
Rotors for CFG-5k:
| Rotor Type | Max Speed | Max Volume | Max RCF |
|---|
| Angle Rotor | 5500r/min | 12×10mL | 5310×g |
| Swing rotor support | / | / | / |
| Tube Support | 5000r/min | 4×100mL | 4390×g |
| Tube Support | 4000r/min | 4×2×100mL | 3500×g |
| Tube Support | 4000r/min | 4×4×10mL | 3500×g |
| Tube Support | 4000r/min | 4×6×10mL | 3500×g |
| Tube Support | 4000r/min | 4×8×10mL | 3500×g |
| Tube Support | 4000r/min | 4×4×15mL | 3500×g |
| Tube Support | 4000r/min | 4×6×15mL | 3500×g |
| Tube Support | 4000r/min | 4×8×15mL | 3500×g |
| Tube Support | 5000r/min | 4×50mL | 4390×g |
| Tube Support | 4000r/min | 4×2×50mL | 3500×g |
| Swing rotor | 4000r/min | 4×250mL | 3500×g |
| Adaptor | 4×8×5mL |
| Adaptor | 4×8×7mL |
| Adaptor | 4×7×10mL |
| Adaptor | 4×6×15mL |
| Adaptor | 4×2×50mL |
| Adaptor | 4×100mL |
| Swing rotor | 4000r/min | 4×500mL | 3580×g |
| Adaptor | 4×15×7mL |
| Adaptor | 4×12×10mL |
| Adaptor | 4×8×15mL |
| Adaptor | 4×4×50mL |
| Adaptor | 4×2×100mL |
| Adaptor | 4×250mL |
| Swing rotor | 4000r/min | 4×12×7/5ml | 2800×g |
| Swing rotor | 4000r/min | 4×18×7/5ml | 2800×g |
| Swing rotor | 4000r/min | 4×24×7/5ml | 2800×g |
| Swing Microplate Rotor | 4000r/min | 2×2×48 wells | 2300×g |
| Swing Microplate Rotor | 4000r/min | 2×2×96 wells | 2300×g |
