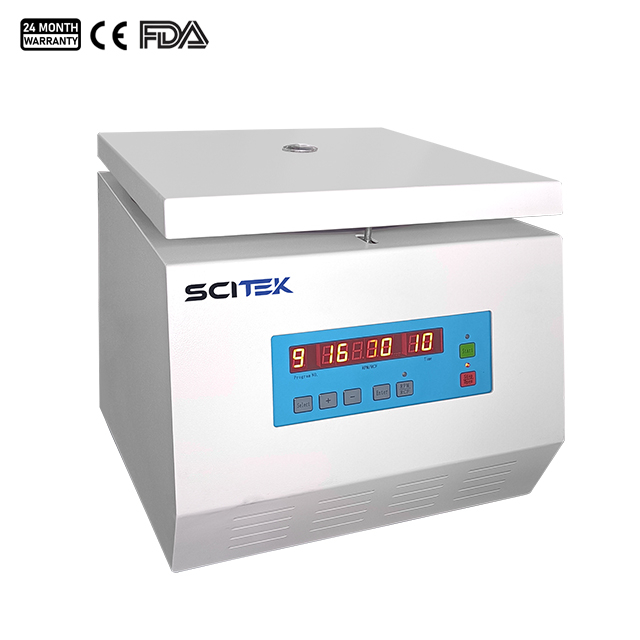

This series of centrifuges is a conventional laboratory centrifuge. They are applicable for the tests with small samples, many processes, large centrifugal force and little temperature requirement. They are widely used in the fields of biochemistry, genetic engineering, agriculture, farming, food safety, medicine and so on.
Benchtop High Speed Centrifuge Feature:
Driving: Drived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady.
Display: Controlled by microcomputer with touching pad and LED digital display. The last program is stored automatically and RCF can be directly set.
Body Structure: Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.
Safety Protection: It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance. The electronic lock ensures its safety and reliability during running.
Benchtop High Speed Centrifuge Specifications:
| Model | CFG-D16H |
|---|
| Max Speed | 16600r/min |
| Max RCF | 19200×g |
| Max capacity | 4×100ml |
| Speed Accuracy | ±30r/min |
| Time setting | 0~99 min |
| Noise | ≤58dB |
| Power Supply | AC 110/220V 50/60Hz 16A |
| External Size (W×D×H)(mm) | 450×350×330 |
| Shipping Size (W×D×H)(mm) | 710×430×530 |
| N.W/G.W | 30/50 |
Rotors for CFG-D16H:
| Rotor Type | Max Speed | Max Volume | Max RCF |
|---|
| Angle Rotor | 16600r/min | 18×0.5mL | 19200×g |
| Angle Rotor | 16600r/min | 12×2.2/1.5mL | 19200×g |
| Angle Rotor | 13000r/min | 48×0.5mL | 16060×g |
| Angle Rotor | 13000r/min | 24×2.2/1.5mL | 16060×g |
| Angle Rotor | 13000r/min | 10×5mL | 11500×g |
| Angle Rotor | 12000r/min | 12×10mL | 14800×g |
| Angle Rotor | 12000r/min | 6×50mL (Round bottom) | 14800×g |
| Angle Rotor | 10000r/min | 12×15mL | 11220×g |
| Angle Rotor | 10000r/min | 4×100mL | 11220×g |
| Microplate Rotor | 4000r/min | 2×2×48 wells | 2300×g |
