Hydrogen Peroxide Disinfector Application:
Employing new-generation high-temperate flash vaporization technology, hydrogen peroxide solutions
(8-35% concentration) are converted into uniform, dry hydrogen peroxide “gas,” ensuring an efficient, safe,
and controllable disinfection process. The generated vapor features extremely small particle size and exceptional
penetration capability, effectively permeating high-efficiency particulate air (HEPA) filters. It achieves thorough
sterilization of complex spaces and surfaces. Typical application areas include: disinfection of small enclosed spaces,
HEPA filters in biosafety cabinets, mobile biosafety level (BSL)-2/3 Laboratories, negative-pressure ambulances,
pass-through chamber/pass box, isolators, pipeline and IVC cage, etc.
Hydrogen Peroxide Disinfector Feature:
1. New-generation flash vaporization technology.
2. 8-35% hydrogen peroxide, high-temperature vaporization, bacteria and microorganisms
removal rate can reach Log6.
3. Suitable for disinfection of spaces 1-100 m³.
4. Various pre-set application scenarios.
5. Step-by-step flow adjustment for precise control.
6. Equipped with a DN port for pipe support.
7. Standard storage bottle capacity 0.5 L.
Hydrogen Peroxide Disinfector Specification:

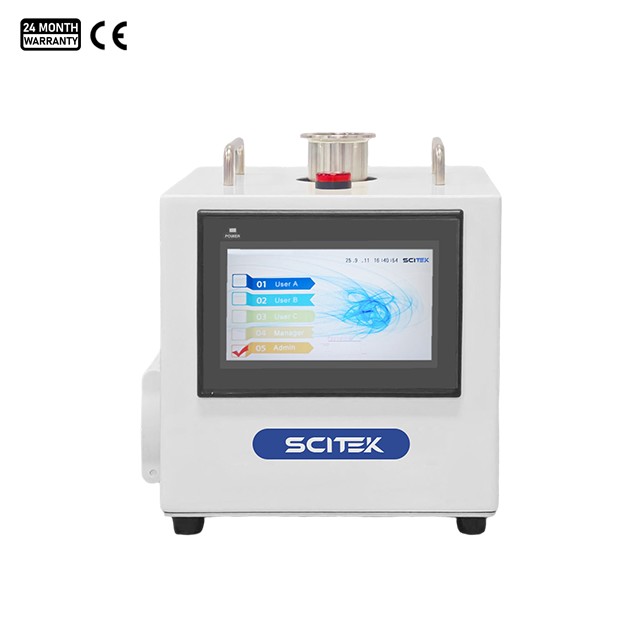

Model
ST-100BH
Sterilization Technology
High-temperate flash vaporization
Disinfectant
Hydrogen peroxide (8-35%)
Operating Temperature
5-40 ℃
Sterilization Level
Log6
Flow Rate
＜10 mL/min
Maximum Disinfection Volume
100 m³
Disinfectant Dosage
3-5 mL/m³
Particle Size
Steam
Functions
Data recording, active liquid supply, three-level authority, sound and light alarm,
remote control, pipeline circulation disinfection
Consumption
800 W
Power Supply
AC 220/110 V, 50/60 Hz
External Size (W×D×H)
259×259×250 mm
Shipping Size (W×D×H)
420×420×620 mm
N.W./G.W.
10/13 kg
