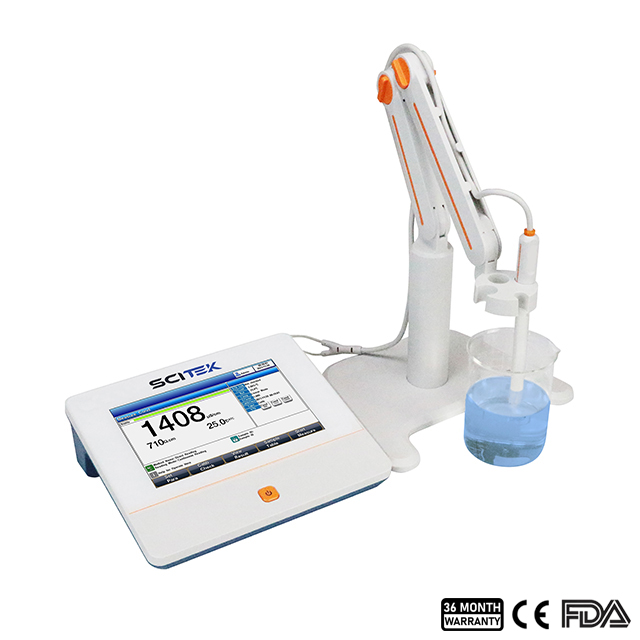

Benchtop Conductivity Meter, 5 Calibration Points

Model : CON-B500

Range : 0.000 µS/cm to 2000 mS/cm
Accuracy : ±0.5% FS
Data Storage : 1000 Groups
Sizes(W×D×H)(mm) : 220x195x68
Accurate, flexible benchtop conductivity meter provides high-quality conductivity measurements at the click of a button
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop Conductivity Meter Specifications:

ModelCON-B500
ConductivityRange0.000 µS/cm to 2000 mS/cm
Resolution0.001 µS/cm minimum, various with range selection
Accuracy±0.5% FS
Reference Temperature5, 10, 15, 18, 20, 25 ℃
Calibration PointsUp to 5
Calibration ReminderYes
Standard Recognition10 µS/cm, 84 µS/cm, 500 µS/cm, 1413 µS/cm, 12.88 mS/cm
146.5 µS/cm, 1408 µS/cm, 12.85mS/cm, 111.3mS/cm
ResistivityRange5.00Ω·cm~100.00 MΩ·cm
Resolution0.01 Ω·cm minimum
Accuracy±0.5% FS
TDSRange0.000~1000 ppt
Resolution0.001 ppm minimum, changed with range
Accuracy±0.5%FS
SalinityTypeNaCl
Range0~80.0 ppt
Resolution0.1 ppt
Accuracy±1 ppt
TemperatureRange-10 to 135℃, 14 to 275°F
Unit℃, °F
Resolution0.1
Accuracy±0.1
MeasurementReading ModeAuto Read (Fast, Medium, Slow), Timed, Continuous
Reading PromptsReading, Stable, Locked
Temp. CompensationATC, MTC
Data ManagementData Storage1000 Groups
GLP FeaturesYes
Log ManagementYes
InputsConductivity with Temp. Probe5-pin aviation connector
OutputsUSBUSB 2.0 flash memory device, PC, scanner
RS 232printer, auto-sampler
Display OptionsBacklightYes
Auto Shutdown1~60 min, off
IP RatingIP54
Date and TimeYes
GeneralElectricityAC Adapter, 100-240V AC input, DC24V output
Sizes(W×D×H)220x195x68
Shipping Size (W×D×H)(mm)370×305×330
N.W./G.W. (kg)0.95/5.5

Benchtop Conductivity Meter Features:

  1. Color high contrast LCD touch screen, 7.0 inches.

  2. Stores up to 1,000 parameters to help customers view, compare and calculate results better.

  3. Multi-reading capability for automatic, timed, and continuous readings.

  4. Automatic/manual temperature compensation ensures accurate results.

  5. Supports USB communication.

  6. Reset function automatically restores all settings to factory default options.

  7. IP54 waterproof; 1-5 points calibration.

  8. Customizable parameters include cell constant, reference temperature, temperature compensation coefficient and TDS factor.

  9. Temperature-compensated (none, linear, pure water).


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Benchtop Conductivity Meter, 3 Calibration Points
Benchtop Conductivity Meter, 3 Calibration Points

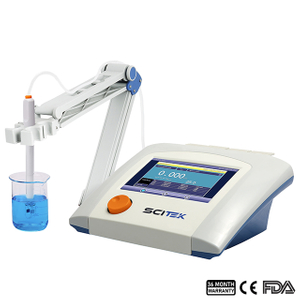

Benchtop Conductivity Meter CON-B600
