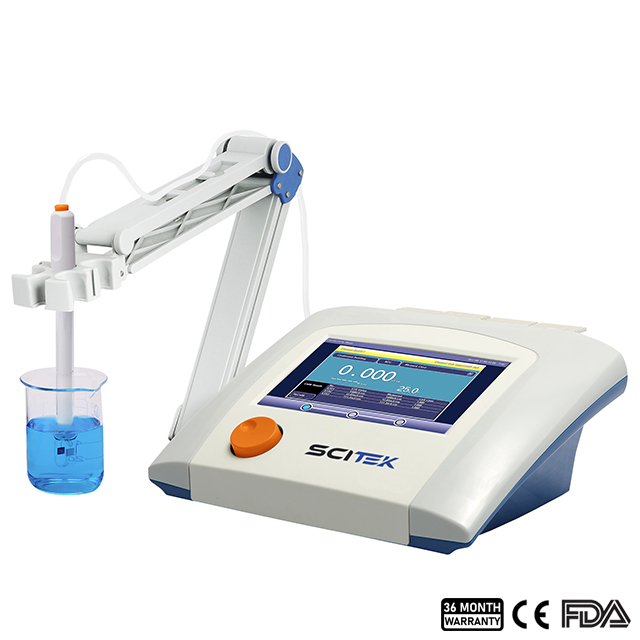

Benchtop Conductivity Meter EC600L

Model : EC600L

Range : 0.000 µS/cm to 3000 mS/cm
Accuracy : ±0.5% FS
Calibration Points : Up to 5 points
Sizes(W×D×H)(mm) : 280x280x130
The CON-B600 is an accurate and flexible benchtop conductivity meter for conductivity, resistivity, salinity and TDS.
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop Conductivity Meter Features:

  1. Color High contrast LCD touchscreen, 7.0 inches.

  2. Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

  3. Multi-reading feature allows auto-read, timed-read and continuous-read.

  4. Automatic/Manual temperature compensation ensures accurate results.

  5. Data Storage 1000 sets for each parameter (GLP-compliant).

  6. Data analysis feature helps user review, compare and recalculate results.

  7. Support for USB or RS-232 communication.

  8. Reset feature automatically resumes all settings back to factory default options.

  9. IP54 waterproof.

  10. 1-5 points calibration with Standard Recognition.

  11. Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

  12. Temperature compensation type (none, linear, pure water).

Benchtop Conductivity Meter Specifications:

ModelEC600L
ParametersEC/Temp.(Resistivity/TDS/Sal.)
ConductivityRange0.000 µS/cm to 3000 mS/cm
Resolution0.001 µS/cm minimum, various with range selection
Accuracy±0.5% FS
Reference Temperature5, 10, 15, 18, 20, 25 ℃
Calibration PointsUp to 5
Standard Recognition146.5µS/cm, 1408µS/cm, 12.85mS/cm, 111.3mS/cm
ResistivityRange5.00 Ω·cm~100.00 MΩ·cm
Resolution0.01 Ω·cm minimum
Accuracy±0.5% FS
TDSRange0.000 mg/L~1000 g/L
Resolution0.001ppm minimum, changed with range
Accuracy±0.5%FS
SalinityTypeNaCl%
Range(0.00~8.00)%
Resolution0.01%
Accuracy±0.1%
TemperatureRange-5 to 130 ℃
Unit℃
Resolution0.1℃
Accuracy±0.1℃
MeasurementReading ModeAuto Read (Fast, Medium, Slow), Timed, Continuous
Reading PromptsReading, Stable, Locked
Temp. CompensationATC, MTC
Data ManagementData Storage1000 Groups
GLP FeaturesYes
Log ManagementYes
InputsTemp. Probe6-pin Mini-DIN
Conductivity Probe8-pin Mini-DIN
OutputsUSB, RS 232USB 2.0 flash memory device, printer, PC
Display OptionsBacklightYes
Auto Shutdown1~60 min, off
IP RatingIP54
Date and TimeYes
GeneralElectricityAC Adapter, 100-240V AC input, DC24V output
Sizes(W×D×H)280x280x130
Shipping Size (W×D×H)(mm)370×305×330
G.W. (kg)4
IncludesAccessories

DJS-1-L EC electrode

T-818-L Temperature probe

1413μS/cm EC standard solution, 50ml, 1 vial

REX-3 electrode stand

Touch pen
