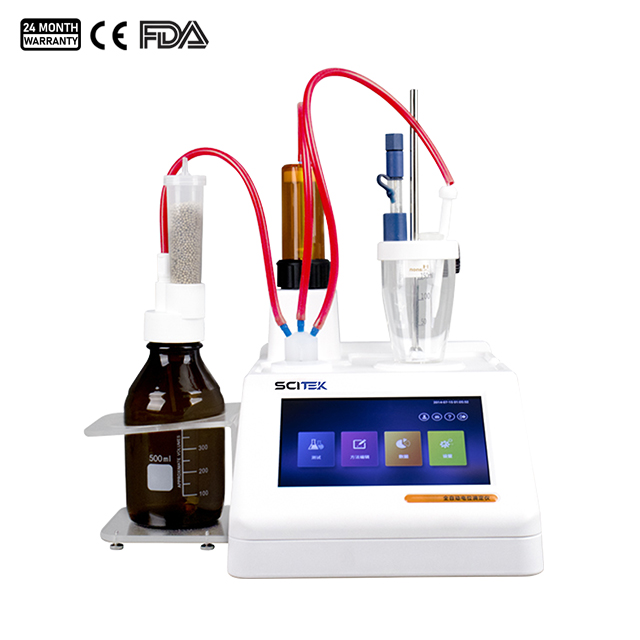

TI-86A is a durable, accurate, cost-effective automatic potential titrator. It uses an modular and compact design, can finish acid-base titration, redox titration, precipitation titration and complexation titration and other common titration.
Advantages of Automatic Titrator:
Compact integrated design
Easy to pick up to anywhere you need to, the host, stir, titration, reagent bottle holder are integrated with the shell.
7-inch color touch screen, inbuilt Android-based operating system, multi-status indicator light.
The main unit is Splash-proof. And the titration base has the liquid drainage design to prevent liquid deposition and penetration.
The reagent bottle has sealing cover, can fill the effective isolation adsorption material, to prevent any polluted by the air or the escaped odour.
Zero-dead volume solenoid valve, changing easily for PTFE burette.
Automatic Titrator Specifications:
| Model | TI-86A |
|---|
| Measurement Range | mV: ±1,999 mV |
| pH: 0.00~14.00 pH |
| Resolution | 0.1mV, 0.01 pH |
| Accuracy | 0.2 mV; 0.02pH; |
| Burette | Standard 15ml Burette, 25ml is Optional |
| Temp Control Range | 0-100℃ |
| Temp Control Accuracy | 0.3 ℃ |
| Burettes Type | External Burette |
| Burette Resolution | 1/10000 |
| Burette Refill time | 16 Seconds (100% Filling Speed) |
| Stirring | Magnetic Stirring |
| User Grading Management | 4 Levels (Customizable Operation Permissions) |
| Communication Port | USB, Printer Port |
| Package Size (WxDxH)(mm) | 620x440x370 |
| Gross Weight | 12.5kg |
Automatic Titrator Features:
Smaller body, higher performance
Support MET, DET, EP and other titration modes, can finish acid-base, precipitation, nonaqueous, redox, complexation and other titration.
With programmable liquid dispensing function, can set the liquid adding volume, liquid adding interval, liquid adding times, to prepare the solvent.
Support the function of Custom formula editor, to let the complicated calculation’s results easily.
All detailed titration nodes can be viewed, and the end point can be manually set and saved as associated data, reducing unneces-sary repeated laboratory tests.
Historical data can be viewed during testing, let the error correction in time.
Multiple self-inspecting function, pH electrode calibration, burette calibration.
The methods are programmable and storable, and can be one-click call out.
Perfect laboratory data security management
Four levels of authority for ID, and each level ID’s authority is settable.
E-Signature, Data exporting is tamper-proofing, and so on.
Support password security setting, and also can set the passwords’ aging time.
Support PDF or Excel formats data export,both list or detailed reports.
Support wireless connecting to laser printer for A4 paper printing.
Storage space: 4G
With a multi-level retrieval function, you can quickly search the target data from the data base.
