Repeatability : ≤ 0.2% Measuring Resolutions : 0.01 mV, 0.001 pH Range : (-2000.00~2000.00) mV; (0.000~20.000) pH Measuring Accuracy : pH: ±0.002pH; mV: ±0.03% or ±0.2mV Burette Accuracy : 10mL Burette: ±0.020 mL; 20 mL Burette: ±0.030 mL
Automating precision in chemical analysis, this instrument is widely used for exact pH and concentration measurements in pharmaceuticals, food science, and environmental testing.

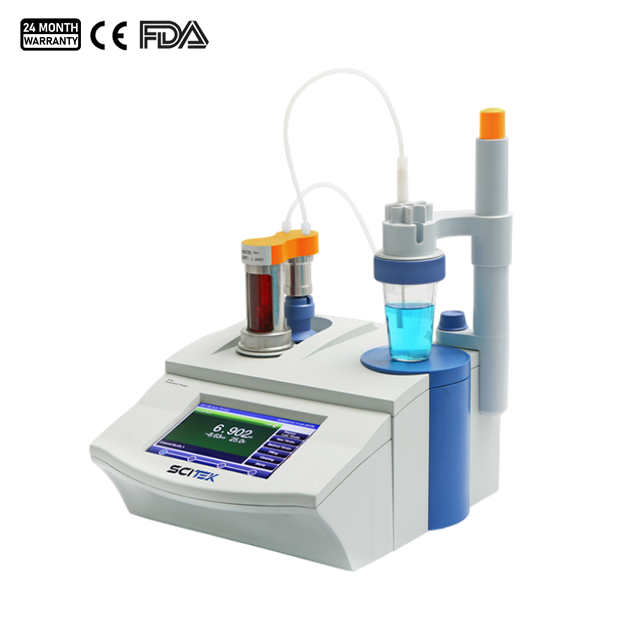

The Automatic Potential Titrator is widely used in various chemical analyses, including acid-base, redox,
precipitation and complexometric titrations. It is ideal for use in high-throughput laboratories, for quality
control in manufacturing processes, and for research applications where precision and reproducibility are crucial.
The system is particularly beneficial for routine analysis of water, food, pharmaceuticals and environmental testing.
Advantage:
7” colorful touchscreen and smart guide system.
Titration methods, curves and results are displayed in detail.
1 extra burette driver can be installed (optional).
Replaceable burette with high-accuracy (10 mL or 20 mL selectable).
Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
Support titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
pH calibration and measurement are supported.
Up to 100 user-defined methods and 10 user-defined shortcuts.
Auto calculation with pre-defined formula.
Store up to 200 titration data sets (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Data can be easily transferred to printer via RS-232 communication interface.
Titrator can be controlled by computer via USB or RS-232 communication interface.
Automatic sampler is supported.
Potential Titrator Specification:
Model
Ti-50
Burette
Repeatability: ≤ 0.2% Accuracy: 10 mL Burette: ±0.020 mL; 20 mL Burette: ±0.030 mL Resolution: 1/30000
Mechanical Unit
Range: (-2000.00~2000.00) mV; (0.000~20.000) pH
Measuring Unit
Resolutions: 0.01 mV, 0.001 pH
Accuracy: pH: ±0.002 pH; mV: ±0.03% or ±0.2 mV
Fluctuation: ±0.3 mV/3h
Temp. Compensation
Range: (-5.0~105.0) °C
Resolutions: 0.1 °C
Accuracy: ±0.2 °C
General
Power Supply: AC Adapter, 100 - 240V AC input, C24V output
Dimensions: 340×400×400 mm
Weight: 10 kg
Application:
The Automatic Potential Titrator is widely used in various chemical analyses, including acid-base, redox,
precipitation and complexometric titrations. It is ideal for use in high-throughput laboratories, for quality
control in manufacturing processes, and for research applications where precision and reproducibility are crucial.
The system is particularly beneficial for routine analysis of water, food, pharmaceuticals and environmental testing.
Advantage:
7” colorful touchscreen and smart guide system.
Titration methods, curves and results are displayed in detail.
1 extra burette driver can be installed (optional).
Replaceable burette with high-accuracy (10 mL or 20 mL selectable).
Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
Support titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
pH calibration and measurement are supported.
Up to 100 user-defined methods and 10 user-defined shortcuts.
Auto calculation with pre-defined formula.
Store up to 200 titration data sets (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Data can be easily transferred to printer via RS-232 communication interface.
Titrator can be controlled by computer via USB or RS-232 communication interface.
Automatic sampler is supported.
Potential Titrator Specification:
Model
Ti-50
Burette
Repeatability: ≤ 0.2% Accuracy: 10 mL Burette: ±0.020 mL; 20 mL Burette: ±0.030 mL Resolution: 1/30000
Mechanical Unit
Range: (-2000.00~2000.00) mV; (0.000~20.000) pH
Measuring Unit
Resolutions: 0.01 mV, 0.001 pH
Accuracy: pH: ±0.002 pH; mV: ±0.03% or ±0.2 mV
Fluctuation: ±0.3 mV/3h
Temp. Compensation
Range: (-5.0~105.0) °C
Resolutions: 0.1 °C
Accuracy: ±0.2 °C
General
Power Supply: AC Adapter, 100 - 240V AC input, C24V output
