Number of beakers: 12 (9 beakers for reagent, 3 beakers for paraffin) Tissues that can be processed at one time: 40 cassettes (large capacity: 100 cassettes) Programmable: 10 sets Agitation times: ≥ 10 times / hour Paraffin beaker temperature range: 56-86 ℃
1. The PLC control system manages all operational processes, ensuring simple operation and reliable, stable performance.
2. Tissue basket relocating controlling perch enable the tissue to be put in any beaker.
3. Electricity protection and obstacle protection functions.
4. Agitation dehydrate mode to guarantee the complete mix and contact with the tissue, regent and paraffin so as to achieve good dehydrate effect.
5. Large LCD screen shows every step of processing and is easy for monitoring.
6. Constant temperature controlling system adopted on the paraffin beaker to ensure high precision of temperature controlling.
7. Nonstick import TEFLON coating painted on the internal surface provides the good condition for tissue protection.
Specification:
Model
TP-A6A
TP-A6B
Number of Beakers
12 (9 beakers for reagent, 3 beakers for paraffin)
Capacity of Each Reagent Beakers
1.2 L (large capacity: 2.3 L )
Capacity of Each Paraffin Beakers
1 L (large capacity: 1.8 L )
Tissue Basket Capacity
40 cassettes (large capacity: 100 cassettes)
Processing Time
Set: 0-10 hours Delay: 1 month
Programme
10 sets
Temperature Range of Paraffin Beaker
56-86 ℃
Vaccum Degree
/
0.053 MPa
Agitation times
≥ 10 times / hour
Power Supply
AC 100 V / 220 V, 50 Hz / 60 Hz
Working Temperature
5-40 ℃
Humidity Level
< 85%
Power
500 W
Dimensions(Dia.×H) (mm)
670 mm (Diameter) × 550-680 mm (Height)
Shipping Size(W×D×H)(mm)
1040×790×780 mm (1.2 L) 1190×890×780 mm (2.3 L)
N.W. /G.W.
60/115 kg
Details of Fully Automatic Tissue Processor (TP-A6A):

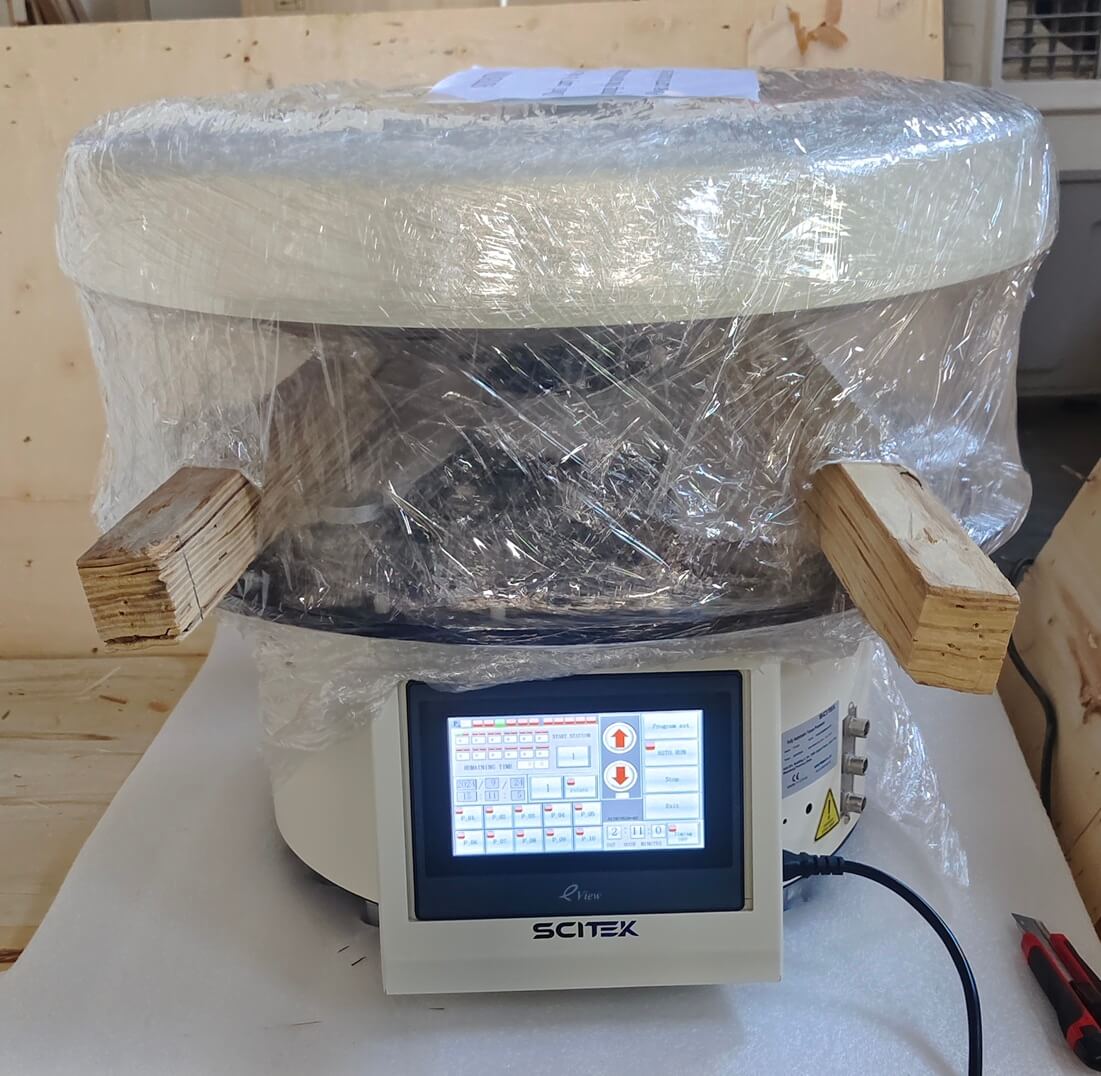

The fully automatic tissue processor offers smooth, automated tissue processing with minimal human intervention.

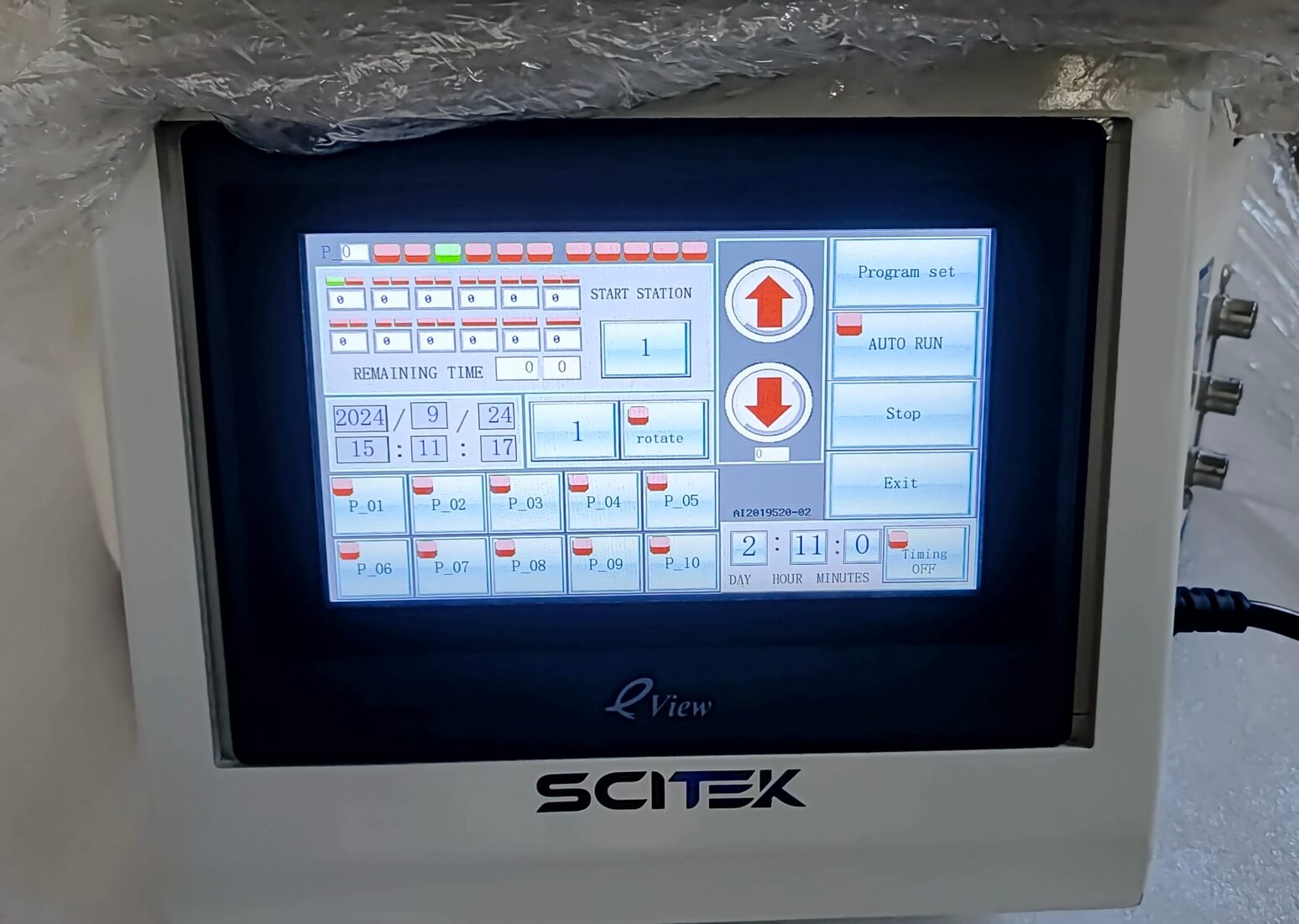

The touch-screen interface of the Fully Automatic Tissue Processor is displayed here. It allows for easy operation, featuring clear and intuitive controls for managing the tissue processing tasks.

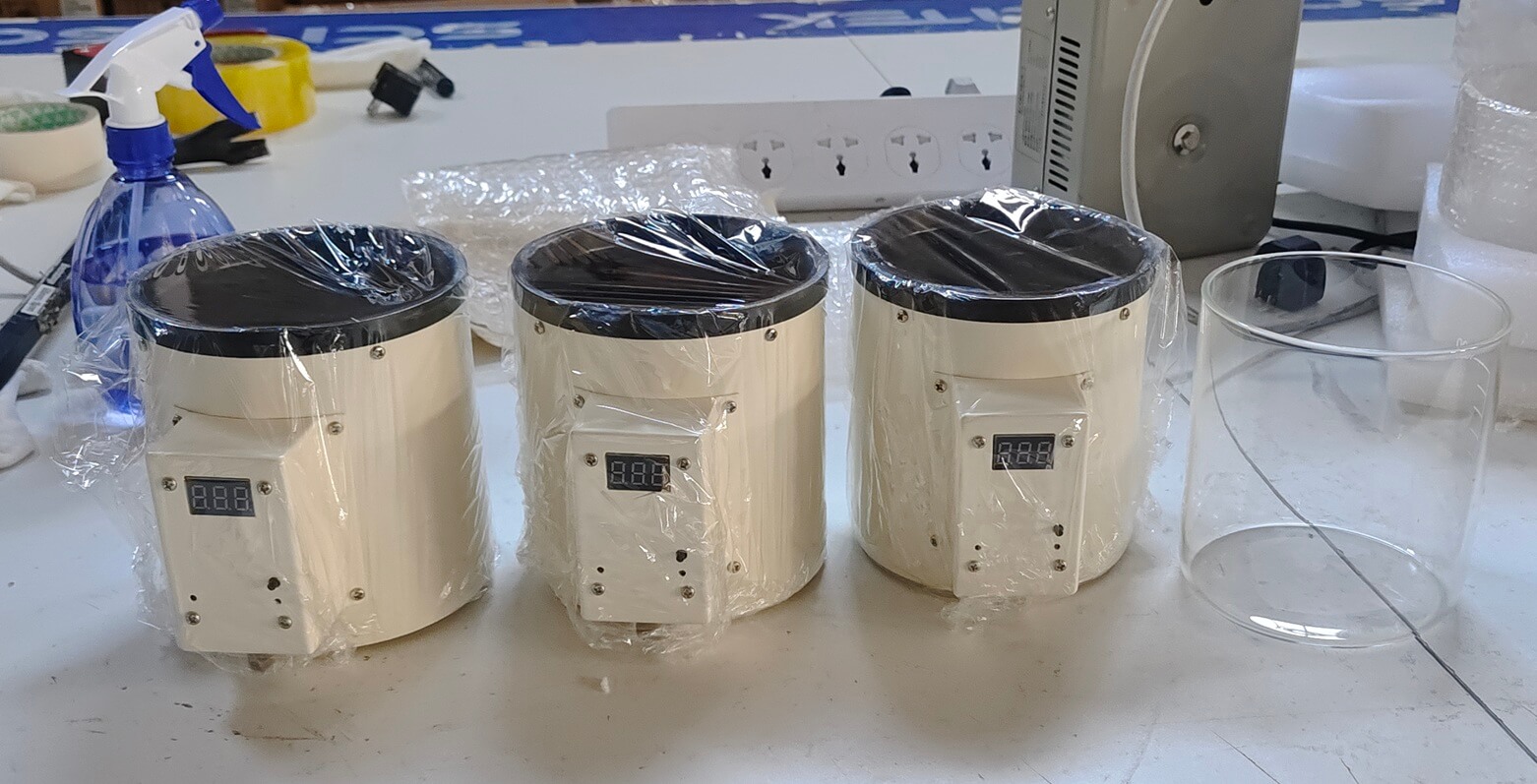

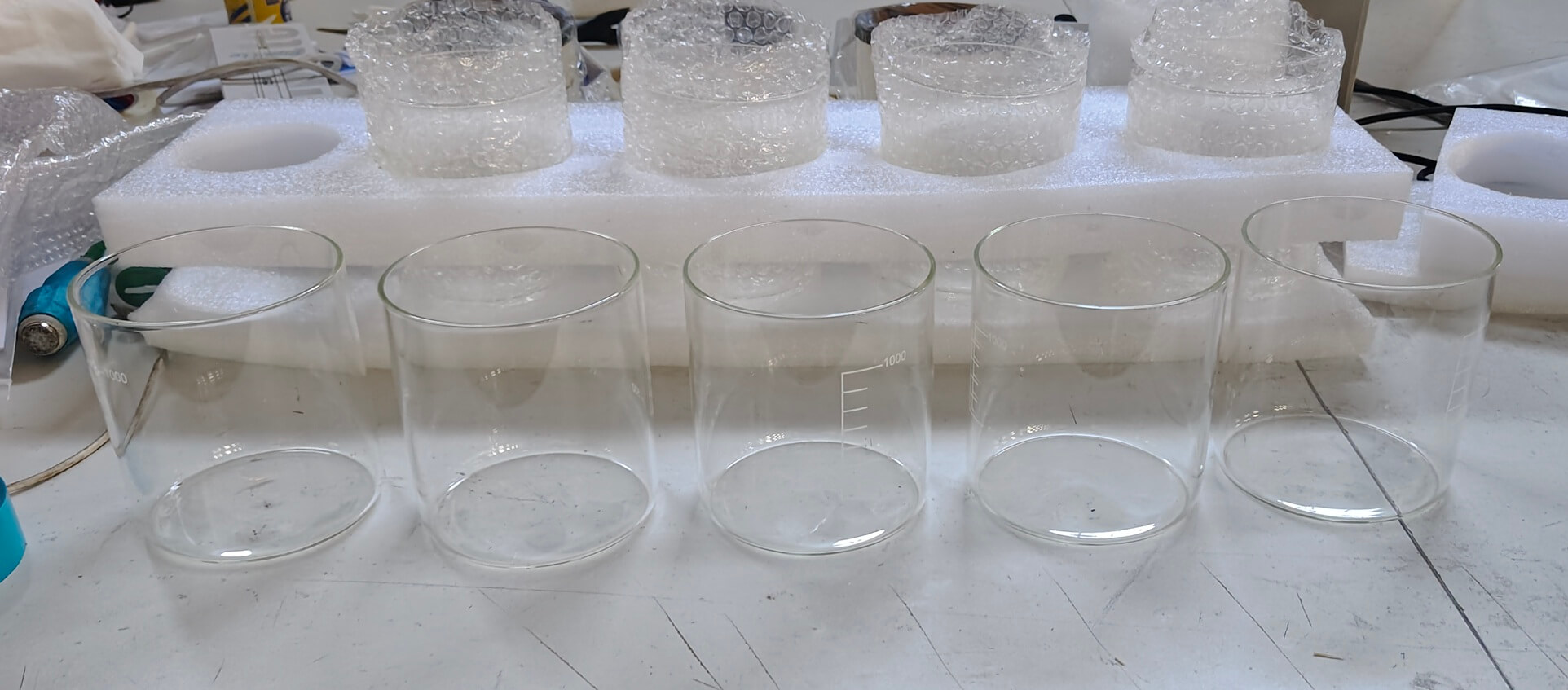

These cups are used for sample preparation during the tissue processing cycle, ensuring consistency and efficiency in every batch.

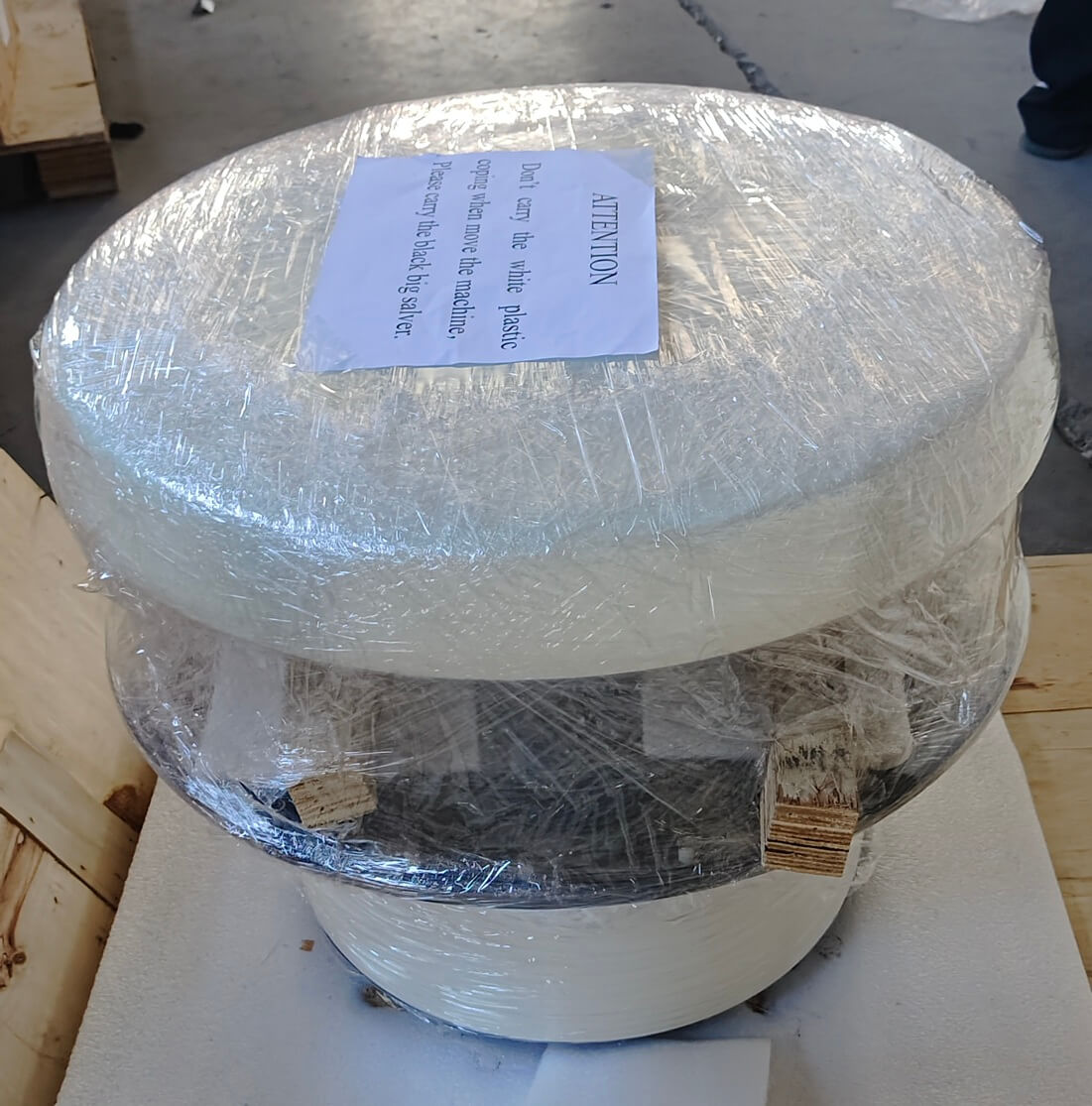

The tissue processor is carefully protected with packaging to prevent damage during transportation.
Advantage:
1. The PLC control system manages all operational processes, ensuring simple operation and reliable, stable performance.
2. Tissue basket relocating controlling perch enable the tissue to be put in any beaker.
3. Electricity protection and obstacle protection functions.
4. Agitation dehydrate mode to guarantee the complete mix and contact with the tissue, regent and paraffin so as to achieve good dehydrate effect.
5. Large LCD screen shows every step of processing and is easy for monitoring.
6. Constant temperature controlling system adopted on the paraffin beaker to ensure high precision of temperature controlling.
7. Nonstick import TEFLON coating painted on the internal surface provides the good condition for tissue protection.
Specification:
Model
TP-A6A
TP-A6B
Number of Beakers
12 (9 beakers for reagent, 3 beakers for paraffin)
Capacity of Each Reagent Beakers
1.2 L (large capacity: 2.3 L )
Capacity of Each Paraffin Beakers
1 L (large capacity: 1.8 L )
Tissue Basket Capacity
40 cassettes (large capacity: 100 cassettes)
Processing Time
Set: 0-10 hours Delay: 1 month
Programme
10 sets
Temperature Range of Paraffin Beaker
56-86 ℃
Vaccum Degree
/
0.053 MPa
Agitation times
≥ 10 times / hour
Power Supply
AC 100 V / 220 V, 50 Hz / 60 Hz
Working Temperature
5-40 ℃
Humidity Level
< 85%
Power
500 W
Dimensions(Dia.×H) (mm)
670 mm (Diameter) × 550-680 mm (Height)
Shipping Size(W×D×H)(mm)
1040×790×780 mm (1.2 L) 1190×890×780 mm (2.3 L)
N.W. /G.W.
60/115 kg
Details of Fully Automatic Tissue Processor (TP-A6A):
The fully automatic tissue processor offers smooth, automated tissue processing with minimal human intervention.
The touch-screen interface of the Fully Automatic Tissue Processor is displayed here. It allows for easy operation, featuring clear and intuitive controls for managing the tissue processing tasks.
These cups are used for sample preparation during the tissue processing cycle, ensuring consistency and efficiency in every batch.
The tissue processor is carefully protected with packaging to prevent damage during transportation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
