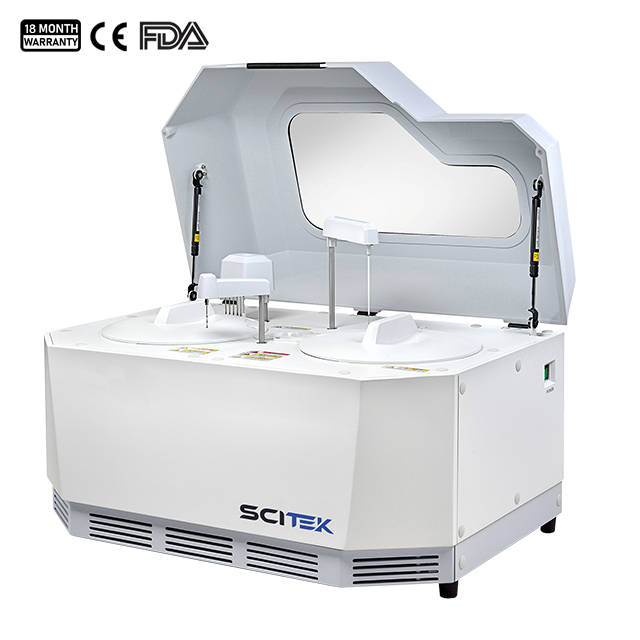

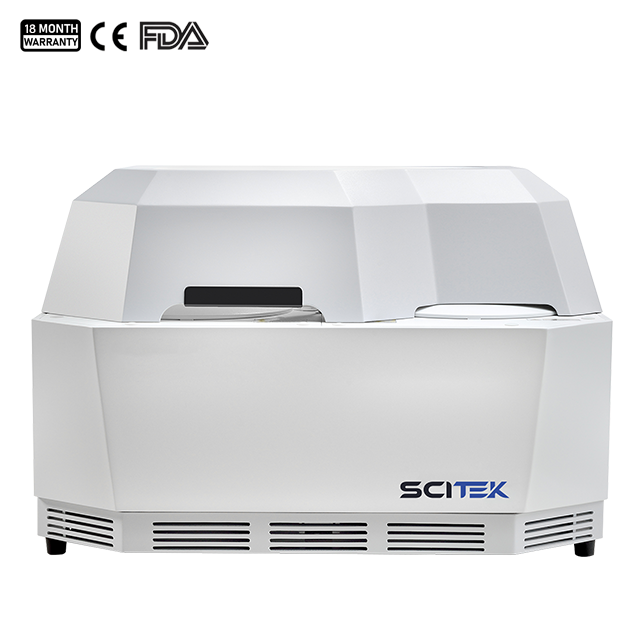

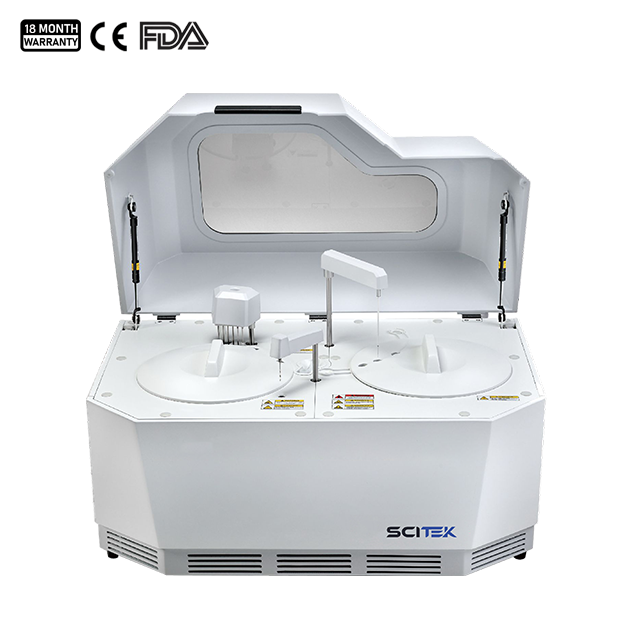

Fully Automatic Biochemistry Analyzer BA-300I

Model : BA-300I

Throughput : 240 tests/hour(without ISE), 315 tests/hour(with ISE)

Reagent Position : 40
Carryover : <0.005%
Water Consumption : Low to 5L/Hour

Sizes(W×D×H)(mm) : 855x550x580

Experience an uncompromised level of performance and ease of use with the fully automatic biochemistry analyzer.

Availability:

Product Description

Fully Automatic Biochemistry Analyzer Features:

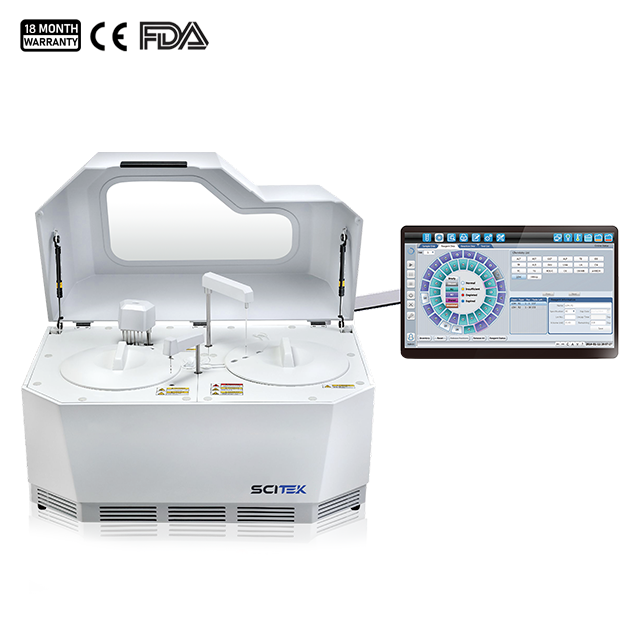

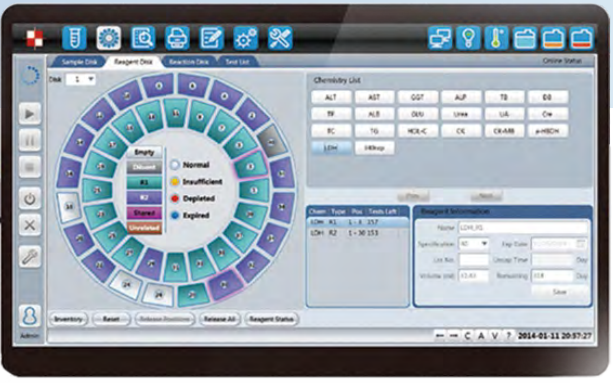

1. User Friendly Software

Easy operate with iconic interface
Multi-language available
Easy reagent parameters setting
Support batch request, panel/calculation test
Print out report template editable
Auto troubleshoot failure and recovery
Powerful statistic system
Manual dilution, auto dilution and post dilution
Easy rerun and restore test

2. Calibration & QC

Multiple calibration mode
Advanced algorithm to obtain best calibration curve
Multi QC rules: Westgard, Cumulative sum check, Twin plot

3. Real Time Monitoring

Reaction curve, calibration test and QC test curve
Sample, reagent and reaction cuvette status
Lamp intensity, water tank and waste tank status
Reaction disk and reagent disk temperature

Fully Automatic Biochemistry Analyzer Specifications:

Model	BA-300I
Category	Random access, fully automatic chemistry analyzer
Throughput	240 tests/hour(without ISE),315 tests/hour(with ISE)
Methodology	End point, Fixed Time, Kinetic
Reagent	Open system
Reagent Position	40
Sample Position	40
Minimum Reaction Volume	150uL
Carryover	<0.005%
Water Consumption	Low to 5L/Hour
Maximum Reaction Time	19.1 minutes (Single reagent), 15.7 minutes(Dual reagent)
Maximum Reaction Volume	500 uL
Principle	Colorimetry, Turbidimetry
Testing Mode	Regular mode (single&dual reagents), fast mode (single reagent)
Sample Mode	Random access, STAT sample priority
Sample Volume	2~50uL, step by 0.1 uL
Sample Disk	40 positions
Sample/reagent Probe	One probe for sample and reagent with liquid level detection, vertical and horizontal collision protection and reagent volume real time monitoring function
Sample Tube	Regular sample tube (13x100mm, 13x75 mm, 12x100 mm, 12x75 mm), Vacuum tube, eppendorf tube, plastic tube, etc.
Reagent Volume	R1:150-450 uL, R2:10-300uL, step by 1uL
Reagent Disk	40 reagent positions, 24 hours water cooling, 4-12℃
Reagent Bottles	Compatible with Olympus and Hitachi reagent bottles
Mixer	High polished nano material mixer
Reaction Cuvettes	81 cuvettes, semi-permanent rigid UV special plastic cuvettes
Wash Station	6-step auto wash station
Reaction Temperature	37±0.1°C
Heater	Metal thermostat for reaction disk
Lamp	Halogen Tungsten lamp, 12V20W, about 2000hours, water cooling system
Filter	FMSS(Full-sealed Matrix Spectrometric System)
Wavelength	8 wavelengths: 340,405,450,510,546,578,630,670nm
Resolution	0.0001Abs
Linearity Range	0-3.5Abs
Accuracy	0.5A: <±0.02AbS, 1.0A: <±0.04Abs
Stray Light	>4.5
Stability	<0.01Abs/hour
CV	<1.5%
Half Band Accuracy	±2nm
Detector	Photodiode detector array
Calibration Mode	One point linear, two point linear, multi-point linear, Logit-4P, Logit-5P, spline, exponential, polynomial
Calibration Curve	Calibration curve auto check, auto curve fitting
QC Rule	Westgard multi-rule.Cumulative sum check, Twin Plot
QC Curve	Westgard multi-rule, Cumulative sum check, Twin Plot
QC Warning	Out of control auto warning, data automatic record and analysis
Operating System	Windows 7/10
Data Storage	Decided by computer hard disc capacity
LIS Interface	Bi-LlS interface
Print Mode	Multi default formats, user-defined formats
System Monitor	Real time monitoring for sample disk, reagent disk, reaction disk. Real time monitoring for QC status. Real time monitoring for reaction cuvettes status, lamp status and temperature. Real time monitoring for reagent volume, reaction curve, calibration curve and QC curve. Linearity range limitation, substrate exhaustion judgement and prozone detecting. Abnormal status warning.
Other Function	User authority setting,test panel function, calculated/manual parameters programing, carryover setting, sample and reagent blank auto calculation, automatic failure recovery, automatic print, data statistic,auto/manual dilution test. auto retest.
PC Configration	CPU 2.5GHz, memory 4GB, hard disc 500G 19 inch widescreen monitor
PC Interface	RS-232C
Size(LxDxH)(mm)	855x550x 580
Power Supply	AC 100-240V. 50/60Hz±1 Hz.,≤350VA
Net Weight	75Kg
Optional Parts	Barcode reader, Water purification module, PC with touch screen, HP laser printer

Advantages of Fully Automatic Biochemistry Analyzer:

Reaction System:

50 high light transmittance reaction cuvettes

Metal thermostat ensures stable temperature: 37℃

Auto water blank test ensures precise results

Sample & Reagent Disk

24 hours reagent refrigerator: 4-12℃
Noise free water cooling design
40 positions for reagent
40 positions for sample with STAT priority
Optional barcode scanner available

Sampling System

High polished nano material sample/reagent probe
High accuracy ceramic syringe
Auto depth adjustment
Liquid level detection, vertical and horizontal collision protection
Maintenance free rotor with stable movement

Anti-contamination Design

6-step wash station washes cuvettes with wash solution
High polished nano material mixer
Automatic probe and mixer washing
Intelligent anti-contamination program

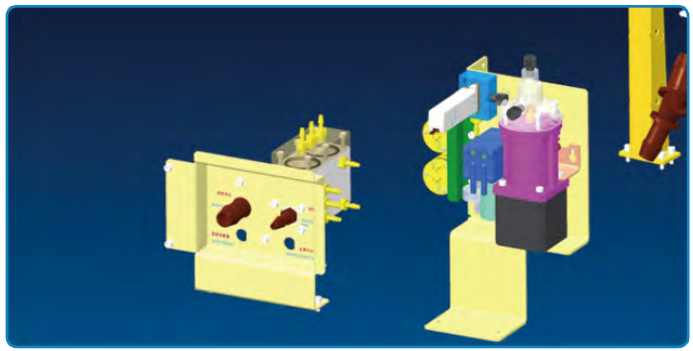

Fluid System

Branded components including: IWAKl pump, SMC valve, Ceramic syringe, THOMAS peristaltic pump, Tygon tubing and CPC tubing couplings
Built-in degasser ensures precise sampling

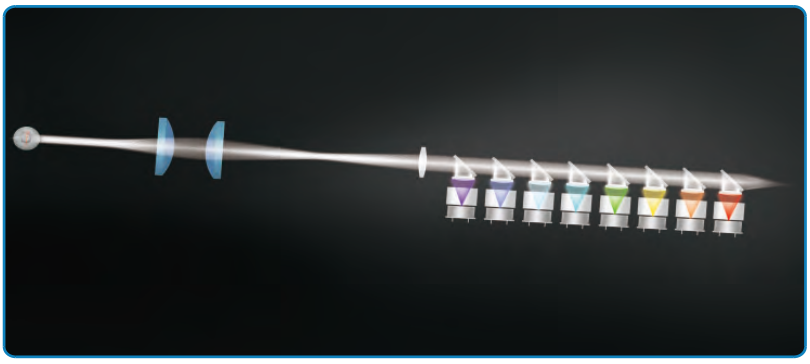

Optical System
