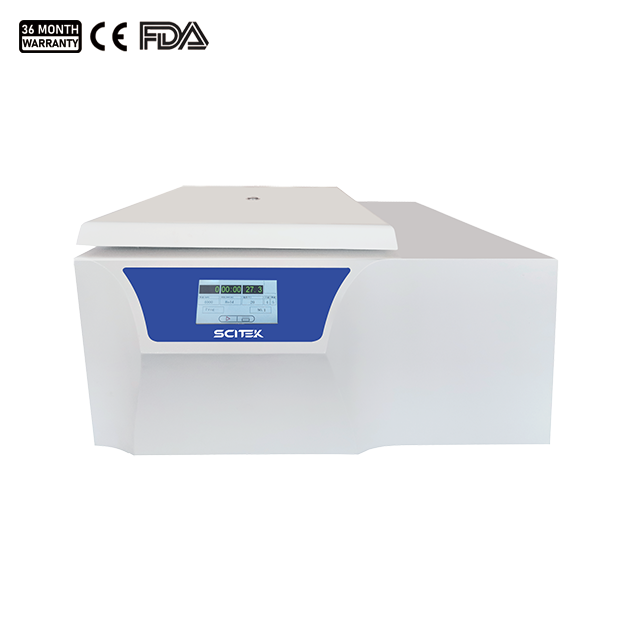

Benchtop Low Speed Refrigerated Centrifuge

Model : CFG-5LR; CFG-5LRP

Display : 5" Touch screen
Temp. Range : -20℃ to 40℃
Max.Speed : 6000 rpm
Max.Capacity : 4×750 mL
Automatic Rotor Identification : Optional
Separation Efficiency : 9 Acceleration/10 Deceleration
Comprehensive Safety Protection : Imbalance & Lid Lock & Overtemperature & Overspeed

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Benchtop Refrigerated Centrifuge Feature:

5" HD touchscreen with an intuitive, user-friendly visual interface.
Adjustable acceleration (9 levels) and deceleration (10 levels), prevents secondary sedimentation of samples and improves separation efficiency.
Supports 15 custom programs, one-touch recall of frequently used experimental protocols to boost productivity.
AC variable-frequency motor provides powerful performance with quiet, maintenance-free operation and no heat generation, ensures precise speed control.
Equipped with an imported, eco-friendly (CFC-free) compressor for rapid cooling and highly stable, accurate temperature control, fully compliant with global environmental standards.
Comprehensive safety features, including protection against overspeed, lid-open status, and rotor imbalance, automatically trigger safeguards during abnormal operation, ensure the safety of both personnel and equipment.
Seamless switching between rotational speed and centrifugal force (RCF) to meet diverse experimental requirements and standards.
Automatic rotor identification system, intelligently loads and locks rotor parameters (optional).

Benchtop Refrigerated Centrifuge Specification:

Model	CFG-5LR	CFG-5LRP
Display	5" Touch screen
Temp. Range	-20℃ to 40℃
Temp. Accuracy	±1.0 ℃
Max.Speed	6000 rpm
Max.RCF	4390×g
Max.Capacity	4×500 mL	4×750 mL
Motor	AC frequency conversion motor
Speed Accuracy	±30 r/min
Time Range	1min–99 min59sec
Continuous Centrifuge	Hold
Power Supply	AC 220/110V, 50/60Hz
Noise	< 60 dB(A)
External Size (W×D×H)	743×720×410 mm
Shipping Size (W×D×H)	825×810×570 mm
N.W/G.W	110/122 kg

Compatible Rotors:

4×750 mL Swing-out Rotor

4×750 mL Swing-out Rotor + 4×4×50 mL Adapter

4×500 mL Swing-out Rotor

4×18×7/5 mL Swing-out Rotor

Swing-out Microplate Rotor

12×10 mL Angle Rotor

×100 mL

Swing Rotor Body +4×100 mL Swing-out Tube Rack

4×6×15 mL

Swing Rotor Body +4×6×15 mL Swing-out Tube Rack

Rotors for CFG-5LR and CFG-5LRP

Rotor No.	Rotor type	Capacity	Max.Speed	Max.RCF
51200381	Swing-out Rotor	4×750 mL (Only for CFG-5LRP)	4000 rpm	3040×g
51200340		4×500 mL	4000 rpm	3040×g
51200012		4×250 mL	4200 rpm	3500×g
51200021		4×24×7/5 mL	4000 rpm	2800×g
51200020		4×18×7/5 mL	4000 rpm	2800×g
51200019		4×12×7/5 mL	4000 rpm	2800×g
51200379	Adapter	4×2×100 mL	/	/
51200378		4×4×50 mL	/	/
51200377		4×8×15 mL	/	/
51200376		4×12×10 mL	/	/
51200375		4×15×5/7 mL	/	/
51200342		4×250 mL	/	/
51200341		4×2×1.5 mL	/	/
51200018		4×100 mL	/	/
51200017		4×2×50 mL	/	/
51200016		4×6×15 mL	/	/
51200015		4×8×10 mL	/	/
51200014		4×8×7 mL	/	/
51200013		4×8×5 mL	/	/
51200001	Angle Rotor	12×10 mL	6000 rpm	4390×g
51200023	Swing-out Microplate Rotor	2×2×96 holes	4000 rpm	2000×g
51200022	Swing-out Microplate Rotor	2×2×48 holes	4000 rpm	2000×g
51200289	Swing Rotor Body	For CFG-5LR, CFG-5LRP (Requires swing-out tube rack)	/	/
51200011	Swing-out Tube Rack	4×2×50 mL	4000 rpm	2810×g
51200010		4×50 mL	4000 rpm	2810×g
51200009		4×8×15 mL	4000 rpm	2810×g
51200008		4×6×15 mL	4000 rpm	2810×g
51200007		4×4×15 mL	4000 rpm	2810×g
51200006		4×8×10 mL	4000 rpm	2810×g
51200005		4×6×10 mL	4000 rpm	2810×g
51200004		4×4×10 mL	4000 rpm	2810×g
51200003		4×2×100 mL	4000 rpm	2810×g
51200002		4×100 mL	4000 rpm	2810×g
