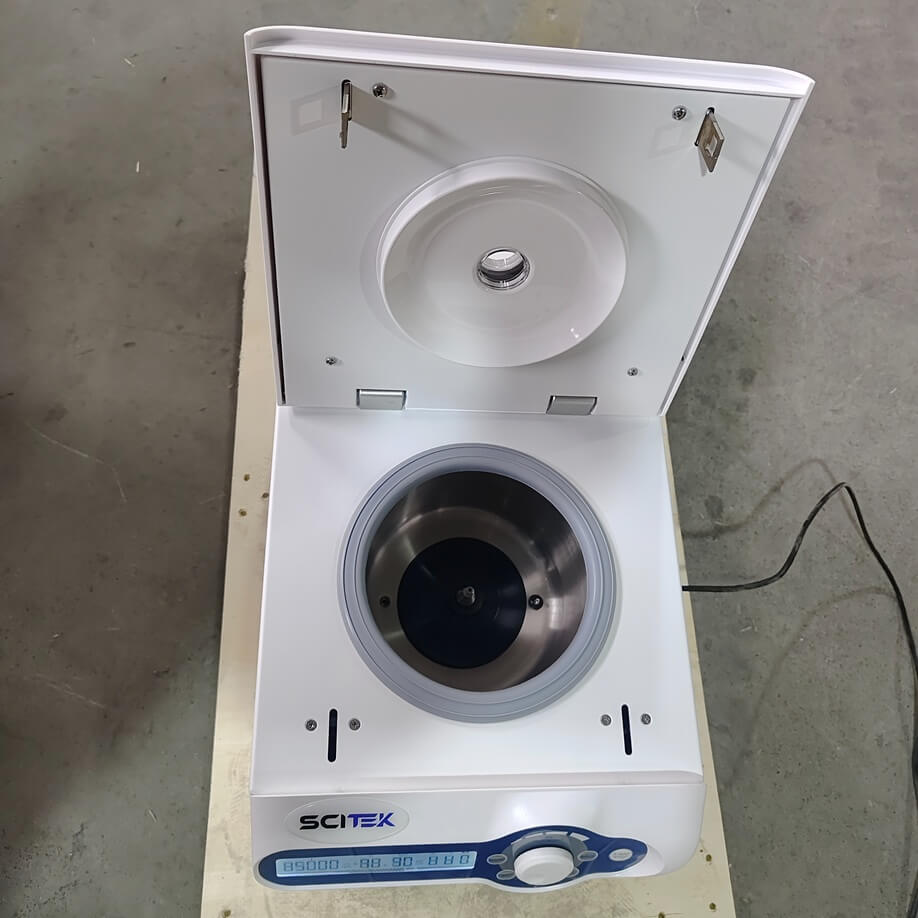

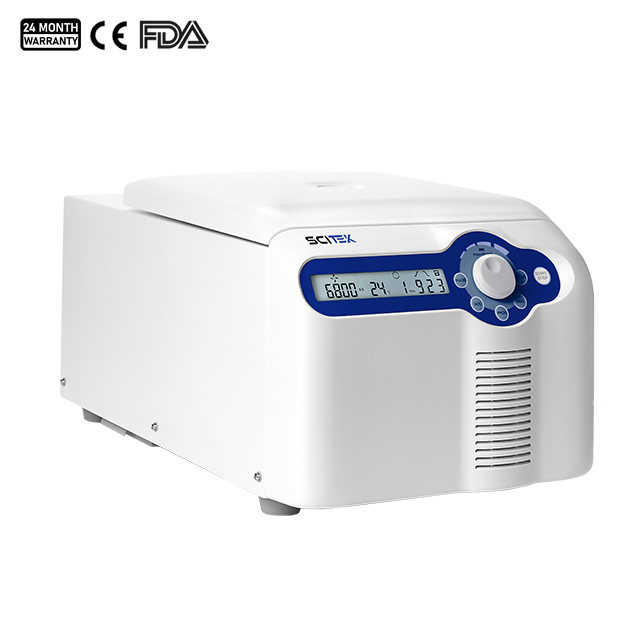

The CFG-T15HR laboratory refrigerated centrifuge is uniquely designed to meet various applications in clinical and research laboratories. The centrifuge is available with optional adapters for all common blood collection and culture tube sizes. Unlike most compact centrifuges, the rotor can be easily removed from the centrifuge chamber for cleaning.
Benchtop Refrigerated Centrifuge Features:
Ergonomic electronic lock design for easy and quick closing of the centrifuge lid.
Pre-cooling feature that automatically starts the compressor to cool the chamber when the set temperature is lower than the ambient temperature.
Sound indicator to alert when the upper cover is closed to maintain the temperature inside the chamber after centrifugation.
Use of advanced R290 fluorine-free refrigerant for low carbon and environmental protection.
Temperature range of -20℃ to 40℃ with fast and powerful cooling capacity, allowing for cooling from room temperature to 4℃ in just 7 minutes, and maintaining temperature at maximum speed.
Benchtop Refrigerated Centrifuge Specifications:
| Model | CFG-T15HR |
| Max. Speed | 15,000rpm (200-15,000rpm) in 100rpm increments. |
| Max. RCF | 21,380×g, step: 10×g |
| Capacity | 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18. |
| Temperature Setting | -20℃- 40℃ |
| Run Time | 30s-99 min; HOLD (Continuous running) |
| Acceleration and Deceleration Time | 25s↑25s↓ |
| Motor Type | DC brushless motor |
| Safety Performance | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system. |
| Power Requirements | Single phase, 200-240V, 50Hz, 500W |
| Noise | ≤56dB |
| Sizes(W×D×H)(mm) | 553x332x283 |
| Shipping Size(W×D×H)(mm) | 900x500x600 |
| N.W./G.W. (kg) | 30/39 |
| Other Functions | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert.
Acceleration/deceleration in 9 steps, program storage capacity. |
Advantages of benchtop refrigerated centrifuge:
Storage capacity for up to 9 programs to meet experimental needs.
Three-layer sealed rotors to ensure air-tightness and biological safety.
High-strength aluminum alloy construction capable of with standing numerous high temperature and high-pressure sterilizations.
Five rotors with varying capacities for centrifuge tubes and PCR tubes (0.2mL, 0.5mL, 1.5mL, 2mL, and 5mL).
External condensation tank to prevent water accumulation within the centrifuge chamber.
Rotor imbalance detection with an alarm for added safety.
Applications of benchtop refrigerated centrifuge:
Molecular Biology: Isolating DNA, RNA, and proteins from cell lysates.
Biochemistry: Purifying and concentrating enzymes, antibodies, and other biomolecules.
Clinical Diagnostics: Processing blood, urine, and other biological samples for analysis.
Cell Biology: Separating cells and subcellular organelles such as mitochondria and nuclei.
Pharmaceuticals: Preparing samples for drug formulation and stability testing.
Details of benchtop refrigerated centrifuge:
The housing is rugged and easy to clean, with efficient heat dissipation for high speed use in laboratory environments.

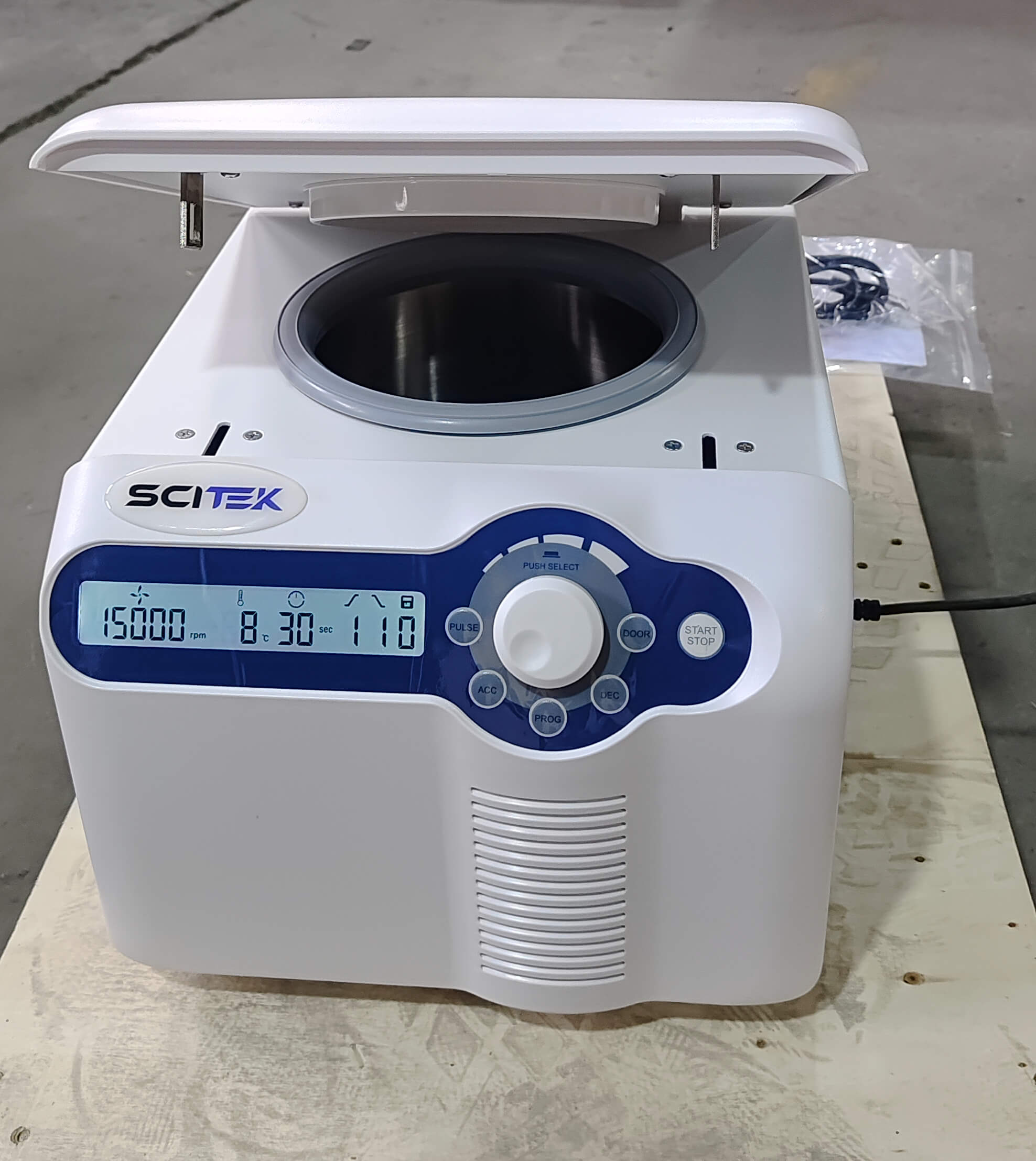

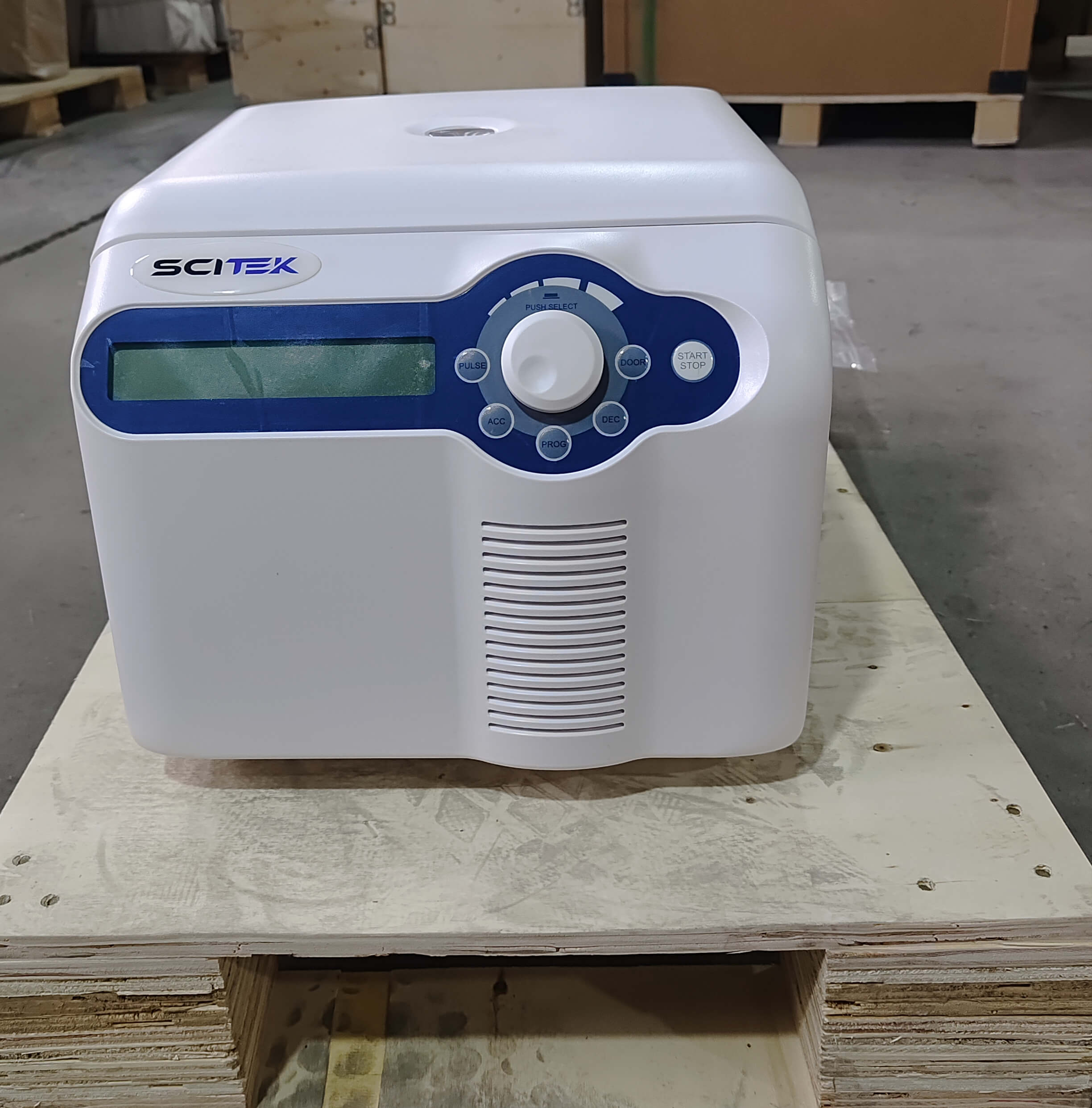

The refrigerated centrifuge is equipped with a clear and easy-to-use knob and control panel, which allows the user to easily adjust the speed and temperature settings to ensure precise experimentation.

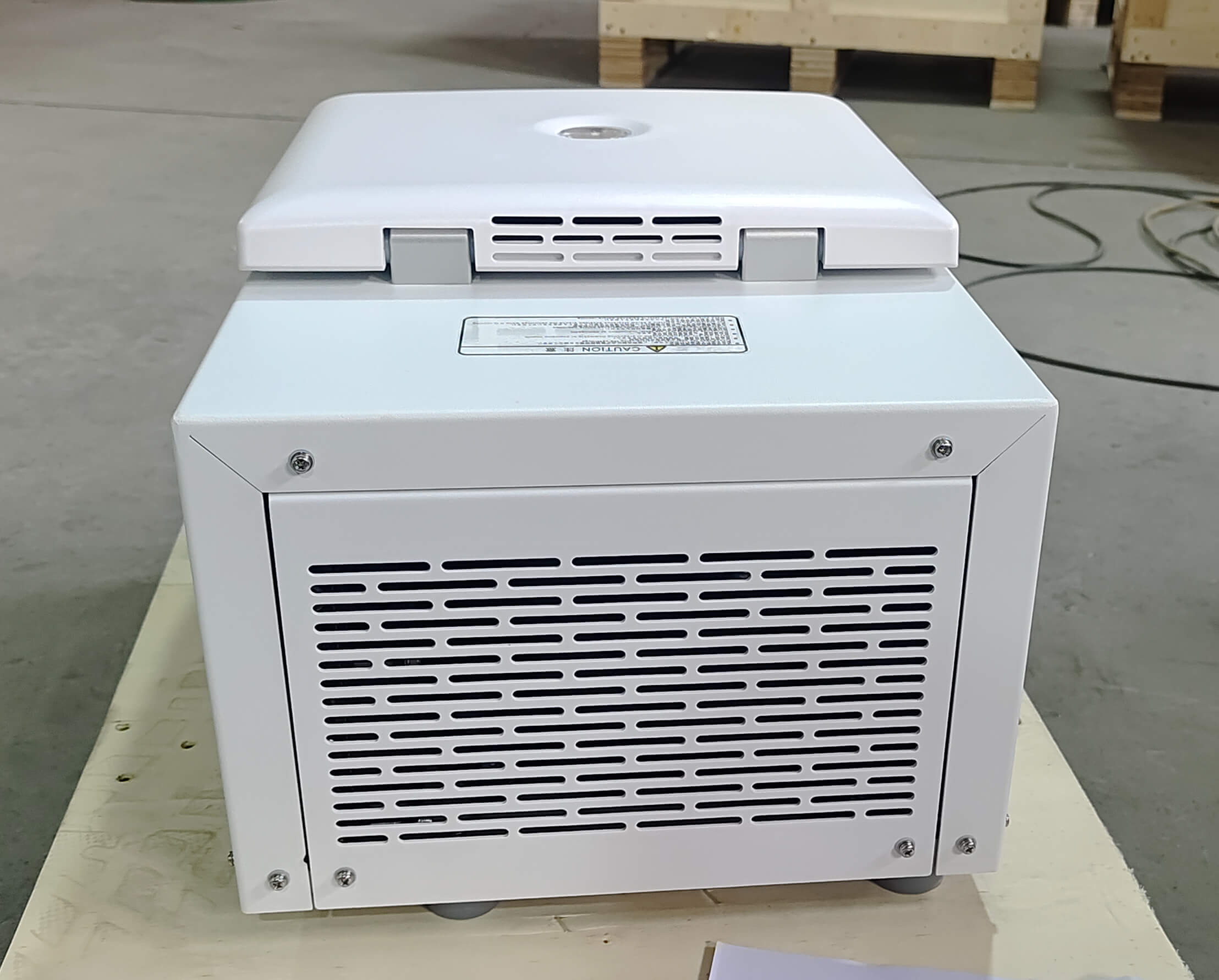

A ventilation system and cooling mechanism on the back ensures precise temperature control of the unit and increased efficiency in long-term operation.

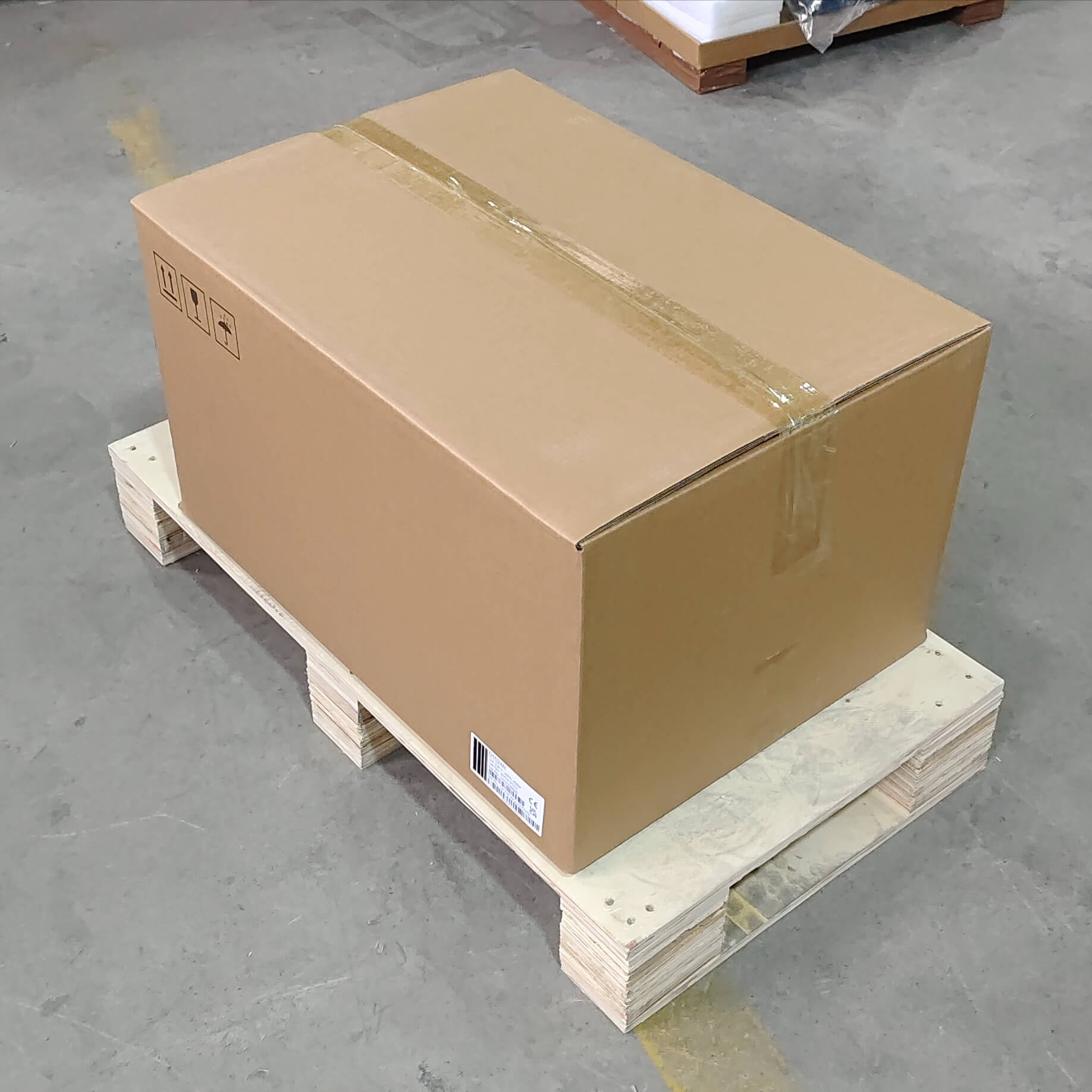

Protective foam padding material is used to ensure that the equipment is not damaged during transportation. The package is labeled with the model number of the equipment and relevant information for quick identification and handling.
