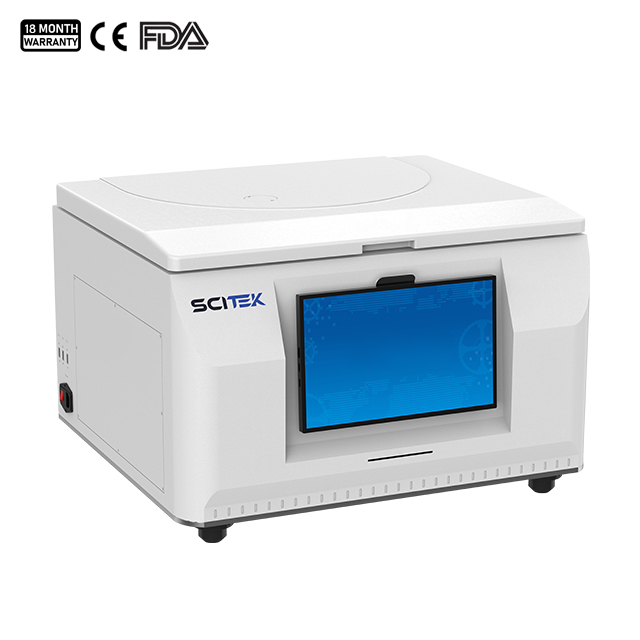

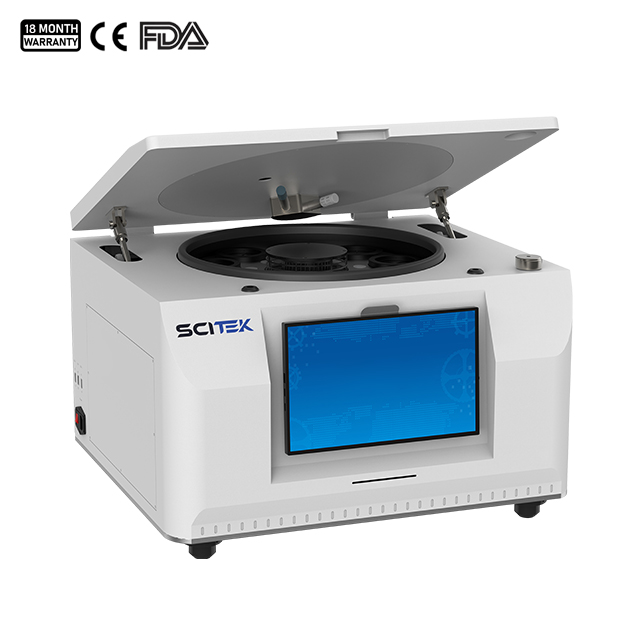

The water vapor transmission rate (WVTR) tester is based on the gravimetric determination method and can be used to test the water vapor transmission rate of plastic films, composite films, sheets, and other materials used in the packaging, medical, and construction industries.
Principle:
Using the gravimetric determination method, the tester creates a constant humidity difference between the two sides of the test specimen at a specified temperature. Water vapor permeates through the specimen and moves to the dry side. By measuring the weight changes of the test dish over time, the water vapor transmission rate and other related parameters can be determined.
Water Vapor Transmission RFGRate Tester Features:
13-inch touchscreen tablet running on the Windows 10 operating system.
Equipped with a high-precision weighing system, enhancing system sensitivity and stability.
This instrument is designed and manufactured according to the gravimetric method (desiccant method and water method) and meets the requirements of ASTM E96.
6 distinct or equivalent specimens can be tested individually, providing independent results in a single operation.
The new generation circular-structure test chamber design ensures a more uniform distribution of temperature and humidity.
The periodic weighing method and automatic zeroing before each measurement ensure the accuracy and consistency of test data.
Designed with an electric cylinder lifting structure and smoother running.
A wide range and high precision of automatic temperature and humidity control support various test conditions.
Innovative circulating dehumidification systems effectively prevent humidity gradients, ensuring accuracy.
Adjustable air velocity prevents water vapor from condensing on the test dishes, maintaining a constant humidity difference between the inside and outside of the test dishes.
The automatic mist-free fogging humidity regulating device is suitable for long-term continuous testing.
The inner core of the desiccator does not need to be replaced and has a continuous operating life of 20,000 hours.
The automatic self-calibrating system provides accurate measurements, eliminating the need for time-consuming and error-prone manual intervention, and promoting high performance and compliance.
A reference film for fast calibration ensures accurate and universal test data (optional).
The instrument is equipped with SCITEK latest operating software, featuring a user-friendly interface, intelligent data processing, strict user management, secure data storage, electronic signature, etc.
WVTR Tester Specifications:
| Model | WVTR-306 |
|---|
| Test Range | 0.1 ~ 10,000 g/㎡·24h (Standard) |
| Resolution | 0.0001 g |
| Number of Specimen | 1 ~ 6 PCS (Independent testing results) |
| Temperature Range | 10 ~ 55°C (Standard) |
| Temperature Accuracy | ±0.1°C |
| Humidity Range | 10%RH ~ 90%RH (Relative humidity) |
| Humidity Accuracy | ±1%RH |
| Air Velocity | 0.5 ~ 2.5 m/s (Customization is available) |
| Test Area | 33.18 c㎡ |
| Sample Thickness | ≤ 3 mm (Customization is available) |
| Sample Size | Φ72 mm |
| Port Size | Φ6 mm PU tubing |
| Size(LxWxH)(mm) | 650x600x420 |
| Power Supply | 120VAC 60Hz / 220VAC 50Hz (can be changed to local requirement) |
| Net Weight | 78 kg |
| Package information | 800x730x640mm; Accessiories: 370x560x820mm 25kg |
Standards:
This test instrument conforms to many national and international standards: ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, GB/T 1037, GB/T 16928, YBB 00092003-2015
Configurations:
Standard: Instrument, Tablet, Professional Software, Communication Cable, Test Dishes, Desiccant Device, Round Sample Cutter, Quantitative Dropper, Gloves
Optional: Reference Film, Air Compressor, Desiccant Container, Calcium Chloride Anhydrous, water distiller
Note:
1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply.
Application of WVTR Tester:
This WVTR Tester is applicable to the determination of water vapor transmission rate of:
| Basic Applications | Films | Including plastic films, plastic composite films, paper-plastic composite films, geomembranes coextruded films, aluminized films, aluminum foils, aluminum foil composite films, and many others |
| Sheeting | Including engineering plastics, rubber, and building materials, e.g. PP, PVC, and PVDC |
| Paper and Paperboard | Including paper and paper board, e.g. aluminum foil paper for cigarette packages and Tetra Pak materials |
| Textiles and Nonwovens | Including textiles and non-woven materials, e.g. waterproof breathable fabric, non-woven fabric for diapers and hygienic products |
