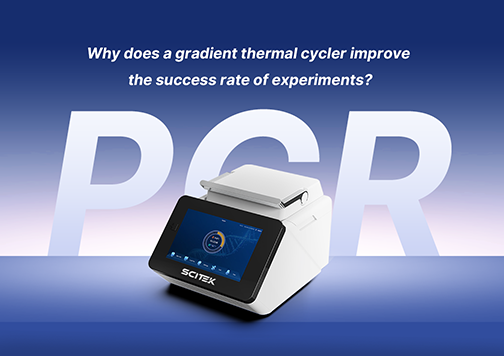

Why does a Gradient Thermal Cycler Double the Success Rate of Experiments?

Many newcomers to the lab often wonder: Why do their senior colleagues achieve such high success rates with PCR experiments, while their own attempts consistently fail? Aside from differences in technical proficiency, it’s likely because you haven’t yet utilized a gradient thermal cycler—that “success rate booster.”

How Gradient Thermal Cyclers Improve PCR Optimization

There are numerous factors that influence PCR experiments. The Tm (melting temperature) of the primers, the GC content of the template, and the composition of the reaction mixture all affect the optimal reaction temperature. A standard thermal cycler can only be set to a single annealing temperature at a time. Even a temperature difference of just 1–2°C can lead to experimental failure.

In contrast, the multi-temperature gradient design of a gradient thermal cycler effectively tests all possible temperature conditions in a single run, naturally increasing the probability of finding the optimal conditions.

One Experiment to Find the Best Annealing Temperature

Here’s a practical example: If your primer’s Tm is estimated at 60°C, using a standard thermal cycler, you might start by testing at 60°C. If that fails, you’d then try 58°C and 62°C—each time requiring you to prepare the reaction mixture and run the program anew. This is not only time-consuming but also risks producing unreliable results due to operational errors.

With a gradient thermal cycler, you can directly set up eight temperature gradients ranging from 56°C to 64°C. In a single experiment, you can identify the temperature at which the amplification bands are the brightest and background noise is minimal, allowing you to determine the optimal conditions immediately. The success rate can exceed 90% in a single run.

Better Performance for Multiplex PCR Applications

For experiments like multiplex PCR, which have even more stringent temperature requirements, the advantages of a gradient thermal cycler become even more apparent. Multiplex PCR requires the simultaneous amplification of multiple targets using multiple primer pairs. Since the optimal temperature varies for each primer pair, it is difficult to find a temperature that accommodates all targets using a standard thermal cycler.

In contrast, a gradient thermal cycler can quickly identify a compromise optimal temperature that allows all targets to be amplified efficiently, doubling the success rate compared to using a standard thermal cycler.
