As one of the most common pieces of laboratory equipment, do you really know it well enough? Have you ever confused it with a shaker? If you’re frustrated by frequent malfunctions of your laboratory vortex mixer, be sure to take the time to understand the components and functions of the vortex mixer you use. You may feel limited in your choices because of what you already know. We are committed to opening up new options for you. If you’re having trouble with your vortex mixer or are looking for an alternative, keep reading for more tips and advice.

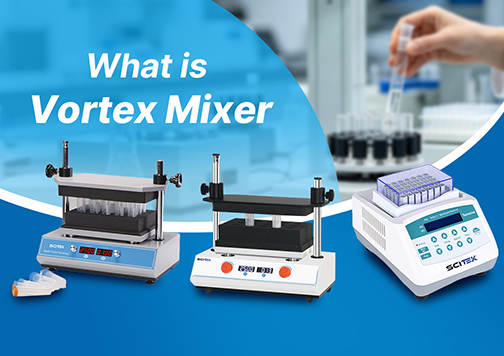

What is a Vortex Mixer?
A vortex mixer is a common piece of laboratory equipment used to mix small volumes of liquid in laboratory containers such as microcentrifuge tubes, test tubes, and vials.
A vortex mixer primarily consists of a motor and a vertical drive shaft. The motor is typically housed in a plastic or metal casing. A rubber cup or adapter is attached to the top of the drive shaft to hold test tubes or microplates. Simple models automatically start and begin vibrating when a test tube is lightly pressed against the rubber cup, thereby achieving mixing.
Advanced models, on the other hand, are equipped with a control panel that allows for adjusting the speed, setting timers, and features on/off switches and alarm functions, making operation more precise and convenient.
Working Principle:
The vortex mixer uses a motor to drive the top rubber pad or cup in high-speed circular motion. This creates a vortex in the liquid, enabling rapid and efficient mixing. To use it, simply place the test tube or container on the platform. The device features a simple structure and convenient operation, capable of completing cell suspension, reagent mixing, or solid dissolution within seconds.
Key Components of the Vortex Mixer
Understanding the working principle of the vortex mixer helps clarify its structural composition. The device primarily consists of a motor and a sample platform, supporting single-tube or multi-tube operations. It is equipped with an adjustable speed control system, typically with a speed range of 0–2500 rpm or 0–3400 rpm, to meet various mixing requirements. Some models also support continuous operation, making them suitable for extended use. Additionally, by replacing various accessories—such as test tube racks, flask clamps, microplate holders, or foam pads—the device can accommodate a wide range of container types, enhancing flexibility and expanding its applications.
What is a vortex mixer used for?
Vortex mixers are commonly used to mix, resuspend, and homogenize small volumes of liquid samples.
In biological laboratories, they are typically used to resuspend cells or mix reagents in test tubes.
In chemistry experiments, vortex mixers help quickly dissolve solids or mix various solutions.
Clinical laboratories rely on them to prepare samples, reagents, or diagnostic solutions.
Difference between a vortex mixer and a shaker?
Although both vortex mixers and shakers are used to mix liquids in laboratories, do you know the difference between the two?
A shaker is a device used for prolonged, gentle mixing of liquids. It can accommodate multiple containers (such as beakers, flasks, or microplates) simultaneously and achieves uniform mixing through orbital, linear, or reciprocating motion. It is suitable for applications such as cell culture, dissolving large-volume solutions, or batch dispensing of reagents.
In contrast, a vortex mixer is primarily used for rapid mixing of small sample volumes, typically operating on individual test tubes or centrifuge tubes. Instead of moving the platform, it generates high-speed vortices inside the container to achieve instantaneous mixing.
The main differences between the two are as follows: vortex mixers are suitable for small-volume, rapid mixing; while shakers are suitable for long-term, uniform mixing of large volumes or multiple samples. Additionally, vortex mixers achieve mixing through localized vortices, whereas shakers achieve mixing through the overall movement of the platform.
Laboratory Vortex Mixing: A Step-by-Step Guide
While operating a vortex mixer is straightforward, following standardized procedures helps ensure safety and reliable results. The following outlines the typical operating procedure:
1. Sample Preparation
Transfer the liquid into an appropriate container (such as a test tube, centrifuge tube, or vial), and secure the lid tightly if necessary to prevent splashing.
2. Equipment Check
Place the device on a stable work surface, ensure the power connection is secure, and verify that the surrounding area is clean and free from distractions.
3. Select Operating Mode
Choose either touch mode or continuous mode based on your needs. If the device has a speed adjustment function, it is recommended to start at a low speed and gradually adjust to the appropriate speed.
4. Begin Mixing
Gently press the test tube vertically onto the center of the rubber pad; the liquid will quickly form a vortex, achieving rapid mixing.
5. Time Control
Mix according to experimental requirements; uniformity is typically achieved within a few seconds.
6. Removal and Inspection
Remove the test tube and observe the mixing results. If the mixture is not fully homogenized, repeat the process.
Additional Recommendations
After mixing, perform a brief centrifugation (approximately 5–10 seconds) to collect any liquid adhering to the tube walls or cap, facilitating subsequent operations.
How to Extend the Lifespan of a Vortex Mixer
To maximize the efficiency and performance of your vortex mixer and extend its lifespan, follow these best practices:
Place the vortex mixer on a stable work surface to minimize vibration
Select appropriate accessories based on your needs to reduce the risk of liquid spills or contamination.
Follow the equipment’s user manual and avoid mixing samples that are too large in volume or have high viscosity.
Clean and maintain your vortex mixer regularly. This includes periodically wiping down the exterior, removing debris and residue from accessories, and regularly checking and calibrating the speed settings.
Conclusion
The vortex mixer is a simple and practical tool. Its applications are wide-ranging, covering sample preparation, resuspension, chemical reactions, and DNA extraction. It can make everyday mixing tasks easier and more stable. Whether you are mixing liquids, preparing samples, or just need to mix small amounts of liquid, a vortex mixer can help you achieve more with less effort.
If you are looking for a reliable and affordable vortex mixer, scitek offers a wide selection.
