Spray Dryer: How It Turns Liquids Into Powder in Seconds

The core function of a spray dryer is to evaporate and dehydrate the liquid in a sample within a very short period of time, thereby producing a dry powder that is easier to package or store. From infant formula and pharmaceutical powders to lithium-ion battery cathode materials, spray drying technology has found applications across numerous industries. How does it turn a liquid into a powder in such a short amount of time?

This article will provide a detailed overview of the working principles, main components, and types of spray dryers.

What is Spray Drying?

Spray drying is a process in which a liquid is dispersed into fine droplets by an atomization device. The droplets are then exposed to a hot drying medium, causing the water (or other solvents) within them to evaporate rapidly, resulting in dry granules or powder.

Importance:

• Extended shelf life: Reducing moisture content to a level where microorganisms cannot survive inhibits the growth of bacteria and mold;

• Reduces volume and weight: Converting liquids into powders significantly lowers storage and transportation costs;

• Enhances sample safety: Reduces shipping losses and facilitates measurement, blending, and further processing;

• Balances supply and demand fluctuations: For seasonal raw materials, they can be processed into powder for storage. When needed, the dry powder can be rehydrated with water and restored to liquid form for use.

Workflow of a Spray Dryer

A spray dryer is a complete process system consisting of units such as feeding, atomization, hot air, and separation. Its operation can be broken down into four stages:

1. Feed Preparation: Batching, viscosity adjustment, and homogenization to obtain a liquid feed with stable properties

2. Atomization: The liquid is pumped into a rotating disc or nozzle, where it is dispersed into micron-sized droplets

3. Drying: The droplets come into contact with a hot air stream at a controlled temperature and flow rate inside the drying chamber, causing the moisture to evaporate rapidly

4. Powder Separation: The dried particles are collected from the exhaust gas using a cyclone separator or baghouse filter

Components of a Spray Dryer

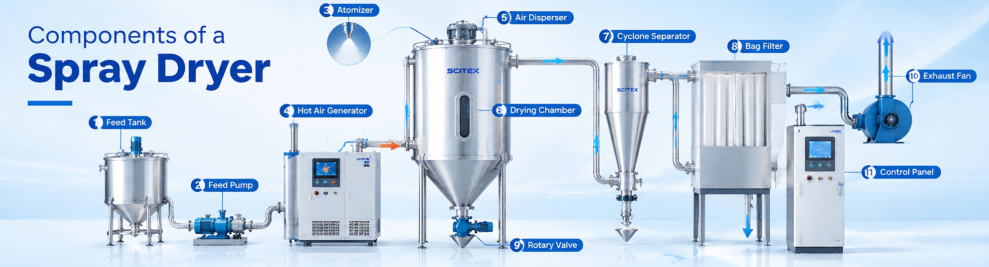

A standard spray dryer typically includes the following key components:

• Feed Tank: Stores and buffers the liquid feed

• Feed Pump: Delivers the feed at a steady rate; flow rate fluctuations must be controllable

• Atomizer: Disperses the liquid into fine droplets (rotary disc or nozzle)

• Hot Air Generator: Heats the drying medium (direct combustion, steam, or electric heating)

• Air Disperser: Distributes hot air evenly into the drying chamber

• Drying Chamber: The main chamber where droplets come into contact with hot air and evaporation occurs

• Cyclone Separator: Uses centrifugal force to preliminarily separate dry powder from exhaust gas

• Bag Filter: Captures fine powder not collected by the cyclone separator, improving yield

• Rotary Valve: Continuously discharges dry powder under sealed conditions

• Exhaust Fan: Maintains negative pressure and gas flow within the system

• Control Panel: Centrally monitors temperature, flow rate, pressure, and interlock protection

Types of Spray Dryers

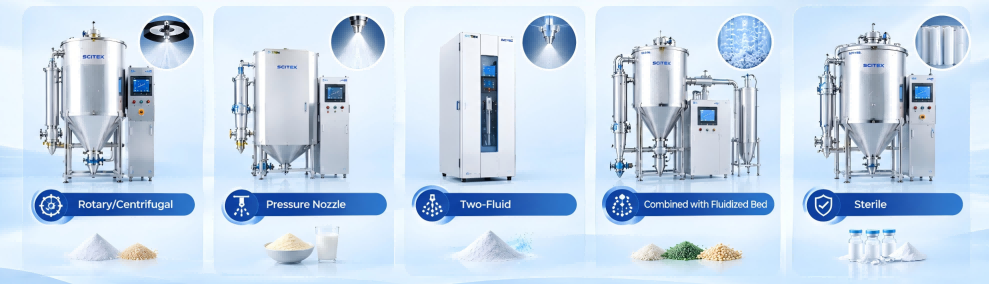

Based on their structural and application characteristics, spray dryers can be further classified into the following categories:

• Rotary/Centrifugal: Utilizes a high-speed rotating disc for atomization; offers broad applicability and is suitable for high-viscosity and abrasive materials.

• Pressure Nozzle: Uses a high-pressure pump for atomization, producing uniform, homogeneous powders; this is the primary model used in the food and dairy industries.

• Two-Fluid: Utilizes compressed gas to assist atomization; suitable for fine particles and small batches, commonly used in pilot-scale operations.

• Combined with Fluidized Bed: The fluidized bed can be built into the base of the drying cone or mounted externally (often with vibration). Two-stage or three-stage systems are used for granulation, dust reduction, and improving particle structure.

• Sterile: Designed for applications such as pharmaceuticals that require extremely high environmental cleanliness, featuring sterile filtration and sanitary-grade design.

Find the Right Spray Dryer for Your Application

Scitek offers spray drying solutions for laboratory research, sample preparation, and small-scale production. Compare available models to find the right balance of drying capacity, temperature control, and operational flexibility.

Mini Spray Dryer (SD-2)

• Maximum water evaporation rate: 2000 mL/h

• Inlet air temperature: 30–250 °C (±1 °C)

• Outlet air temperature: 30–120 °C (±1 °C)

• Atomization: 0.7 mm two-fluid nozzle

• Drying time: 1.0–1.5 s

With its compact, benchtop design, this unit is ideal for small-batch sample processing and R&D testing in the food, pharmaceutical, and chemical industries.

Low-Temperature Spray Dryer (SD-3LT)

Features: Heat-sensitive materials · Low-temperature vacuum drying

• Operating vacuum: 0.03~0.06 MPa

• Drying temperature: 50~80 °C (inlet air: ambient~80 °C)

• Minimum sample volume: 30 mL

• Maximum flow rate: 2.3 m³/min

• Display: 9" touchscreen

The vacuum lowers the vaporization temperature of solvents, allowing heat-sensitive, easily inactivated, or easily oxidized materials to be dried without exposure to high temperatures.

Organic Solvent Spray Dryer (SD-3SR)

Features: Organic Solvents · Closed-Loop Nitrogen

• Drying Medium: Closed-loop inert gas (nitrogen)

  O₂ Monitoring: Automatic protection at >3%

• N₂ Flow Rate: 16~160 L/min

• Feed rate: 30~2000 mL/h

• Inlet gas temperature: Ambient~250 °C

Designed specifically for organic solvents and easily oxidizable materials, featuring closed-loop nitrogen drying with real-time oxygen concentration monitoring.

Spray Dryer SD-3 Series

Features: General-purpose laboratory · Small-batch

• Models: SD-3, SD-3S, SD-3R

• Inlet air temperature: 30–300 °C (±1 °C)

• Evaporation rate: 1500–2500 mL/h

• Drying Time: 1.0–1.5 s

• Housing: SUS304 stainless steel, with built-in air compressor

Featuring two-fluid atomization, a compact design, and an automatic nozzle cleaning needle. This series covers most applications ranging from general laboratories to small-batch production.

Conclusion

Spray drying plays an important role in chemical processing, food production, and pharmaceutical research. Selecting the right spray dryer depends on your sample characteristics and specific application requirements. If you need help choosing a model, operating the equipment, or addressing any other questions, feel free to contact us. Our professional team is ready to provide expert guidance and practical support.
