Pathology Slide Scanner: How to Convert Glass Slides into Scalable, Archivable Digital Slides

A pathology slide scanner is a laboratory imaging device that fully digitizes entire stained glass slides as whole slide images (WSI). It automatically images, focuses, and seamlessly stitches together sections of the slide at sub-micron pixel density, producing digital slides that can be viewed on a computer at any magnification. It serves as the entry-point device for the digital pathology workflow.

Starting with definitions and principles, this article sequentially explains the standard operating procedures for a pathology slide scanner, the storage and network requirements for WSI images, the composition of its core components, and selection criteria.

What is a Pathology Slide Scanner

A pathology slide scanner is a digital imaging system. It converts traditional glass pathology slides into high-resolution digital images for viewing, analysis, storage, and sharing on a computer.

Features:

1. Full-slide coverage: Scans all valid tissue areas on the slide, rather than capturing only a partial field of view;

2. Automated acquisition: Imaging is performed automatically by the pathology slide scanner; the operator only needs to load the slides and set the parameters;

3. Standardized data output: Produces pyramid-structured image files with complete metadata, ready for direct integration into storage and distribution systems.

Brightfield and Fluorescence Configurations

1. Brightfield: Utilizes LED transmitted illumination combined with a color camera for image acquisition, covering the vast majority of routine stains such as HE, IHC, and Masson. This is the entry-level configuration.

2. Fluorescence: Includes a multi-wavelength excitation light source and an emission filter wheel, enabling the acquisition of multi-channel fluorescence signals. Used for FISH, immunofluorescence, and multispectral imaging.

3. Some systems support a combined brightfield and fluorescence configuration; before purchasing, verify whether the number of channels, light source type, and filter sets are expandable.

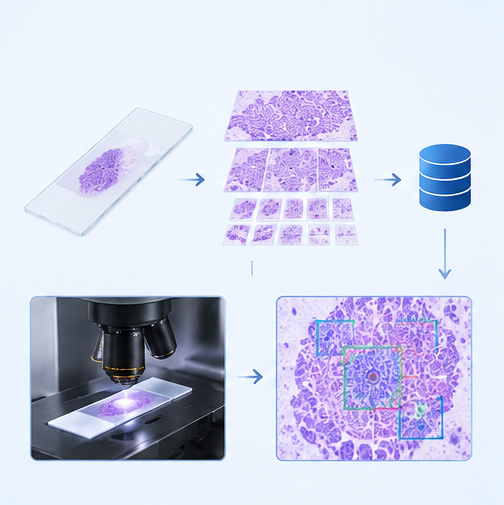

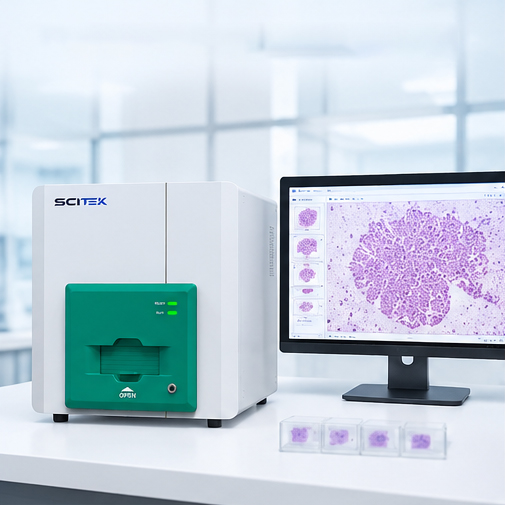

How a Pathology Slide Scanner Works: From Glass Slide to Whole Slide Image

Basics of Optical Imaging and Resolution

The scanner’s optical path consists of a light source, an objective lens, and an imaging sensor. The objective lens’s Numerical Aperture (NA) determines the smallest feature size that the optical system can resolve. The sampling density is determined by the physical size mapped by the camera’s pixels onto the image plane, i.e., µm per pixel.

Common magnification combinations are 20x and 40x: 20x (0.5 µm/pixel) offers fast scanning speeds and small file sizes, making it suitable for screening tissue structures and low-magnification tasks. 40x (0.25 µm/pixel) provides nuclear-level detail and is the mainstream requirement for initial diagnostic image review. A few devices support 100× oil immersion (0.1 µm/pixel) for hematology and cytology applications.

Image Pyramids and Tiled Storage Mechanisms

WSI files are significantly larger than conventional images and are typically organized as a multi-level resolution image pyramid: the base consists of the full-resolution image captured by scanning, with successively downsampled versions generated at each level (typically halving the side length at each level), and the top level consisting of a thumbnail of the entire image. Each level is further divided into fixed-size spatial tiles (commonly 256 × 256 or 512 × 512 pixels), which are compressed and written to the file one tile at a time.

Autofocus and Tissue Recognition

Glass slides are never perfectly flat; tissue thickness and wrinkles can cause variations in the focal plane. The scanner’s processing workflow is as follows:

1. Pre-scan: Rapidly acquire a full-slide preview (macro image) at low magnification;

2. Tissue recognition: Algorithms delineate valid tissue areas, exclude bubbles, markings, debris, and non-tissue regions, and define the scanning area;

3. Trajectory planning: Plans the stage’s movement path based on the acquisition method (tile or line scan);

4. Focus calibration: Acquires scattered focus samples within the tissue area to construct a focus map for the entire slide, correcting the focal plane region by region during the scan; for thick samples, Z-stack multi-layer acquisition is enabled.

Scanning and Image Stitching

There are two primary acquisition methods: block scanning with an area-scan camera and line scanning with a line-scan camera. Regardless of the method used, multiple field-of-view images are stitched into a single image based on the stage’s position coordinates. This is followed by color calibration (white balance, color profiles) and pyramid construction. The final output is compressed into a standard or vendor-specific file format.

How to Operate a Pathology Slide Scanner: The Standard Workflow

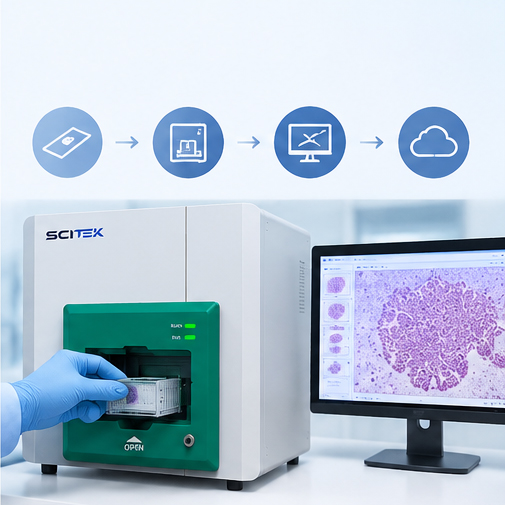

A complete scan is performed in the following eight steps:

1. Slide Preparation and Quality Control: Verify that paraffin sections are 3–5 µm thick, stained uniformly, sealed with cover slips without air bubbles, and labeled according to the device’s reading specifications. Slide quality determines the upper limit of scan quality—wrinkles and uneven thickness will be magnified equally in digital slides.

2. Loading and Data Entry: For single-slide devices, load slides manually; for high-throughput models, place the slide cassette into the automatic loader. A barcode reader automatically enters the sample number, or tasks can be pre-assigned via the Modality Worklist in the LIS system.

3. Pre-scan and Tissue Recognition: The device captures a low-magnification preview image and automatically outlines the valid tissue area; the operator can manually correct the recognition results.

4. Parameter Configuration: Select magnification (20x / 40x), whether to enable Z-stack and the number of slices, compression algorithm and quality level, output format, and storage path.

5. Scan Execution: The stage acquires images region by region along a planned trajectory, with the system performing autofocus in real time. Batch tasks run continuously and unattended with the support of the automatic slide loader.

6. Image Stitching and Pyramid Construction: Field-of-view images are stitched based on coordinates to generate a multi-resolution pyramid, which is then compressed and written to disk to produce the final file.

7. Quality Control: Check for out-of-focus bands, missed scan areas, stitching misalignment, and color deviations.

8. Archiving and Distribution: Images, along with metadata, are imported into the image management system/PACS (DICOM WSI direct archiving). They are pushed to readers or analysis platforms according to permissions, and the original glass slides are returned to the repository in accordance with procedures.

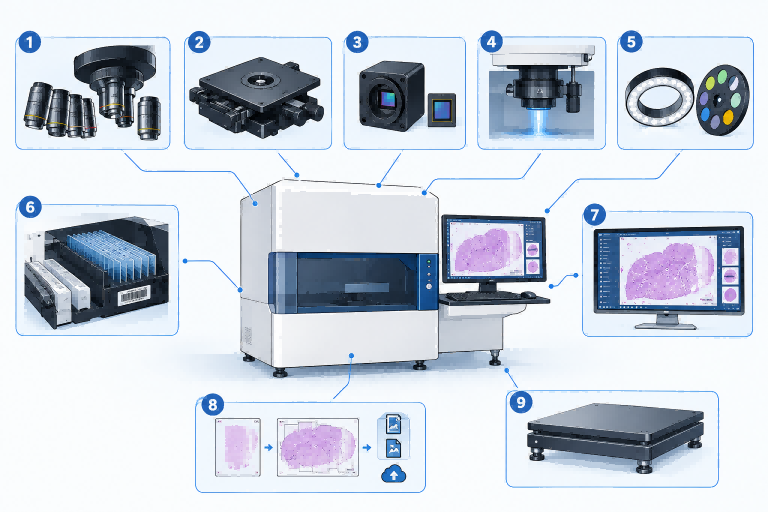

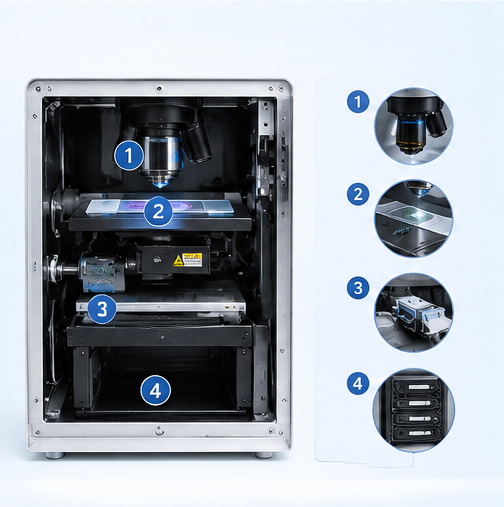

Core Components of a Pathology Slide Scanner

How to Buy a Pathology Slide Scanner

When selecting a pathology slide scanner, you shouldn’t simply compare scanning speed and image resolution. The right system should be tailored to your laboratory’s workload, imaging requirements, and other needs.

1. Assess your daily scanning workload: Use the peak daily scan volume as a reference, rather than the average number of slides.

2. Determine the required magnification and imaging modes: Identify the magnification required for your application, such as 20×, 40×, or 100× oil immersion. If fluorescence imaging is required, confirm the available excitation/emission channels.

3. Consider whether Z-stack imaging is required: Scanners that support Z-stacking require more storage space and take longer to scan.

4. Check the capacity of the automatic slide loader: For medium- and high-throughput laboratories, the capacity of the automatic slide loader directly impacts workflow efficiency.

5. Scan Speed: Scan speed should always be evaluated under standardized and realistic conditions. Test conditions should also clearly specify the resolution, focusing method, tissue area, image quality settings, and whether the results include image processing and file saving.

6. Verify Image Formats and Data Export: Before purchasing, verify that the files generated by the scanner are compatible with your existing digital pathology workflow. If a proprietary format is used, confirm whether images can be exported to an open format without purchasing additional software.

Conclusion

Pathology slide scanners convert traditional glass slides into high-resolution digital images. They are commonly used in routine pathology, research, education, and telemedicine applications. These scanners help laboratories integrate digital imaging technology into their existing workflows.

When selecting a pathology slide scanner, factors such as brightfield or fluorescence imaging, scanning speed, magnification, slide capacity, image quality, and file formats should be considered comprehensively. The right configuration helps ensure that results better meet expectations.
