What is a High Pressure Reactor

High-pressure reactors are a typical innovation in the application of magnetic drive devices in reaction equipment. They are commonly used devices for chemical reactions and catalytic conversions under high-temperature and high-pressure conditions. They are suitable for chemical processes such as polymerization, condensation, vulcanization, and alkylation, as well as for the catalytic degradation of environmental pollutants and the hydrogenation and resource utilization of carbon dioxide. This article explores the function, applications, and advantages of high-pressure reactors in laboratory and research processes.

What is a High Pressure Reactor

A reactor, in the broadest sense, is a stainless steel container designed for physical or chemical reactions. It is a commonly used apparatus for conducting chemical reactions and catalytic conversions under high-temperature and high-pressure conditions. It is a sealed container capable of performing physical and chemical reactions at temperatures above room temperature (>100°C) and pressures above atmospheric pressure (>101.325 kPa). It is widely applied in industries such as petroleum, chemicals, higher education, and research institutions.

Common types of reactors in laboratories include hydrothermal reactors and high-pressure reactors.

Hydrothermal reactors are also known as hydrothermal reactors, polymerization reactors, high-pressure digestion vessels, digestion vessels, and high-pressure vessels. They typically have a volume ranging from 5 to 500 mL. Commonly used hydrothermal reactors operate at temperatures of 180–220°C, with a design pressure limit of 1–3 MPa (approximately several dozen atmospheres).

A high-pressure autoclave reactor is a specialized device designed to withstand high-pressure conditions during chemical reactions. It fundamentally addresses the shaft seal leakage issues that could not be overcome by previous packing seals or mechanical seals. The high-pressure reactor operates without any leakage or contamination, making it an ideal apparatus for high-temperature, high-pressure chemical reactions. It features pressure resistance, safety, and reliability, and is suitable for various chemical reactions and processes under high-pressure conditions.

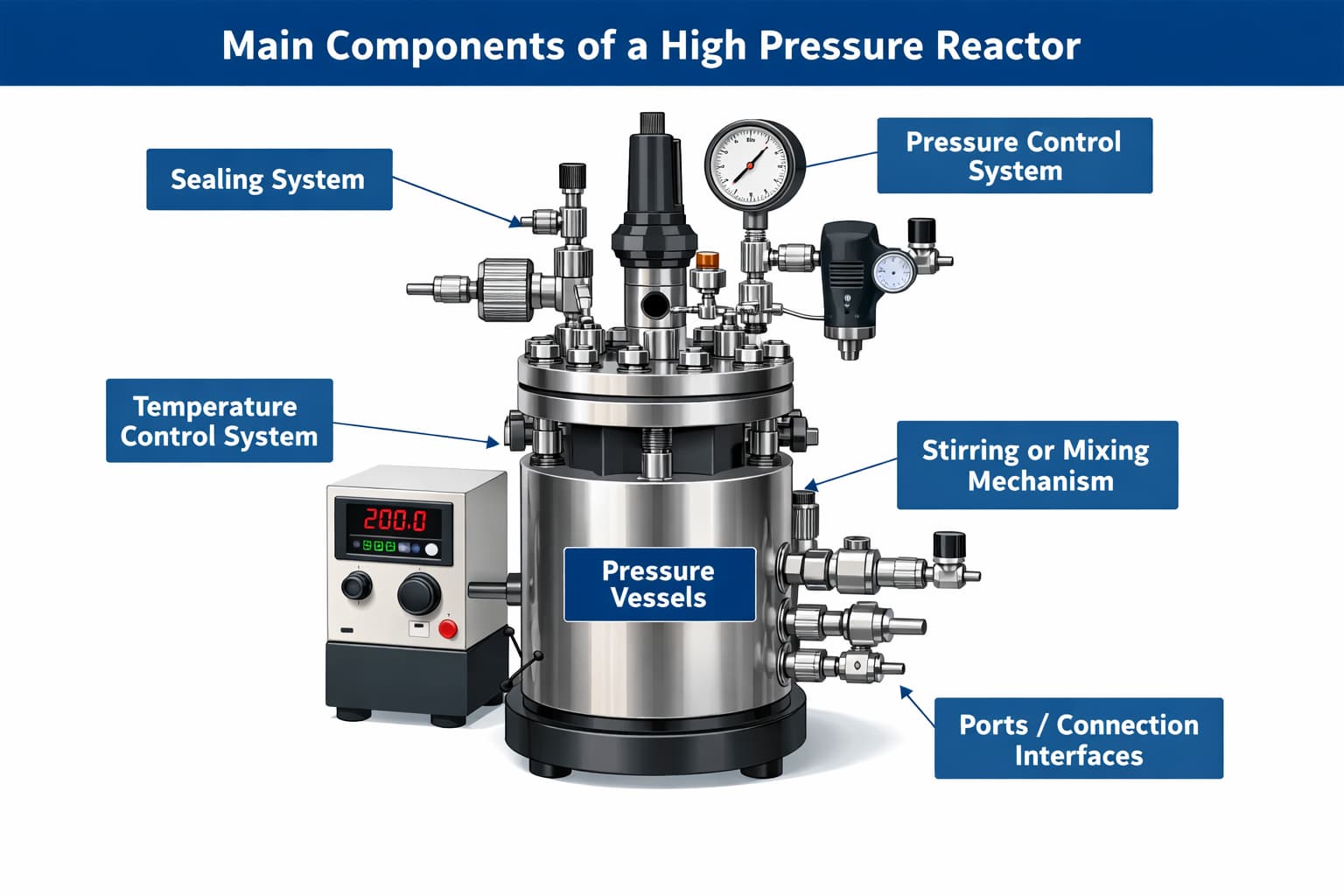

Main components of a high pressure reactor

Pressure vessels: Primarily used to contain reaction mixtures and withstand the high pressure generated internally, they are typically made of materials such as stainless steel or special alloys to ensure strength and corrosion resistance.

Sealing system: The reactor's safety lid or cover is used to seal the reactor, preventing leakage of reactants or products.

Temperature control system: Precisely regulates the internal temperature of the reactor through heating or cooling systems to meet the temperature requirements of the reaction.

Pressure control system: Includes valves, safety devices, and monitoring equipment to regulate, maintain, and monitor the pressure inside the reactor.

Stirring or mixing mechanism: Ensures uniform mixing of reactants and consistent temperature distribution through mechanical systems such as magnetic stirrers or impellers.

Ports or connection interfaces: Used for introducing reactants, sampling, monitoring the reaction process, and removing products.

How does a high pressure autoclave reactor work?

The high pressure and high temperature generated by an autoclave enable it to perform chemical reactions or sterilization processes. The products to be sterilized are placed in the reactor along with the chemicals required for the reaction. During the sterilization process, the high pressure and high temperature break down the molecules in the products to be sterilized, thereby eliminating any existing pathogens. After pressurization, the internal temperature rises, thereby initiating and completing the chemical reaction. High temperatures also ensure that all pathogens and microorganisms are killed during the sterilization process. During the chemical reaction, high-pressure steam is produced as a byproduct. This high-pressure steam is used to drive the turbine inside the autoclave, enabling it to operate more efficiently.

Advantages

1. Cost-effectiveness – Autoclave reactors are economical and efficient, enabling the production of high-quality products at low cost.

2. Speed – Pressurized heating accelerates reaction speed and improves efficiency.

3. Ease of use – Simple operation makes them suitable for small and medium-sized enterprises, eliminating the need for large-scale production facilities.

Limitations

1. Low output – Autoclaves have low output, requiring more raw materials to produce the same amount of product.

2. Low Pressure – Cannot operate at low pressure, limiting applications in certain industries.

3. Non-Continuous Production – Requires batch production, which may result in higher costs compared to batch reactors.

4. Additional Equipment Required – Requires additional equipment (such as pressure vessels), resulting in higher installation costs.

High-pressure reactor operating procedures

1. Add reaction materials: Place the reaction materials to be reacted into the reactor vessel.

2. Secure the reactor: After adding the reaction materials, place the reactor on the disassembly plate so that the bottom of the reactor vessel is embedded in the holes of the disassembly plate. Close the reactor lid and body, and clamp the flanges of both with clamps. Then place the protective ring over the clamps, align the handle screw holes with the side recesses of the clamps, tighten the handle to secure the clamps, and then tighten the screws as described above.

3. High-pressure gas charging (performed in a fume hood): After confirming that the reactor's charging and venting valves are closed, use a double wrench to connect the charging hose between the cylinder pressure reducer and the reactor's charging port. Adjust the pressure reducer to 0.2–0.5 MPa and slowly charge the gas. After the pressure stabilizes, vent the gas, and repeat the process 2–3 times to replace the air. Recharge to the target pressure, then close the gas valve and cylinder sequentially after the pressure stabilizes. Loosen the pressure reducer and use the double wrench to disconnect the hose.

4. Pre-reaction verification: Before heating the reaction, ensure that the reaction conditions do not exceed the reactor’s maximum temperature and pressure limits. Verify that the charging and venting valves are closed. Place the reactor in the heating furnace and connect the thermocouple plug; if a thermocouple sleeve is provided, ensure the thermocouple is properly inserted and reaches the bottom.

5. Connect cooling water: Before starting heating, connect cooling water via a hose to the inlet of the magnetic coupling and drain it from the outlet. (This is primarily to prevent high-temperature demagnetization, which could shorten the service life of the magnetic coupling stirring device.)

6. Operate the equipment: Install the motor wires, start the variable-speed motor, and adjust to the appropriate stirring speed. Set the heating program, run the program, and start heating. To ensure equipment safety, observe the equipment for at least 30 minutes after operation to confirm that all parameters are normal.

7. Post-reaction disassembly, material removal, and cleaning: After the reaction is complete and the temperature has cooled to room temperature, slowly open the vent valve to relieve pressure. Insert the reaction vessel bottom into the disassembly plate, loosen the main bolts to open the lid, and pour out or suck out the material. Subsequently, promptly clean the vessel body and lid and allow them to air dry. Wipe the main sealing surface with a soft cloth to avoid scratches.

Applications of High Pressure Reactors

1. Chemical Reactions – Used for chemical synthesis under high-temperature and high-pressure conditions, such as catalytic reactions and polymerization reactions.

2. Petroleum and Natural Gas – Provides the necessary high-pressure environment in processes such as petroleum refining, catalytic cracking, and oil and gas gasification.

3. Pharmaceutical Industry – Produces pharmaceutical intermediates or active ingredients that require high pressure and high temperature.

4. Food Industry – Used in high-pressure sterilization and heating processes in food processing.

5. Materials Science – Used in the production of high-performance materials such as special alloys and nanomaterials.

High-Pressure Reactor Usage Precautions

1. During use, laboratory personnel must regularly inspect the equipment and experimental conditions.

2. The solvent in the reaction system must not exceed the allowable loading coefficient of the reactor inner liner.

3. Rapid cooling or heating of the reactor is strictly prohibited. Do not use water to rinse the reactor body or immerse it in water for forced cooling.

4. Under no circumstances should the reactor be opened while it is at high temperature and under pressure.

5. When opening the reactor, avoid positioning any body parts directly in front of the reactor lid to prevent injury from falling objects.

Conclusion

High-pressure reactors, as highly efficient and cost-effective chemical reaction equipment, are widely used across various industries, including chemicals, pharmaceuticals, petroleum, and food processing. They not only accelerate reactions under high-temperature and high-pressure conditions to enhance production efficiency but also meet the stringent requirements for reaction conditions in specific fields. Despite their lower output, need for additional equipment, and maintenance, their advantages in small-batch production and high-quality requirements make them an indispensable piece of equipment. With the continuous advancement of technology, the application prospects for high-pressure reactors will become even broader, providing greater support for innovation and development across various industries.
