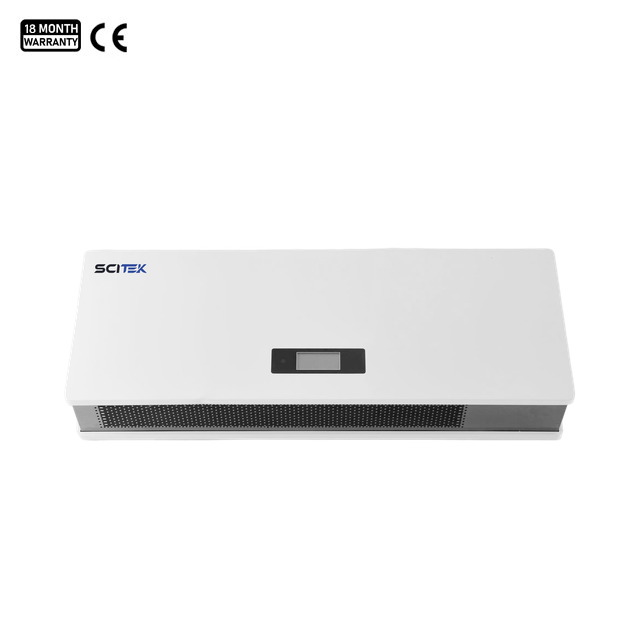

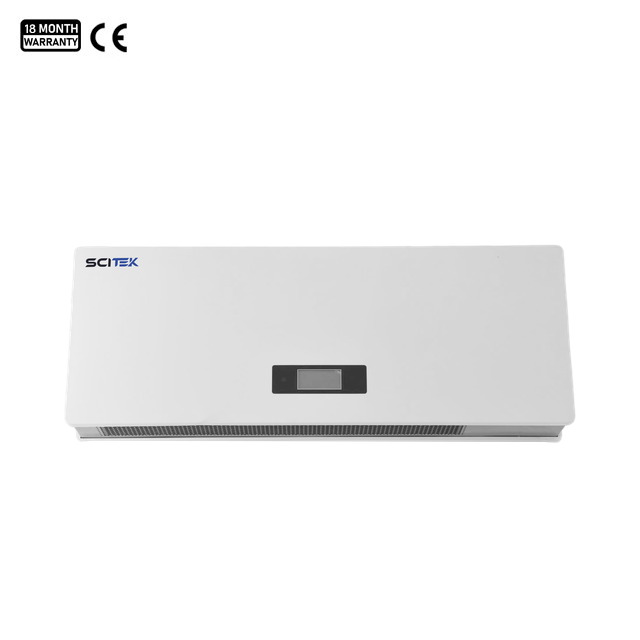

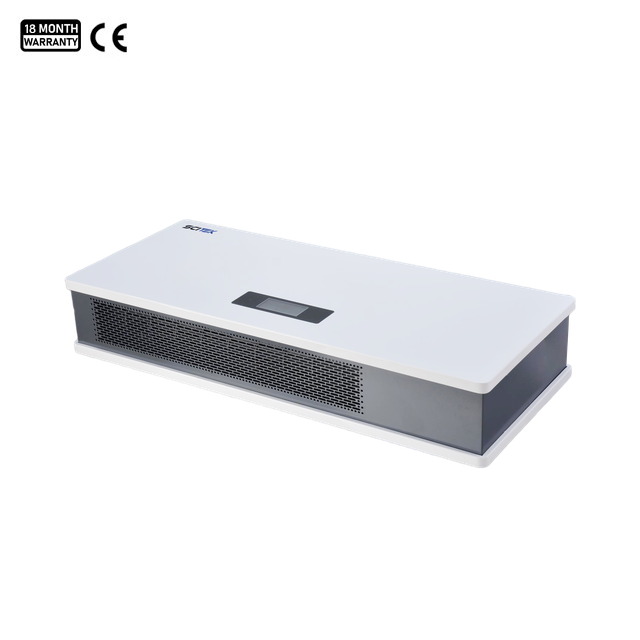

Wall-mounted Air Disinfector

Model: ST-UVB600; ST-UVB1000; ST-UVB1300

Installation: Wall-mounting
Air Flow (m³/h), Based on ACH=10: 600; 1000; 1300
Ozone Concentration (mg/m³): <0.003
Disinfection Time (min): 60
Availability:
Quantity:

Wall-mounted Air Disinfector Application:

Wall-mounted air disinfector feature a human-machine coexistence safety characteristic, effectively cutting off airborne transmission routes while protecting vulnerable populations. Widely used in places requiring continuous and dynamic disinfection, such as medical and health institutions, educational and childcare facilities, public and commercial spaces, and densely populated production areas.

Wall-mounted Air Disinfector Feature:

  1. 4-inch display screen, intuitive operation, and remote control support.

  2. Continuous operation in occupied environments, achieving dynamic real-time disinfection.

  3. "Top intake, bottom exhaust" air circulation mode optimizes indoor airflow.

  4. High-efficiency, long-life UVC ultraviolet lamps with a modular design for convenient replacement and maintenance.

  5. 3-speed fan adjustment; the remote control magnetically attaches to the unit surface to prevent loss.

  6. High-quality galvanized steel shell with excellent anti-aging and high durability.

  7. Supports manual and scheduled modes, perfectly meeting diverse customer needs.

  8. Scheduled mode supports up to 9 automatic operation settings.

  9. Intelligent maintenance reminders automatically accumulate working time and send maintenance reminders when needed.

  10. Comprehensive fault alarms for the ultraviolet disinfection module, fan, temperature and humidity sensors, etc.

  11. The cover can be fully lifted upwards and has a limit switch to automatically cut off the power for convenient maintenance.

Wall-mounted Air Disinfector Specification:

Model

ST-UVB600

ST-UVB1000

ST-UVB1300

Installation

Wall-mounting

Air Flow (m³/h), Based on ACH=10

600

1000

1300

Applicable space (m³)

60

100

130

Ozone Concentration (mg/m³)

<0.003

Disinfection Time (min)

60

Pre-filter (mm)

622×105×10

(388×105×10)×2

(388×105×10)×2

Honeycomb Filter Size (mm)

602×153×20

(402×153×20)×2

(402×153×20)×2

UV Lamp

36W×4

24W×8

24W×8

Noise Level

55 dB(A)

Power Supply

AC 220/110V, 50/60Hz

Consumption (W)

155

250

255

External Size (W×D×H) (mm)

900×380×160

1005×380×160

1005×380×160

Shipping Size (W×D×H)(mm)

970×450×230

1075×450×230

1075×450×230

G.W. (kg)

20

23

23
