An economical analytical instrument with optional RS232 interface output and excellent photometry accuracy. Widely used in many fields such as medical testing, food, petrochemical industry, environmental protection and monitoring, etc.
Visible Spectrophotometer Features:
LCD display directly displays the standard curve and test data. The host can store the test data and optionally print it with a printer.
USB data output interface, optional professional software for online operation.
Built-in analysis software, standard curve can be used for related tests, it can perform continuous testing and store 200 sets of data, and can store 100 standard curves, which can be named directly by the user.
Uniquely designed optical system, high-performance 1200 lines/mm grating and imported receiver.

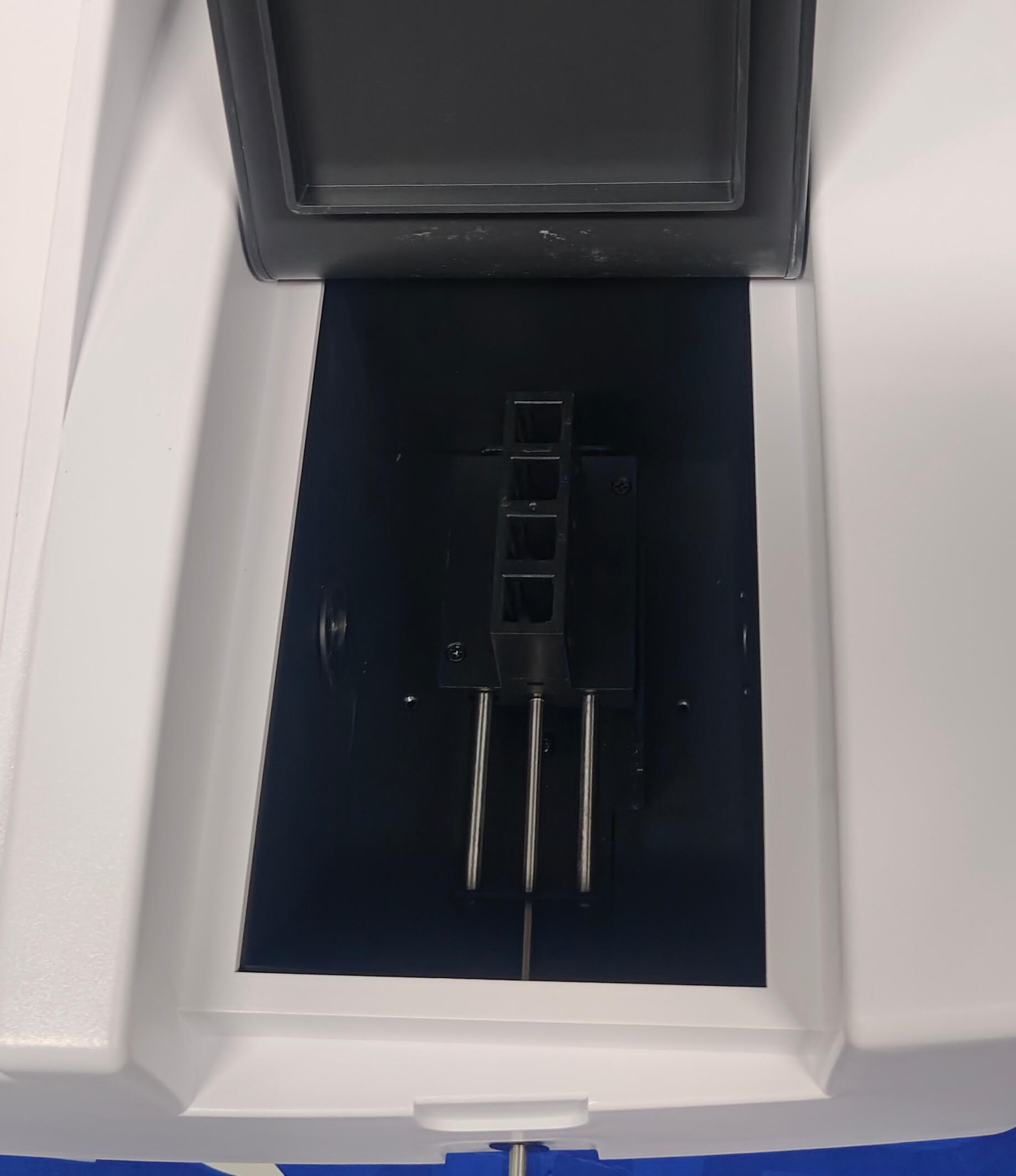

The large sample room can accommodate cuvettes of various sizes from 5 to 100mm.
Ultra-thin buttons, simple and convenient to operate.
Optional disc rotating automatic eight-link sample holder, with good reliability and centered light spot.
Visible Spectrophotometer Specifications:
Model
SP-V723N
SP-V723G
Optical System
Double beam ratio detection
Wavelength Range
320-1100nm
Spectral Bandwidth
2nm
4nm
Wavelength Accuracy
±0.5nm
±1nm
Wavelength Repeatability
0.2nm
0.5nm
Photometric Accuracy
0.3%T
0.5%T
Photometric Repeatability
0.15%T
0.2%T
Photometric Range
0-200%T, -3-3A
Photometric Mode
T,A,C
Stray Light
≤0.05%T@360nm
≤0.1%T@360nm
Stability
±0.001A/h@500nm
±0.002A/h@500nm
Display
128×64-bit LCD display
Sample Rack
Standard 1CM sample rack
Detector
Photodiode
Light Source
Tungsten lamp
Power Supply
AC 220/110V, 50/60Hz
External Size(WxDxH)(mm)
510x420x240
Shipping Size(WxDxH)(mm)
680x560x320
N.W./G.W. (kg)
12/16

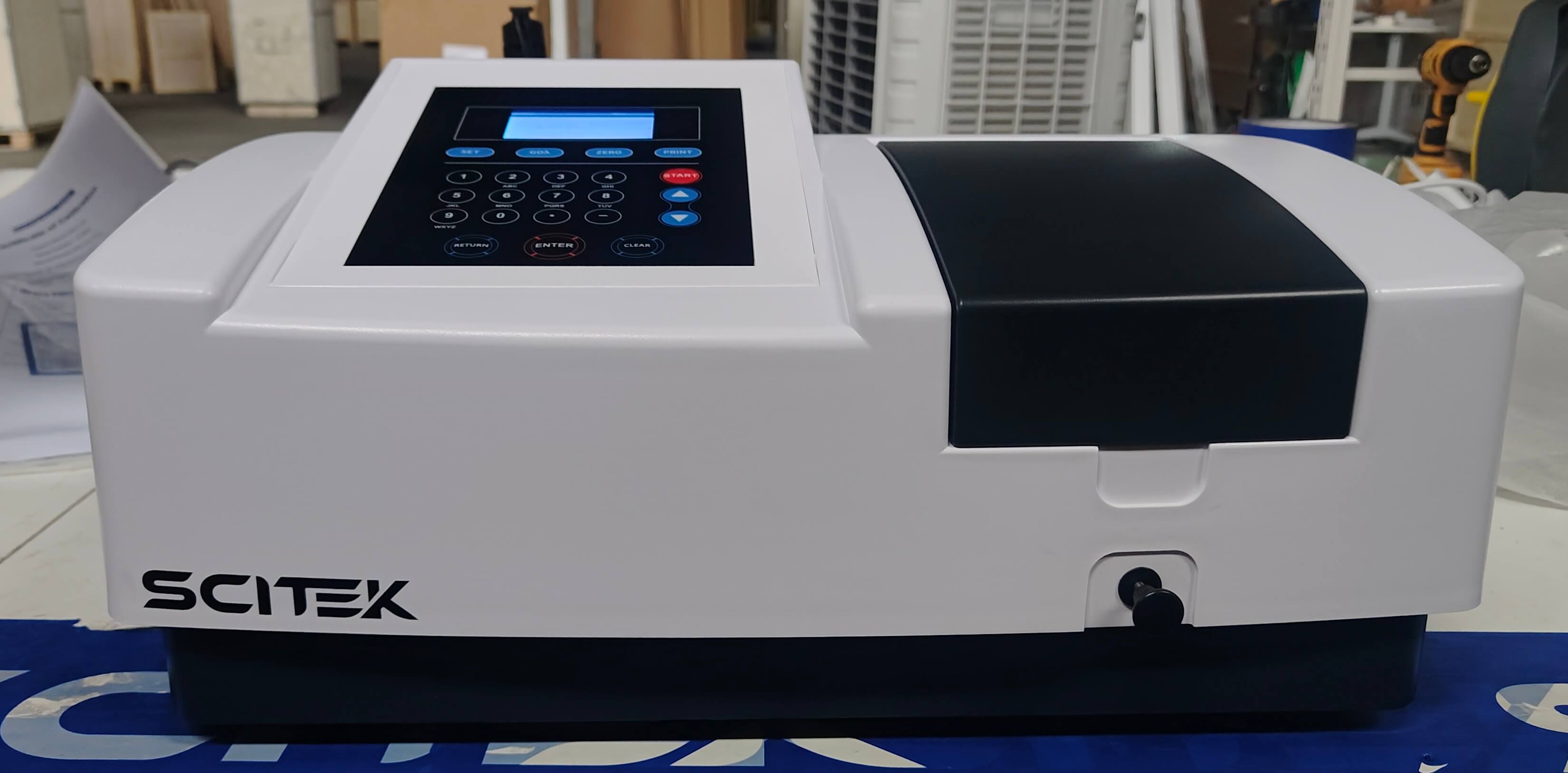

Details of Visible Spectrophotometer (SP-V723N):

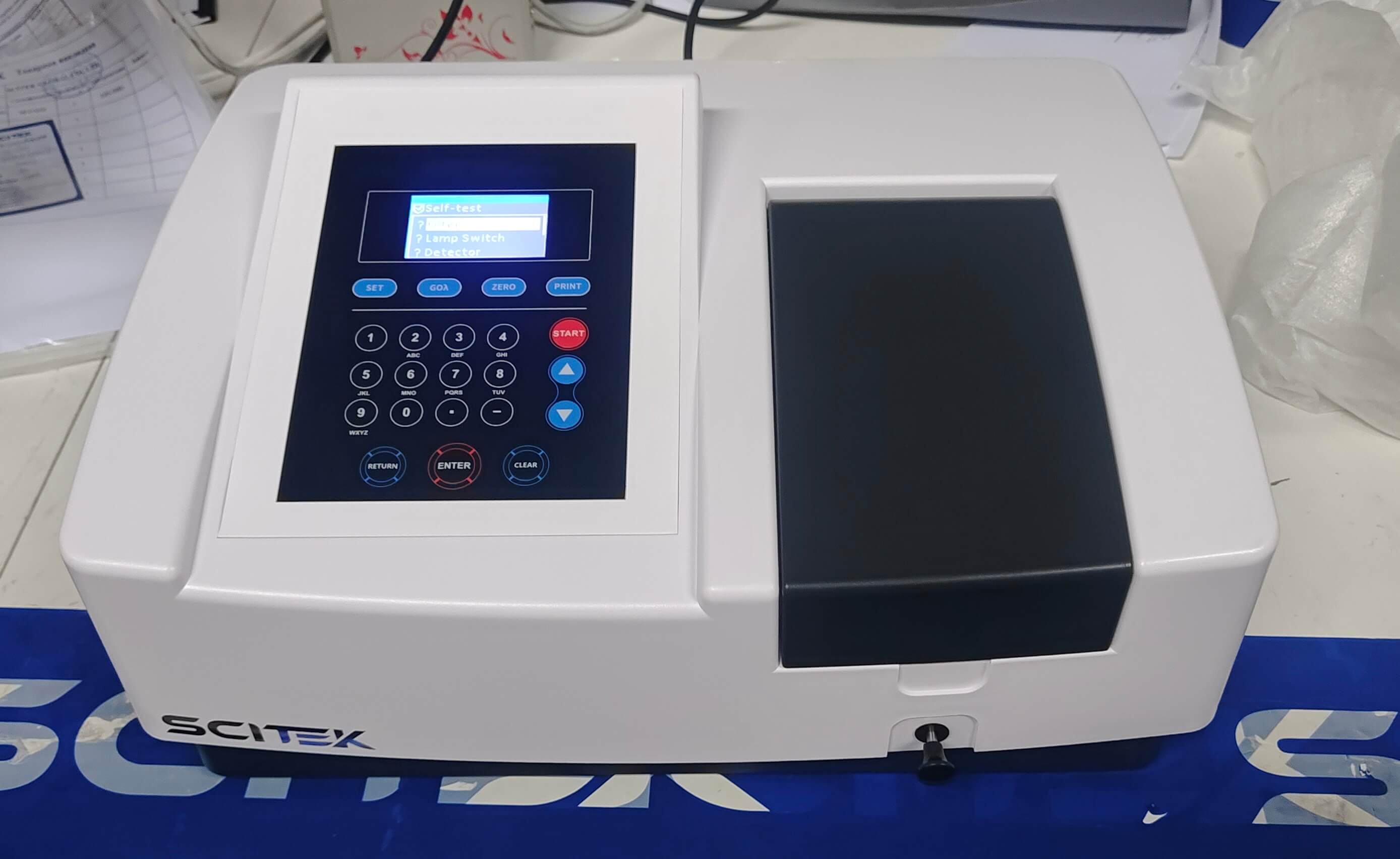

The display shows test data such as absorbance, concentration or wavelength, and the controls include functions such as on/off, mode selection, wavelength adjustment and calibration.

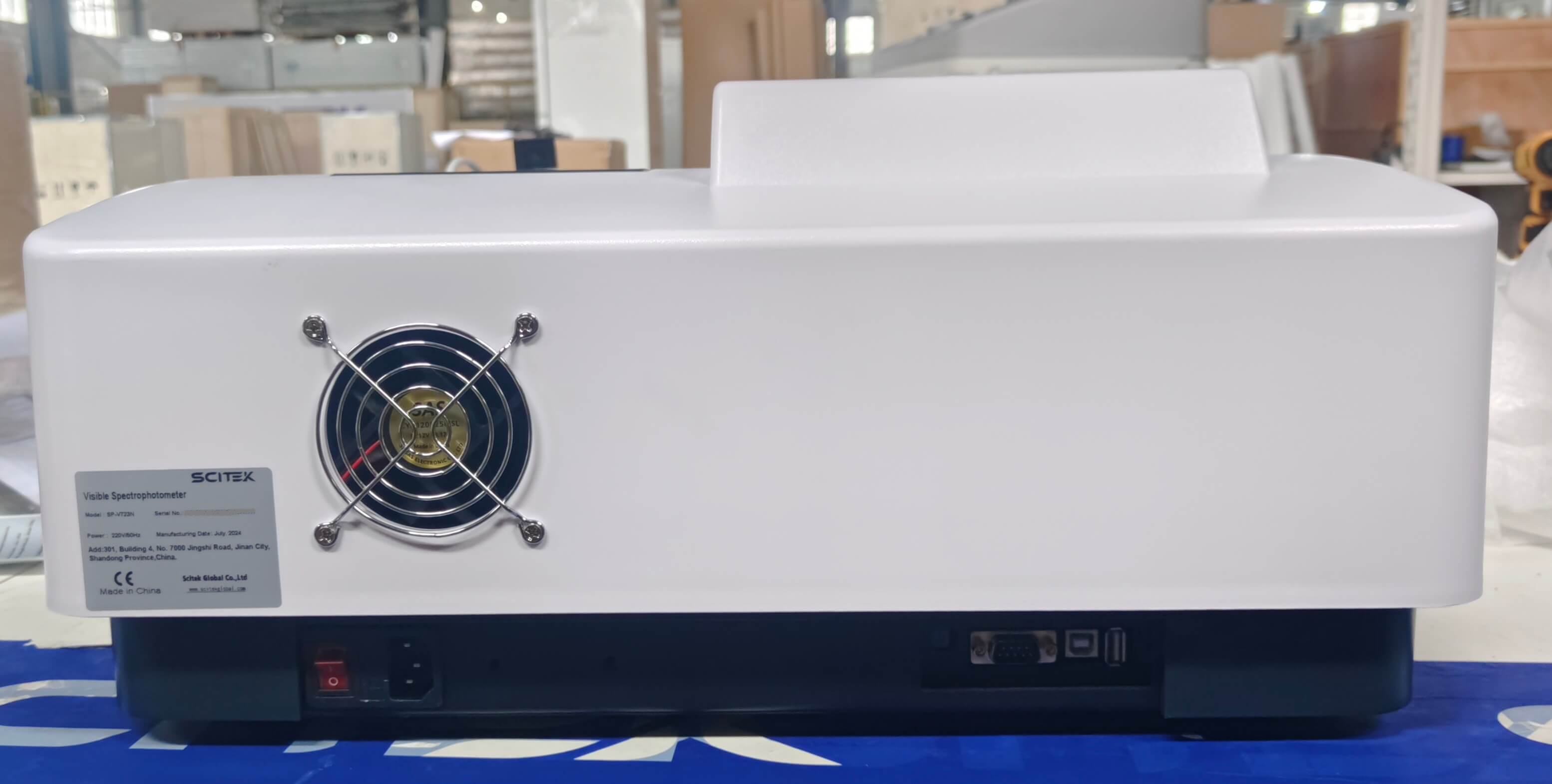

Heat sink to dissipate heat during prolonged operation

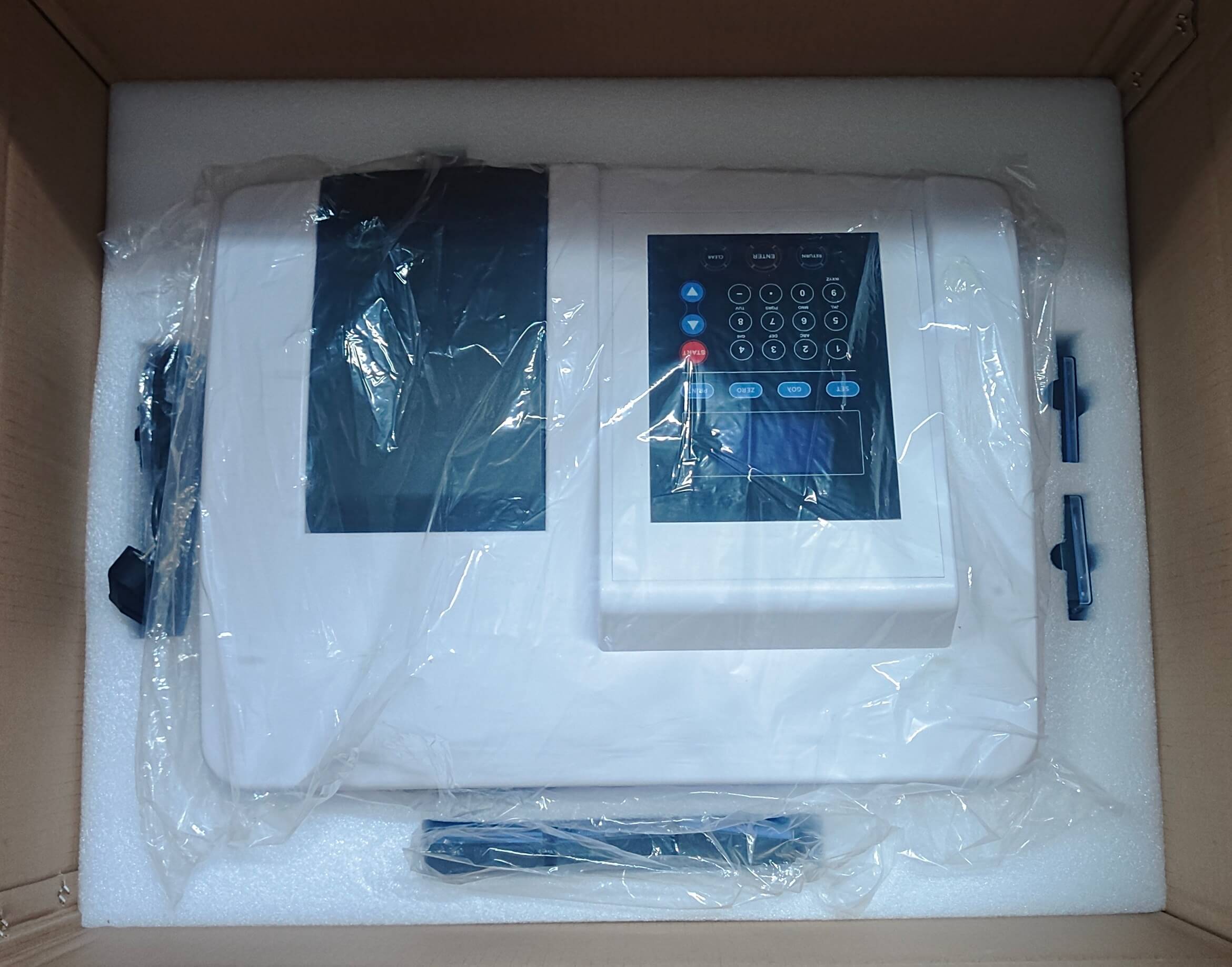

Use foam to cushion the instrument for protection.
An economical analytical instrument with optional RS232 interface output and excellent photometry accuracy. Widely used in many fields such as medical testing, food, petrochemical industry, environmental protection and monitoring, etc.
Visible Spectrophotometer Features:
LCD display directly displays the standard curve and test data. The host can store the test data and optionally print it with a printer.
USB data output interface, optional professional software for online operation.
Built-in analysis software, standard curve can be used for related tests, it can perform continuous testing and store 200 sets of data, and can store 100 standard curves, which can be named directly by the user.
Uniquely designed optical system, high-performance 1200 lines/mm grating and imported receiver.
The large sample room can accommodate cuvettes of various sizes from 5 to 100mm.
Ultra-thin buttons, simple and convenient to operate.
Optional disc rotating automatic eight-link sample holder, with good reliability and centered light spot.
Visible Spectrophotometer Specifications:
Model
SP-V723N
SP-V723G
Optical System
Double beam ratio detection
Wavelength Range
320-1100nm
Spectral Bandwidth
2nm
4nm
Wavelength Accuracy
±0.5nm
±1nm
Wavelength Repeatability
0.2nm
0.5nm
Photometric Accuracy
0.3%T
0.5%T
Photometric Repeatability
0.15%T
0.2%T
Photometric Range
0-200%T, -3-3A
Photometric Mode
T,A,C
Stray Light
≤0.05%T@360nm
≤0.1%T@360nm
Stability
±0.001A/h@500nm
±0.002A/h@500nm
Display
128×64-bit LCD display
Sample Rack
Standard 1CM sample rack
Detector
Photodiode
Light Source
Tungsten lamp
Power Supply
AC 220/110V, 50/60Hz
External Size(WxDxH)(mm)
510x420x240
Shipping Size(WxDxH)(mm)
680x560x320
N.W./G.W. (kg)
12/16
Details of Visible Spectrophotometer (SP-V723N):
The display shows test data such as absorbance, concentration or wavelength, and the controls include functions such as on/off, mode selection, wavelength adjustment and calibration.
Heat sink to dissipate heat during prolonged operation
Use foam to cushion the instrument for protection.
